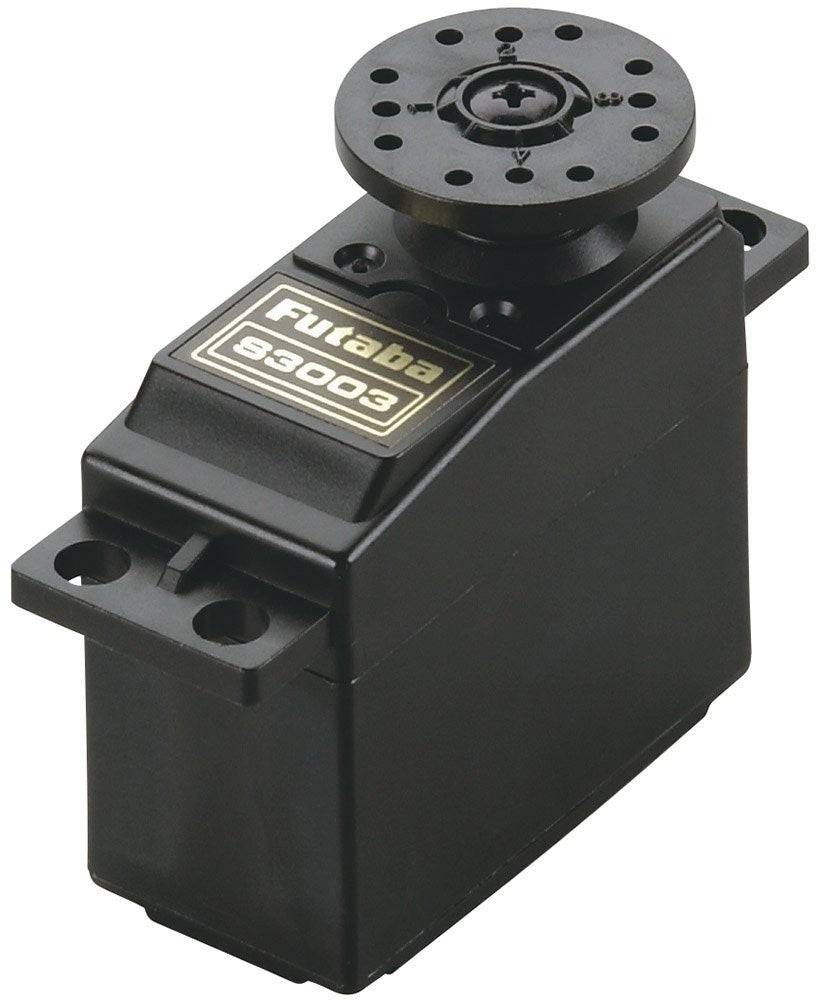

Futaba S3003 Standard Servo Motor 3.2 KG Torque for Arduino /Raspberry-Pi/Robotics - MR033

Futaba S3003 Standard Servo Motor 3.2 KG Torque for Arduino /Raspberry-Pi/Robotics - MR033

SKU:MR033

497 in stock

Regular price Rs. 250.00
Regular price Sale price Rs. 250.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description :

Futaba 37.2g servos are your easiest and most efficient way to upgrade your Futaba system. No other system provides you access to as many different sizes, shapes, and functions as Futaba. The performance and reliability of our servos have made them the favorite choice of professionals including top RC competition specialists and motion picture special effect artists. SMT Construction - Surface Mount Technology improves reliability in applications where there is vibration. Impact Resistant, Fuelproof Case - High impact plastic is designed to withstand minor crashes and the effects of model fuel. Through-the-hole Circuit Board Plating - Eliminates the need for wires or leads. Heavy Duty Output Shaft - Designed not to break, and offers versatility when installing the servo horn.

Specifications:

  • Speed: 0.23 sec/60° @ 4.8V; 0.19 sec/60° @ 6V
  • Torque: 44 oz-in (3.2 kg-cm) @ 4.8V; 57 oz-in (4.1 kg-cm) @ 6V

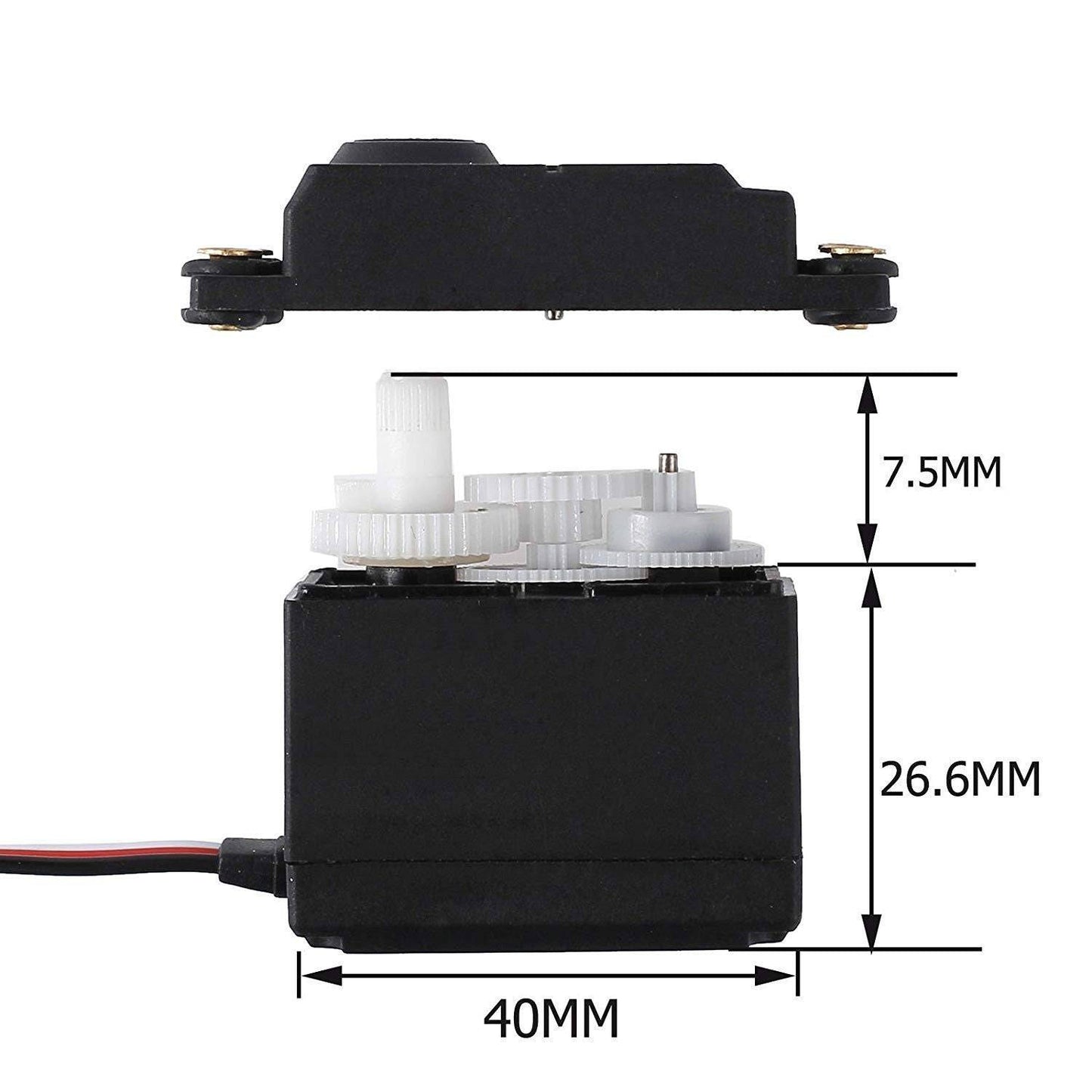

  • Dimensions: 1.6 x 0.8 x 1.4 in (1-9/16 x 13/16 x 1-7/16 in) (40 x 20 x 36 mm)
  • Weight: 1.3 oz (37 g)

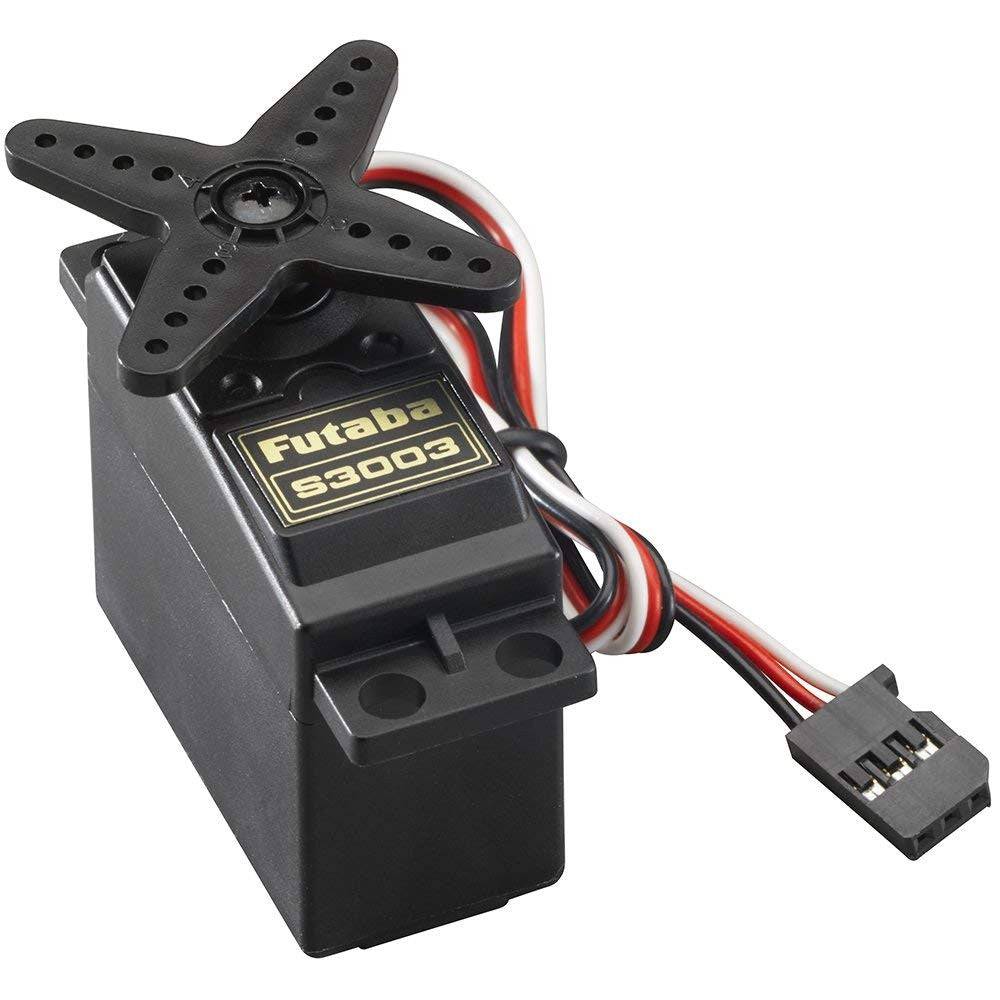

  • Connector: "J" type with approx. 5 in lead

Features:

  • SMT Construction - Surface Mount Technology improves reliability in applications where there is vibration
  • Impact Resistant, Fuelproof Case - High impact plastic is designed to withstand minor crashes and the effects of model fuel
  • Through-the-hole Circuit Board Plating - Eliminates the need for wires or leads
  • Heavy Duty Output Shaft - Designed not to break, and offers versatility when installing the servo horn
  • Nylon gears

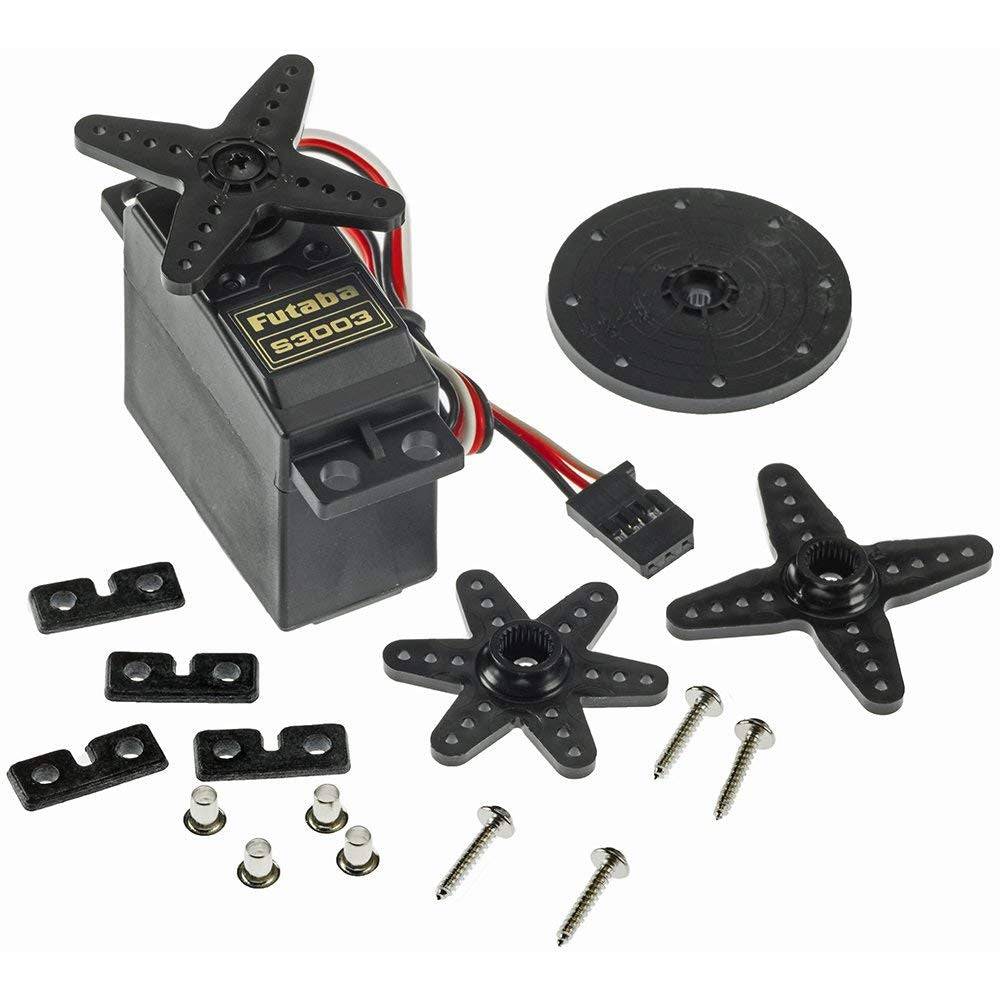

    Package Included:

    • 1x S3003 standard servo
    • 4x Brass eyelets
    • 4x Black rectangular rubber grommets
    • 4x Servo mount screws (4)
    • 1x Servo wheel 1.375 in (35 mm) in diameter
    • 1x X-shape servo arm 1.5 in (38 mm) across
    • 1x Star shaped arm 1.25 in (32 mm) across
