- High forward surge current capability
- Ideal for printed circuit board
- High temperature soldering guaranteed:
- 260°C/10 seconds, 0.375' (9.5mm) lead length,
- 5 lbs (2.3kg) tension
- This series is UL recognized under component index, File number E194718
- RoHS Compliant
Description :
A bridge rectifier makes use of four diodes in a bridge arrangement to achieve full-wave rectification.This is a widely used configuration, both with individual diodes wired as shown and with single component bridges where the diode bridge is wired internally.
Specification :
- Peak Reverse Voltage (Vrrm): 400V
- Max. RMS Bridge Voltage (Vrms): 280V
- Max. DC Blocking Voltage (Vdc): 400V
- Av. Forward Rectified Current (Io): 1.5A
- Maximum Reverse Current (Ir): 10µA
- Forward Volt Drop per Element (Vf): 1.0V
Features
- High forward surge current capability
- Ideal for printed circuit board
- High temperature soldering guaranteed:
- 260°C/10 seconds, 0.375' (9.5mm) lead length,
- 5 lbs (2.3kg) tension
- This series is UL recognized under component index, File number E194718
- RoHS Compliant
Package Included:

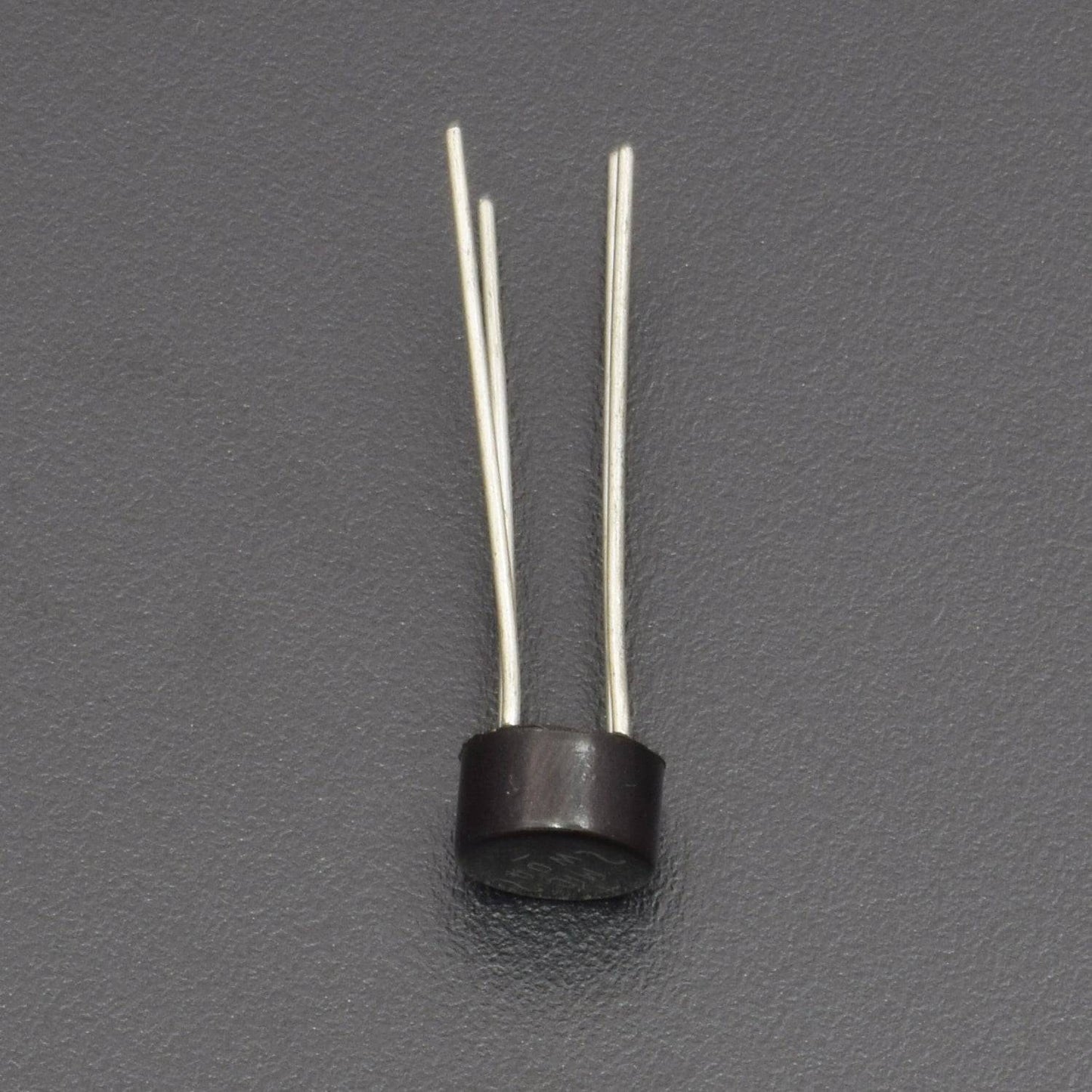

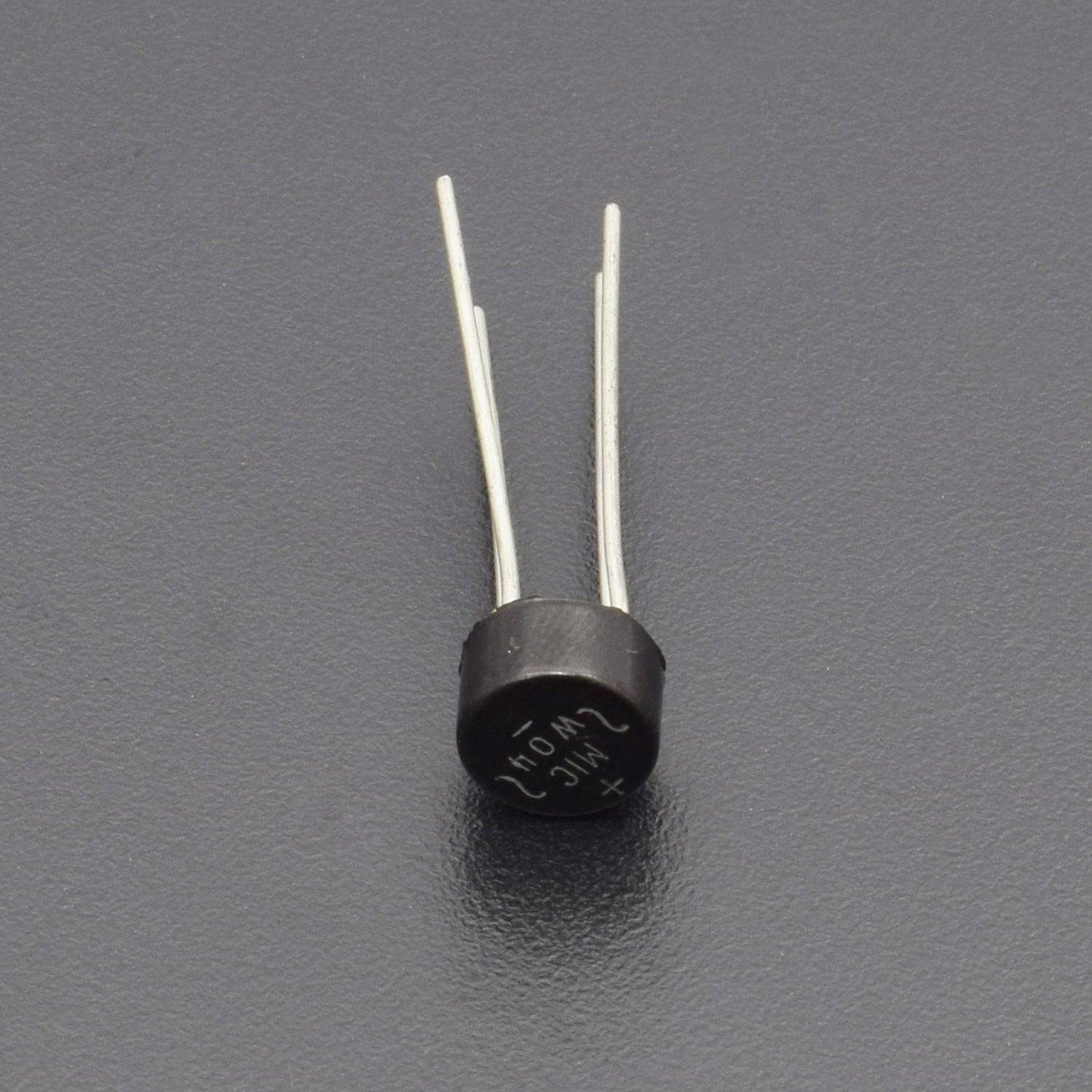

1 x Full-Wave Bridge Rectifier.
