- Good PRINT PACK design, very beautiful.
- 8 world of the three primary colors (red-green-blue) LED color, scanning control mode.
- Applicable for various platforms, such as 51 / AVR / AVR / ARM / for ARDUIN0 All kinds of platforms.
Description :

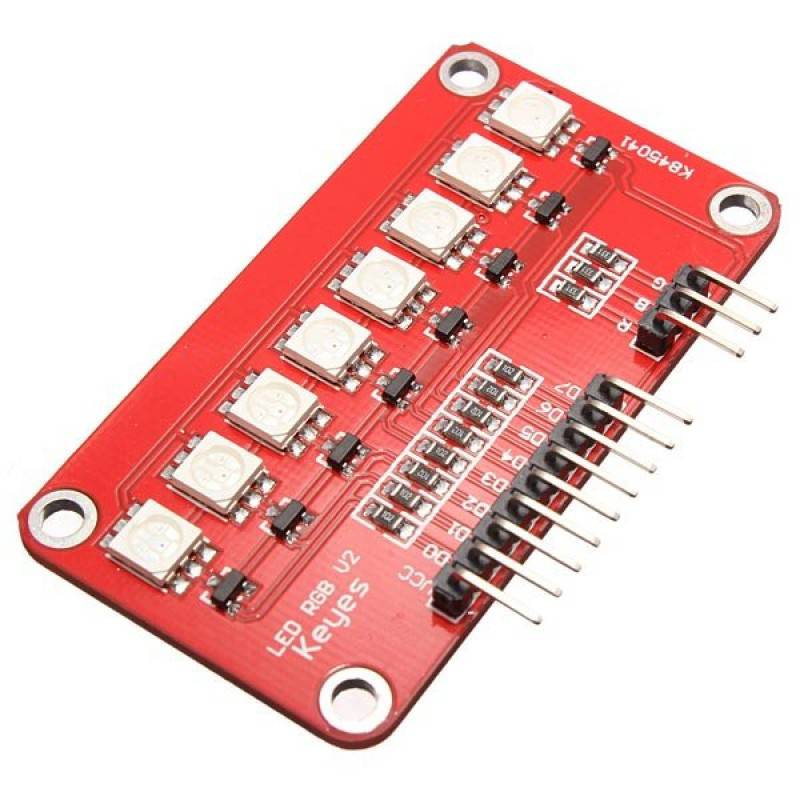

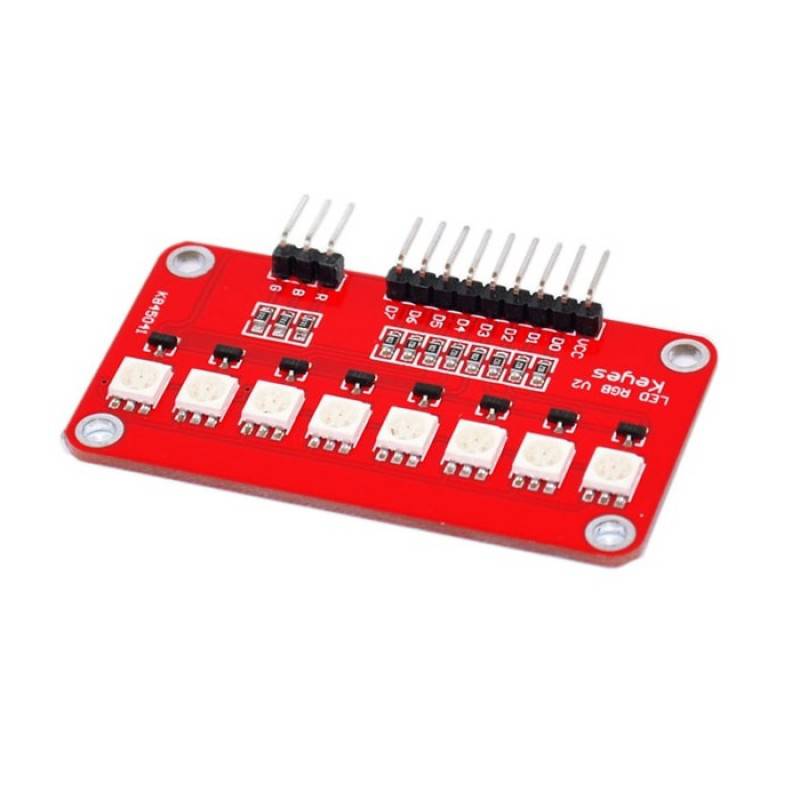

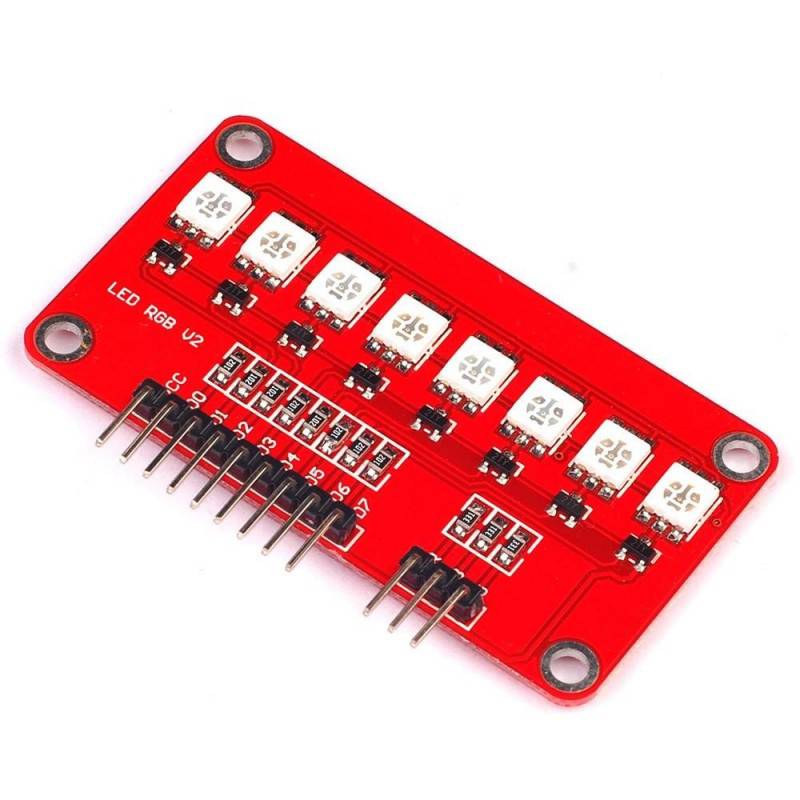

This is Full-Color LED Module / RGB V2 light water for ARDUIN0.
D0-D7 This 8-pin respectively to control 8 LED, so long as the number corresponding with pin connected just fine (as long as we turn this experiment received 2 to 9 pin on OK). Also, next three pin RGB, the need connected with GND, connected with R on the bright red, bright green on connecting with the G, B is connected with the bright blue, while even up on all three lights.
As same as the digital handset control mode, a little selection of control corresponds to LED lighting, the color selection control segment through various procedures can produce a variety of color effect changes.
Connection :
- Vcc ARDUIN0 5v
- D0 D7 Connect these to ARDUIN0 pins 2 to 9
- R, G, B Connect these to ARDUIN0 pins 10 to 12
Features :
- Good PRINT PACK design, very beautiful.
- 8 world of the three primary colors (red-green-blue) LED color, scanning control mode.
- Applicable for various platforms, such as 51 / AVR / AVR / ARM / for ARDUIN0 All kinds of platforms.
Package Included :
1 x Full Color LED Module / RGB V2 light water for ARDUIN0
