- Transmitter: FS-TH9X Upgrade with FS-RM003 2.4GHz Module
- Receiver: FS-IA10B
- Default Mode: Mode-2
- Input Power: 12V DC (1.5V x 8 AAA Battery)
- Bidirectional System
- Frequencies-Hopping
Description:
FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver has revolutionized the way people experience RC, and now this radio transmitter and Receiver can stand up to the top competitions.
This Upgraded9 channel with FS-RM003 2.4GHz Module TRANSMITTER’S AFHDS (automatic frequency hopping digital system), is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home. The system is specially developed for all the Radio control models, that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years, FLYSKY AFHDS is now considered to be one of the best systems available in the market.
2.4GHz is the standard of new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any ‘noise’ generated by the other electronic components on your helicopters – such as the brushless motor, Electronic speed controller, Servos and any metal to metal noise – eliminating interference and glitching that can affect traditional frequency system.
Specification:
- Brand Name: FlySky
- Item Name: FS-TH9X 2.4G 9CH Upgrade
- Channels: 9 Channels
- Model Type: quadcopter,glider, helicopter, airplane, also car or boat
- RF Range: 2.40-2.48GHz
- Bandwidth: 500Hz
- Band: 160
- RF Power: less than 20DB
- 2.4G System: AFHDS
- Modulation: GFSK
- Code Type: PPM/PCM
- Sensitivity: 1024
- LCD Type: 128 x 64 do
- Low Voltage Warning: yes(less than 9V)
- DSC Port: yes(3.5mm:output:PPM)
- Charger Port: yes
- Size: 180 x 220 x 70 mm
- Power: 12VDC or 8 x 1.5AA
- Weight: 670g
- Mode: Mode 2
- Control Range: 350-400m
Features:
- Transmitter: FS-TH9X Upgrade with FS-RM003 2.4GHz Module
- Receiver: FS-IA10B
- Default Mode: Mode-2
- Input Power: 12V DC (1.5V x 8 AAA Battery)
- Bidirectional System
- Frequencies-Hopping
- Omni-directional High Gain Antenna
- Low Power Consumption

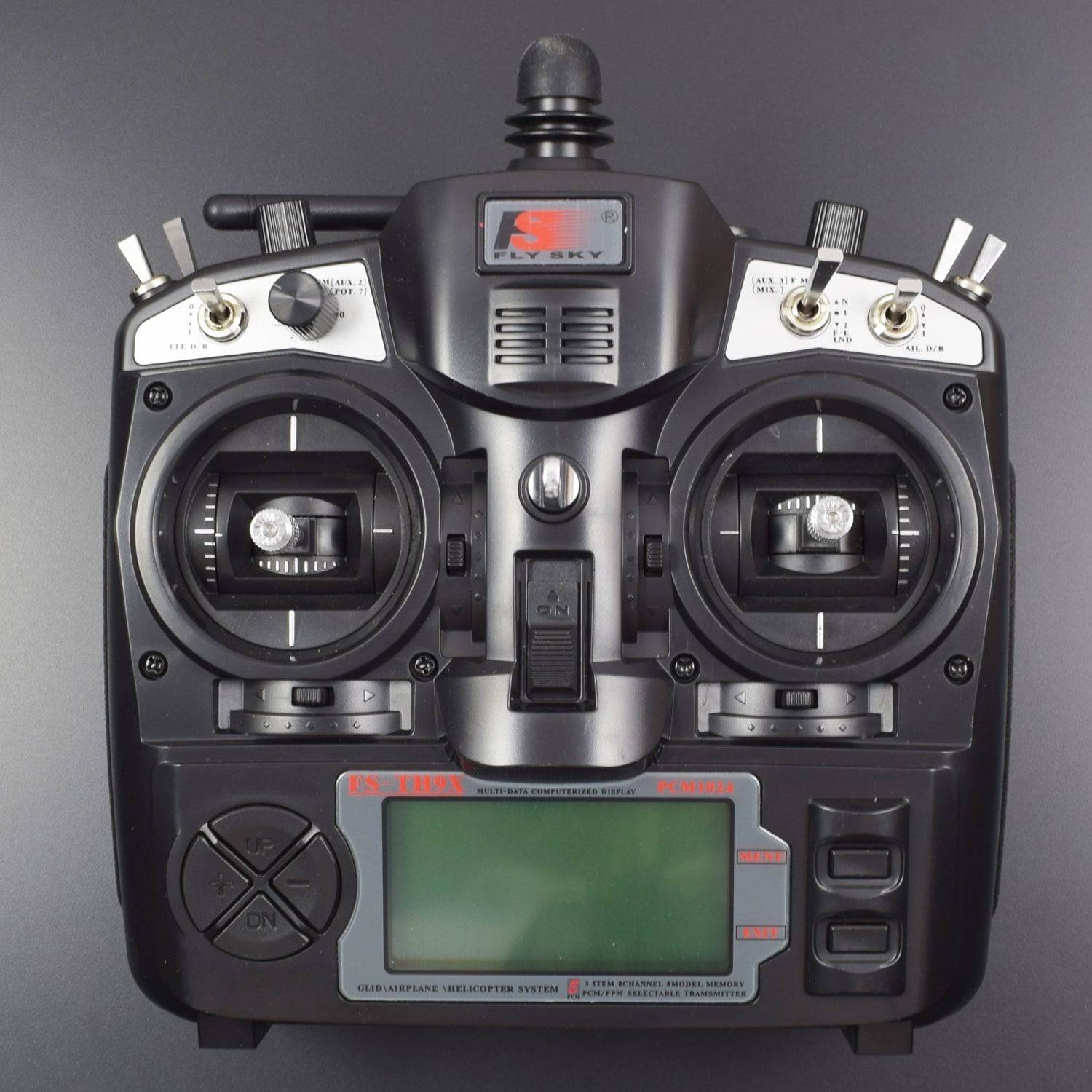

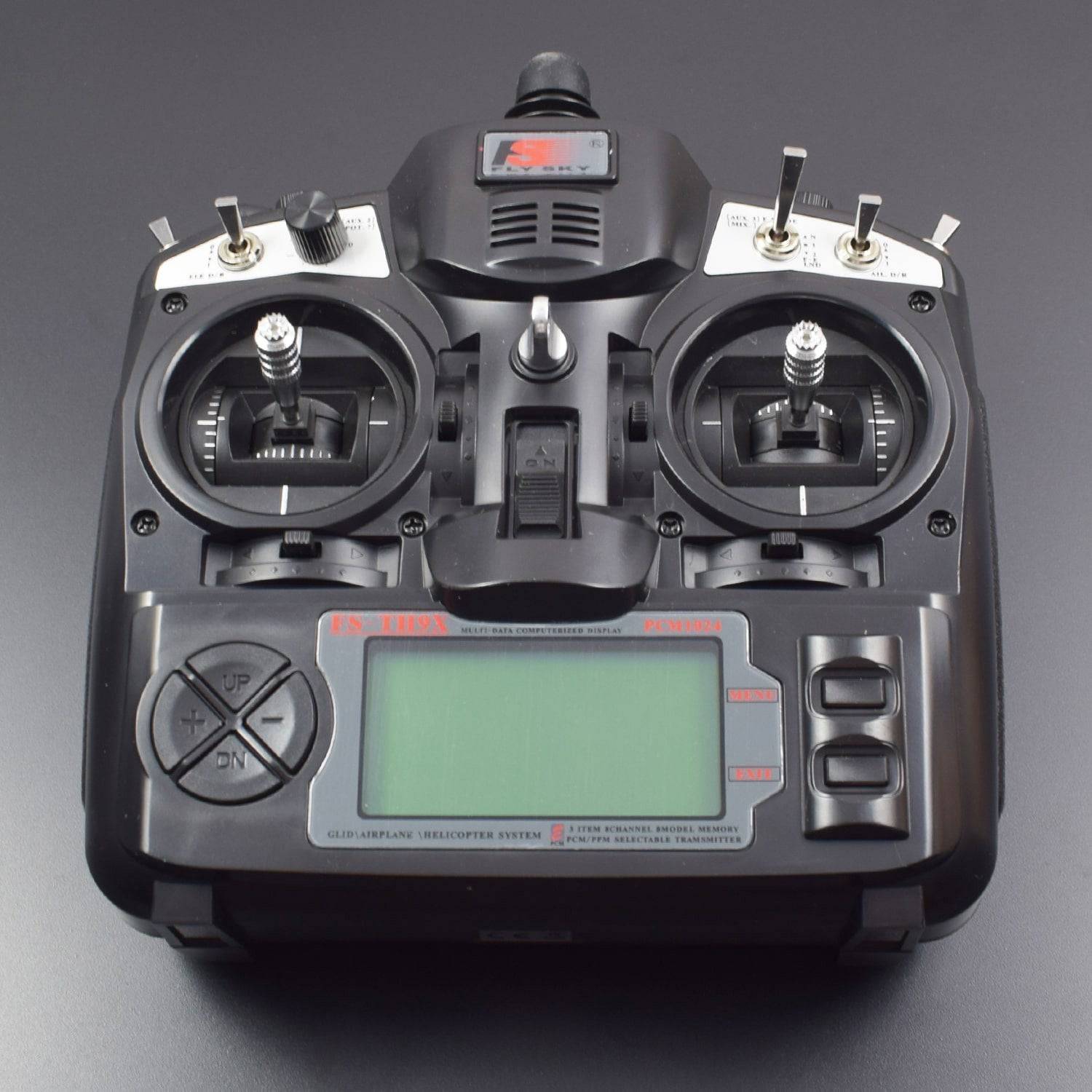

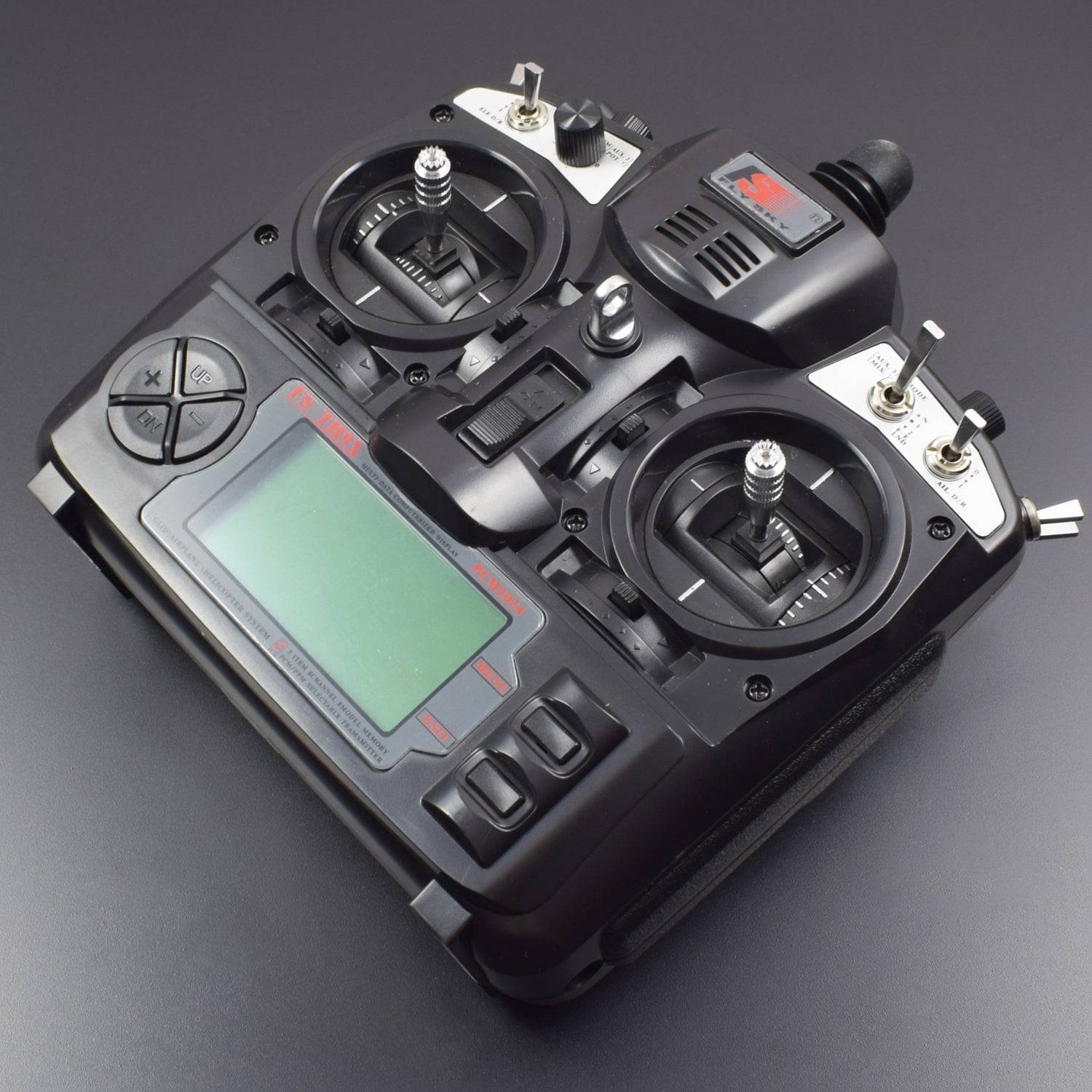

Transmitter Function:
- Throttle curves
- Pitch curves
- Endpoint adjustments
- Subtrim
- Swash AFR mixes
- Servo reversing
- Timer
- Dual rate
- Exponential
- Flaperons
- V-Tail mixing
- Elevons

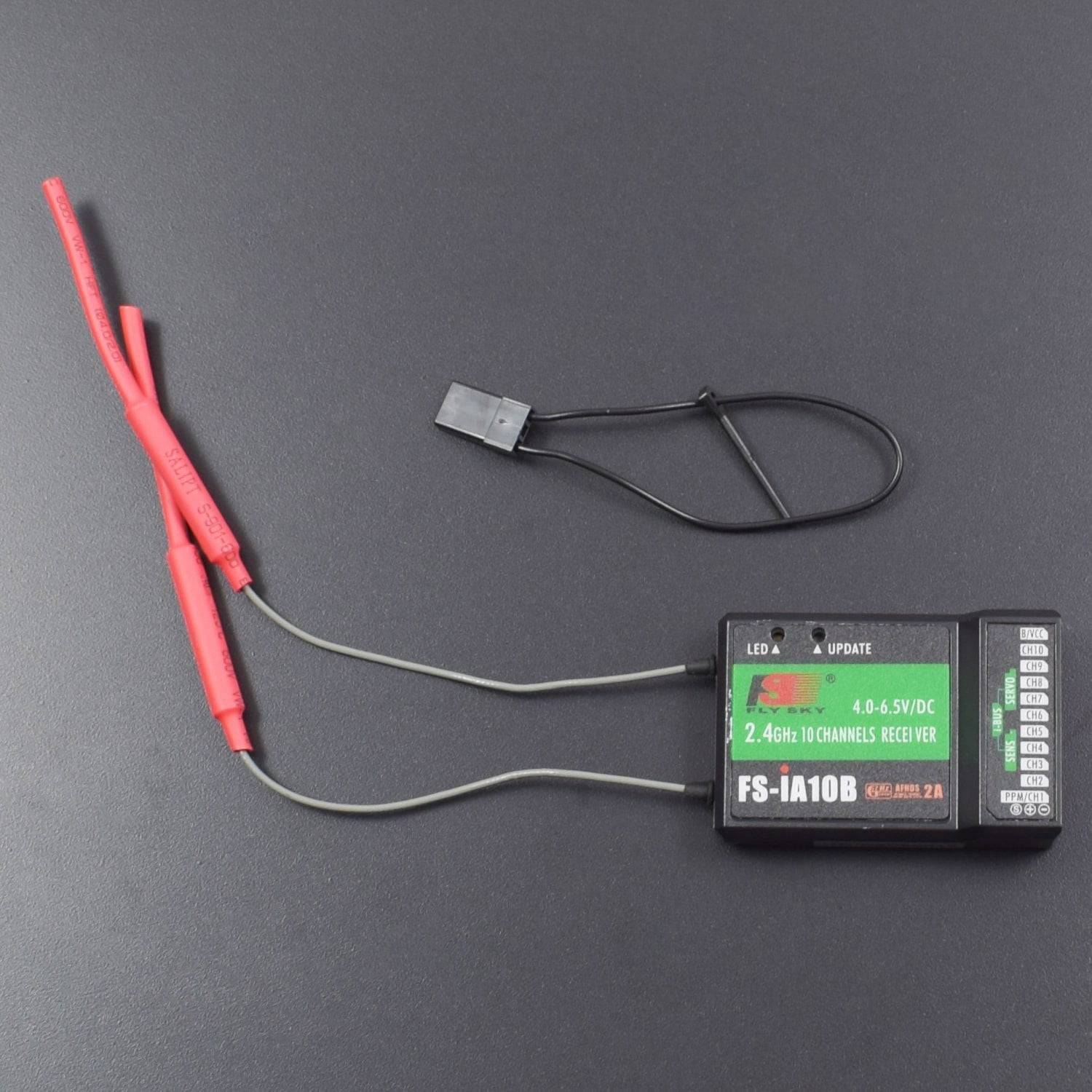

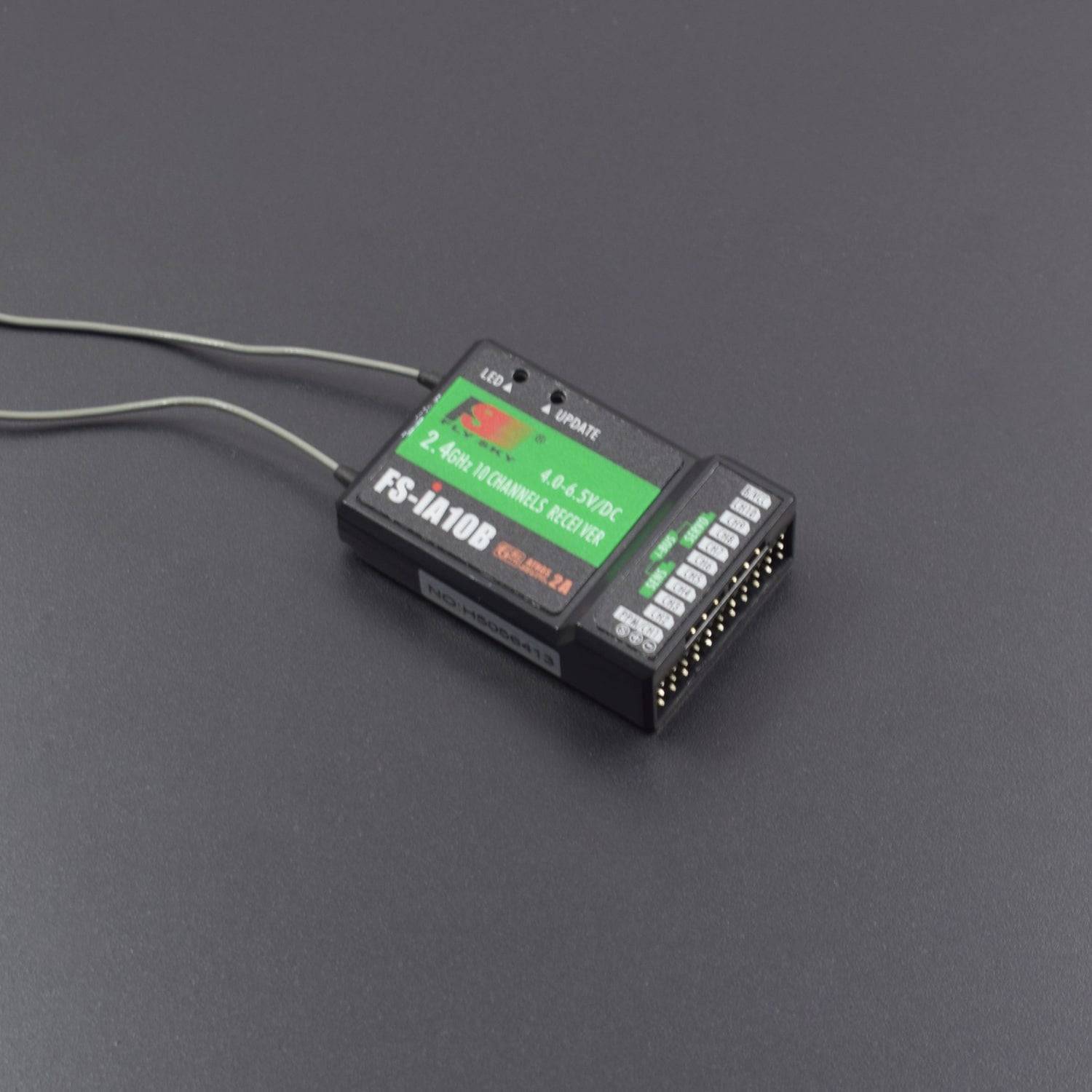

FS-IA10B Receiver Function:
- No. of Channels: 10
- Model Type: Fixed-Wing/Glider/Helicopter
- RF Range: 2.4055-2.475GHz
- RF Channel: 140
- RF Receiver Sensitivity: -105dBm
- Bandwidth: 500KHz
- 2.4GHz System: AFHDS 2A
- Modulation Type: GFSK
- Power: 4.0-6.5V DC
- Antenna Length: 26mm (Dual Antenna)
- Weight: 17.6g
- Size: 50.6*34.9*14.9mm
- i-BUS Port: Yes
- Data Acquisition Port: Yes
- Color: Black
- Certificate: CE0678, FCC
Package Included:

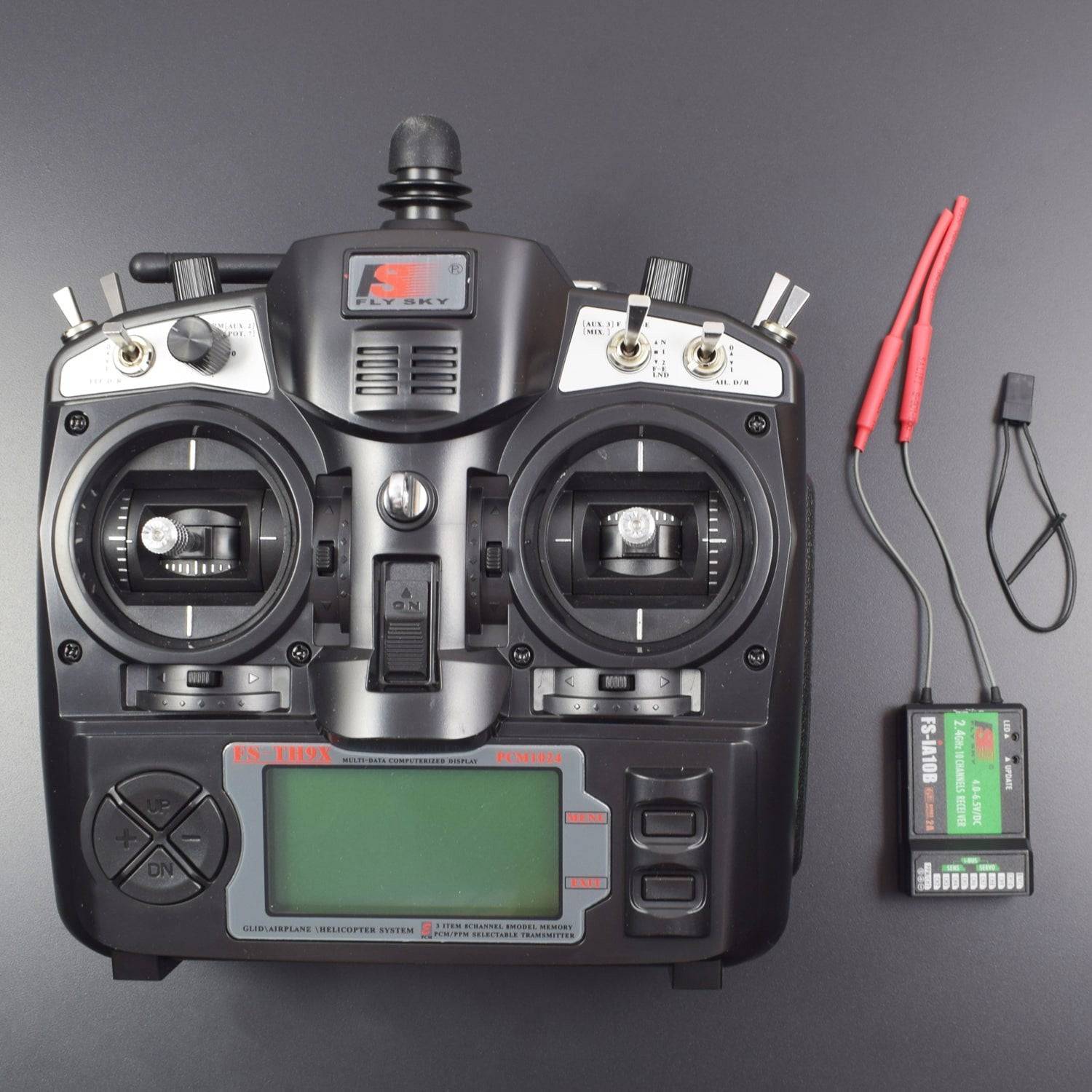

- 1 x FS-TH9X 2.4GHz 9CH Upgrade Transmitter
- 1 x FS-IA10B Receiver
- 1 x User Manual
