Description:

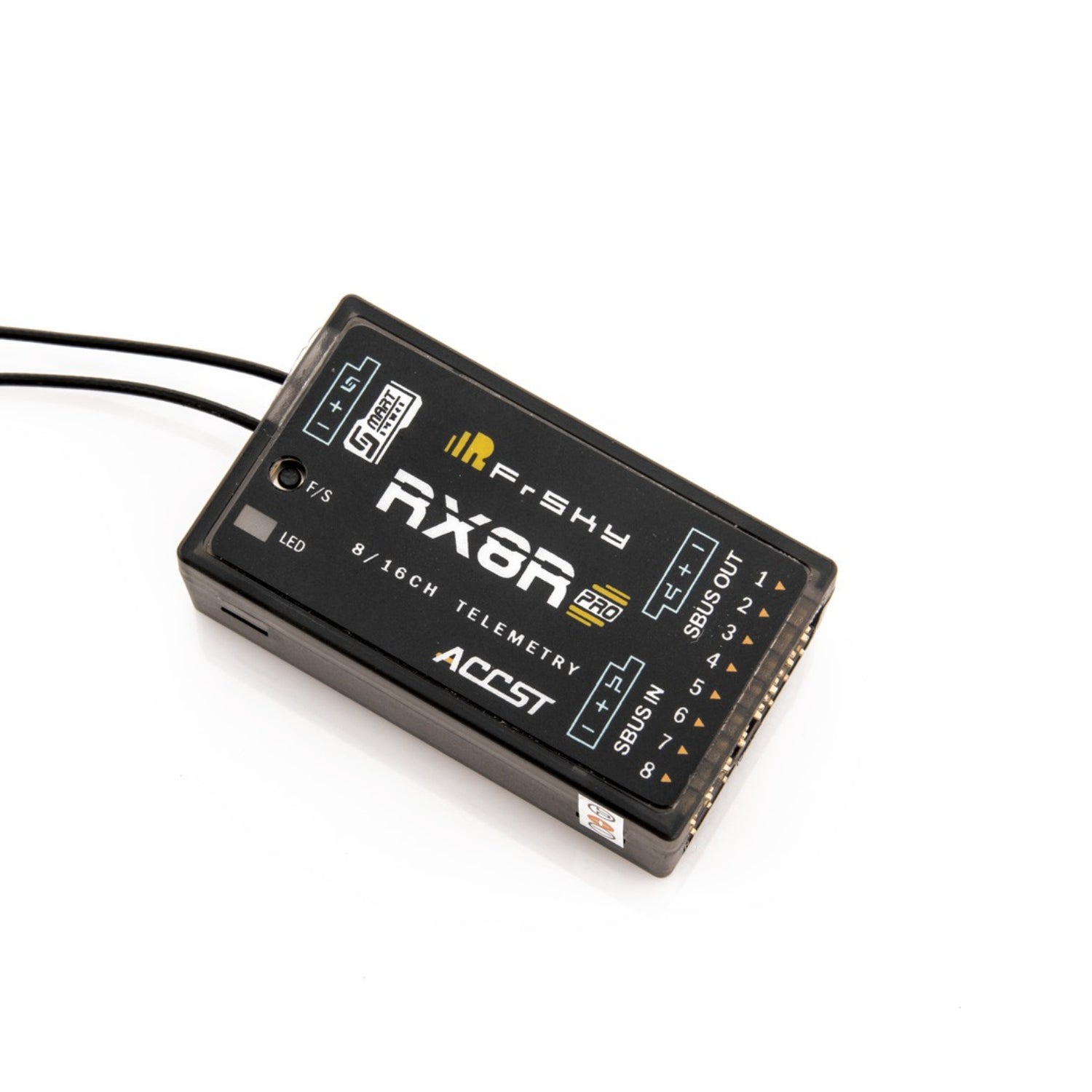

The FrSky X8R 8/16 Channel Receiver has all the same features including redundancy. The new ‘Pro’ version has higher precision and lower latency. Its deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high-speed mode. Another feature that is new with the RX8R Pro is the reduction of interference caused by the ignition process.
Specifications:
- Type: X8R Receiver
- Numbers of Channels: 16CH(1～8CH PWM or 9~16CH PWM from conventional channel outputs, 1~16CH from SBUS port)
- Servo Frame Rate: 9ms (HS— High-Speed Mode)/18ms (FS—Normal Speed Mode)
- Compatibility: FrSky transmitters/transmitter modules in D8/D16 mode
- With RSSI Output on Board: Analog DC 0~3.3V
- Operating Voltage Range: 3.5V~10V
- Operating Current: 100mA@5V
- Operating Range: full range (>1.5km)
Features:
- Strong anti-interference performance in the ignition process.
- Smart Port enabled and supports telemetry data transmission.
- Lower latency on the PWM output.
- Support redundancy function.
- Higher precision of PWM.
Package Included:
1 x FrSky X8R 8/16 Channel Receiver X8R Full Range Telemetry Receiver High Sensitivity Full Duplex Telemetry Receiver For RC Aircraft and Drones
