Description:
FrSky Smart Port Current Sensor-150A (FCS-150A) is a high-performance current measurement device designed for applications demanding up to 150 amps. This sensor provides real-time current monitoring, allowing users to gain valuable insights into their power systems and optimize performance.
A notable feature of the FCS-150A is the inclusion of an extra port on its PCB. This port enables users to daisy-chain the current sensor with other FrSky Smart Port Telemetry sensors. This capability allows for a more comprehensive telemetry setup, providing a wider range of data for analysis and optimization.
Specifications:
- Measurement Range: 0- 150A
- Accuracy: ≤1% @ 25℃
- Current consumption: 35mA @ 5V
- Maximum safe Current: 150A
- Maximum battery Voltage: 4- 10V
Features:
- Accurately measure real-time power consumption, great to help you optimize your setup
- Simply run the positive lead of your ESC battery wire through the sensor loop
- Works with all FrSky Smart Port receivers
- Connect other FrSky Telemetry sensors together with the FCS-150A
Package Included:

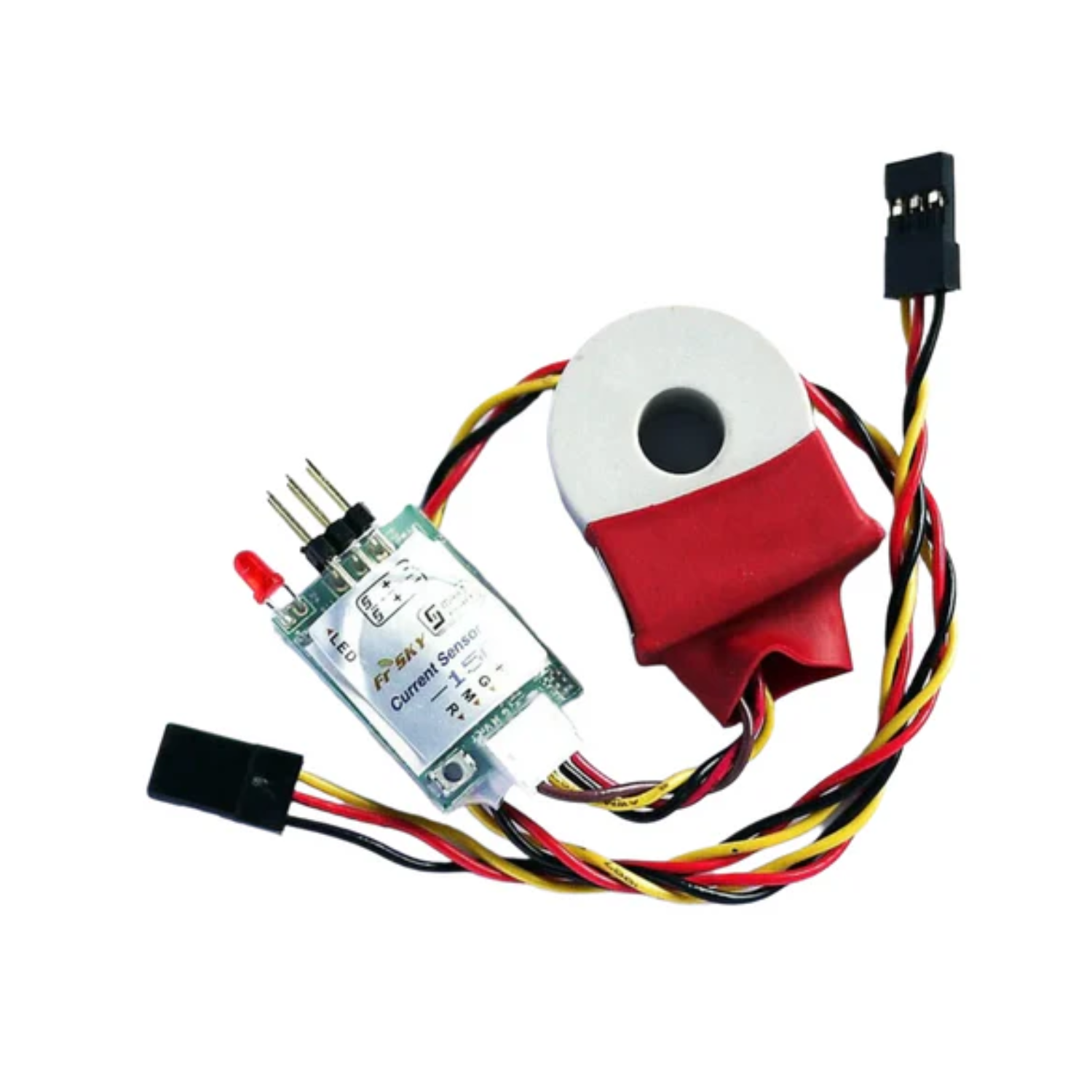

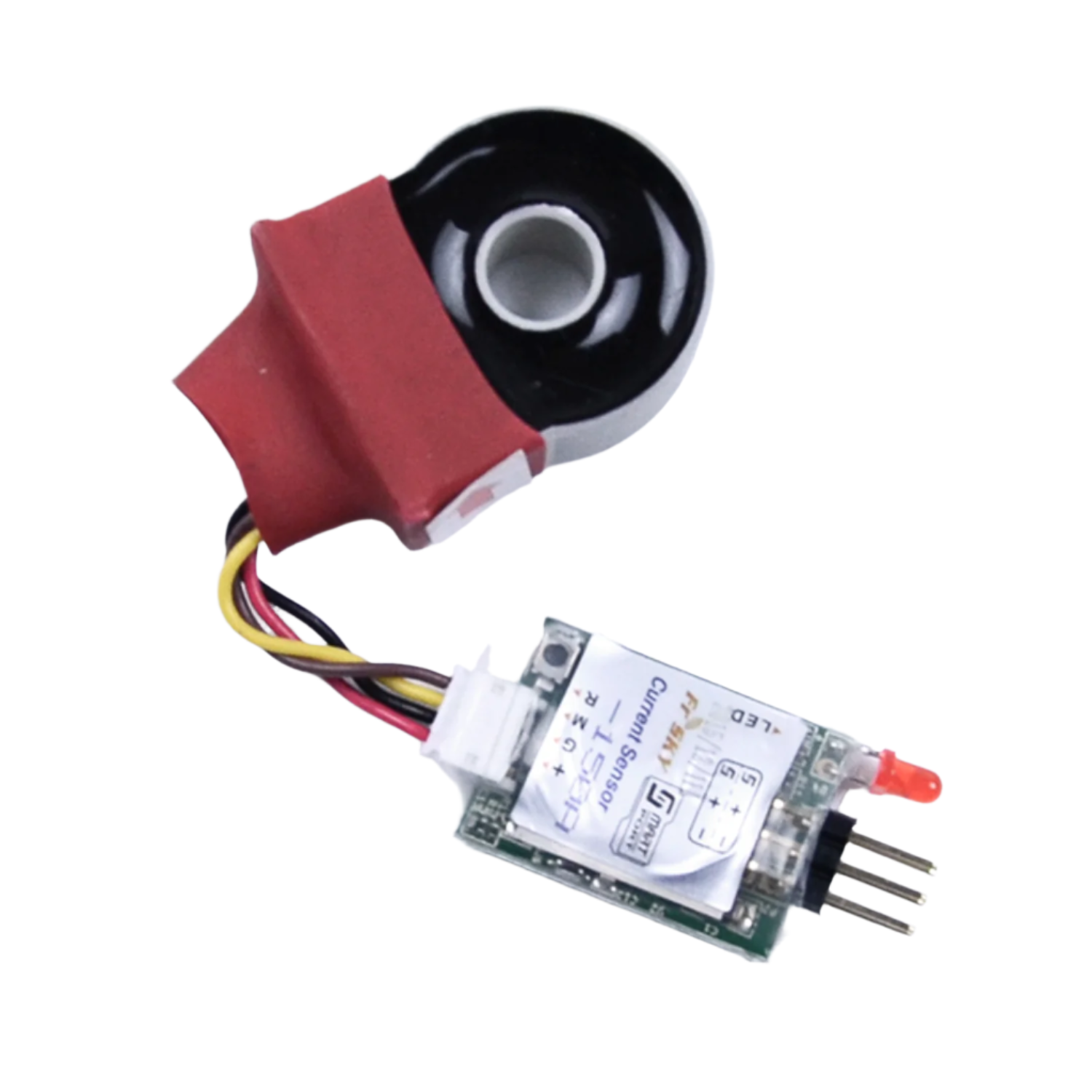

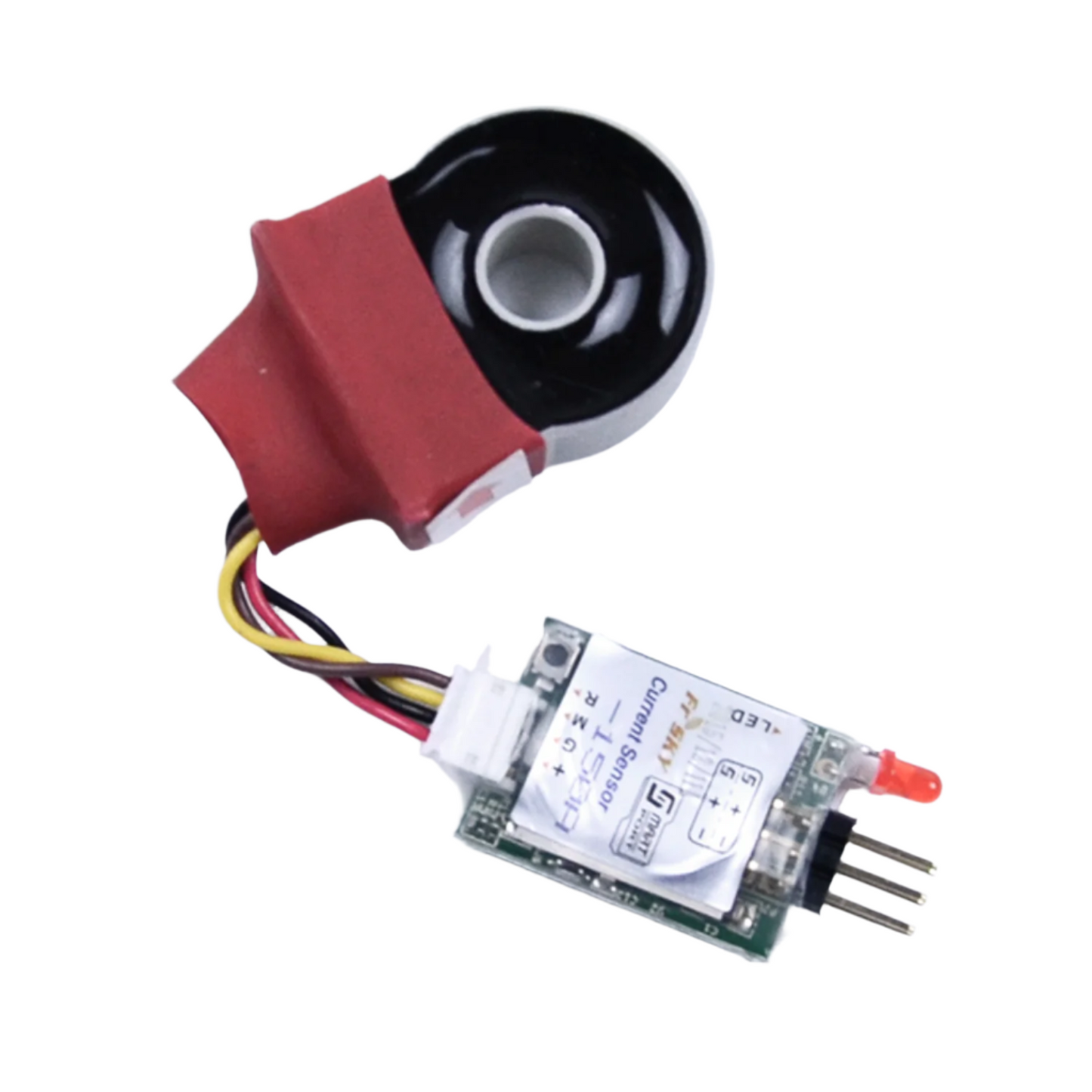

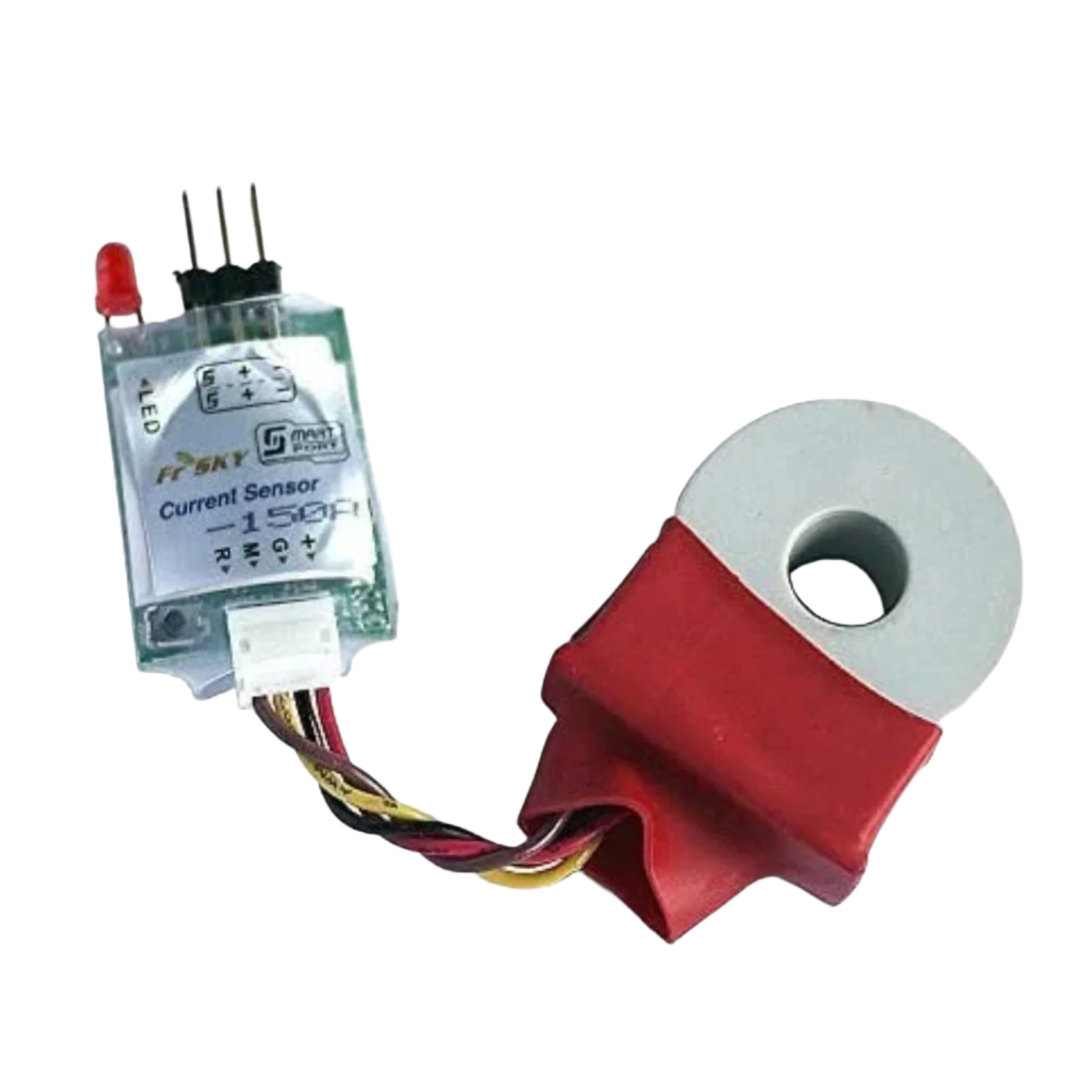

1 x FrSky’s Smart Port Current Sensor-150A
