- Case: DO-41, Molded Plastic
- Terminals: Axial Lead, Solderable per MIL-STD-202, Method 208
- Mounting Position: Any Polarity: Cathode Band
- Weight: 0.35 grams (approx.)
Description:

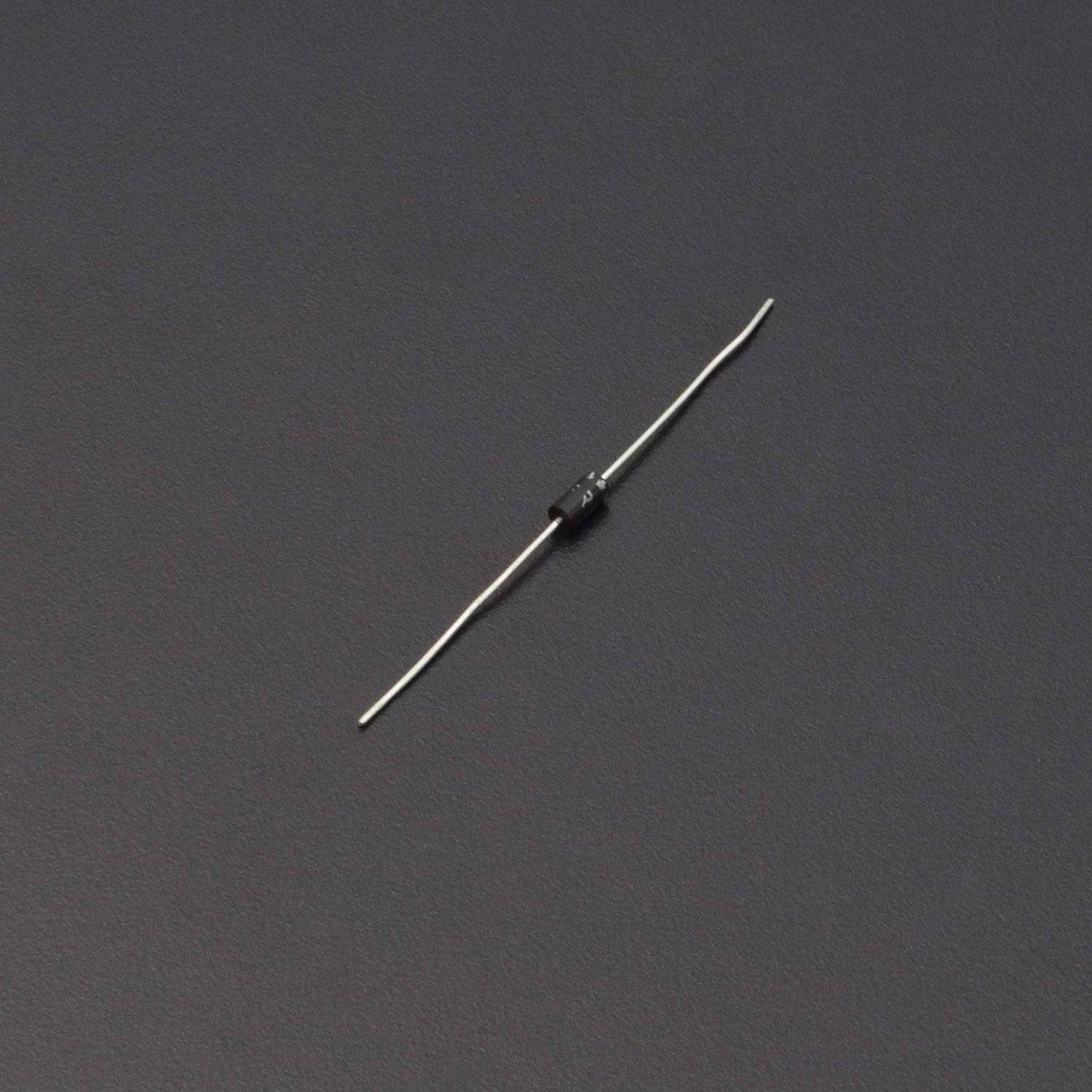

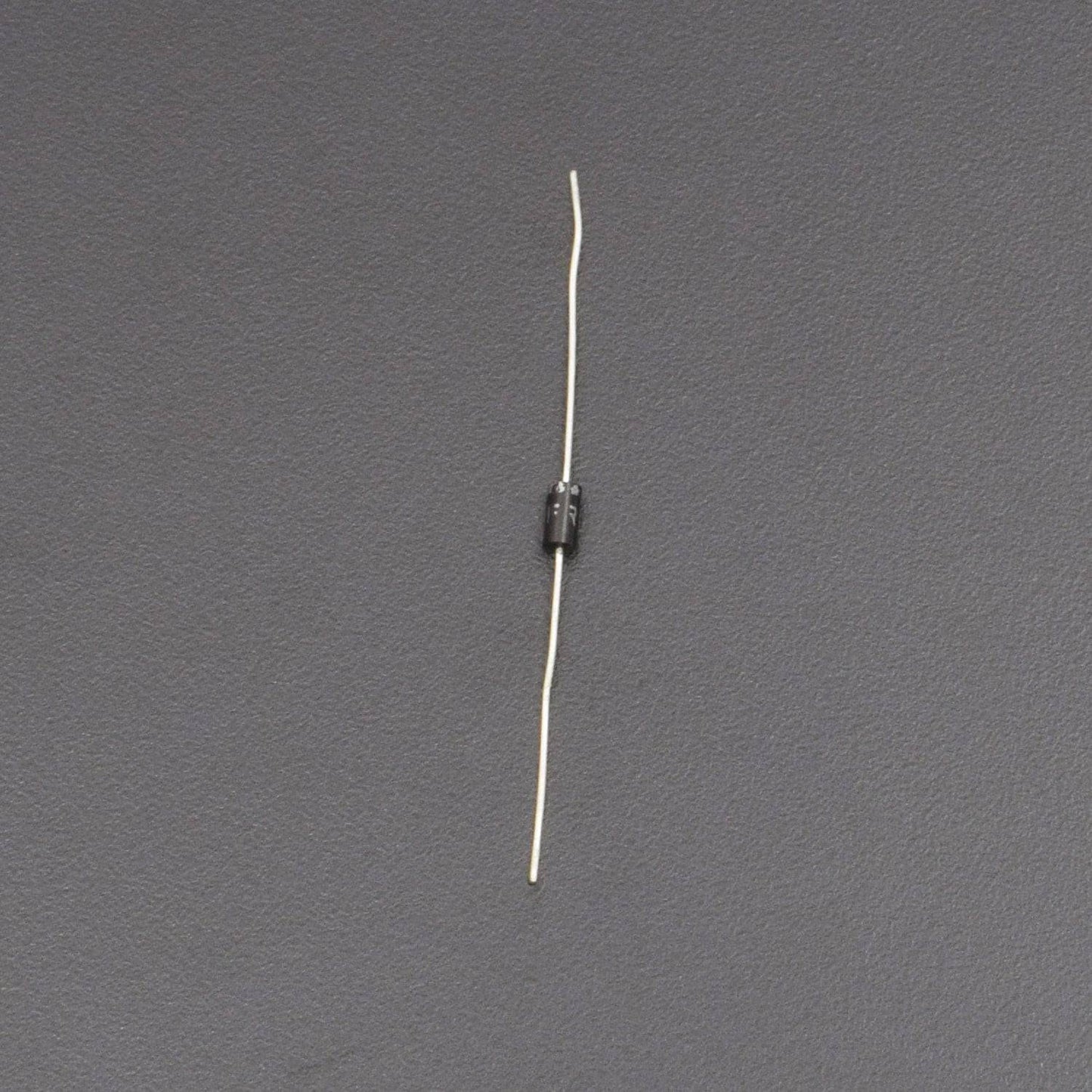

This is a FR107 FR-107 DO-41 Rectifier Fast Recovery Diode 1000V for Arduino. It has 2 pin through hole rectifier diodes used for many electronic projects hobbies and repairs. Used in radios powers supplies and other devices.
Specification:
- Wattage: 1W
- Diode/rectifier type: DO-41
- RoHS: Yes
- Standard Recovery Power Rectifier
- Repetitive Reverse Voltage Max, Vrrm: 50V
- Forward Current Avg Rectified, IF(AV): 1A
- Forward Surge Current Max, Ifsm: 30A
- Forward Voltage Max, VF: 1.1V
- Current Rating: 1A
Features:
- Plastic Package: UL Flammability Classification Rating 94V-0
- Capable of Meeting the Environmental Tests in MIL-STD-750C
- High Reliability and Low Leakage
- Fast Switching for High Efficiency
- Fast recovery diode FR107 FR107, adopt the DO - 41 encapsulated way
- Fast recovery diode Current parameters:IO=1A/IFSM=30A/IR=5uA Voltage parameters:URRM=1000V/URMS=700V/UDC=1000V Voltage:1000V
Package Included:
1 x FR107 FR-107 DO-41 Rectifier Fast Recovery Diode 1000V for Arduino
