Four Battery Indicator LED Light XD-82B 12V Battery Level Indicator Module 4 Paragraph 4 onboard Indicator LED Lights -NA295

Four Battery Indicator LED Light XD-82B 12V Battery Level Indicator Module 4 Paragraph 4 onboard Indicator LED Lights -NA295

SKU:NA295

171 in stock

Regular price Rs. 100.00
Regular price Sale price Rs. 100.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Supply Voltage: 12V
  • Operating Temperature: -40~+85℃

Description:

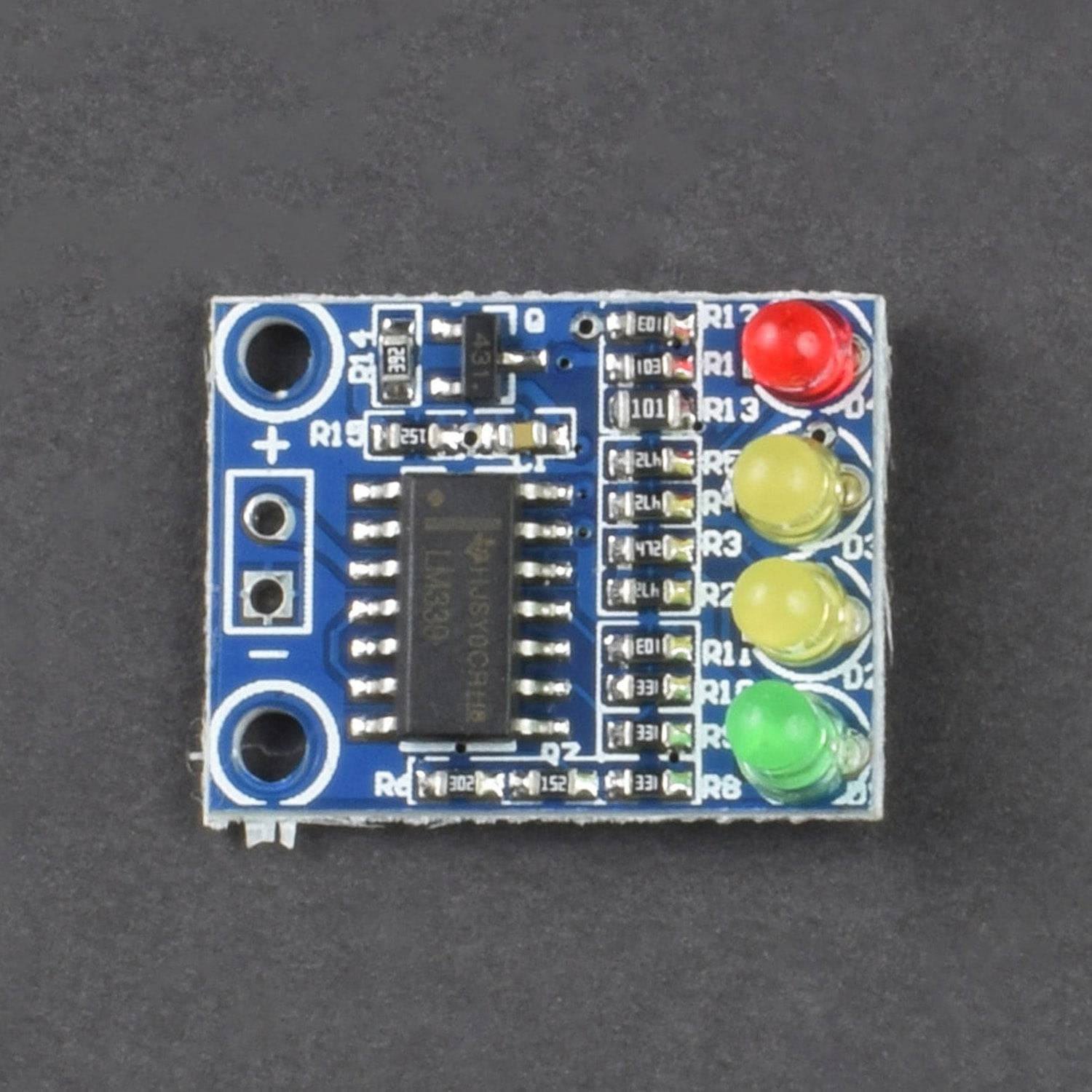

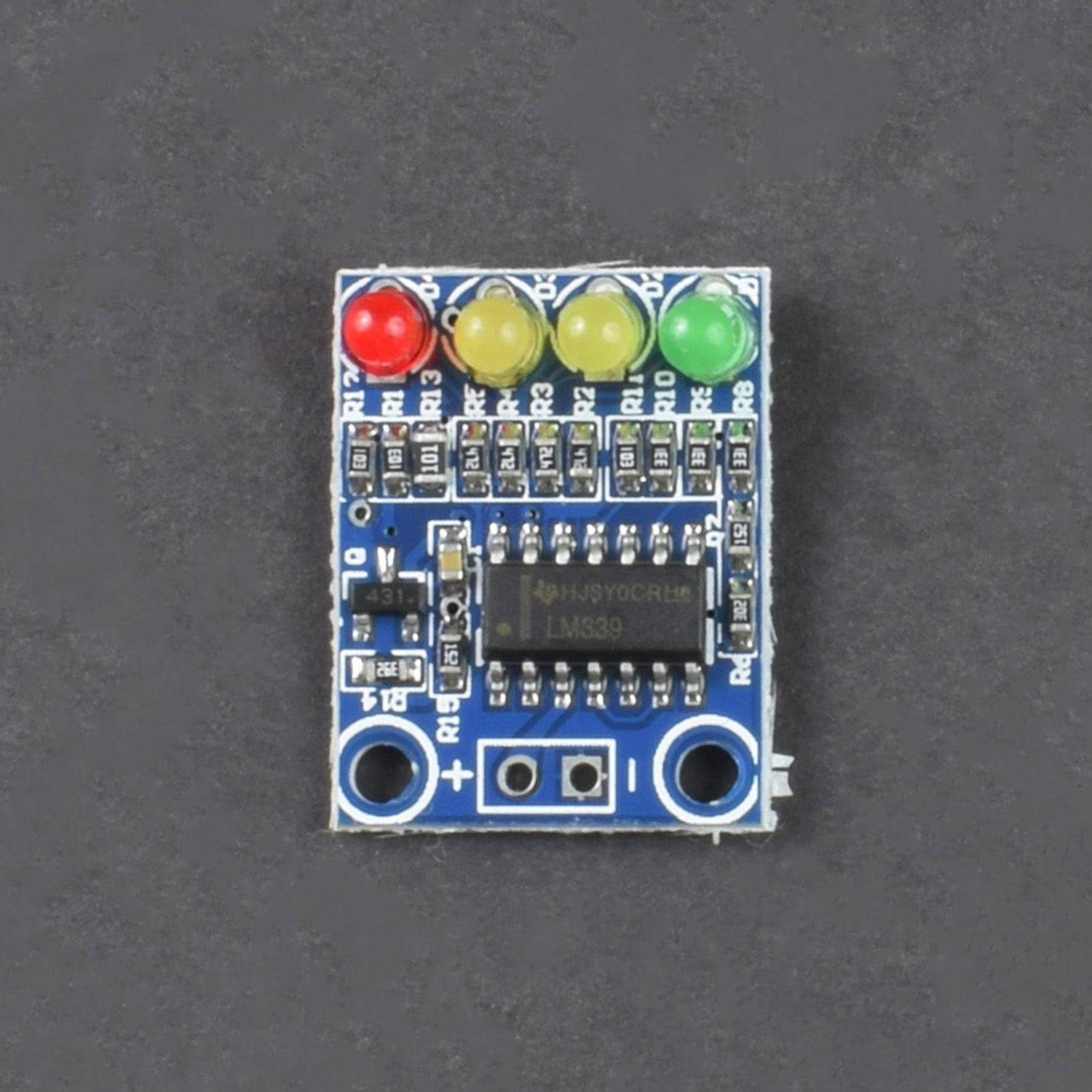

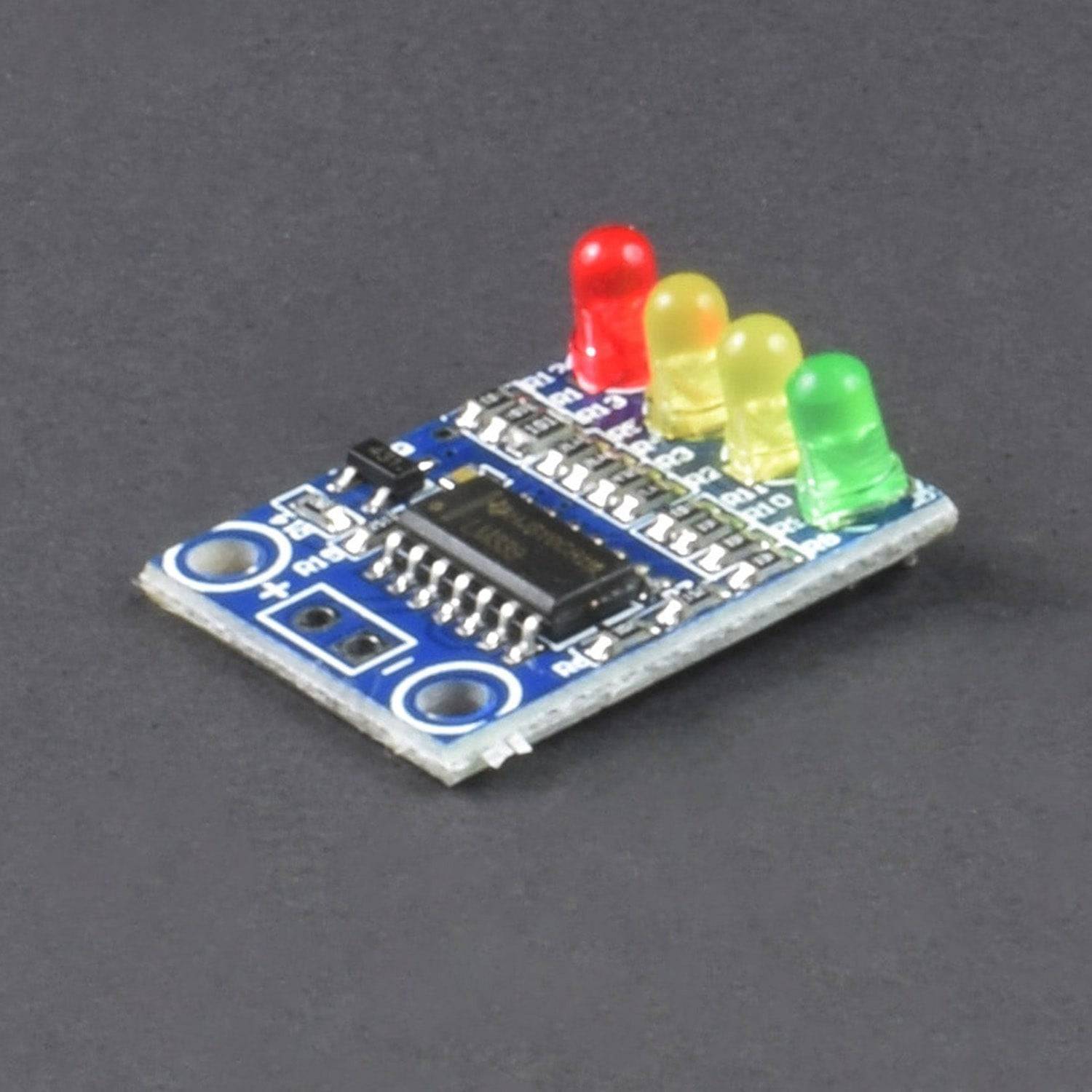

This is Four Battery Indicator LED Light XD-82B 12V Battery Level Indicator Module. This module has on-board precision voltage detection chip and power regulator chip. And on-board four battery indicator LED lights, three colors display, red, yellow, yellow, green representing 20%, 50%, 80% and 100% of the electricity. You can set aside all the way battery testing interface, and two mounting holes located. This module is ideally suited to monitoring the status of a 12V battery. Through clever use of a series of resistors and the LM339 comparator, a visual indication of the state of a battery can been seen. As the battery depletes and the voltage begins to fade lights will begin to go off.

Specification:

  • Supply Voltage: 12V
  • Operating Temperature: -40~+85℃

Features:

  • Built-in precision voltage detection chip and power regulator chip.
  • On board four LED LED battery indicators, three display colors, red, yellow, yellow, green, representing 20%, 50%, 80% and 100% electricity.
  • Set aside all the way to the battery test interface, and two mounting holes are located.

Battery Level Indication:

This battery level indicator offers four LEDs that light up progressively as the voltage increases:

  • Red: Representing 20%
  • Yellow(1): Representing 50%
  • Yellow(2): Representing 80%
  • Green: Representing 100%

Package Included:

1 x Four Battery Indicator LED Light XD-82B 12V Battery Level Indicator Module 4 Paragraph 4 onboard Indicator LED Lights
