Description:
FNIRSI WD-02 Wall Detector is an upgraded version of WD-01, WD-02 has an upgraded high-definition TFT display screen and a new UI interface. Also added 6 languages: Russian, English, Portuguese, Japanese, Simplified Chinese, and Traditional Chinese. Its 3-level sensitivity adjustment makes the measurement accuracy higher. It can be used to detect steel bars, metal joists, metal pipes, wood, and wires in walls, ceilings and floors. 3 detection modes are designed, metal detection mode, wood detection mode and AC detection mode to meet your different working needs. The brand-new positioning hole design is no longer afraid of drilling wires and steel bars. Widely used in interior decoration, home installation and other industries, so that various constructions can be carried out safely.
Specifications:
|
Brand
|
FNIRSI
|
|
Model
|
WD-02
|
|
Max Detection Depth of Metals
|
120mm
|
|
Max Detection Depth of Non-ferrous Metals(Copper)
|
100mm
|
|
Max Detection Depth of AC Wire
|
50mm |
|
Max Detection Depth of Single-strand Copper Wire
|
40mm |
|
Max Detection Depth of Wooden
|
Precisions mode: 20mm Depth mode: 38mm |
|
Automatic Shut Down
|
After 5 minutes without any operation
|
|
Power Supply
|
3.7V 300mAh rechargeable lithium battery, Type-C Charging
|
|
With Buzzer Alarm
|
Yes |
|
With LCD Screen or Not
|
Yes
|
|
Product Size
|
138*68*22mm
|
|
Product Weight
|
122g
|
Features:
- Portable Size: The small size of this tool is very convenient for everyday use, you can also easily hold it while using it.
- Multifunctional Detection: This wall detector scanner can help you quickly locate edges and center metal, studs, joists, pipes, and live AC wire behind walls, floors, and ceilings. The measuring ranges of wood are ≤38mm, AC wires ≤50mm, metal pipes ≤100mm, and rebars ≤120mm.
- HPC Module: The HPC detection module can make this wall detector scanner with better anti-interference capacity and faster-calculating speed.
- Digital LCD Display & Audio Alarm: This stud finder comes with an LCD and sound alarm, which can detect the exact location of the objects. Type-C charging mode saves you from the hassle of battery replacement.
- Multiple predictions: The screen will display the target depth, arrive at the detection center and the material, the indicator light will light up yellow or red depending on the target distance, and the green light means No target.
- Easy to Use & Auto Calibration: Easy-to-read LCD display provides users with comfort and convenience while scanning. The wall detector can be automatically calibrated anywhere on the wall to successfully find the center of studs in one step.
- Wide Application: This stud detector can be widely used in your home decoration, wall decoration, household appliance installation, highway maintenance, and so on. It can also quickly locate wood, metal, and AC wires hidden in the walls, floors, and ceilings of the house. It can work on different wall surfaces, such as lath, wallpaper wood flooring, acoustic ceiling, painted walls, etc

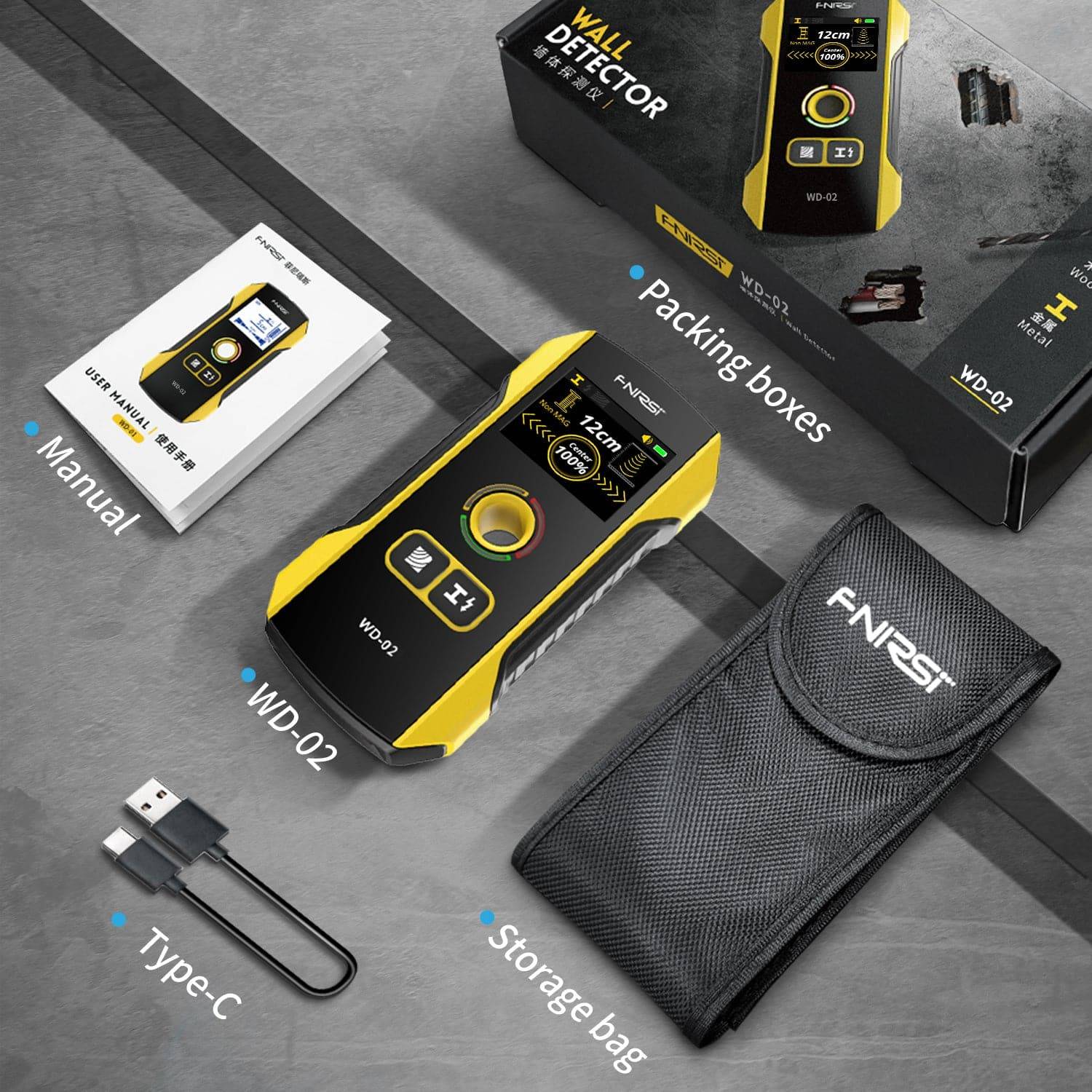

Package Included:
- 1 x WD-02 Wall Detector Scanner
- 1 x Manual
- 1 x Storage Bag
- 1 x Type-C
