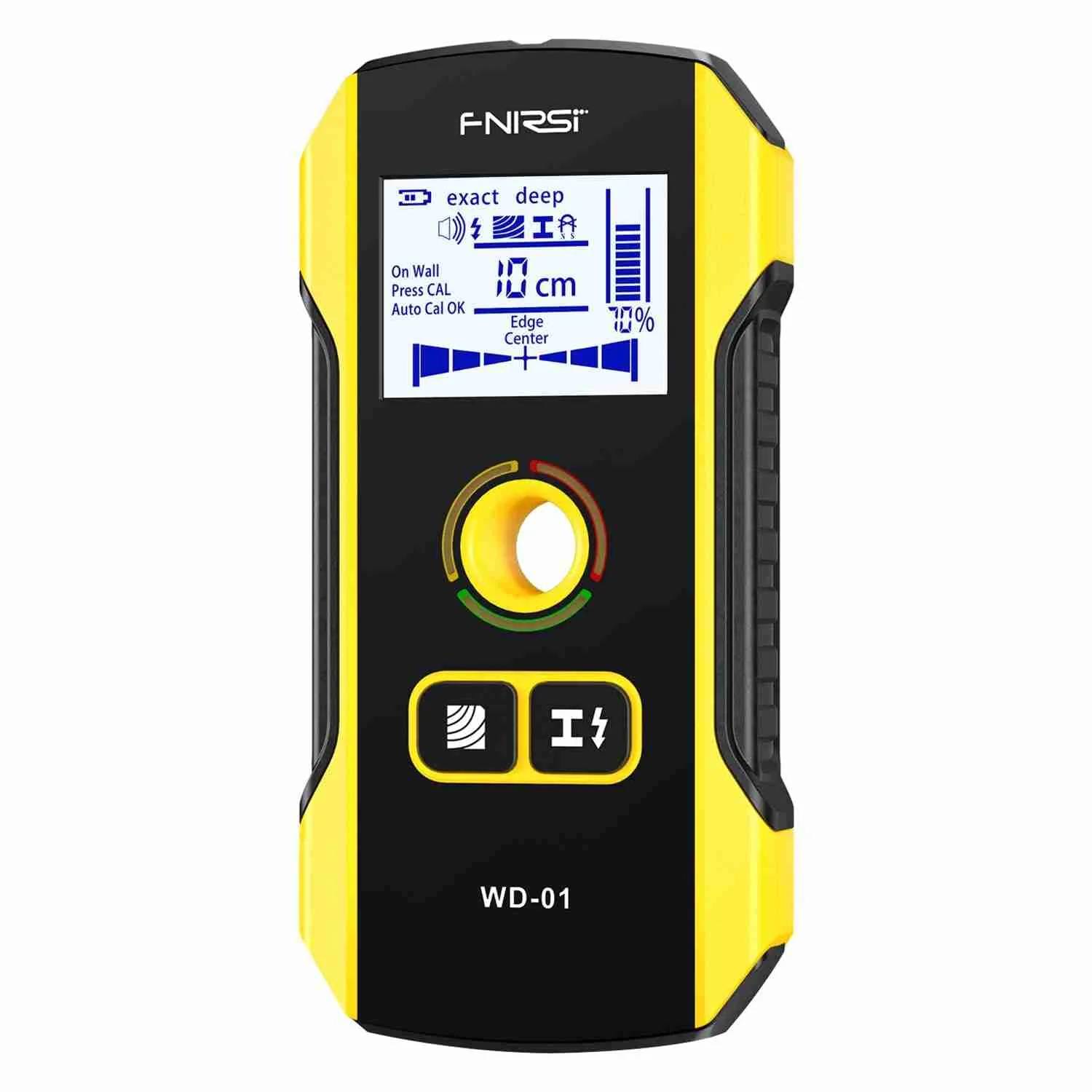

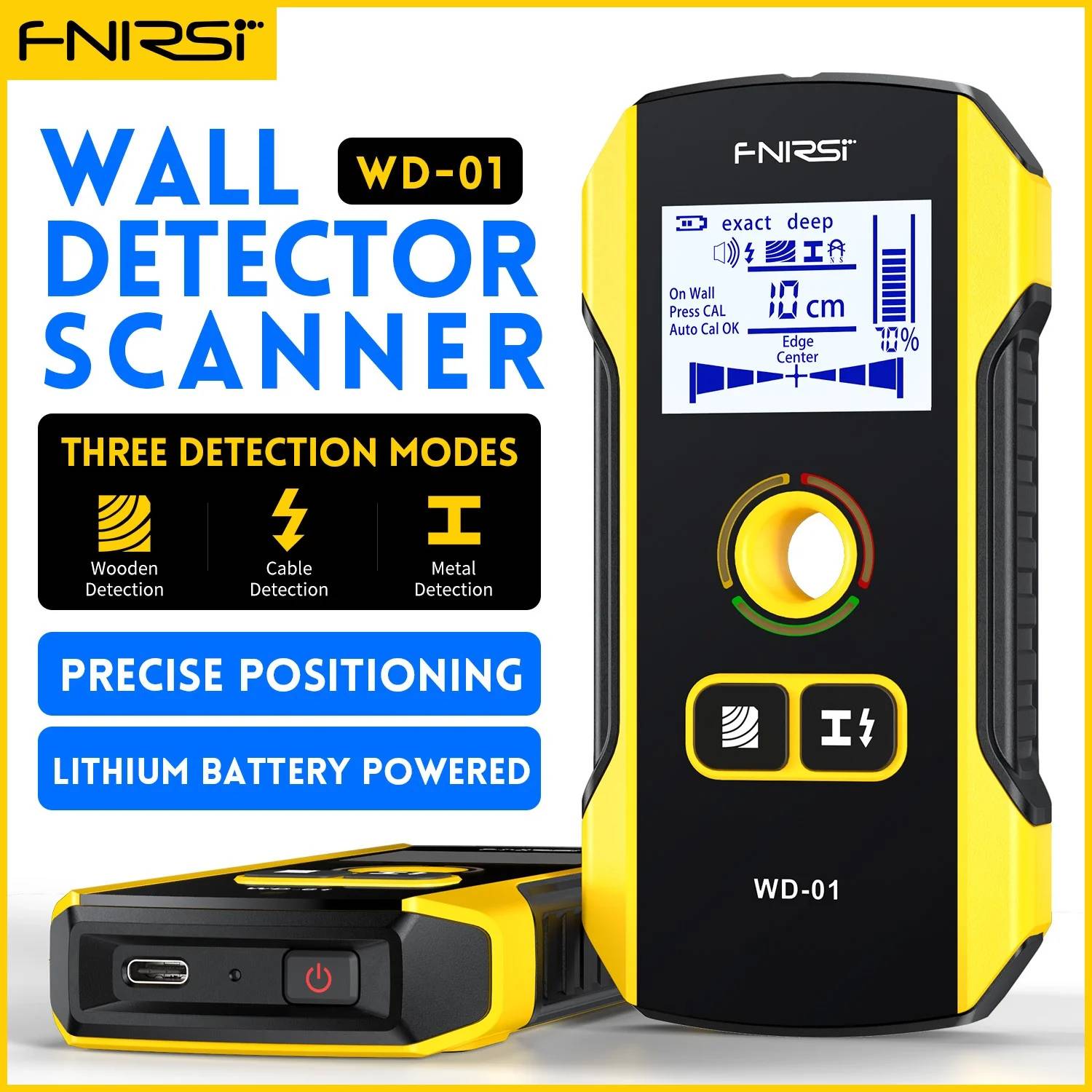

Description:
WD-01 wall detector scanner can help you quickly locate edges and center metal, studs, joists, pipes, and live AC wire behind walls, floors, and ceilings. The measuring ranges of wood are ≤38mm, AC wires ≤40mm, metal pipes ≤100mm, and rebars ≤120mm.
The HPC detection module can make this wall detector scanner with better anti-interference capacity and faster-calculating speed.
Multiple predictions: The screen will display the target depth, arrive at the detection center and the material, the indicator light will light up yellow or red depending on the target distance, and the green light means No target.
It will also beep when a target is detected. It will continuous alerts when reaching the center.
Wide Applications: This tool can be widely used in your home decoration, wall decoration, household appliance installation, highway maintenance, and so on.

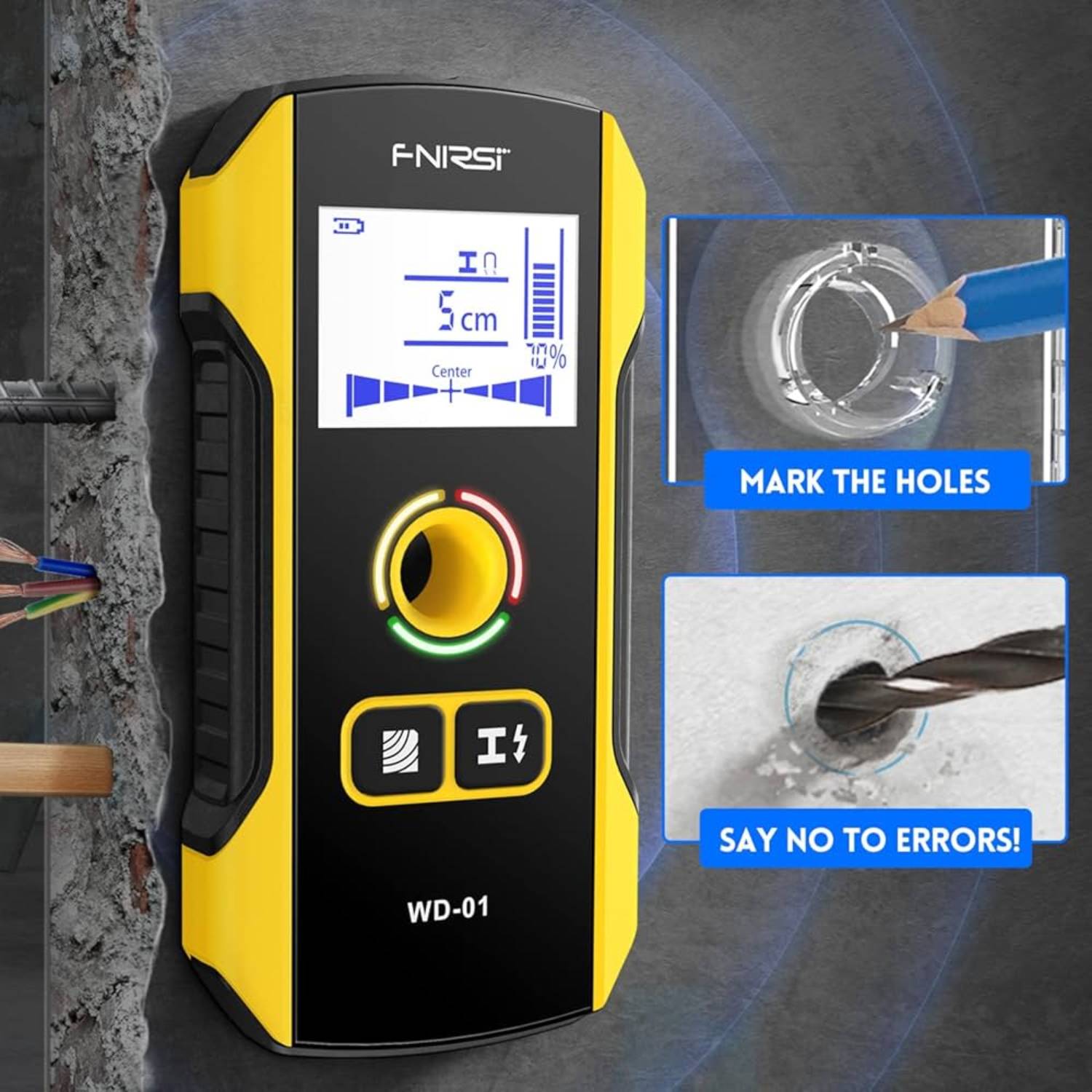

In center positioning hole design, you can directly mark the drilling position after detection and achieve precision drilling.
Specifications:
| Brand | FNIRSI |
| Model |
WD-01
|
|
Max Detection Depth of Metals
|
120mm
|
|
Max Detection Depth of Non-ferrous Metals(Copper)
|
100mm |
|
Max Detection Depth of AC Wire
|
50mm |
|
Max Detection Depth of Single-strand Copper Wire
|
40mm |
|
Max Detection Depth of Wooden
|
Precisions mode: 20mm Depth mode: 38mm |
|
Automatic Shut Down
|
After 5 minutes without any operation
|
|
Power Supply
|

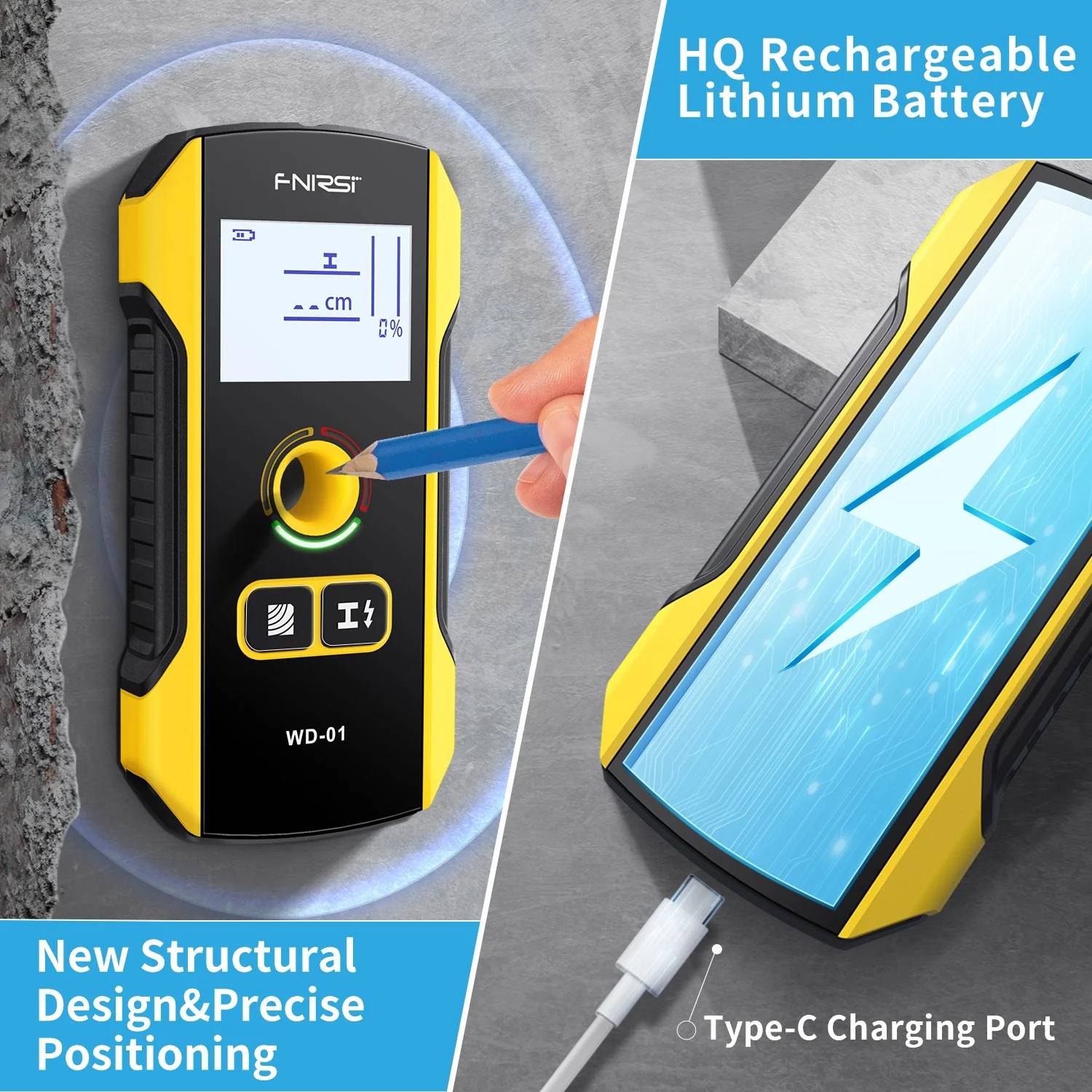

3.7V 300mAh rechargeable lithium battery, Type-C Charging
|
|
Continuous Working Hours
|
6 hours
|
|
Product Size
|
138*68*22mm
|
|
Product Weight
|
122g |
Features:
- Portable Size: Convenient and easy to hold.
- Detection Capabilities: Locates various materials behind walls, floors, and ceilings.
- HPC Detection Module: Enhances anti-interference and calculation speed.
- Multiple Predictions: Displays target depth, center, and material.
- Wide Applications: Useful for home and highway maintenance.
- Center Positioning Hole Design: Enables precise drilling after detection.
Package Included:
- 1 x FNIRSI WD-01 Wall Detector Scanner
- 1 x Type -C Cable
- 1 x Manual
- 1 x Storage Beg
