Description:

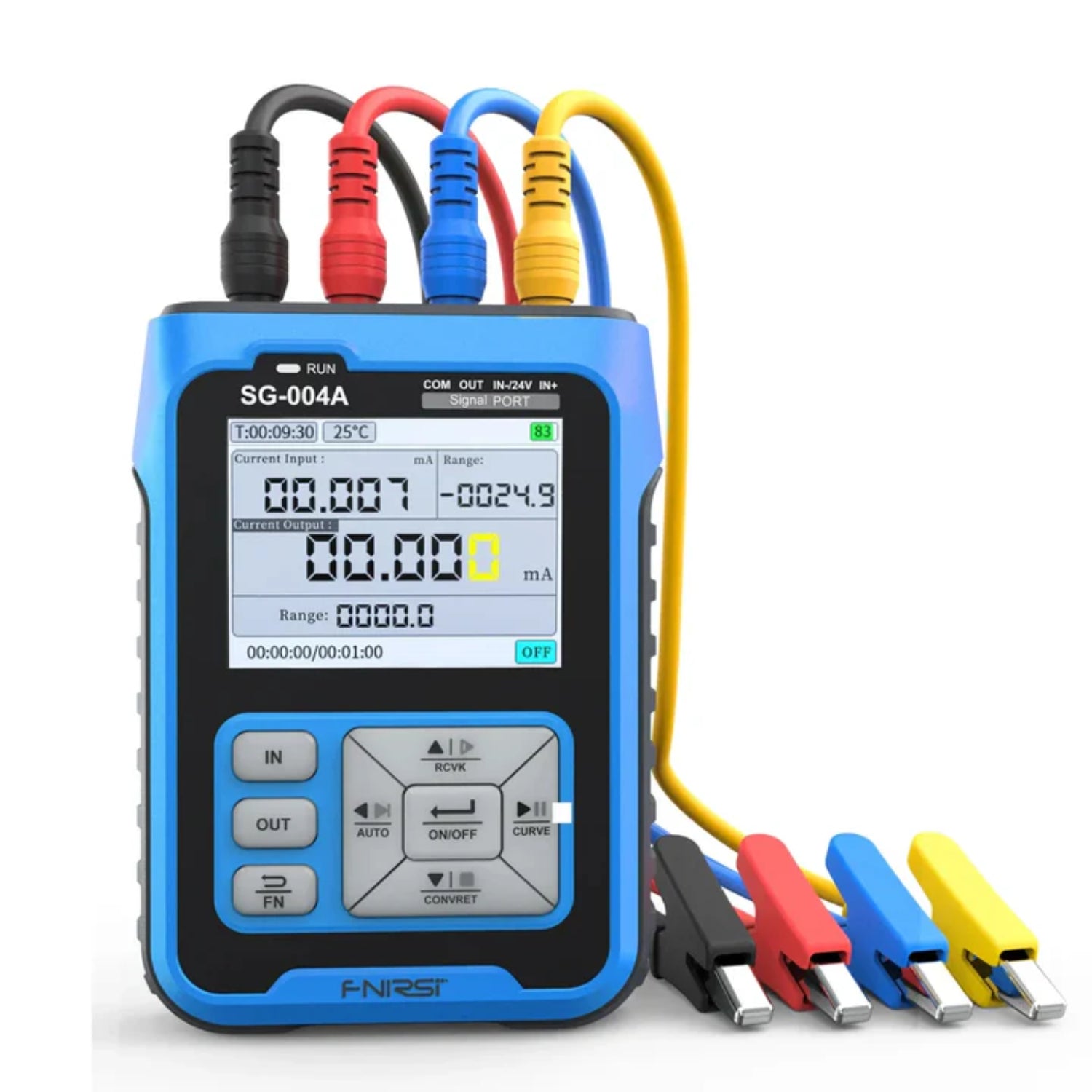

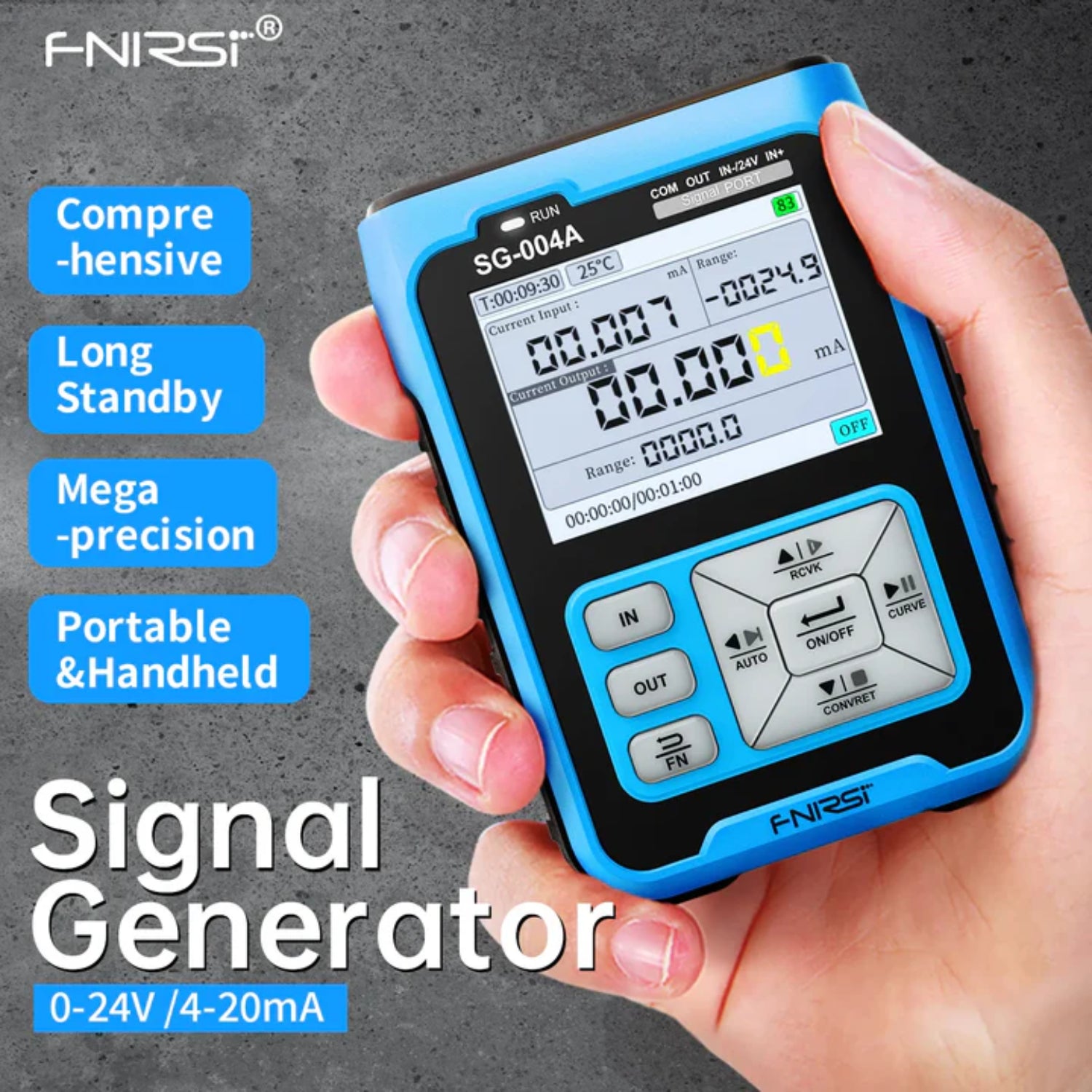

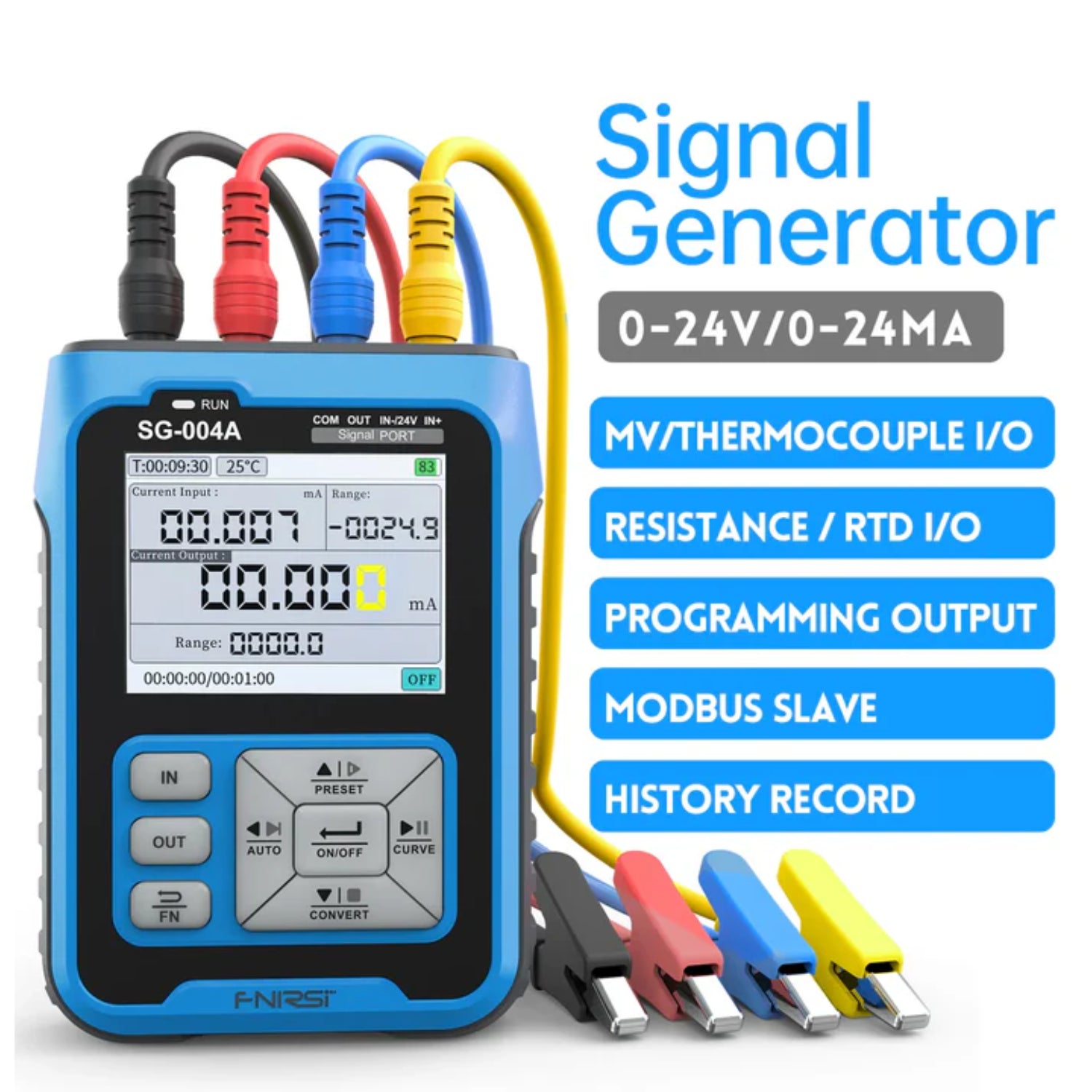

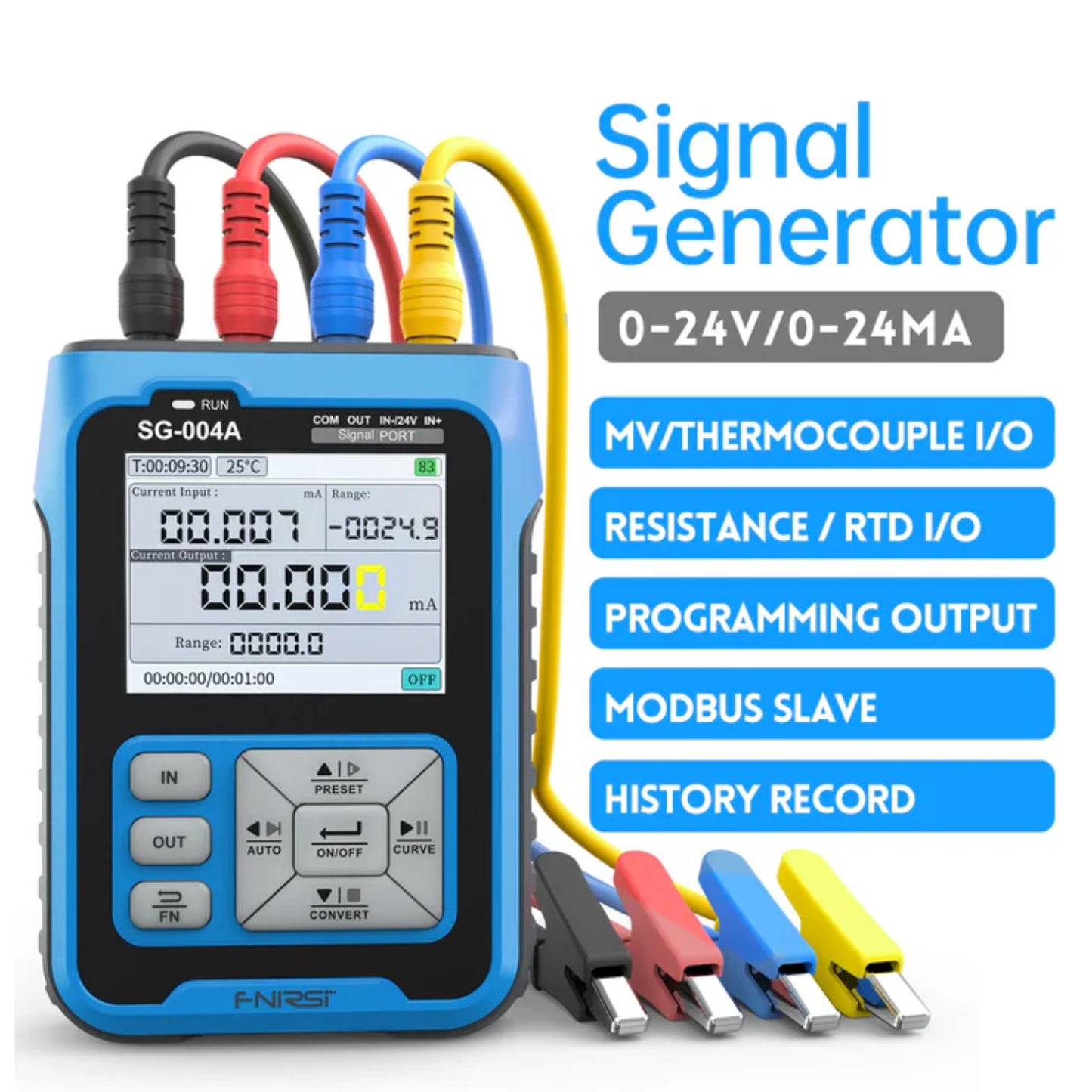

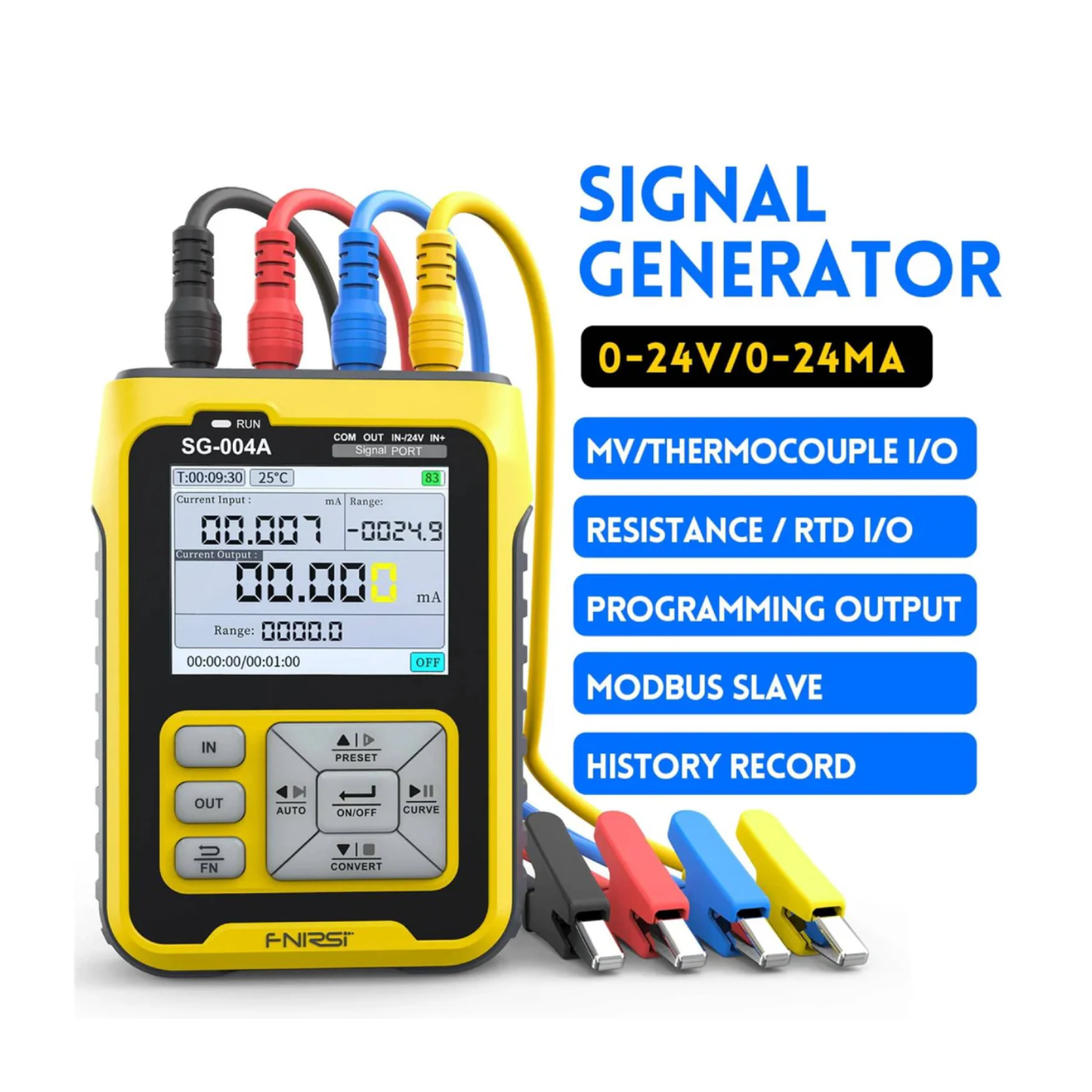

FNIRSI SG-004A signal generator is a high-performance device aimed at the industrial control industry. It can handle various working conditions with one device. The device has a simple but stable appearance design, simple operation logic, and powerful performance, and has been loved by consumers since it was launched. Support voltage, current, frequency, thermocouple, and other signal mode output and input support an independent 24V power supply, programming mode, real-time curve, historical record, MODBUS communication, firmware upgrade, and other powerful functions.

Basic Specifications:

Model
SG-004A
Screen
2.4"TFT Full Color HD display
Battery
3000mAh rechargeable lithium battery
Charging Type
USB-C port (5V-12V)
Charging
0-24V

Output Signal Specifications:

Active Current
0-24mA
Passive Current
0-24mA
Voltage
0-24V
Frequency / PWM
0-9999Hz
24V Loop
0-24mA
Thermocouple
-10~100mV

Resistance / Thermal Resistance
0-390Ω

Input Signal Specifications:

Active Current
0-24mA
Voltage
0-24V
Frequency / PWM
0-9999Hz
Thermocouple
-10~100mV
Resistance / Thermal Resistance
0-400Ω

Extended Function:

  • Program automatic lift output
  • Signal linear conversion output
  • History record
  • Modbus slave
  • Preset output
  • Real-time curve
  • Output timing
  • USB Emulated U Disk Firmware Upgrade

Technical Parameter:


Current (mA)
Range: 0~24mA
Accuracy: ±(0.02%+0.003)
Resolution: 0.001mA
Load Resistance: 100Ω
Voltage (V)
Range: 0~24V
Accuracy: ±(0.02%+0.003)
Resolution: 0.001mA
Load Resistance: 500K

Passive (XMT)
Range: 0~24mA
Accuracy: ±(0.02%+0.003)
Resolution: 0.001V
Load Resistance: 100Ω

24V Loop
Range: 0~24mA
Accuracy: ±(0.1%+0.005)
Resolution: 0.001mA
Load Resistance: 100Ω
Frequency (Hz)
Range: 0~9999Hz
Accuracy: ±2%
Resolution: 5 digits
Load Resistance: 1MK
Millivolt (mV)
Range: -10~100mV
Accuracy: ±(0.03%+0.003)
Resolution: 0.001mV
Load Resistance: 2K
Thermocouple (TC-S)
Range: 0~1760℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (TC-B)
Range: 0~1810℃
Accuracy: ±(0.5%+1)
Resolution: 1℃
Load Resistance: 2K

Thermocouple (TC-E)
Range: 0~990℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (TC-K)
Range: 0~1320℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (TC-R)
Range: 0~1760℃
Accuracy: ±(0.3%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (TC-J)
Range: 0~1190℃
Accuracy: ±(0.3%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (TC-T)
Range: 0~390℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (TC-N)
Range: 0~1290℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (WRe3/25)
Range: 0~2320℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Thermocouple (WRe3/26)
Range: 0~2320℃
Accuracy: ±(0.2%+1)
Resolution: 1℃
Load Resistance: 2K
Resistance (ohm)
Range: 0~390Ω
Accuracy: ±(0.2%+1)
Resolution: 0.1℃
Pt100
Range: -200~650℃
Accuracy: ±(0.5%+1)
Resolution: 0.1℃
Cu50
Range: -20~150℃
Accuracy: ±(0.5%+1)
Resolution: 0.1℃

Features:

  • Engineering quantity/signal value
  • Real-Time curve record view
  • 2.4"TFT Full Color HD display with backlight
  • Designed for the industrial control industry
  • Stable appearance design.
  • Supports voltage, current, frequency, thermocouple, and other signal modes for both output and input.
  • Provides support for an independent 24V power supply
  • Offers programming mode for customization
  • Facilitates real-time curve visualization
  • Allows for historical data recording
  • Supports MODBUS communication protocol
  • Enables seamless firmware upgrades
  • Incorporates other powerful functions for enhanced functionality

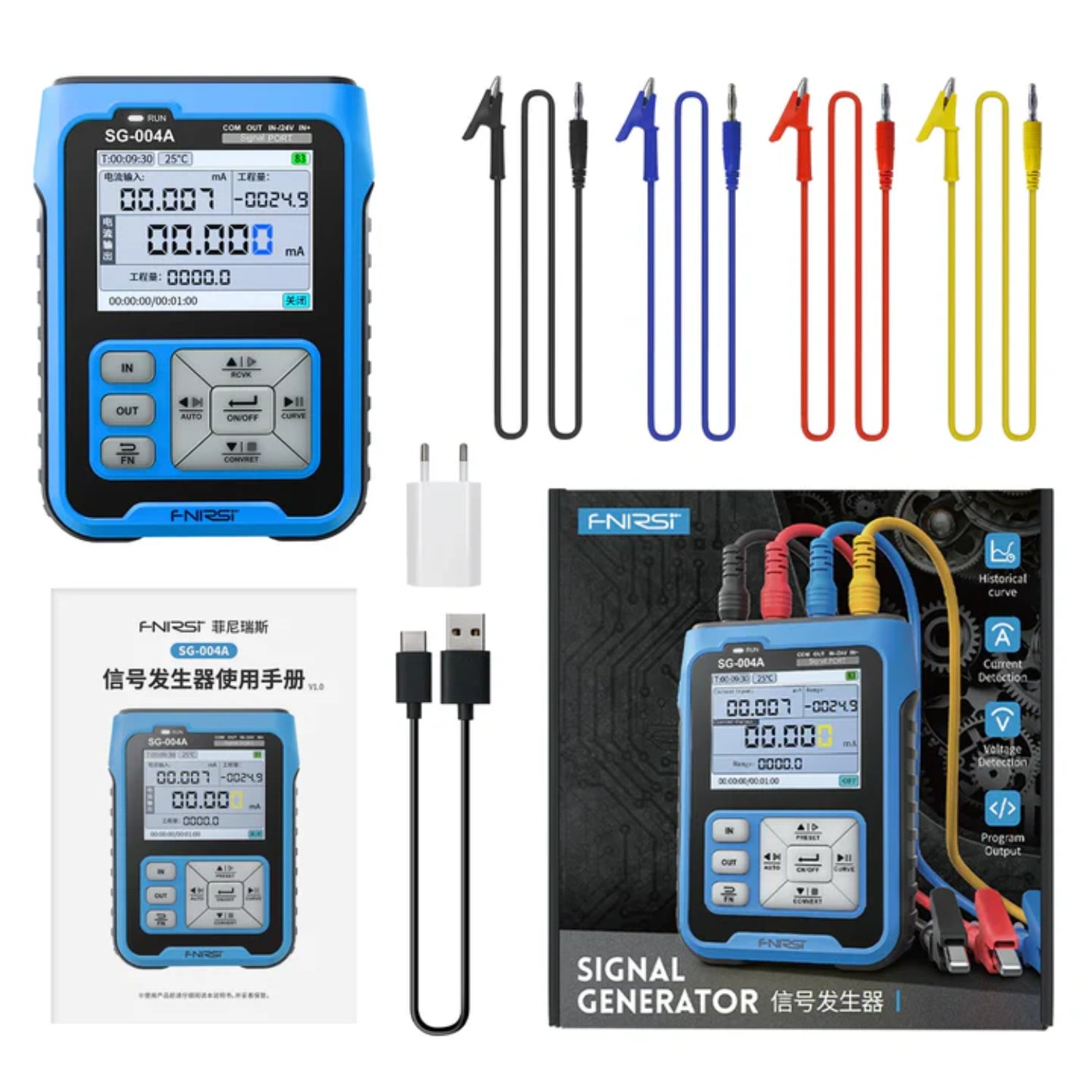

Package Included:

  • 1 x FNIRSI SG-004A Multi-functional Signal Generator
  • 4 x Alligator Test Clips
  • 1 x USB Charger
  • 1 x 004A Signal Specifications
  • 1 x User Manual
  • 1 x Type-C Cable
