Description:

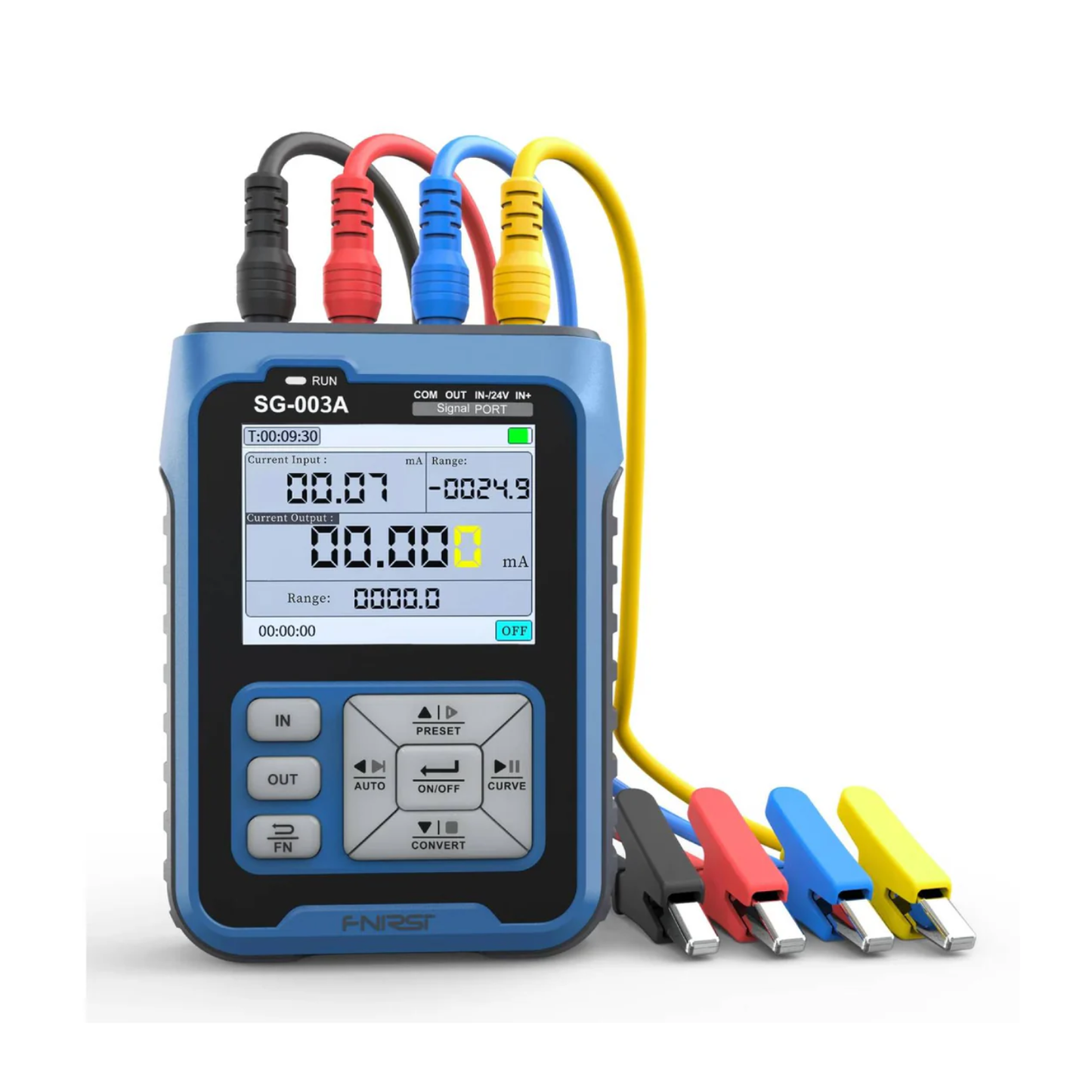

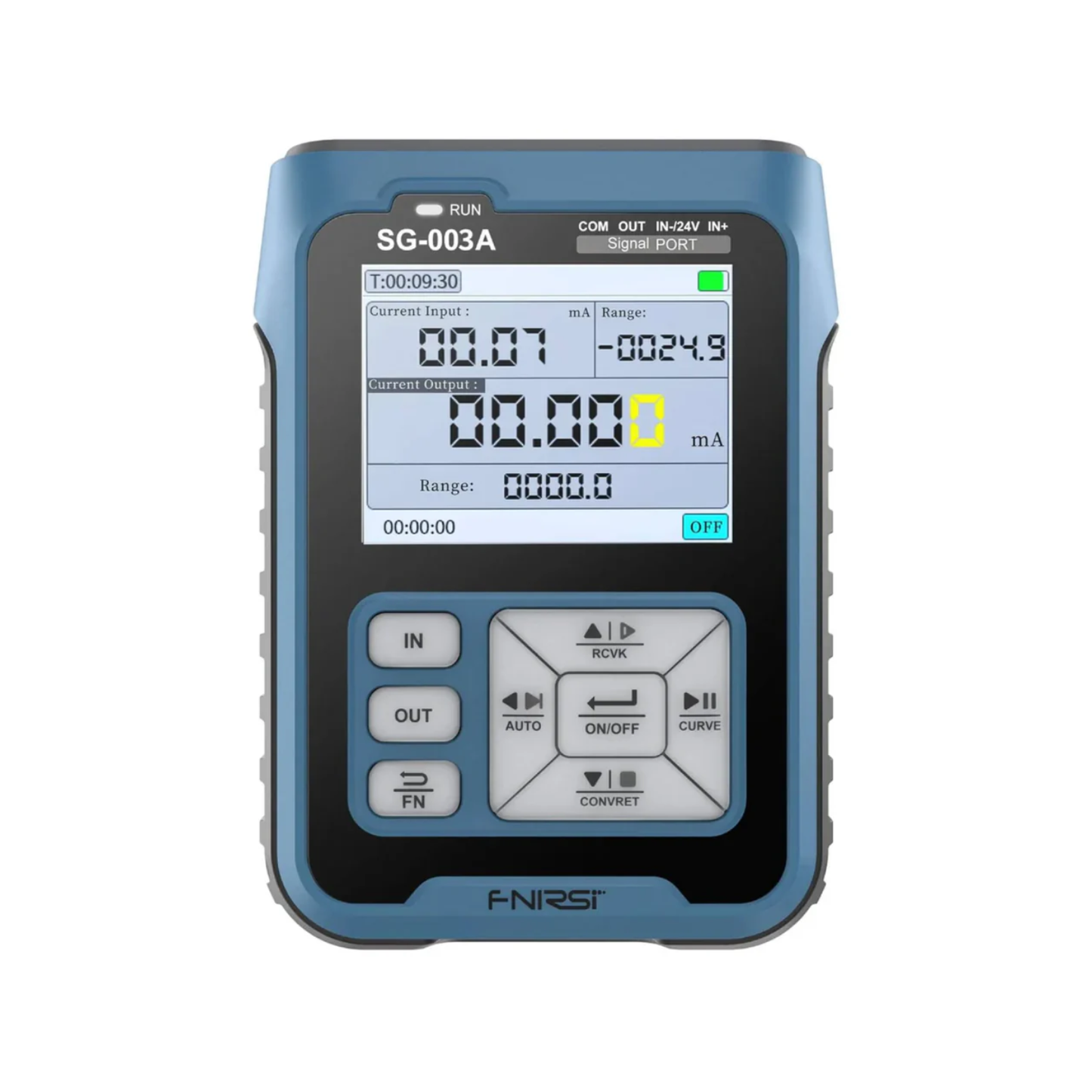

FNIRSI SG-003A signal generator is mainly used for debugging industrial field PLC, process instrumentation, electric valves, and so forth. The Friendly operation interface is easy to use. The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision. Easy to carry when you go out to work. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.
Specifications:
|
Active Current Output
|
Range: 0~24mA
Resolution: 0.01mA Precision: ±(0.1%+0.005) Max Load: 750Ω |
|
Passive Current Output
|
Range: 0~24mA
Resolution: 0.01mA Precision: ±(0.1%+0.005) External Power Supply: 0~30V |
|
Voltage output
|
Range: 0~24V Resolution: 0.01V Precision: ±(0.1%+0.005) |
|
24V Loop
|
Range: 0~24mA Resolution: 0.01mA Precision: ±(0.1%+0.005) |
|
Frequency/PWM Output
|
Range: 0~9999Hz
Resolution: 5 digits Precision: ±2% |
|
Current Input
|
Range: 0~24mA
Resolution: 0.01mA Precision: ±(0.1%+0.005) |
|
Voltage Input
|
Range: 0~30V
Resolution: 0.01V Precision: ±(0.1%+0.005) |
|
Battery
|
A single 3.7V 3000mAh lithium battery power supply
|
|
Display Size
|
2.4 Inch TFT Full Color LCD Screen
|
|
Program Automatic Lift Output
|
Support
|
|
Preset Output
|
Support |
|
Signal Linear Conversion Output
|
Support |
|
Output Timing
|
Support |
|
Modbus Slave
|
Support |
|
USB Firmware Upgrade
|
Support |
|
Real-time Curve
|
Support |
Features:
- Expect the conventional signal input and output functions.
- Signals are displayed as physical or engineering values, corresponding linearly.
- Voltage and current have automatic output functions, it can choose a single rise, three modes of single drop, and cycle.
- Four preset groups for quick output adjustment.
- With input-to-output conversion, voltage conversion active current mode, passive mode, and current conversion voltage mode.
- The output has a custom function, the upper and lower output limits can be set arbitrarily.
- Displays input and output signal trends with adjustable sampling.
- Automatically adjusts curve within a specified range over time.
- Voltage input diagram, current input diagram, the frame rate is 10 frames.
- PWM output can set frequency and duty cycle respectively.
- Real-time curve: Real-time observation of changes in voltage and current
- It is powered by a large-capacity lithium battery and is charged with a Type-C interface (5V). The capacity of the lithium battery is 3000mHA, fully charged in 4-6 hours, standby time is 26 hours, and the use time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
- The high-definition TFT color LCD screen makes the reading more eye-catching. The resolution is 240*320. Low power consumption, Maximum power consumption: 0.32W
- FNIRSI SG-003A communicates via RS485 with configuration software or PLC.
- Firmware upgrade via USB emulated U disk.

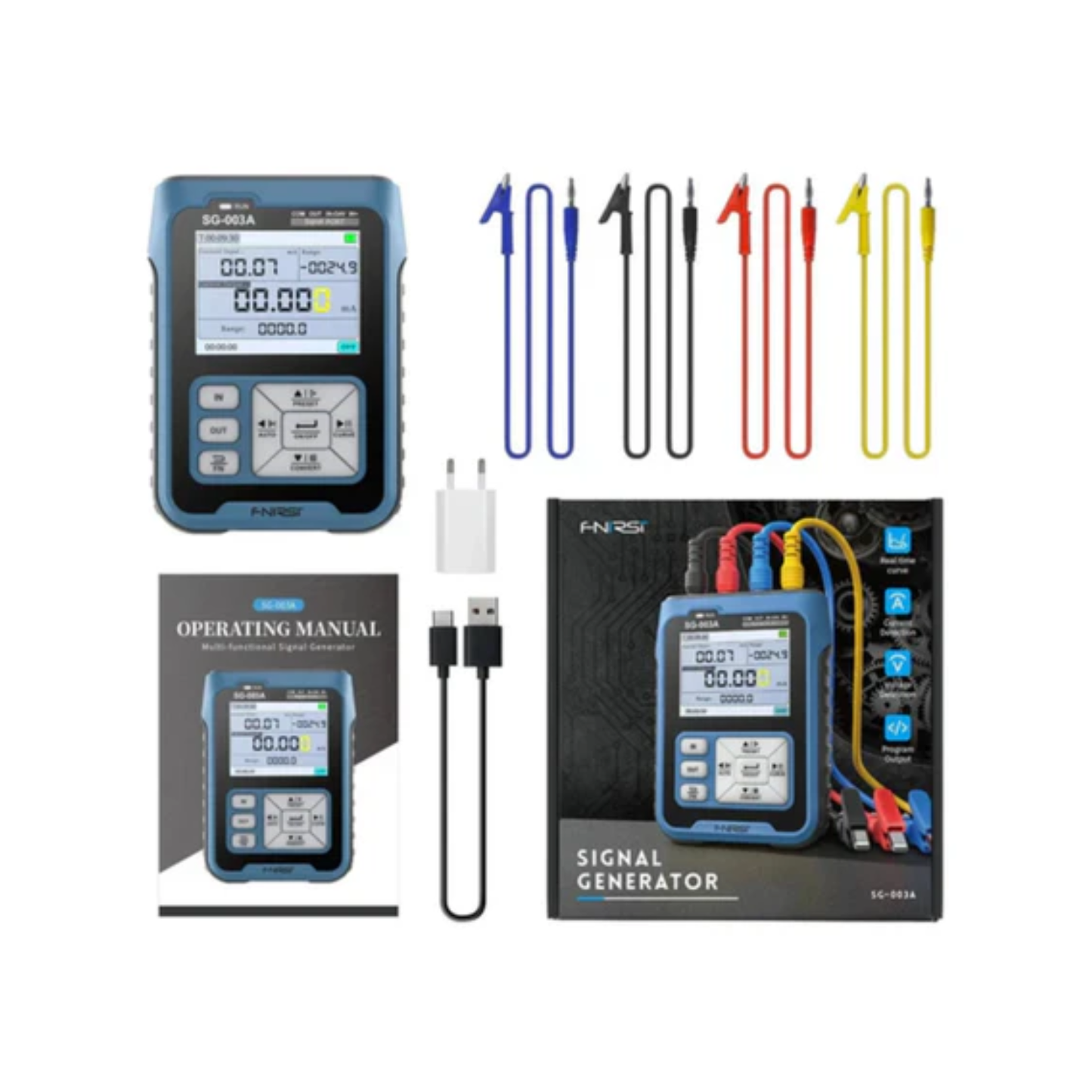

Package Included:
- 1 x FNIRSI SG-003A Signal Generator
- 4 x Alligator Test Clips
- 1 x USB Charger
- 1 x User Manual
- 1 x Type-C Cable
