FNIRSI PRO Handheld Digital Oscilloscope With 2.4" LCD Portable 20MS/s Real-time Sampling Rate Oscilloscope For Accurate 5V Signal Measurement - RS7547

Description:

The FNIRSI DSO PRO is a versatile and powerful handheld digital storage oscilloscope engineered for professionals in both maintenance and research & development. This cost-effective instrument boasts a real-time sampling rate of up to 20 MS/s and an analog bandwidth of 5 MHz, enabling accurate capture and analysis of a wide range of signals.

Its comprehensive triggering system, encompassing single-shot, normal, and automatic modes, provides the flexibility to effectively capture both repetitive analog waveforms and transient digital events. The inclusion of a large time base scan mode allows for detailed observation of slow-varying signals, crucial for diagnosing long-term trends.

Simplifying operation, a high-efficiency auto setup button intelligently configures the oscilloscope to display the measured waveform optimally, eliminating the need for intricate manual adjustments. The integrated 2.4-inch high-definition LCD screen with a 320x240 resolution ensures clear and detailed waveform visualization.

For effortless documentation and analysis, the DSO PRO features an exceptionally convenient and rapid waveform storage function. Its built-in 16 MB storage capacity can hold up to 500 waveform snapshots. The robust waveform file manager further enhances usability, offering intuitive thumbnail previews, detailed views, image flipping, deletion capabilities, and comprehensive file information.

Powering this portable powerhouse is a built-in 1200mAh rechargeable lithium battery, providing up to 3 hours of continuous operation on a single charge, ideal for field use. Catering to different working environments, the oscilloscope offers switchable day and night display modes, ensuring optimal visibility under various lighting conditions.

Specifications:

• Analog bandwidth: 5MHz

• Maximum real-time sampling rate: 20MS/s

• Vertical sensitivity: 50mV/div~200V/div

• Horizontal time base range: 50S/div~250nS/div

• Maximum input voltage: 40V (1 probe), 800V (10X probe)

• Storage depth: 40KB

• Input resistance: 1M

• Precision ADC: 8-bit

• Coupling mode: AC/DC

• Trigger mode: Single, Normal, Auto

• Trigger edge: Rising/falling edge

• External trigger voltage 0- 40V

• Display: 2.4 inch @ 320*240

• Power supply: 1200mAh lithium battery

Features:

• Stores more waveforms without sacrificing performance.
• Enjoy a stable and clear view on the 2:3:2 lighting-enhanced color screen.
• Provides clear and detailed waveform visualization.
• 5MHz bandwidth with a 20MS/s sampling rate for accurate analog signal analysis.
• Quickly capture and store important data.
• 16MB internal memory saves up to 500 waveform images.
• Easily browse, view details, flip, and delete saved waveforms with thumbnail previews.
• Measures a wide range from 0- 40V (1X probe) up to 40- 800V (10X probe).
• Displays 11 key parameters including voltage (VPP, Vmax, Vmin, Vavg, Vrms), frequency, duty cycle, and time measurements.
• Pause the display at any point for detailed analysis.
• Features a high-efficiency single-button for quick actions.
• Offers single, normal, and automatic trigger modes for various signal types.
• The 1200mAh rechargeable battery provides up to 3 hours of continuous use.
• Switch between day and night modes for comfortable viewing in any lighting.
• Compact and lightweight for easy transportation.

Package Included:

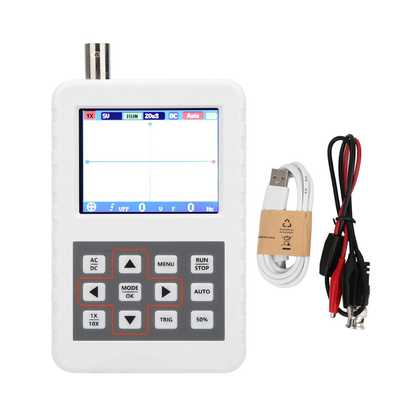

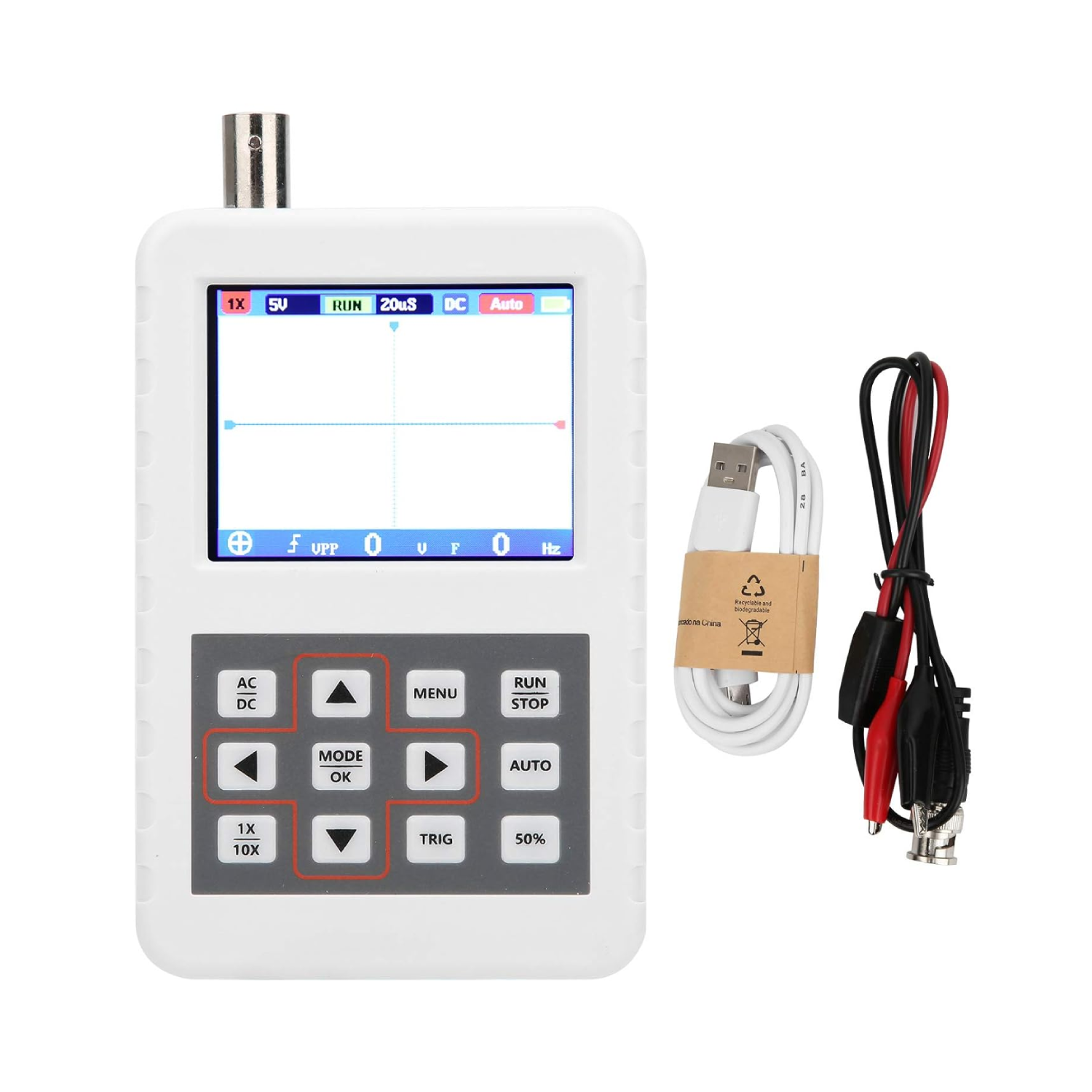

1 x FNIRSI PRO Handheld Digital Oscilloscope
