Description:

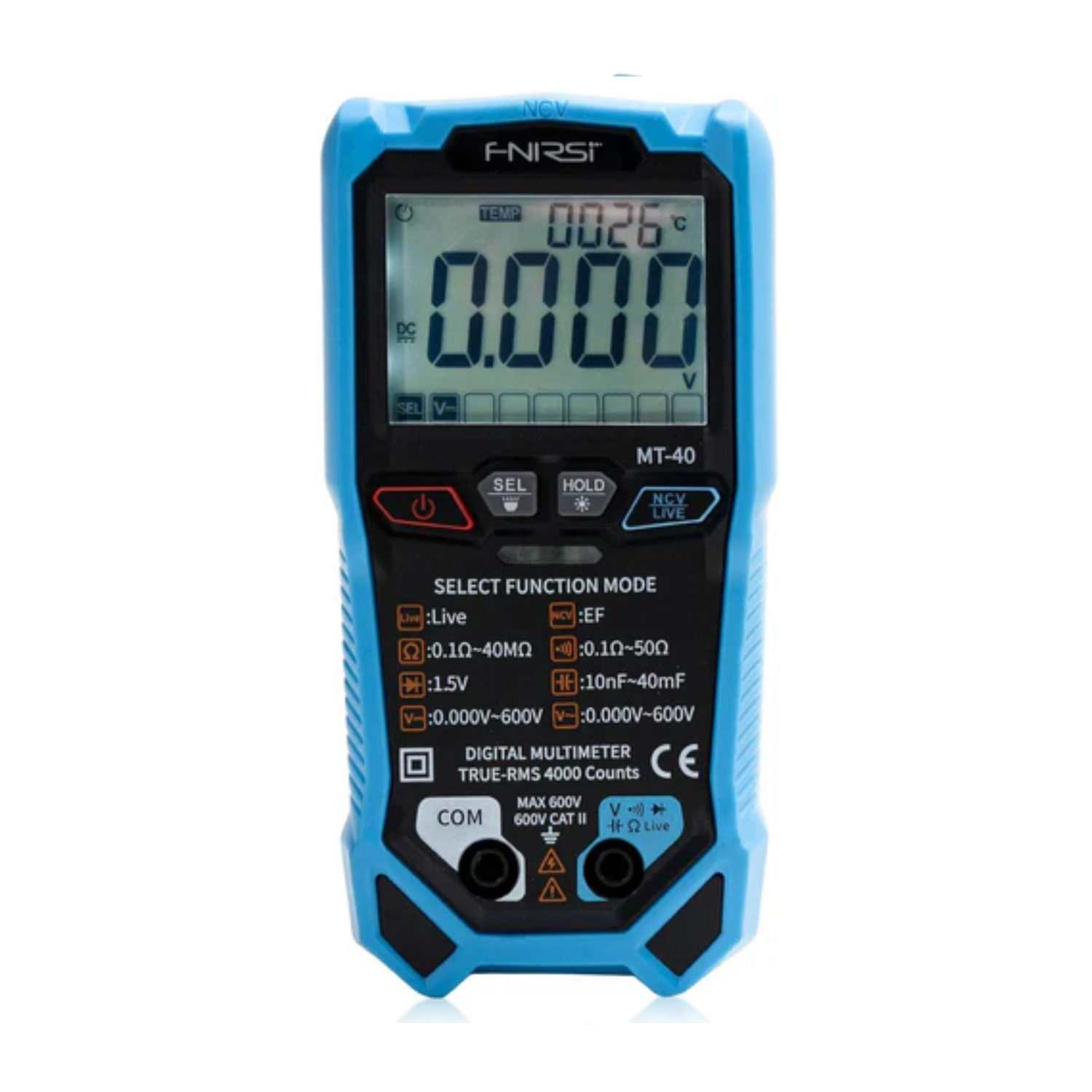

The MT-40 is a cutting-edge multimeter designed to simplify and enhance measurement tasks. Equipped with a high-definition backlit LCD display, it delivers clear and easy-to-read measurements. Its intelligent auto-ranging feature eliminates manual adjustments, ensuring efficient and accurate results.
Powered by an advanced chip, the MT-40 boasts an ultra-fast sampling rate of 3 times per second, providing real-time data for precise analysis. This powerful device offers various functions, including True RMS measurement, capacitance, resistance, diode testing, and non-contact voltage detection.
With its overload protection and intelligent anti-burning features, the MT-40 safeguards both your measurements and the device itself. The compact and lightweight design, combined with a convenient silicone protective cover, makes the MT-40 the ideal tool for on-the-go professionals.
Specifications:
| Model |
MT-40
|
|
Dimension
|
140mm*70mm*31mm
|
|
Battery Type
|
2x1.5V AAA (Not included)
|
|
Measuring Rate
|
3 times/s
|
|
Auto Power Off
|
Yes, 15 minutes
|
|
Input impedance
|
10M |
|
Maximum Input Voltage
|
600V DC or AC valid value
|
| Current | 0 |
|
Operating Temperature
|
0-40℃
|
|
DC Voltage
|
AUTO function: 0.800V-600V Manual function: 0.000V-600V |
|
AC Voltage
|
AUTO function:0.800V-600v
Manual function: 0.000V-600V |
| Resistor |
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
|
| Capacitor |
4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF
|
|
Diode Test
|
Yes
|
|
Continuity Buzzer
|
Yes
|
|
Fire Line Judgment(Live)
|
Yes
|
|
Non-contact Voltage Detection(NCV)
|
Yes
|
|
AUTO function/Manual conversion function
|
Yes
|
|
True RMS
|
Yes
|
|
Back Light
|
Yes
|
|
Undervoltage
|
Yes
|
|
Data Hold
|
Yes
|
|
Flashlight Lighting
|
Yes
|
|
Intelligent Anti-burning
|
Yes
|
Features:

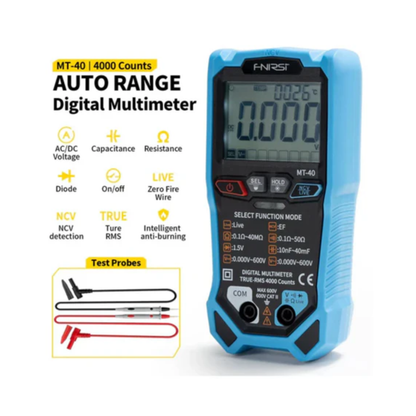

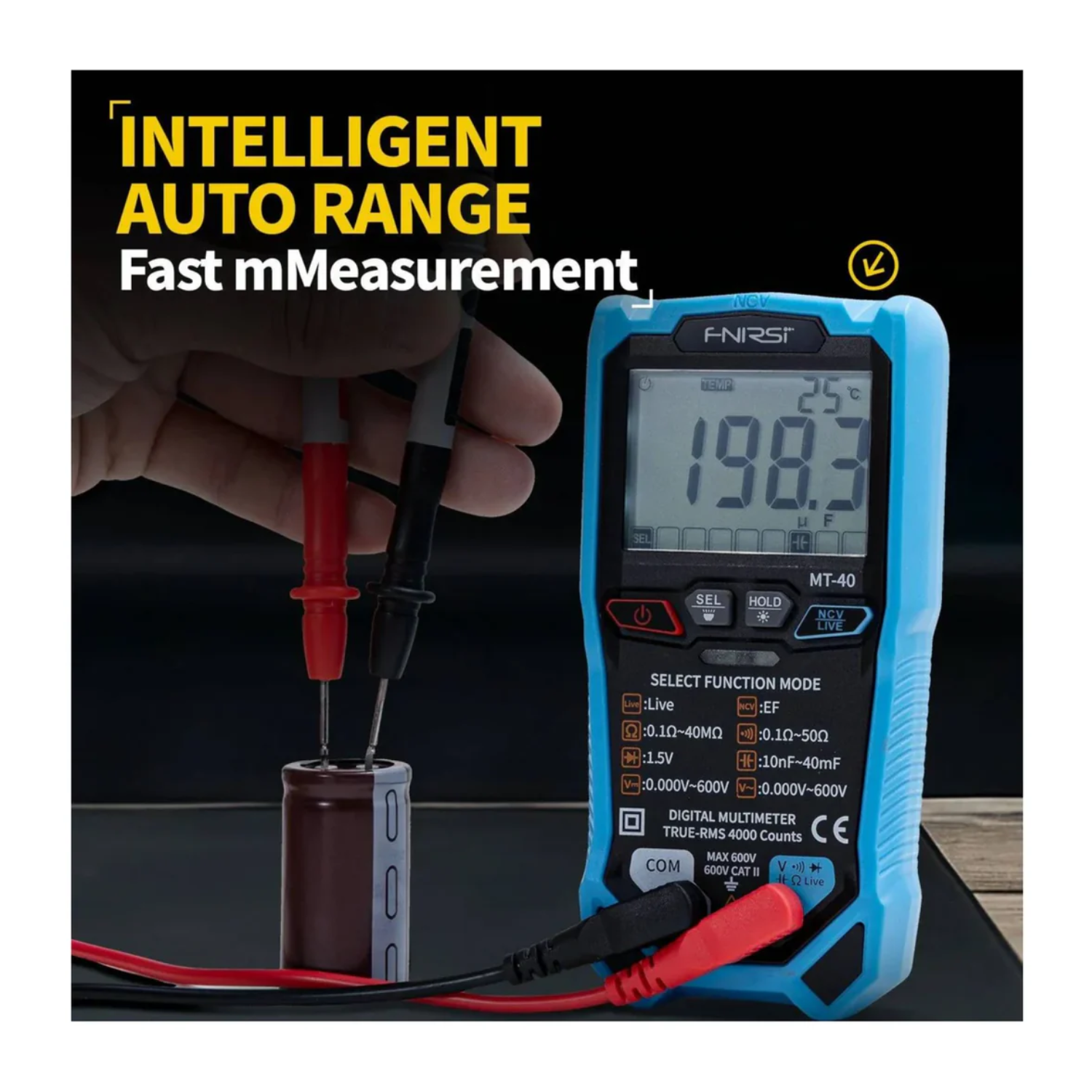

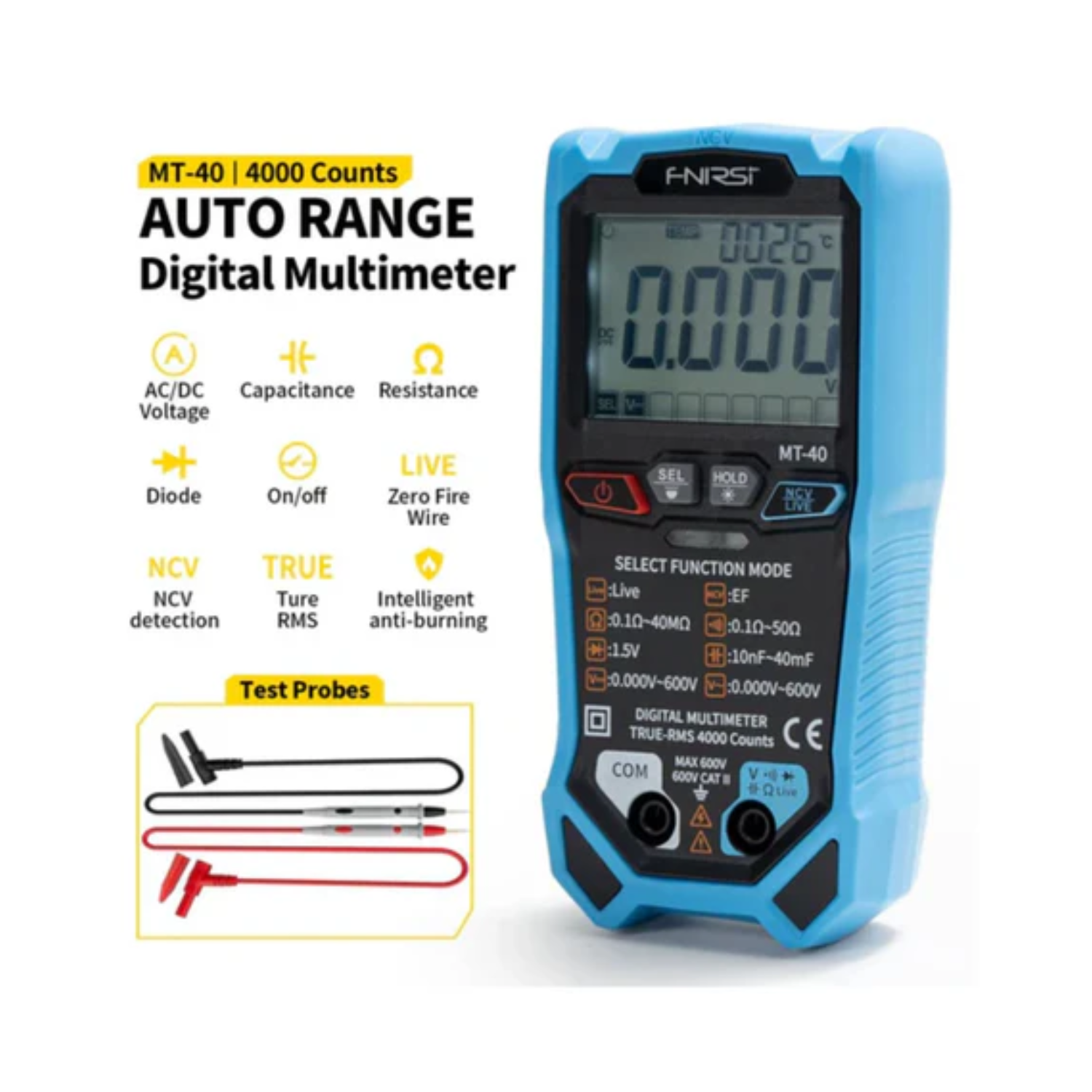

- Intelligent Auto Range: Efficient and accurate measurements with automatic range adjustment for seamless operation.
- Multiple Measurement Capabilities: It supports a wide range of functions, including True RMS measurement, capacitance, resistance, diode testing, and non-contact voltage detection, making it ideal for a variety of electrical diagnostics.
- Excellent Chip - Powerful Computing: Ultra-fast sampling rate of 3 times per second, delivering enhanced speed and accuracy.
- True RMS – 4000 Counts: Displays up to 4000 counts for unlimited, detailed measurement, providing superior accuracy.

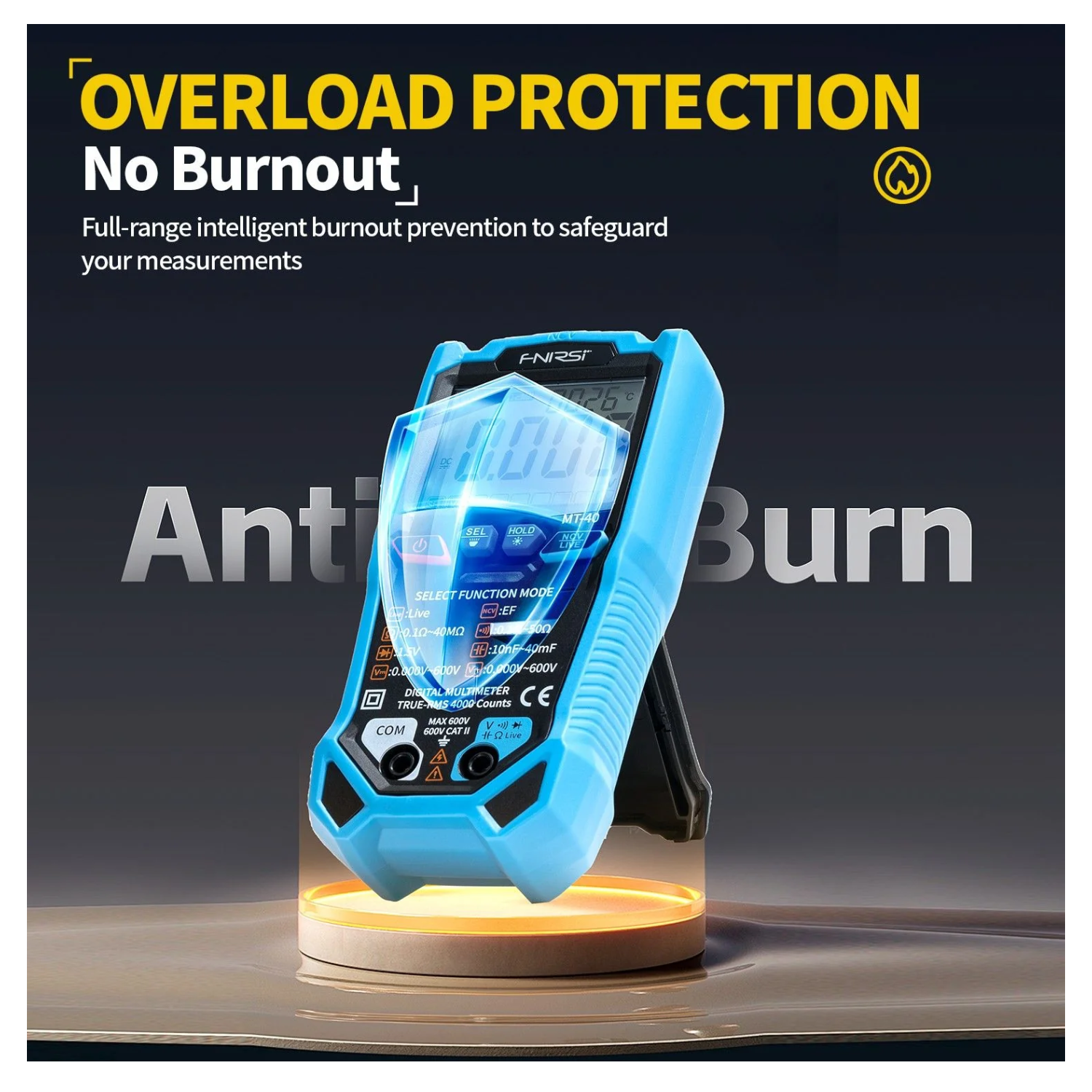

- Overload Protection – No Burnout: Full-range intelligent burnout prevention to safeguards your measurements.
- Zero Fire Wire Checking: Easy circuit checking, versatile meter functionality.

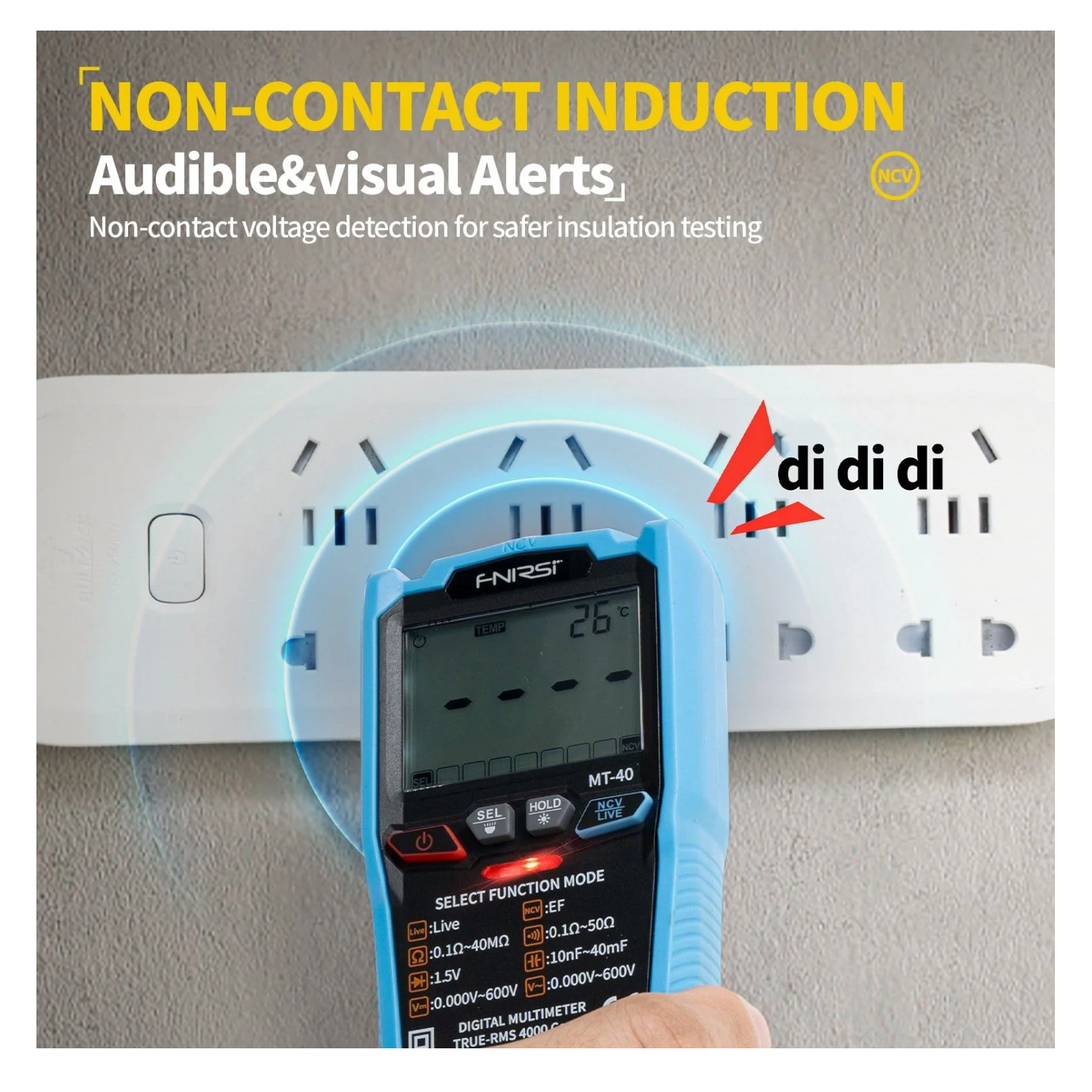

- Non-Contact Induction – Audible & Visual Alerts: Non-contact voltage detection for safer insulation testing.
- HD Screen - Backlight Display: Adopt LCD with blacklight, the value show clearly, convenient for operation.

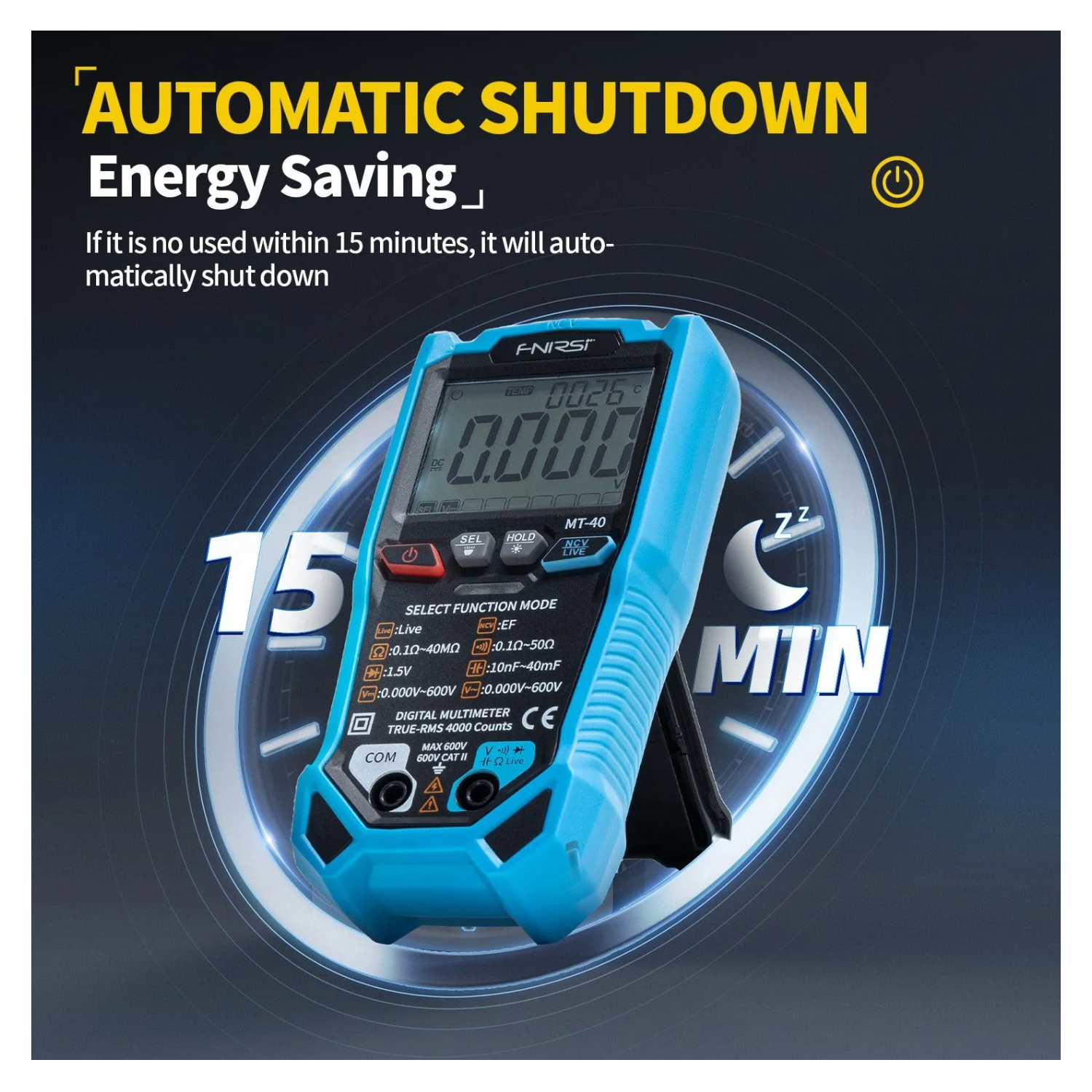

- Automatic Shutdown – Energy Efficient: This Conserves battery by automatically powering off the device after 15 minutes of inactivity.

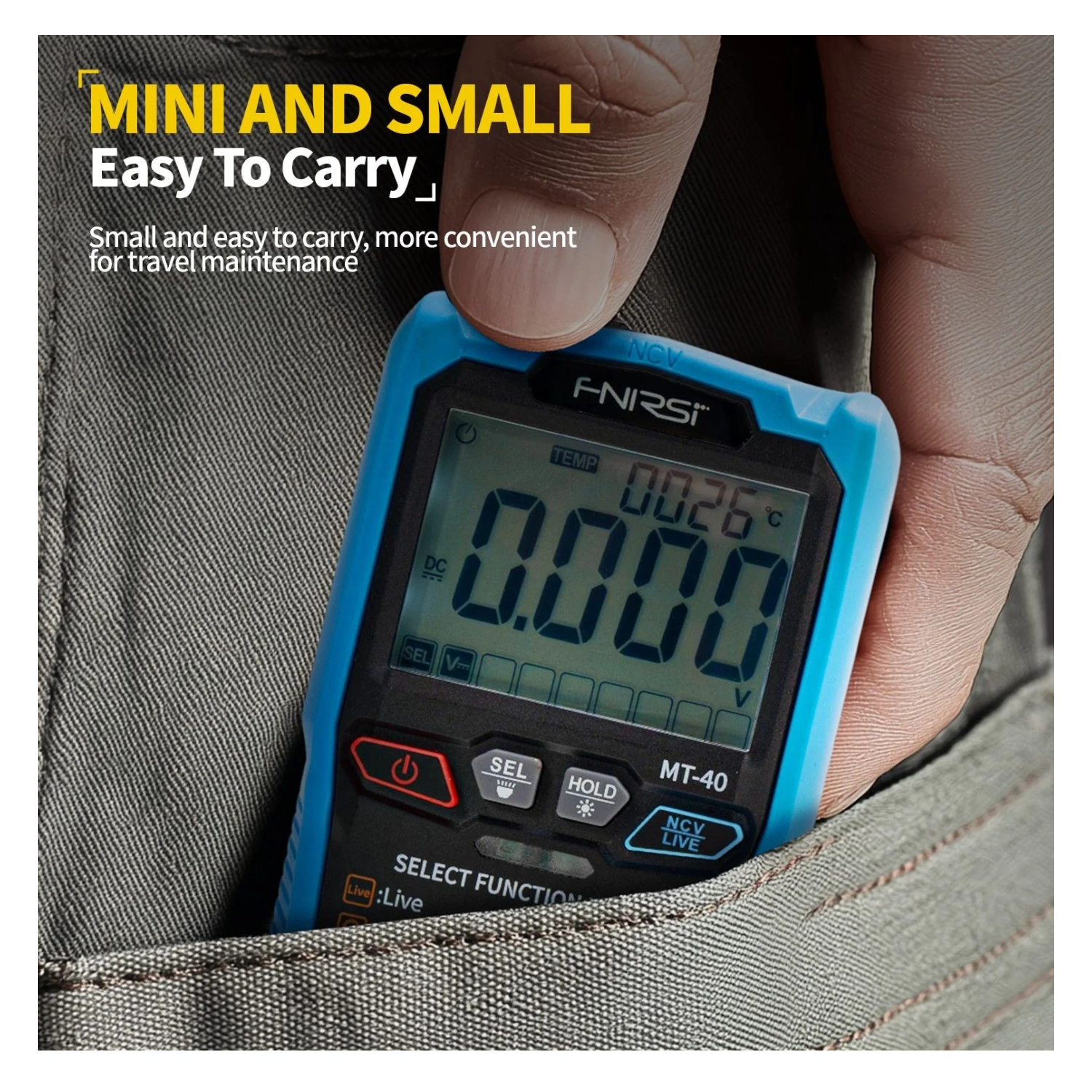

- Compact and Portable: The Lightweight and compact design makes it easy to carry for on-the-go maintenance and repairs.
- Flashlight – Work in Any Condition: A Built-in flashlight ensures you can work efficiently even in low-light or dark environments.
- Backlight Screen – High Brightness for Clear Viewing: The high-brightness screen offers excellent visibility in all lighting conditions.
- Silicone Protective Cover: A Durable silicone cover protects the device from dust and drops, ensuring longevity and reliability.
- Scalable Stand: An adjustable bracket allows for easy positioning of the meter, improving convenience during use.
Package Included:
- 1 x FNIRSI MT-40 Smart Digital Multimeter
- 1 x Multimeter Proble
- 1 x Instrucation Manual
