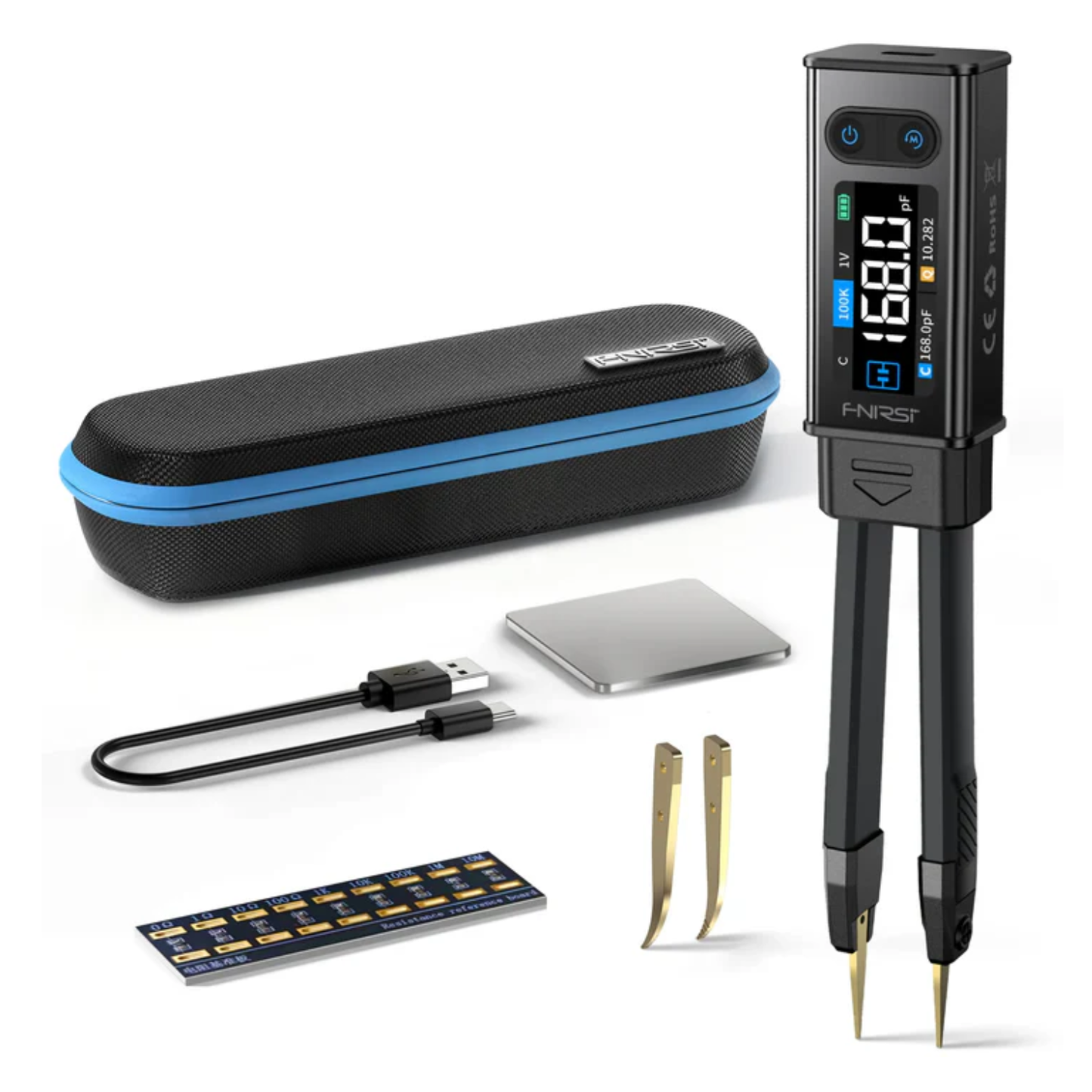

FNIRSI LCR-ST2 100kHz Digital LCR ESR Meter (Standard) 2-in-1 Smart Tweezer Bridge Automatic Component Tester & High Precision Diagnostic Tool - RS8962

Name: FNIRSI LCR-ST2 100kHz Digital LCR ESR Meter (Standard) 2-in-1 Smart Tweezer Bridge Automatic Component Tester & High Precision Diagnostic Tool - RS8962
Brand: FNIRSI
SKU: RS8962
Price: 4199.00 INR
Availability: InStock

FNIRSI LCR-ST2 100kHz Digital LCR ESR Meter (Standard) 2-in-1 Smart Tweezer Bridge Automatic Component Tester & High Precision Diagnostic Tool - RS8962

SKU:RS8962

In stock

Rs. 4,199.00

Sale Sold out

Shipping calculated at checkout.

Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

The FNIRSI LCR-ST2 is a compact dual-mode LCR meter that supports both tweezer and Kelvin-clip testing, ideal for components of any size. It measures R/C/L, diodes, and up to 30V with five test frequencies and a 1.47" HD display. Features include full-band sweep (100Hz–100kHz), intelligent sorting, dual-mode comparison, magnetic attachment, and a 300mAh battery—perfect for fast, precise testing in any environment.

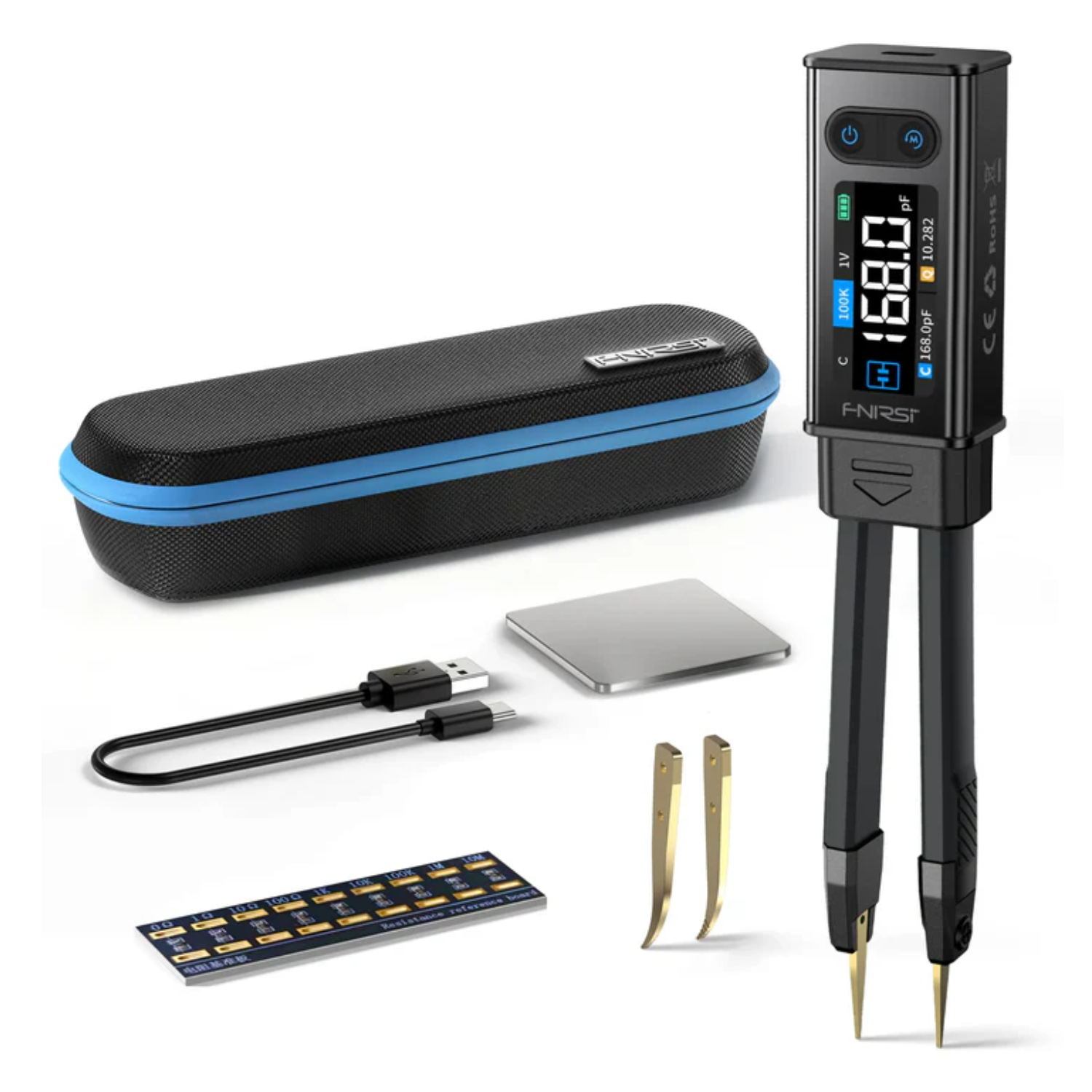

FNIRSI LCR-ST2 100kHz digital LCR ESR meter

Product Parameters:-

Model Parameters Specifications:

Standby Time	≈3H
Screen Display	1.47" HD Display
Interface	Type-C
Operating Temperature	0℃ ~ 50℃ (Humidity ≤ 75%)
Storage Temperature	-20℃ ~ 60℃ (Humidity ≤ 75%)
Weight	≈60.8g
Dimensions	31170.720.3mm

Capacitance:

1mF‒22mF	100Hz/20Hz: 5% ± 3 digits 1KHz: 5% ± 3 digits 10KHz: / 100KHz: /
1µF‒1mF	100Hz/20Hz: 2% ± 3 digits 1KHz: 2% ± 3 digits 10KHz: 2% ± 3 digits 100KHz: 5% ± 3 digits
1nF‒1µF	100Hz/20Hz: 2% ± 3 digits 1KHz: 0.5% ± 3 digits 10KHz: 0.5% ± 3 digits 100KHz: 5% ± 3 digits
1pF‒1nF	100Hz/20Hz: / 1KHz: 2% ± 3 digits 10KHz: 2% ± 3 digits 100KHz: 5% ± 3 digits

Inductance:

1H‒10H	100Hz/20Hz: 5% ± 3 digits 1KHz: 5% ± 3 digits 10KHz: / 100KHz: /
1mH‒1H	100Hz/20Hz: 2% ± 3 digits 1KHz: 2% ± 3 digits 10KHz: / 100KHz: /
10µH‒1mH	100Hz/20Hz: 2% ± 3 digits 1KHz: 0.5% ± 3 digits 10KHz: 0.5% ± 3 digits 100KHz: 5% ± 3 digits
1µH‒10µH	100Hz/20Hz: / 1KHz: 2% ± 3 digits 10KHz: 2% ± 3 digits 100KHz: 5% ± 3 digits

Resistance:

1MΩ‒10MΩ	100Hz/20Hz: 5% ± 3 digits 1KHz: 5% ± 3 digits 10KHz: / 100KHz: /
1kΩ‒1MΩ	100Hz/20Hz: 1% ± 3 digits 1KHz: 0.5% ± 3 digits 10KHz: 1% ± 3 digits 100KHz: /
1Ω‒1kΩ	100Hz/20Hz: 1% ± 3 digits 1KHz: 0.5% ± 3 digits 10KHz: 1% ± 3 digits 100KHz: 5% ± 3 digits
10mΩ‒1Ω	100Hz/20Hz: 2% ± 3 digits 1KHz: 2% ± 3 digits 10KHz: 2% ± 3 digits 100KHz: 5% ± 3 digits

Diode & Voltage:

Diode	On-state Voltage ≤ 0.7V
Voltage	±30V

LCR-ST2 high-precision smart tweezers bridge

FNIRSI 100KHz component tester diagnostic tool

Features:

Wide Range Component Measurement
Accurately measures resistance (10 mΩ–10 MΩ), capacitance (1 pF–22 mF), inductance (1 μH–10 H), diode (≤0.7 V), and voltage (±30 V).
Comprehensive Electrical Parameters
Provides D/Q/Z/X/θ/ESR readings to fully characterize component behavior and performance.
Five Selectable Test Frequencies
Offers professional testing at 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz for different types of components and applications.
Four RMS Test Levels
Adjustable excitation levels (0.1V / 0.3V / 0.6V / 1.0V) enable optimized measurement stability across various component types.
Dual Series/Parallel Equivalent Comparison
Simultaneously displays series and parallel equivalent values to minimize parasitic interference and enhance measurement accuracy.
Full-Band Sweep Mode (100Hz–100kHz)
Provides fast multi-frequency analysis with a single action, enabling detailed characterization of component frequency response.
Intelligent Sorting with Tolerance Grading
Automatically evaluates components based on preset nominal values and tolerances for rapid OK/NG batch testing.
Dual-Form Testing: Tweezer Tips + Kelvin Clip
Straight and curved tweezer tips allow easy testing of small components, while the Kelvin clip provides precise four-wire measurement for larger or through-hole components.
Smart Recognition & Display Functions
Features automatic R/C/L component recognition, dual-parameter display, HOLD/Max/Min, and adjustable system settings.
Auto-Rotate Orientation
Hand-sensing screen rotation supports both left-handed and right-handed usage for effortless operation.
Portable Magnetic Design
Includes a magnetic attachment for easy storage and handling, ideal for fast access in field environments.
1.47" HD Color Display
Offers clear, high-contrast visualization of measurement data for efficient on-site and laboratory usage.
Long Battery Life & Type-C Charging
Powered by a 300mAh lithium battery with Type-C charging, delivering up to ~3 hours of continuous operation.
