Description:

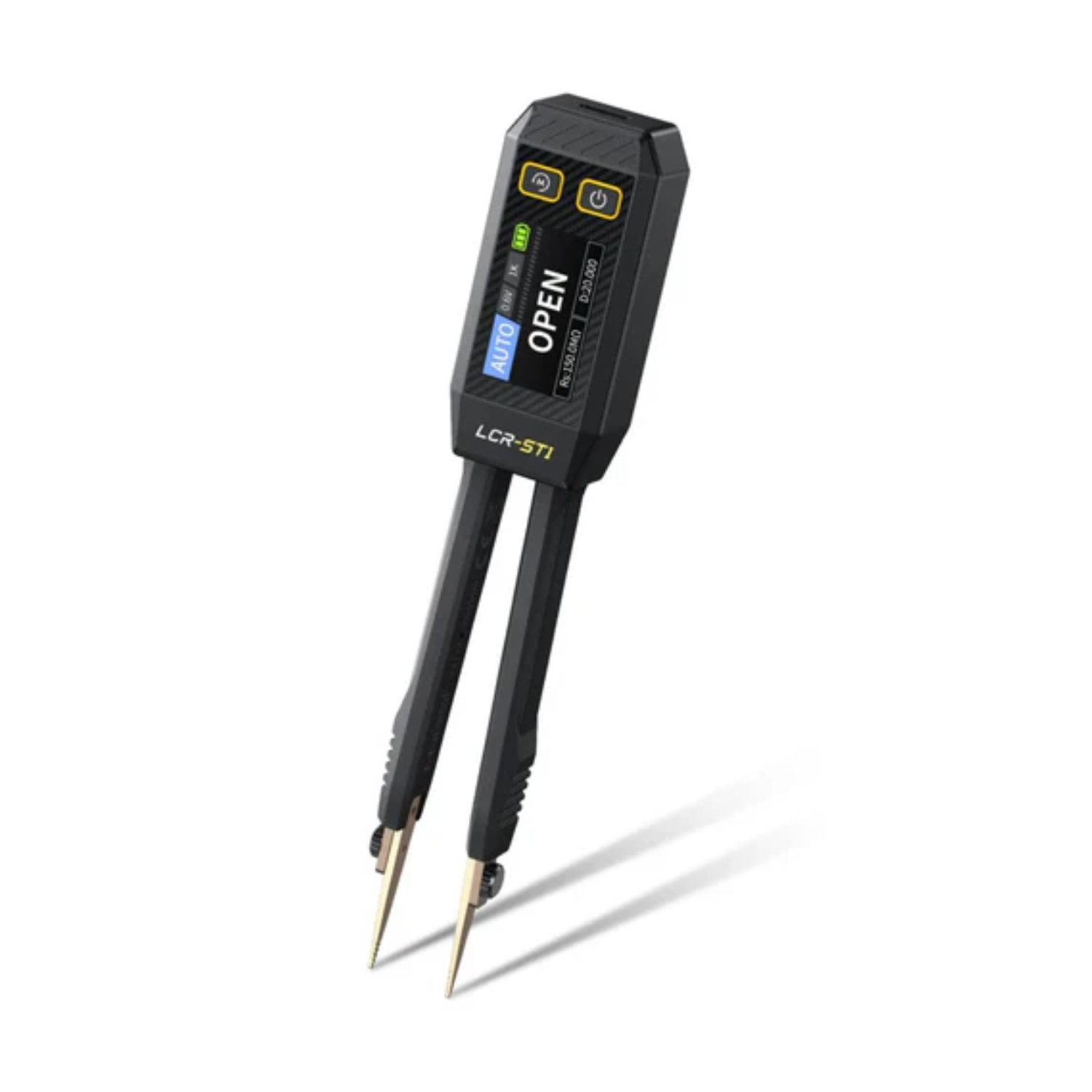

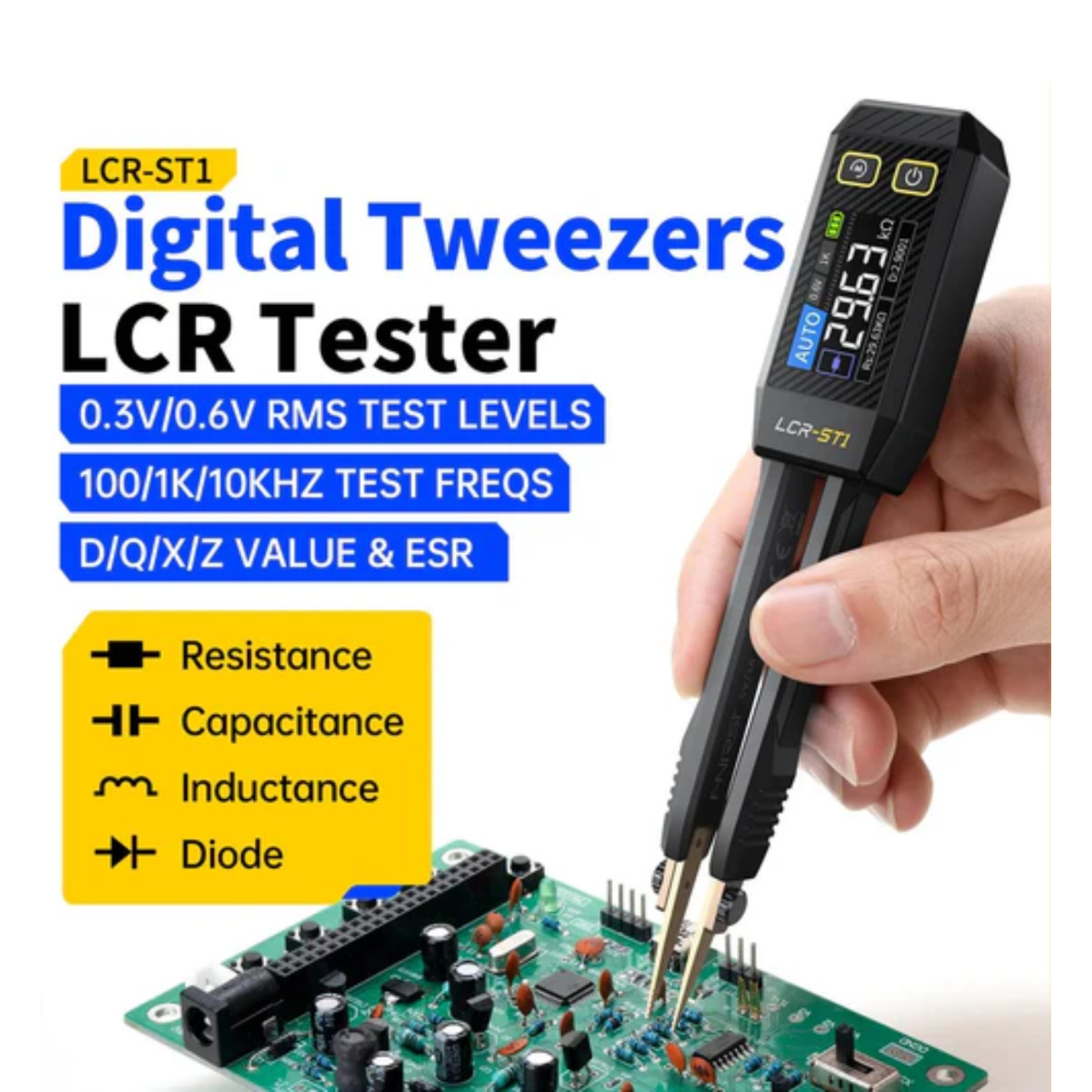

The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes, and Continuity.

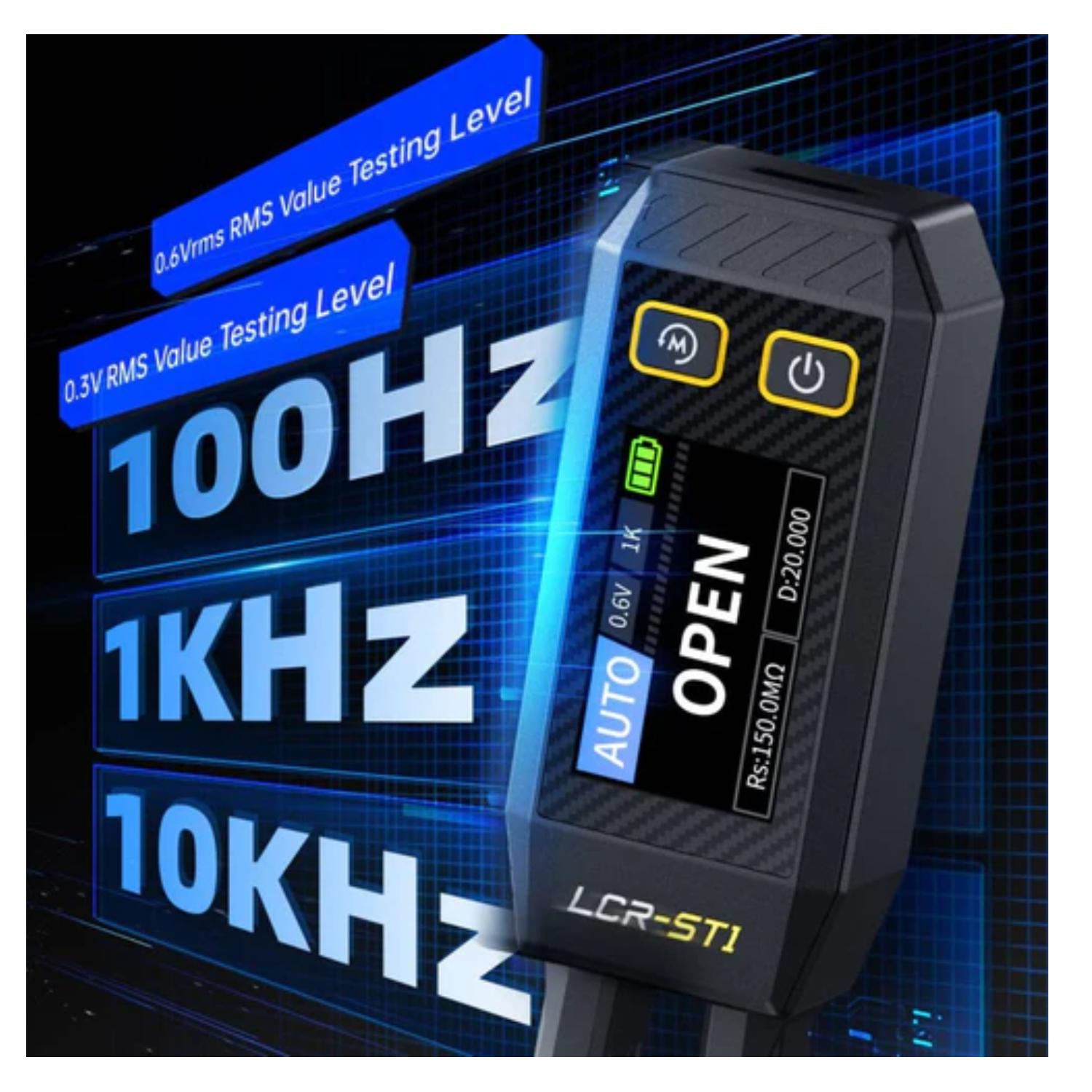

This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14-inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

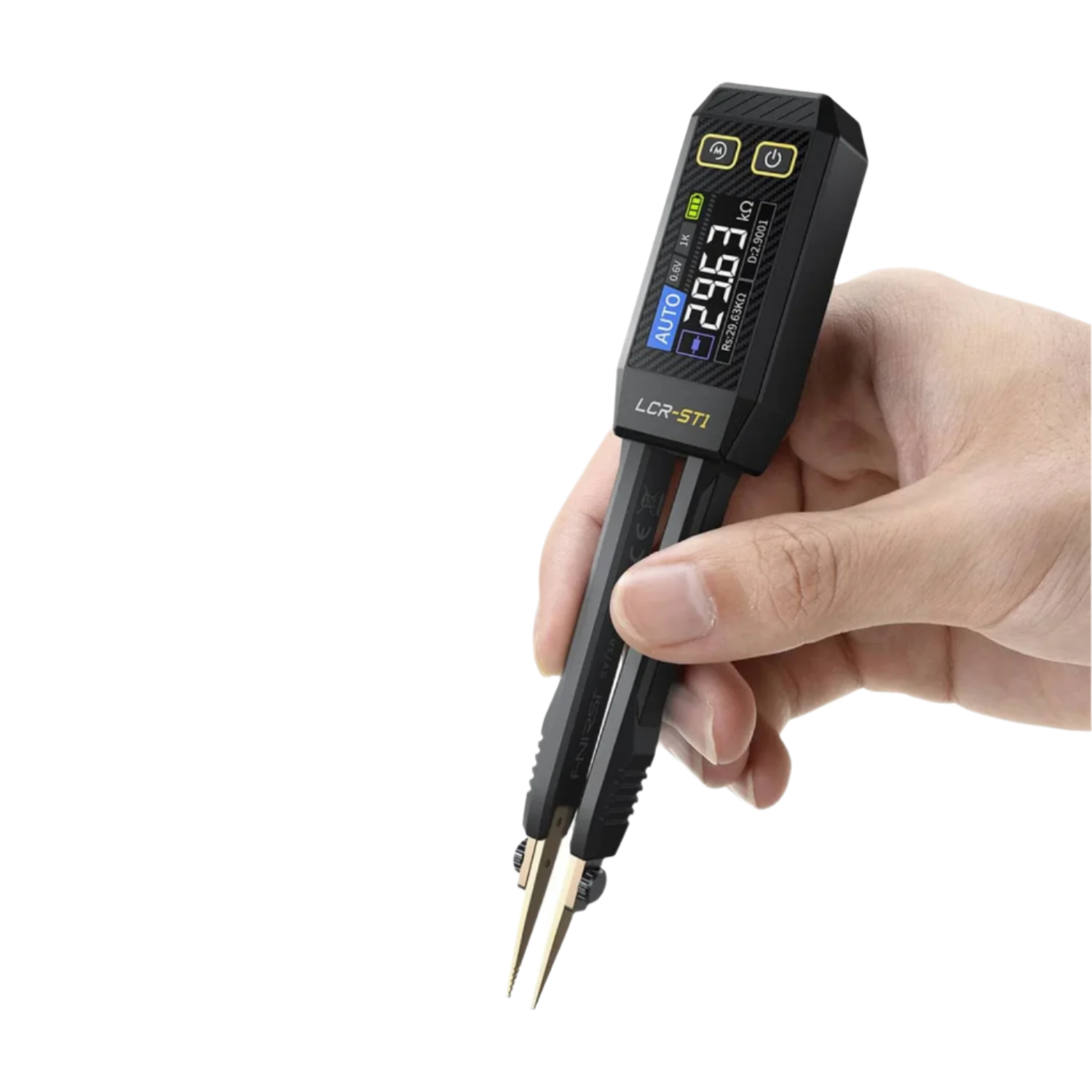

The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!
Specifications:
| Brand | FNIRSI |
| Model |
LCR-ST1
|
|
Capacitance Range
|
1pF-22mF
|
|
Inductance Range
|
1μh-10H
|
|
Resistance Range
|
10mΩ-10MΩ
|
| Diode |
On voltage 0.7V
|
|
Frequency Test
|
100Hz, 1kHz, 10KHz
|
|
Level Test
|
0.3V, 0.6V RMS
|
|
Parameter Display
|
ESR, D value, Q value, Z value, X value
|
| Display |
1.14" color screen
|
|
Charging Interface
|
Type-C, 5V/A
|
|
Power Supply
|
250mAh lithium battery
|
|
Auto Recognition Measurement
|
Support |
|
Replaceable Tweezer Head
|
Support |
|
Auto Shutdown
|
Support |
|
Data Hold
|
Support |
|
History Record
|
Connect to PC to view and export
|
| Language |
English, Chinese
|
Features:
- Intelligent identification, automatic measurement: automatic identification of components, the main and secondary parameters are displayed at the same time
- 1.14-inch high-definition color display, clear and intuitive interface.
- Memory stay, data retention: support data retention, at the same time automatically record data to generate EXCEL table, view the recorded data on the computer.

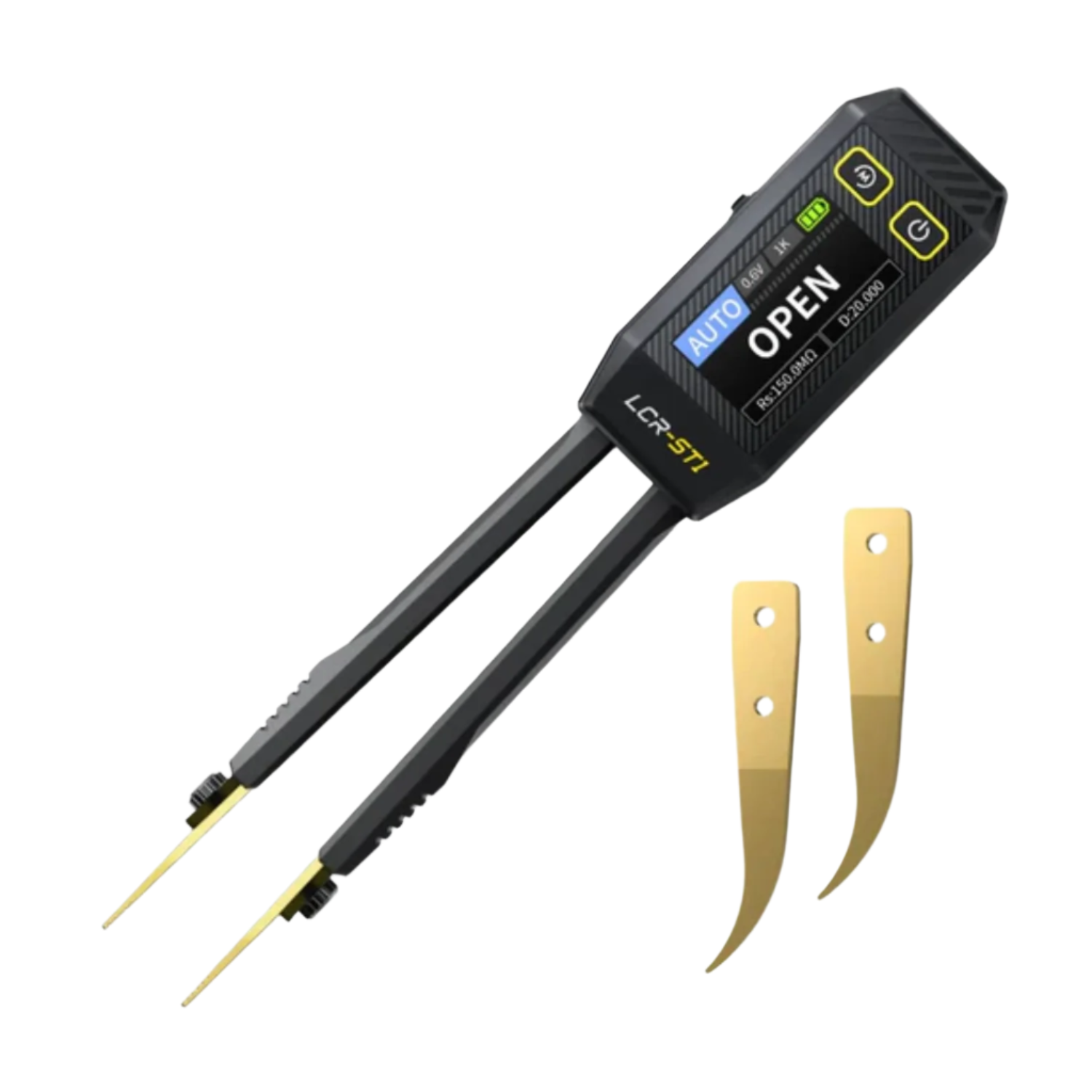

- Interchangeable tweezers head flexible assembly: brass plated material, straight and curved two kinds of tweezers head can be changed, high hardness, more durable! Adapt to different application scenarios, provide more accurate measurement stability!
-
Lightweight and portable, portable: lightweight design, compact size, easy to carry!

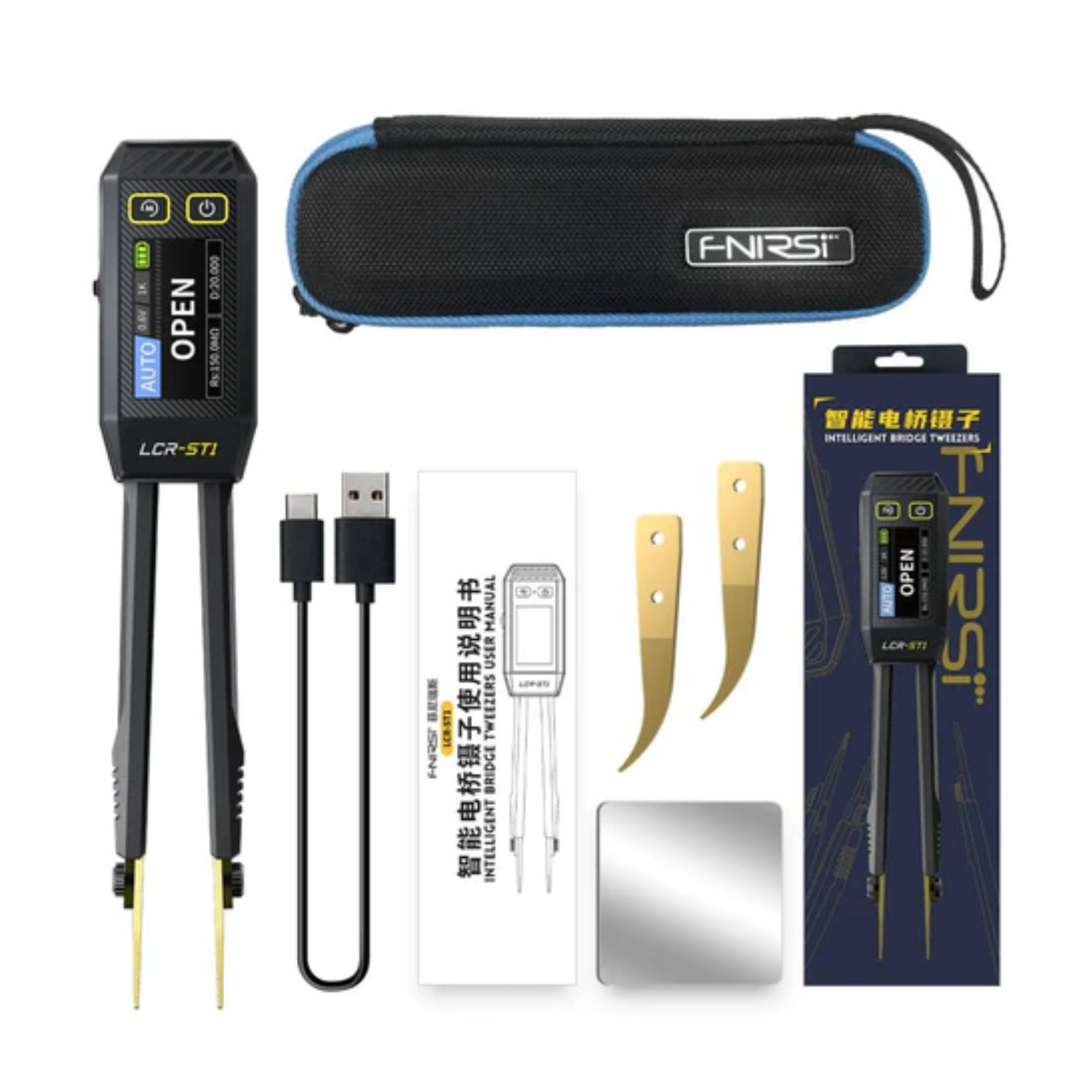

Package Included:
- 1 x FNIRSI LCR-ST1 Mini Smart Digital Tweezer Meter
- 1 x Hook Head(one Pair)
- 1 x Magnetic Patch
- 1 x USB Data Cable
- 1 x User Manual
- 1 x Packing Box
- 1 x Tool Bag23
