Description:

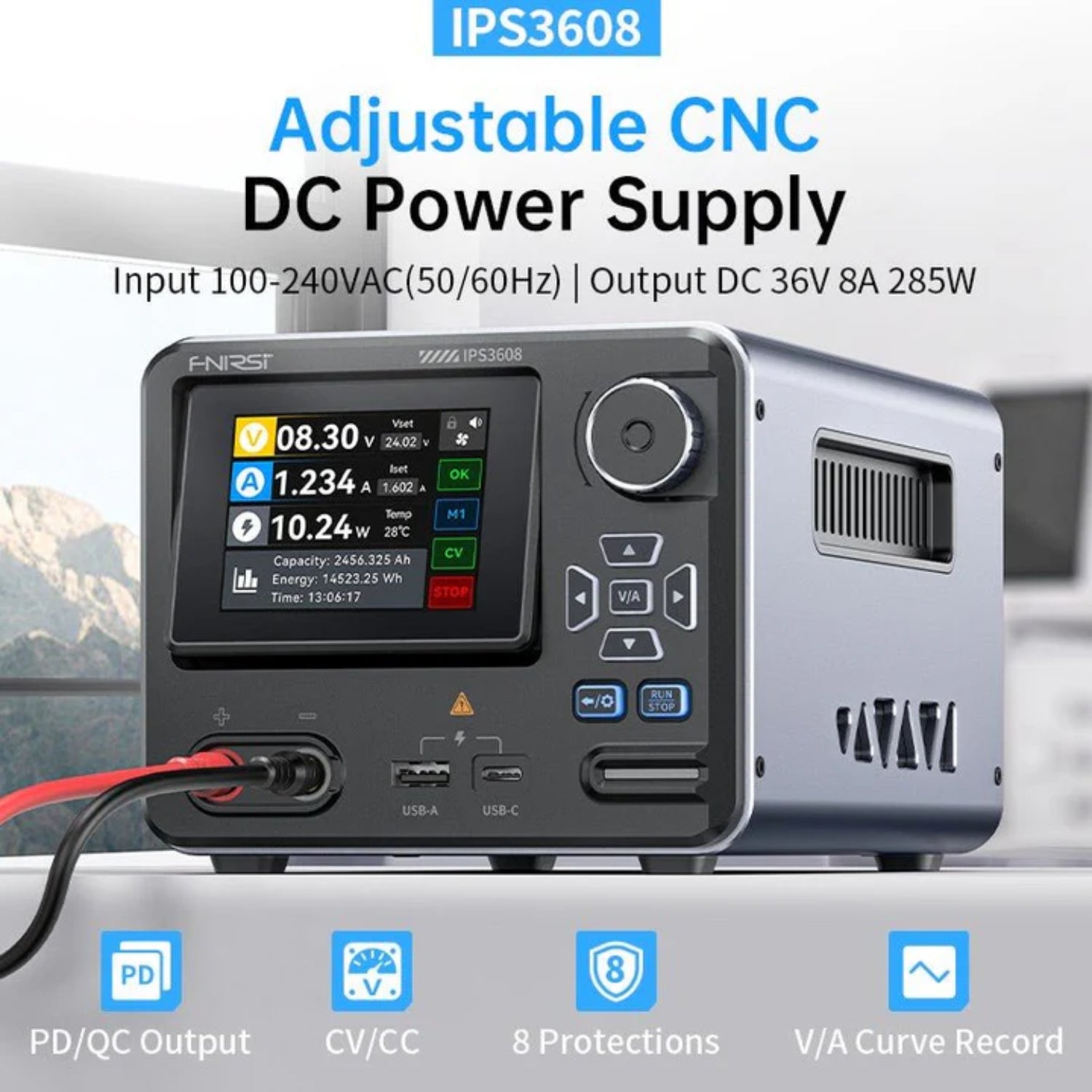

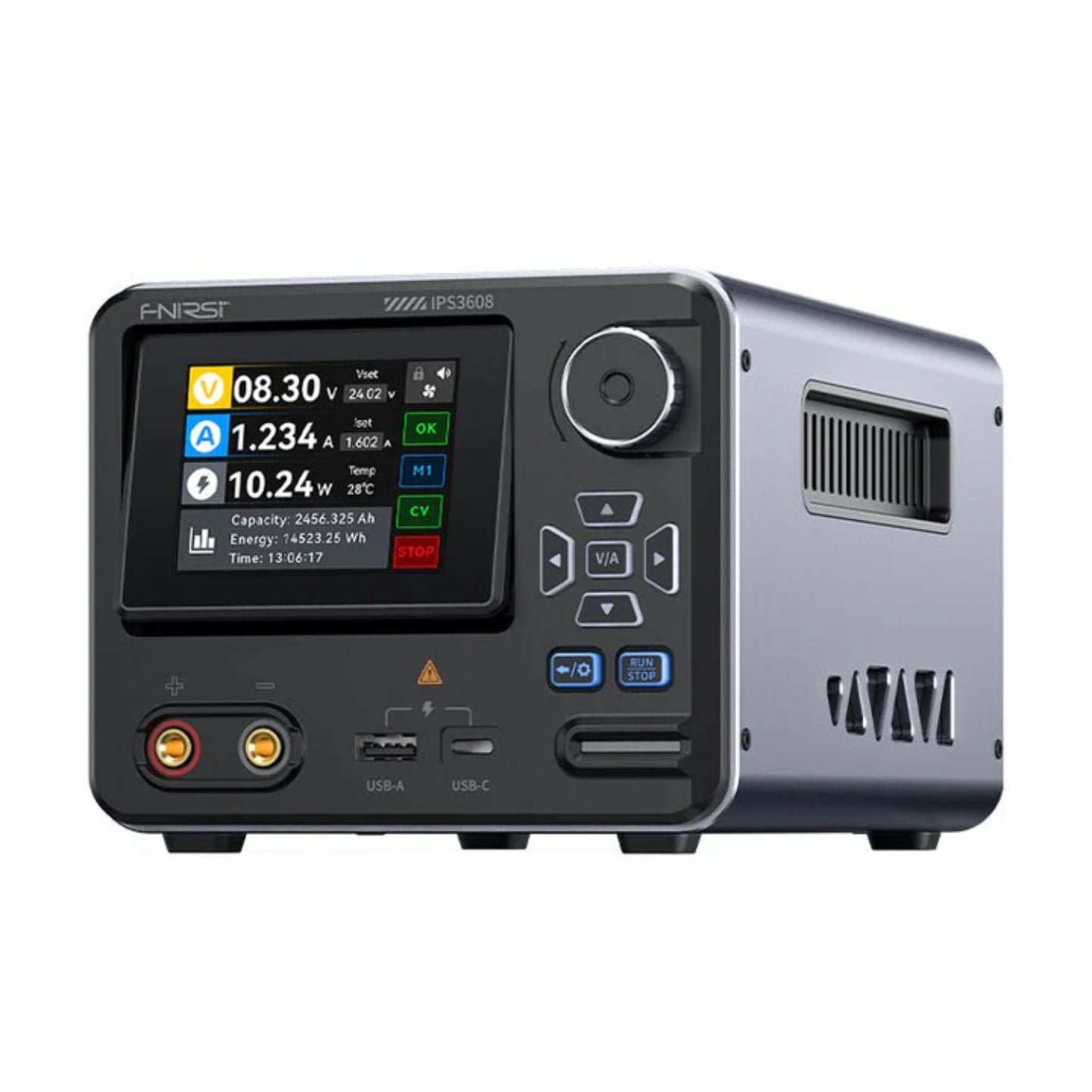

FNIRSI IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to efficiently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, a convenient digital control interface, and multiple electrical protections.
Basic Parameters Specifications:
| Screen Material | 2.8-inch color screen |
| Backlight | Adjustable backlight brightness |
| Language | 中文, English |
Battery Parameters:
| Input | Voltage Range: 100-240VAC(50/60Hz) |
| Setting Resolution |
Voltage: 0.01V Current: 0.001A |
| Readback Value Accuracy |
Output Voltage: ±(0.3%+3 bits) Output Current: ±(0.15%+5 bits) |
| Operating Environment | -10℃~40℃, 0%~75%RH |
| Protection Mechanism |
◾ Overvoltage protection ◾ Overcurrent protection ◾ Overpower protection ◾ Overtemperature protection ◾ Undervoltage protection ◾ Short circuit protection ◾ Input reverse connection protection ◾ Output reverse injection protection |
| Output |
Voltage: DC 0~36V Current: 0~8A Power: 0~285W |
| Load Regulation Rate | ±(0.2%+2 bits) |
※Accuracy calculation method: one byte is the minimum resolution, such as 5V, the error is ±(5 x 0.3% + 3 x 0.01), that is, 5 ± 0.045V

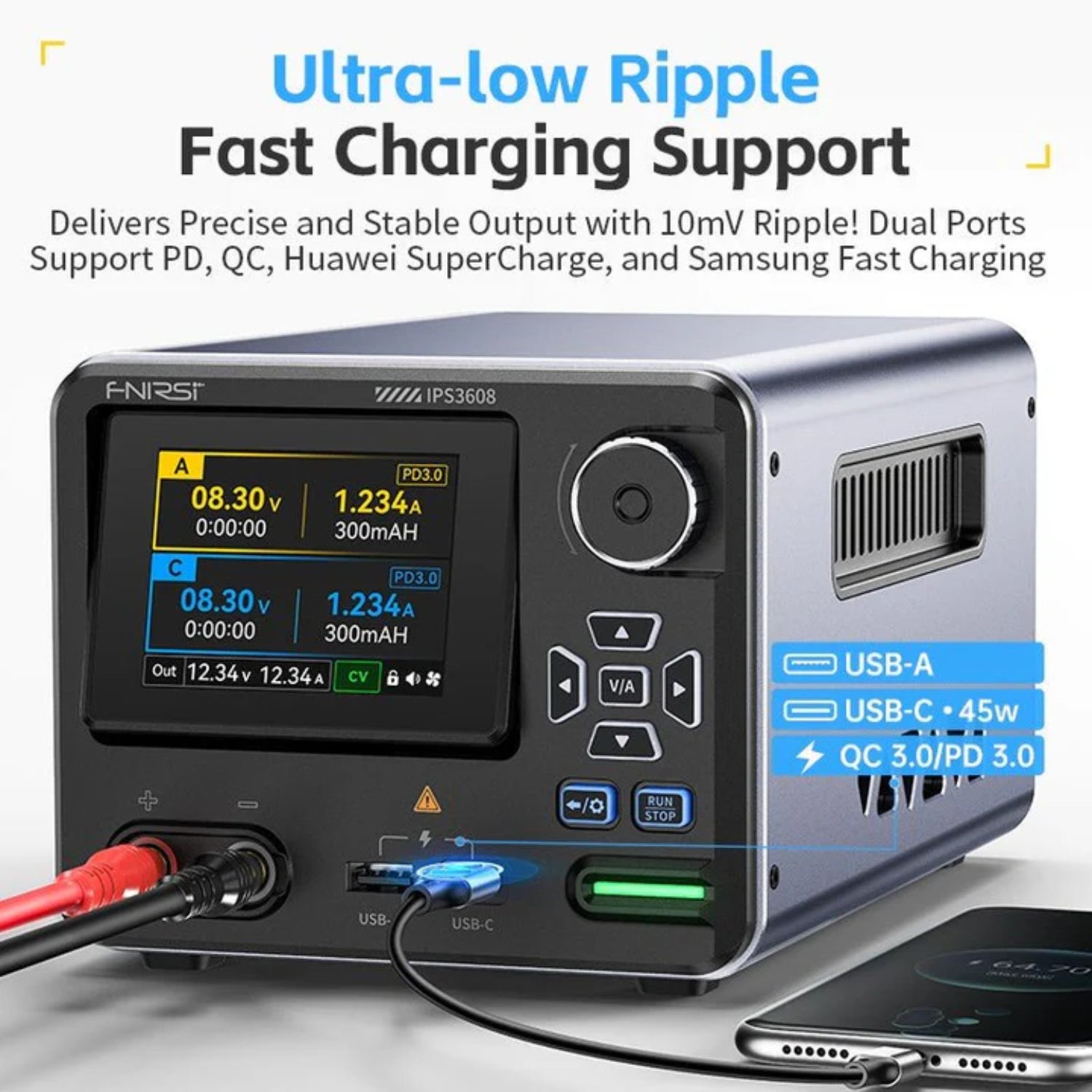

Fast Charging Protocol:
| USB-C | PD3.0 |
| USB-A |
HUAWEI FCP HUAWEI SCP AFC QC2.0 QC3.0 |
Features:
- Intelligent Digital Control: The IPS3608 uses advanced digital technology for more precise and efficient power conversion than traditional supplies.
- High-Precision Output: Easily adjust parameters for an exceptionally accurate and stable output.
- Strong Dynamic Response: Quickly adapts to changes, ensuring consistent power under varying loads.
- Multiple Protections: Built-in electrical protections keep your projects and equipment safe.

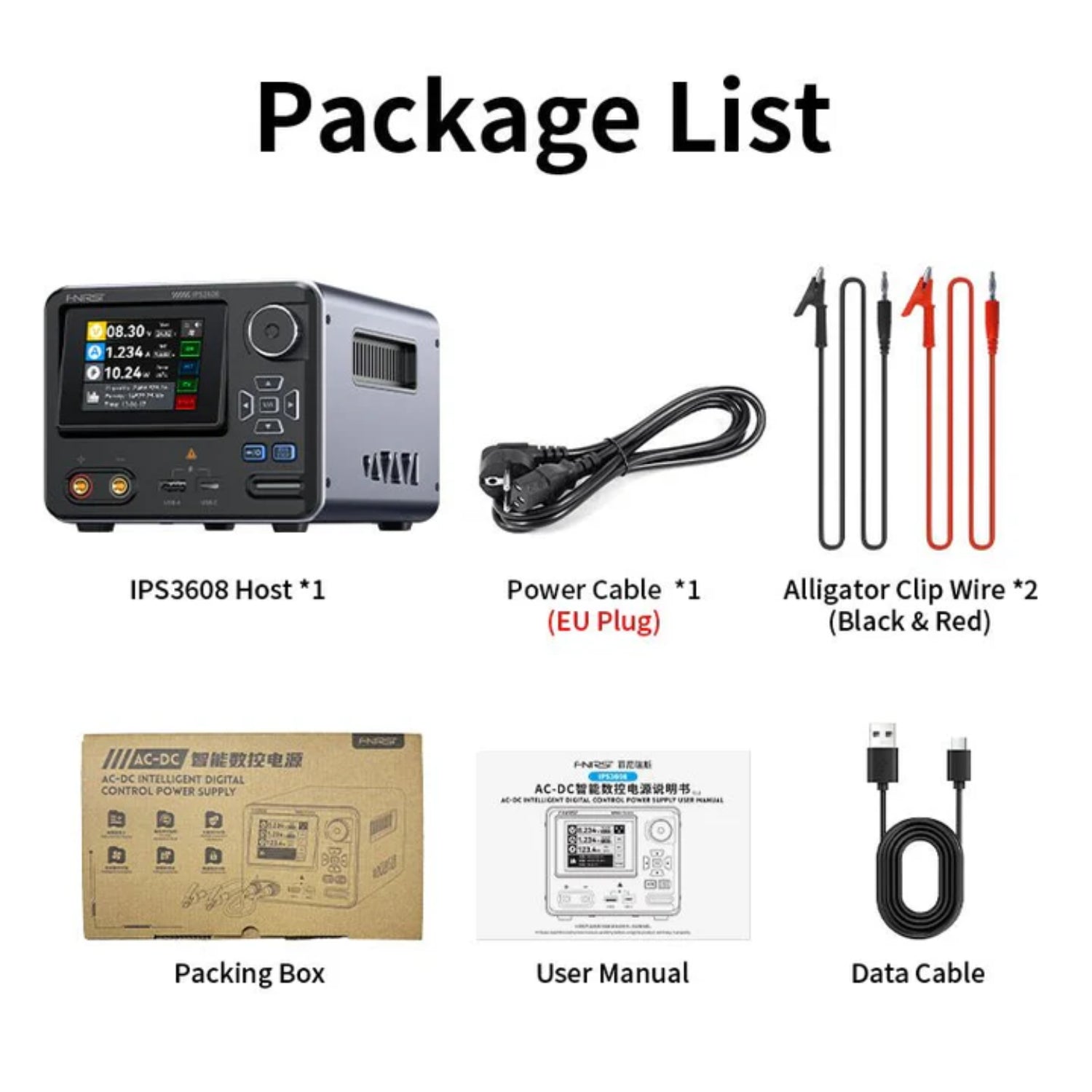

Package Included:
- 1 x FNIRSI IPS3608 AC-DC 36V 8A Intelligent Digital Control Power Supply
- 1 x Power Cable - EU Plug
- 2 x Alligator Clip Wire × 2 (Black & Red)
- 1 x Data Cable
- 1 x User Manual
-
1 x Packing Box
