Description:

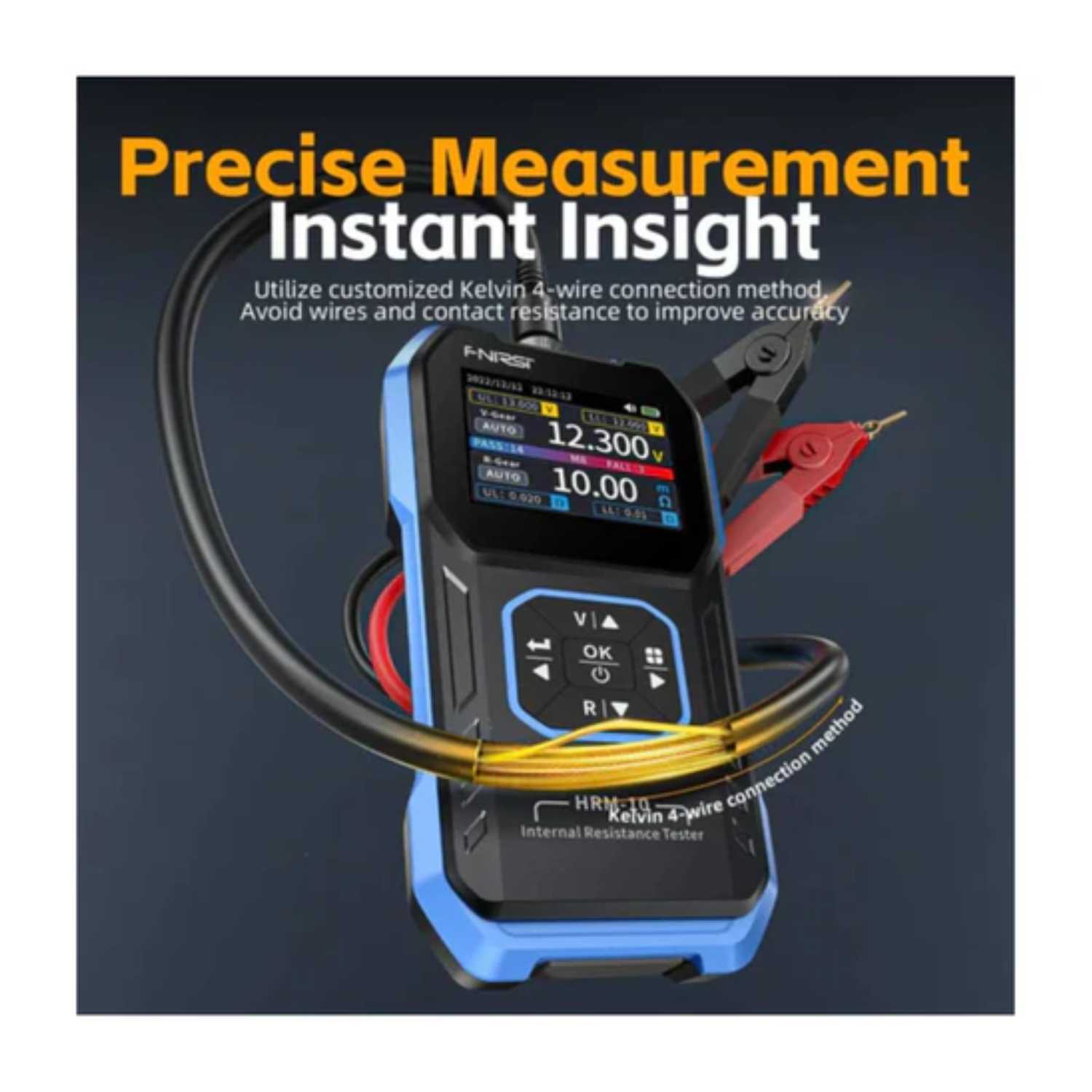

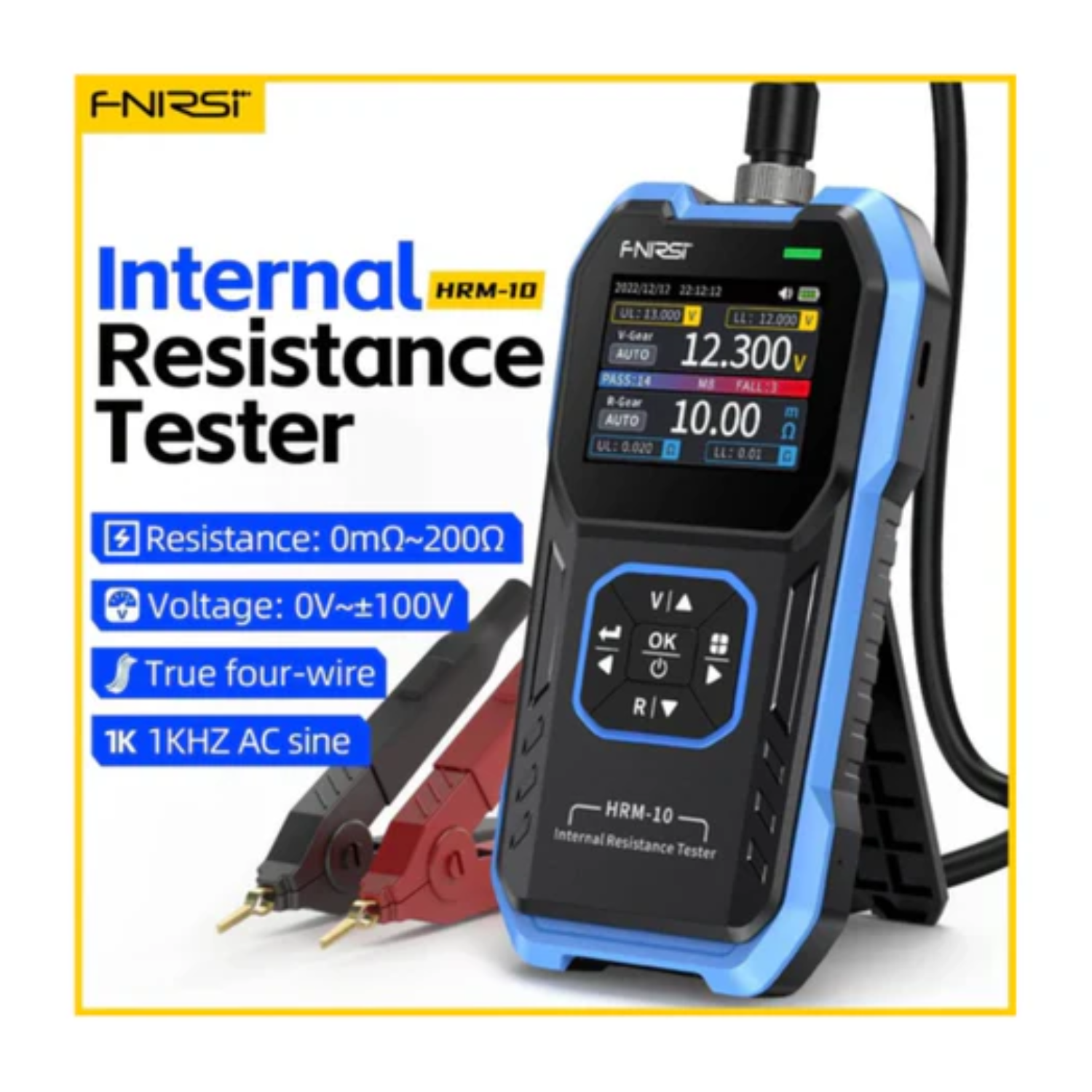

FNIRSI "HRM-10" is our company's first handheld high-precision battery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision and convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.
Specification:
| Type |
Vehicle Battery Tester
|
|
Voltage Measuring Range
|
0 ~ ±100V (DC)
|
|
Voltage Gear
|
Auto, 1V, 10V, 100V
|
|
Resistance Measuring Range
|
0 ~ 200Ω
|
|
Resistance Gear
|
Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
|
| Accuracy |
±0.5%
|
|
Signal Frequency
|
AC 1Khz
|
|
Rechargeable
|
Type-C Interface (5V/1A)
|
|
Battery
|
1000mAh lithium battery
|
|
User Calibration
|
Support |
|
Sorting Mode
|
Support
|
|
History Record
|
Support |
|
Recorded Data Export
|
Support |
|
Working Environment
|
-10℃ ~ +45℃, relative humidity < 80%
|
|
Storage Environment
|
-20℃ ~ +80℃, relative humidity < 80%
|

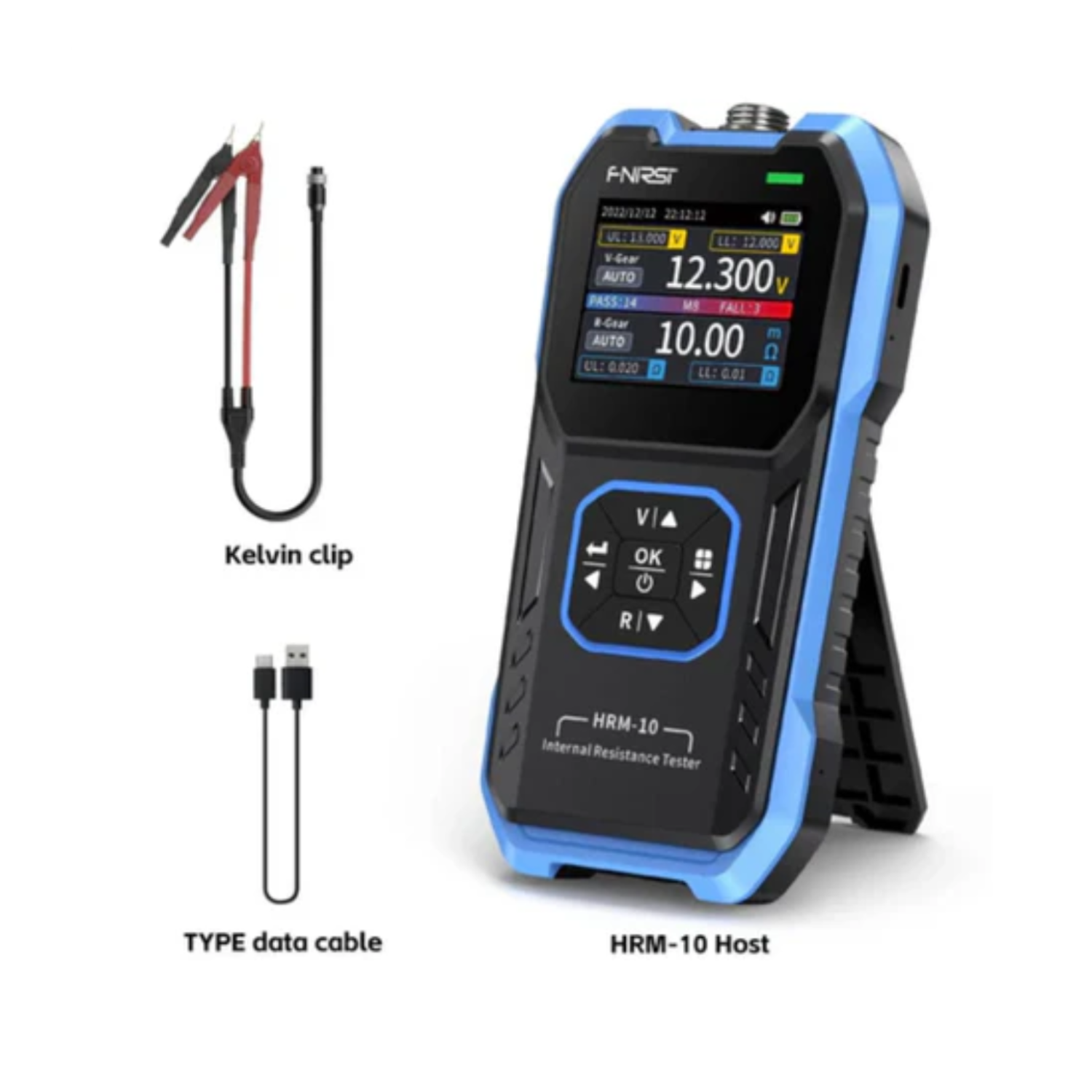

Package Included:
- 1 x FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
- 1 x Kelvin Clip Test Line
- 1 x Type Data Cable
