Description:
The FNIRSI GC-01 nuclear radiation detector uses a higher-precision Geiger-Miller counter.
Counter for detecting the intensity of ionizing radiation (beta particles, gamma rays and x-rays).
Use a gas tube or a small chamber as a probe.When the voltage applied to the probe reaches a certain range.Each time the ray is ionized in the tube to produce a pair of ions, it can be amplified to produce an electric pulse of the same size.And recorded by the connected electronic device.The number of rays per unit time thus measured.The alarm threshold measurement rate can be arbitrarily selected.
Specifications:
| Brand | FNIRSI |
| Model |
GC-01
|
|
Product Type
|
Nuclear Radiation Detector
|
|
Detector
|
Energy Compensation GM tube (Geiger Technology tube)
|
|
Dose Equivalent Rate
|
0.00-1000uSv/h (10mSv/h)
|
|
Types of Detection Rays
|
γ ray, X ray, β ray
|
|
Cumulative Dose Equivalent
|
0.00μSv-500.0mSv
|
|
Energy Range
|
48keV-1.5Mev ≤ ±30% (for 137Cs-)
|
| Language |
Chinese/English switch
|
|
Sensitivity
|
80CPM/uSv (For Co-60)
|
|
Dosage Unit
|
μSv/h, μGy/h, mR/h, cps, cpm switch
|
|
Alarm Method
|
light, vibration, sound
|
|
Power Supply
|
1100mAh lithium battery
|
| Size |
120*78*27mm
|
Features:
- Food/metal detection
- Marble/ore inspection
- Nuclear industry radioactivity detection
- Radioactive medical equipment testing
- Core technology Geiger Miller counter

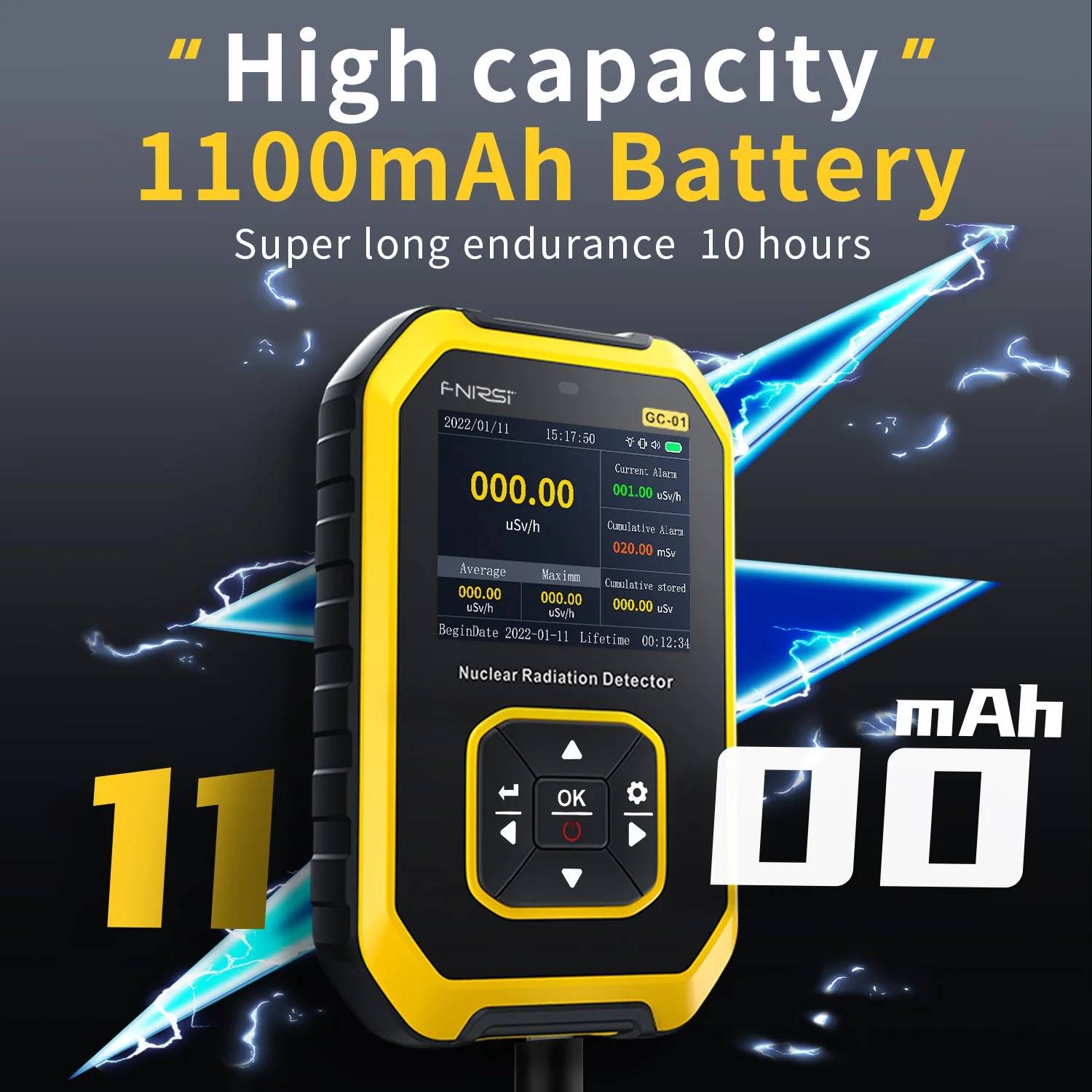

- High capacity 1100mAh battery

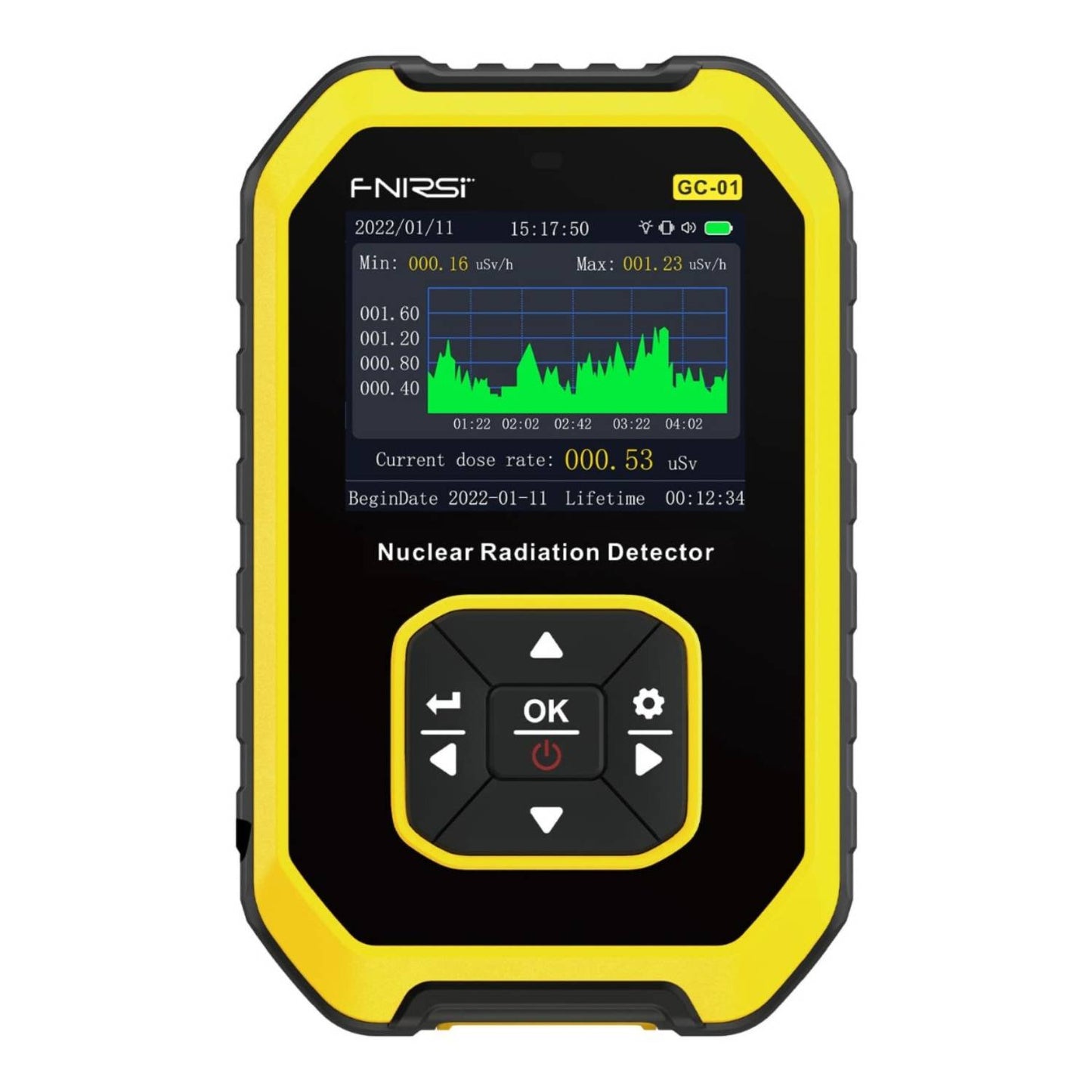

- Multifunctional page real-time monitoring
- Detector: Energy compensation GM tube (Geiger technology tube)
- Dose equivalent rate: 0.00-10000μSv/h (10mSv/h)
- Cumulative dose equivalent: 0.00μSv-500.0mSv
- Types of detection rays: γ ray, X ray, β ray

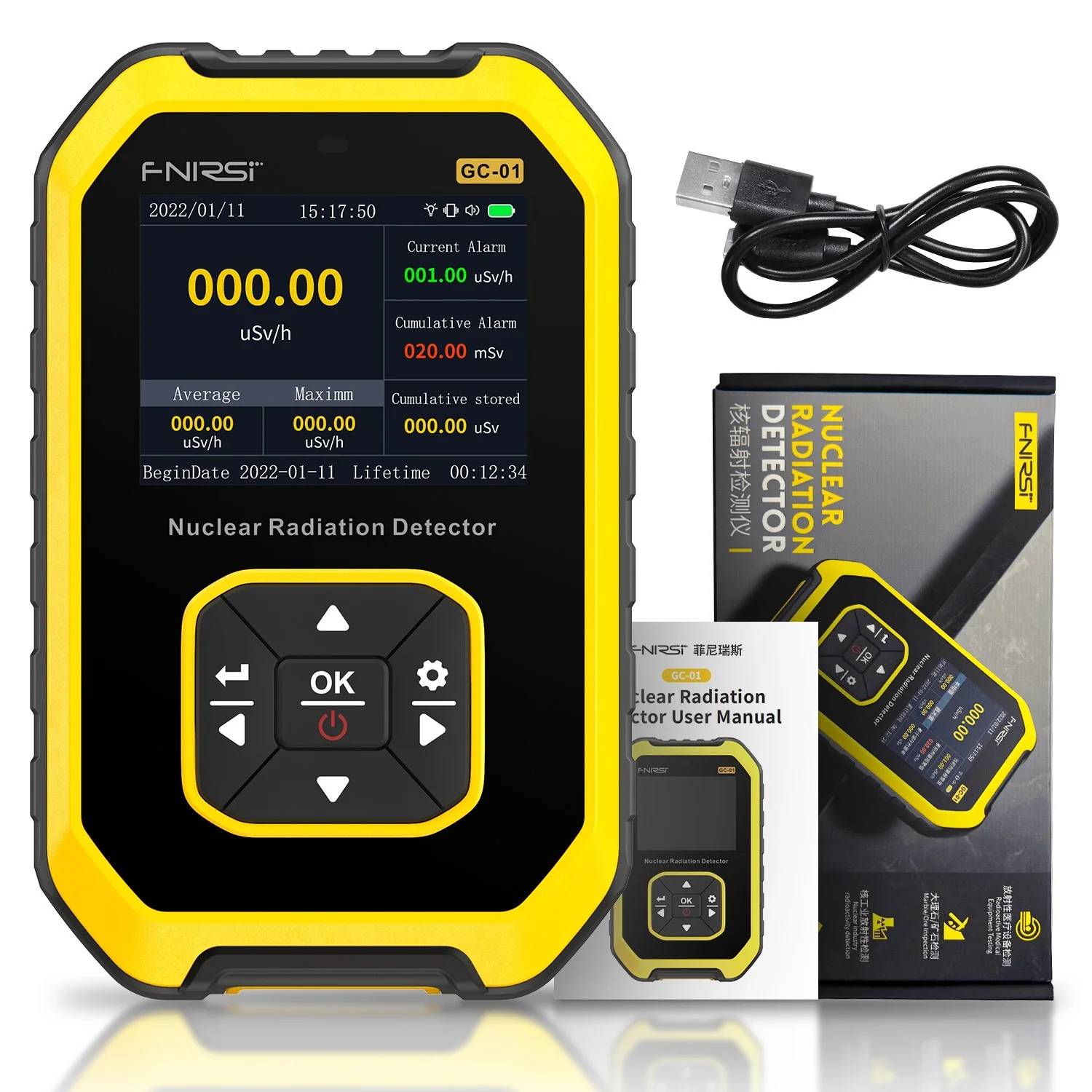

Package Included:
- 1 x FNISRI GC-01 Nuclear Radiation Detector
- 1 x User Manual
- 1 x Cable
