Description:
FNIRSI FNB48S is Voltmeter Ammeter Current Quick Recharging Tester Protocol Tool PD Trigger Ammeter USB Tester QC4 PD3.0 2.0 PPS Capacity Test.

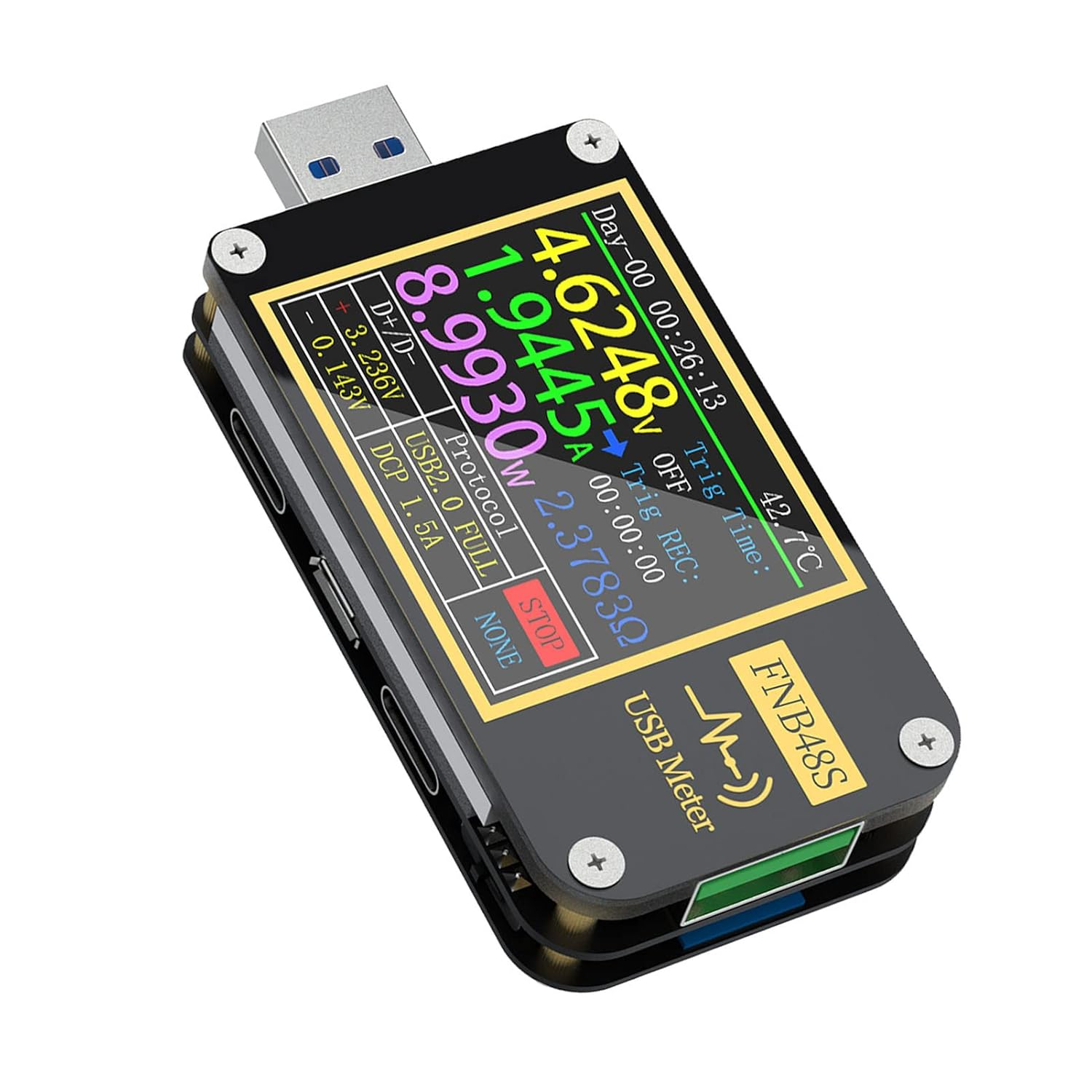

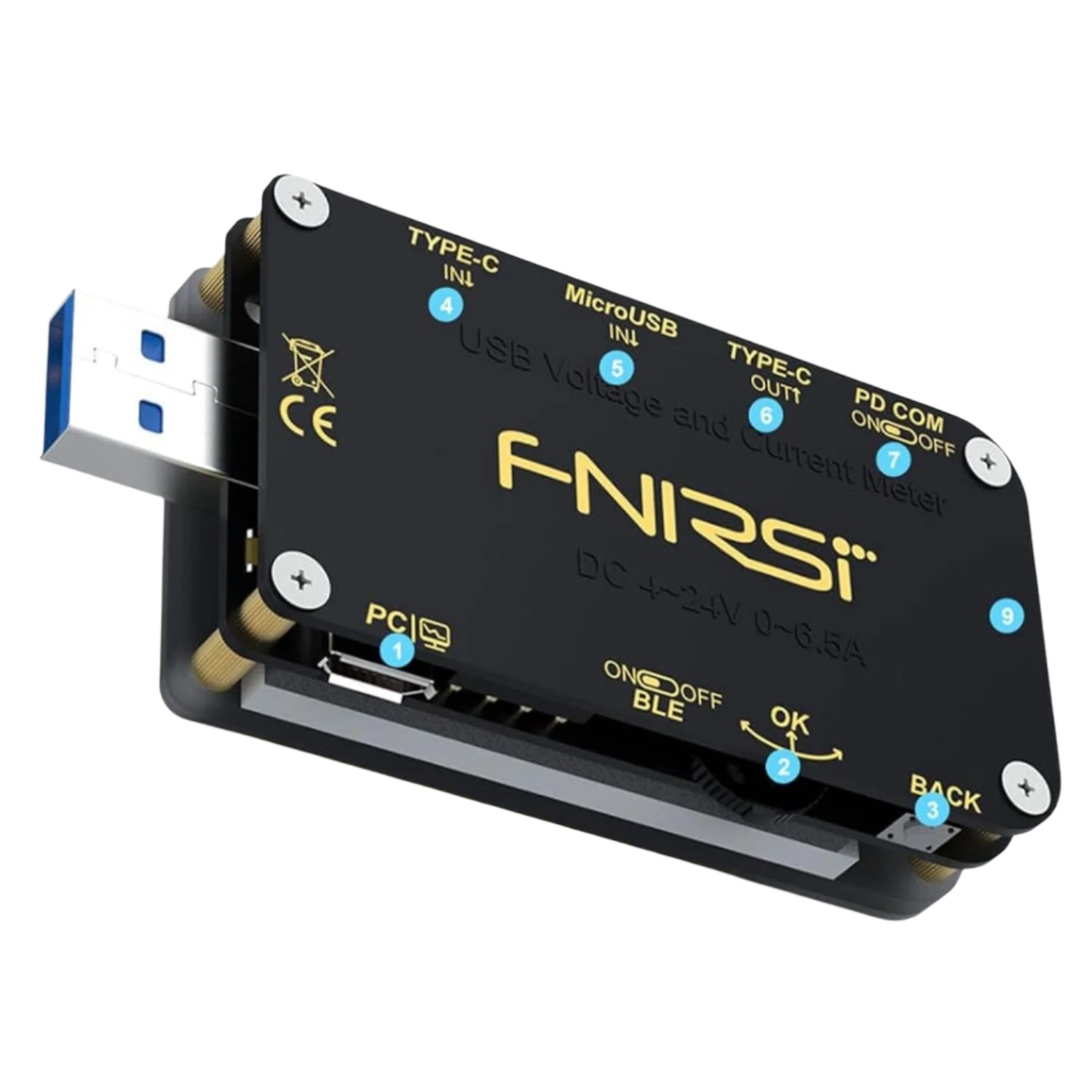

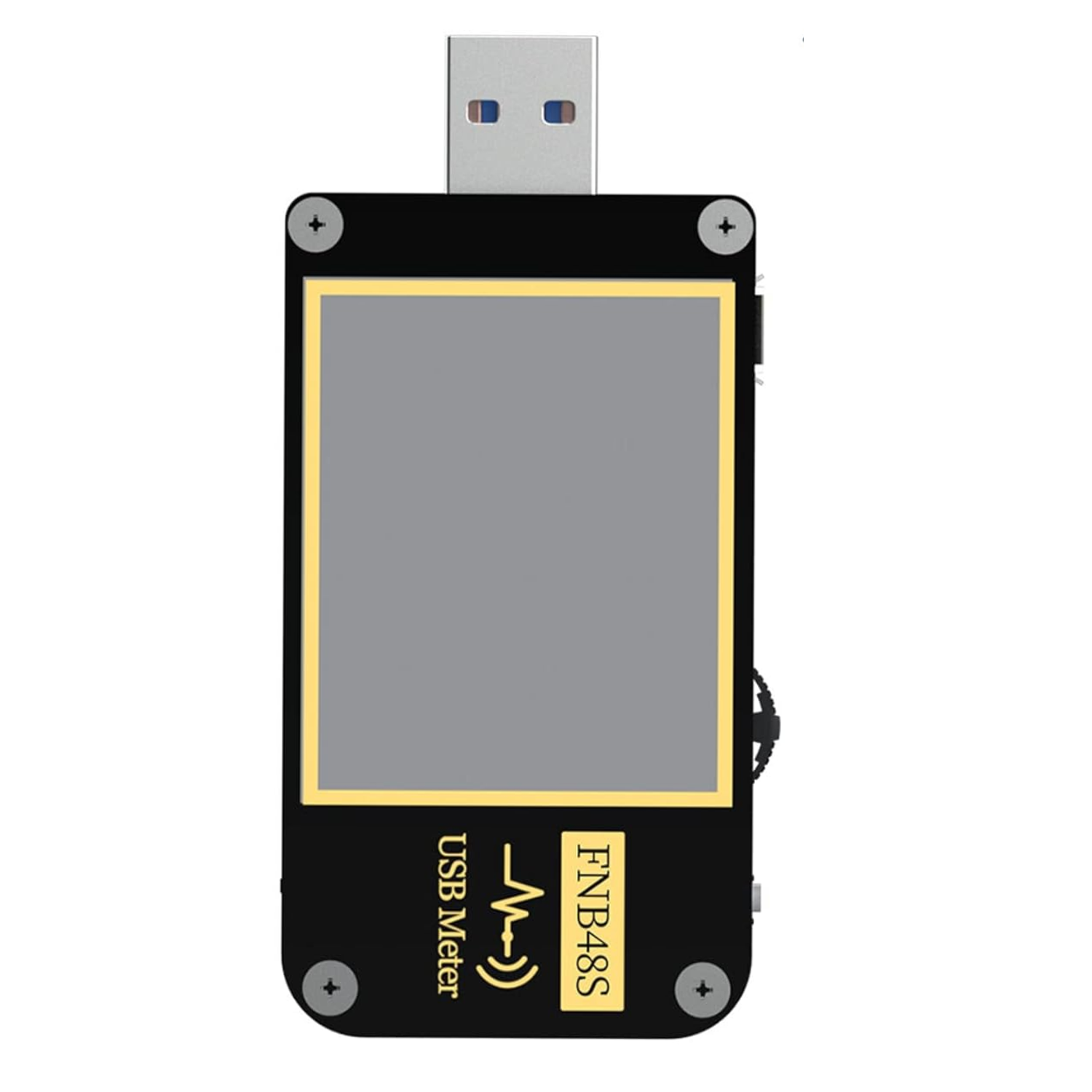

1.77 HD USB Tester is a multifunction protocol capacity test tool, it integrates USB-A, Micro-USB, and Type-C interface, with the 1.77" high-definition display screen, using an external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on, come on and try it, it will not let you down.
Specifications:
-
Material: ABS
-
Monitor voltage: 4~24V
-
Monitor voltage resolution: 0.00001V
-
Monitor voltage accuracy: ±（0.2%+2）
- Monitor current: 0~6.5A
- Monitor current resolution: 0.00001A
-
Monitor current accuracy: ±（0.5%+2）
-
Monitor power: 0~156W
-
Monitor current resolution: 0.00001W
-
Monitor current accuracy: ±（0.5%+2）
-
Load equivalent international resistance: 0~9999.9Ω
-
Load equivalent international resistance resolution: 0.0001Ω
-
Load equivalent international resistance accuracy: ±（0.5%+2）
-
Capacity: 0~9999.99Ah
-
Energy used: 0~9999.99Wh
-
Cable resistance: 0~9999.99Ω
-
D+/D- voltage: 0~3.3V
-
D+/D- voltage resolution: 0.001V
-
D+/D- voltage accuracy: ±（1.0%+2）
- Equipment temperature: ℃
Features:
- Five-bit or six-bit display can be switched by one button, with a maximum resolution of 0.00001, which can real-time monitoring of the subtle changes in voltage, current, and power during recharging.
- This product uses a USB 3.0 interface, a 9-pin design, downward compatibility with USB 2.0, and + times the transmission rate of USB 2.0. There is no need to use the primary data cable, it can also directly test the recharger agreement of some mobile phones.
- It is in small size, so you can take it with you anywhere you want to use it, or you can take it and share it with your friends.

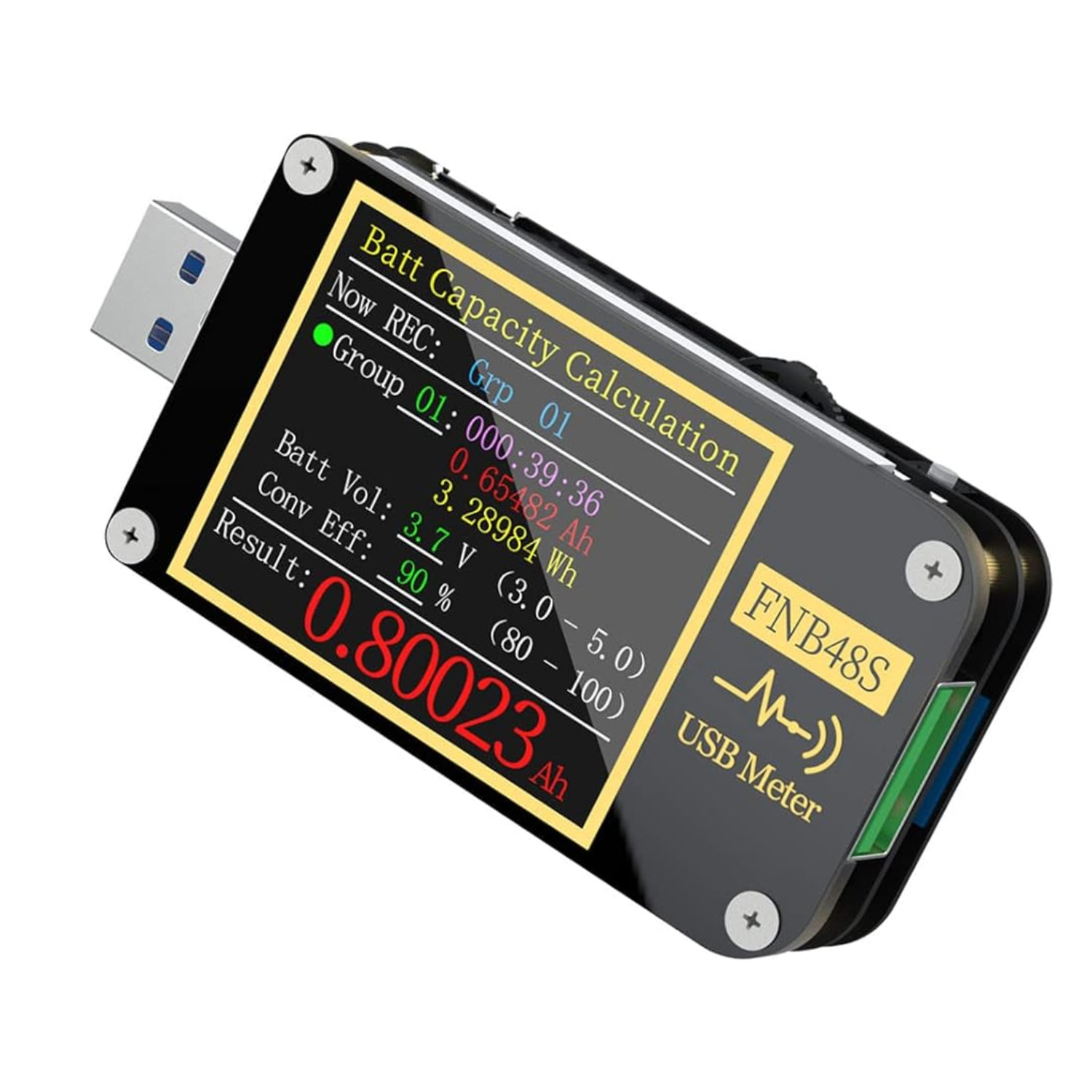

- This product can record 10 sets of measurement data, you can use the data you get to calculate the capacity of the battery.
- This product directly adds the calculation formula to this product, the result is multiplied by 1000 to get the capacity of the battery.
- This product supports reading the data of E-Marker and DASH cables, and the chips of e-marker and DASH cables can be easily read after connecting the data lines.
- This product supports the screen flip function, through the gravity-induction, the screen can be free to flip, you can also turn off gravity-direction recognition and flip the screen by long-pressing the middle key.
- This product uses the differential pressure method to measure cable resistance. It is used with a constant current load to easily detect cable resistance.
Package Included:
1 x FNIRSI-FNB48S 1.77"HD Multifunctional Battery Capacity & Current Tester
