Description:

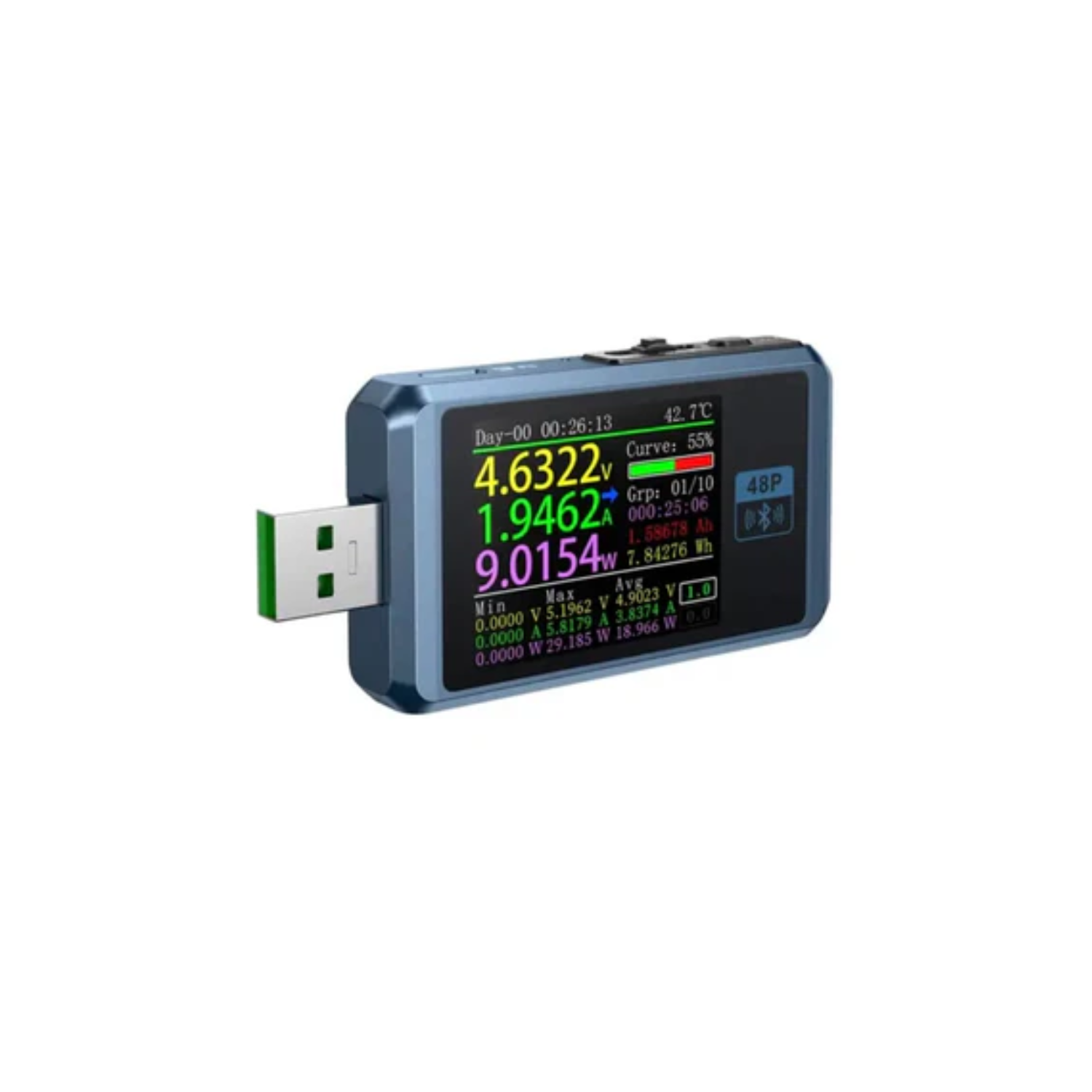

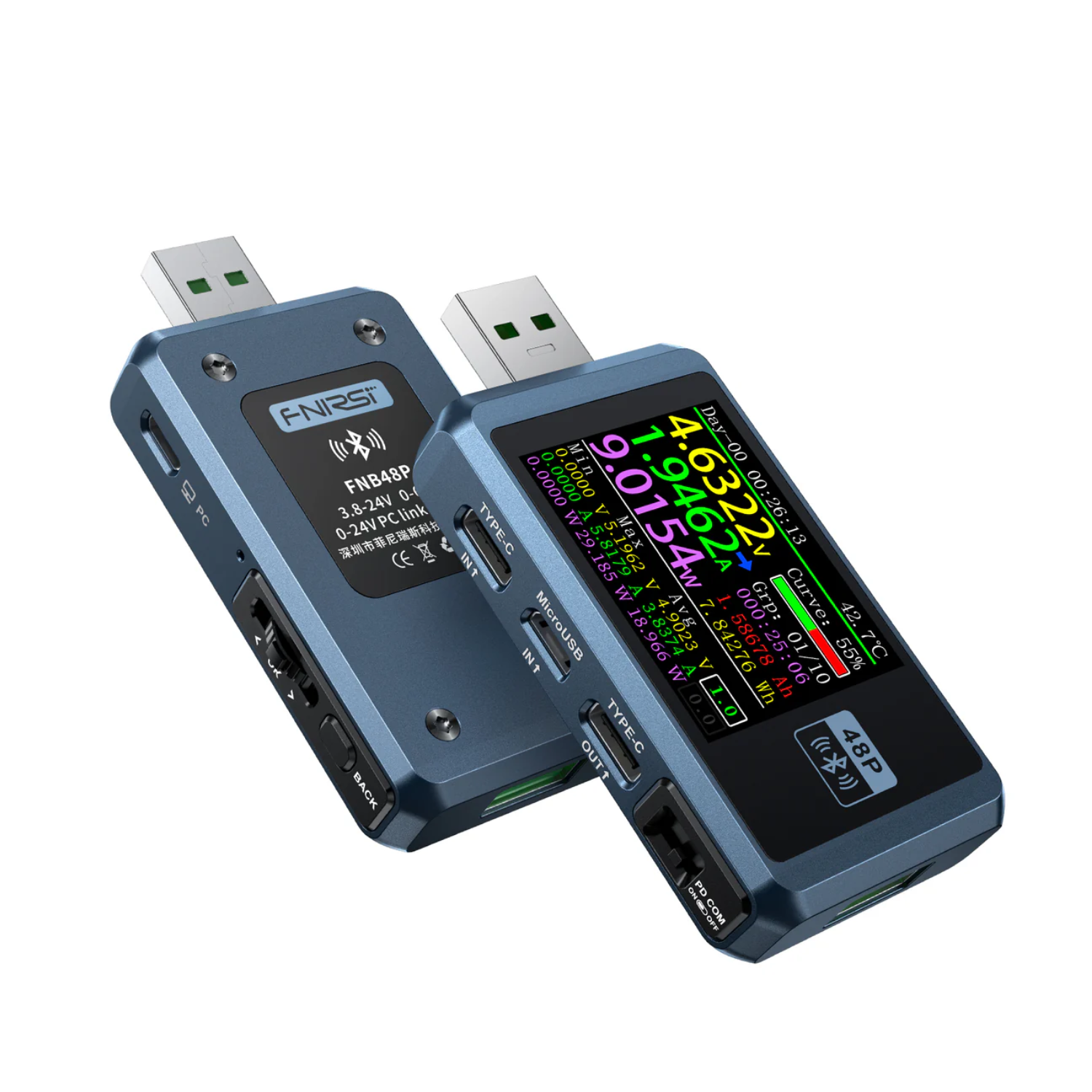

FNB48P USB tester is a high-reliability, high-safety USB voltage and current detection meter and a mobile communication terminal fast-charging trigger. It has a 1.77-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, and Type-C interface.

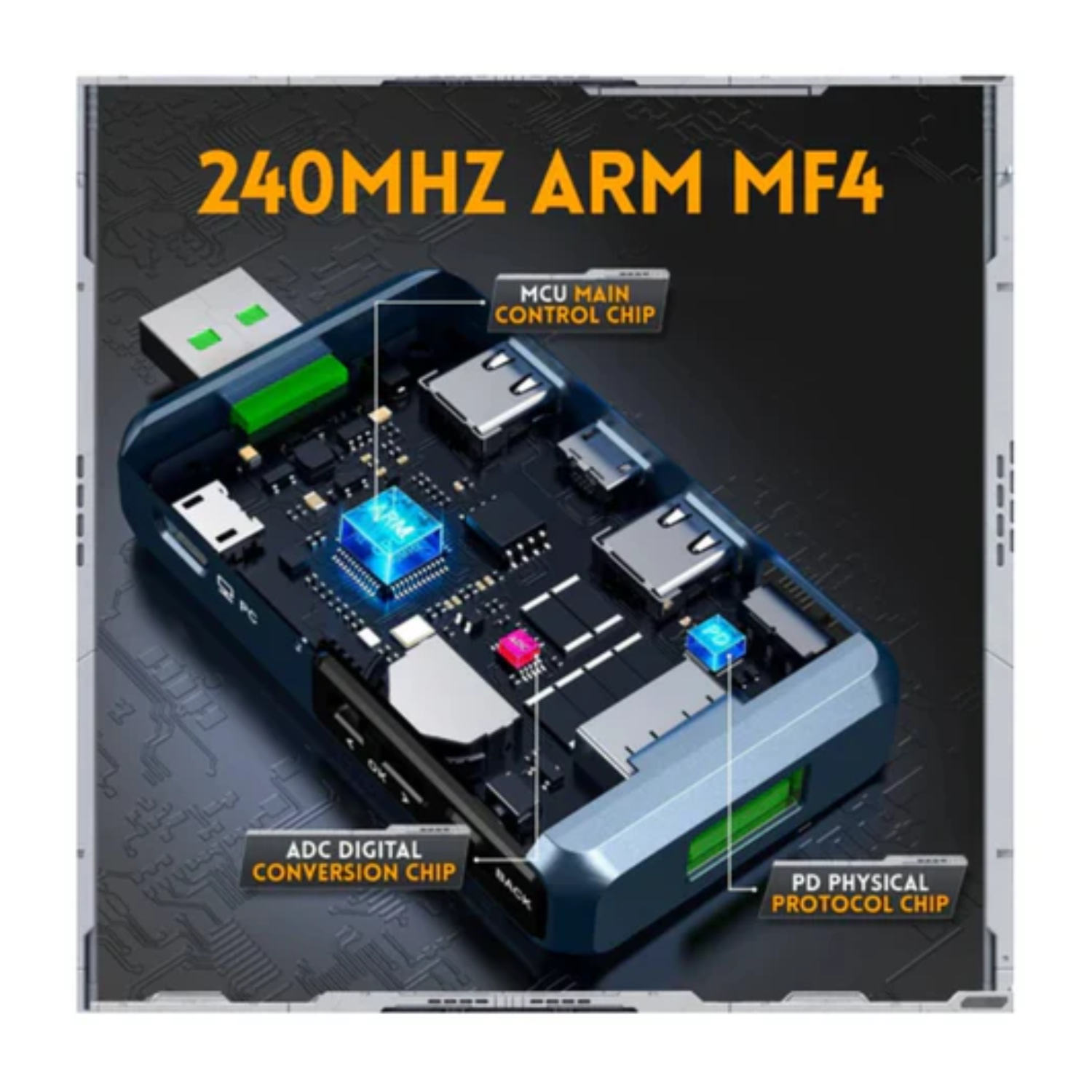

Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks. It can be used to measure the charging power of mobile phones and the input and output of mobile power supplies. It can be used to test the fast-charging protocol of chargers.
This instruction manual includes relevant safety information, warning tips, and solutions to common abnormal situations. Please read the relevant content carefully and strictly abide by all warnings and precautions. Do not connect the monitoring interface to a power supply exceeding 24V. Do not connect the PC connection port to a power source exceeding 16v. Only one pair of monitoring interfaces (one input port and one output port) can work at the same time.
When there is a pair of monitoring interfaces working, it is forbidden to connect to the equipment. (Except for the PC connection port, the PC port can be connected to an external power supply). When using the fast charge trigger module, please do not connect equipment that cannot withstand high voltage to any monitoring interface. After using the PD trigger/monitor/conversion/read E-Marker cable function, please turn the PD communication switch in the lower right corner back to the OFF position. Do not charge the phone after the fast charge is triggered.
Specifications:
| Power Source | Corded Electric |
| Style | Digital |
| Color | Blue |
| Min. Operating Voltage | 24 Volts |
| Specification Met | CE |
| Measurement Type | Multimeter |
| Maximum Operating Voltage | 24 Volts |
| Manufacturer | FNIRSI |
| Number of Memory Sticks | 1 |
| Included Components | USB Tester |
| Are batteries included? | No |
Features:
- Integrated: USB-A, Micro-USB, Type-C interfaces
- Detects: Voltage, current, triggers
- Mobile communication: Fast charge
- 1.44-inch TFT LCD display
- External 16-bit ADC
- PD protocol physical chip
- Drive-free PC upgrade
- PD E-Marker read
- Fast charge recognition & deception
- PD protocol monitoring & conversion
- Precision measurement
- Data storage
- Energy capacity detection
- Multiple interfaces compatibility
- Fast charge protocol detection
- Supports: QC2.0, QC3.0, Huawei-FCP, Huawei-SCP, Samsung-AFC, PD protocol
Package Included:
1 x FNIRSI FNB48P USB Fast Charge Tester
