Description:

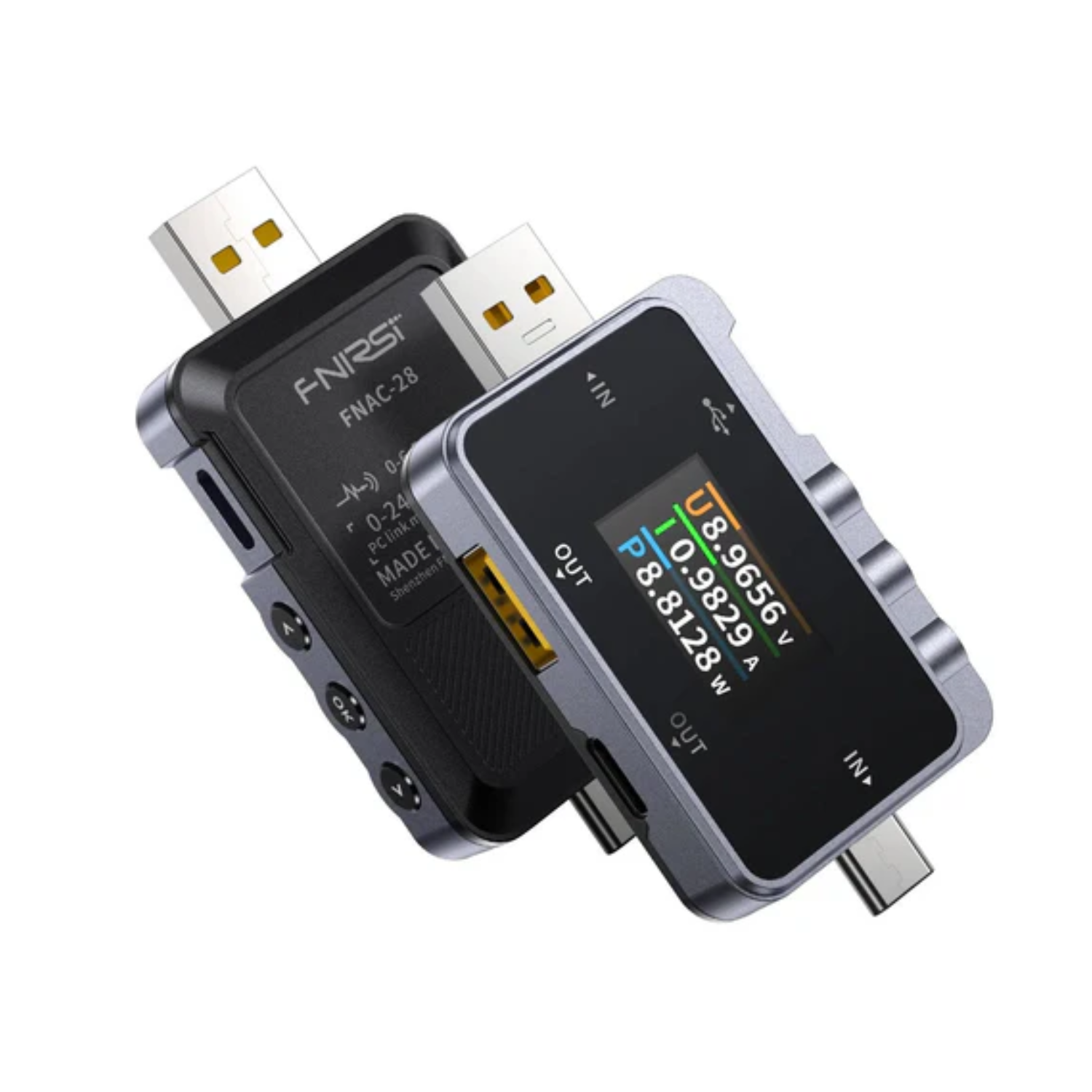

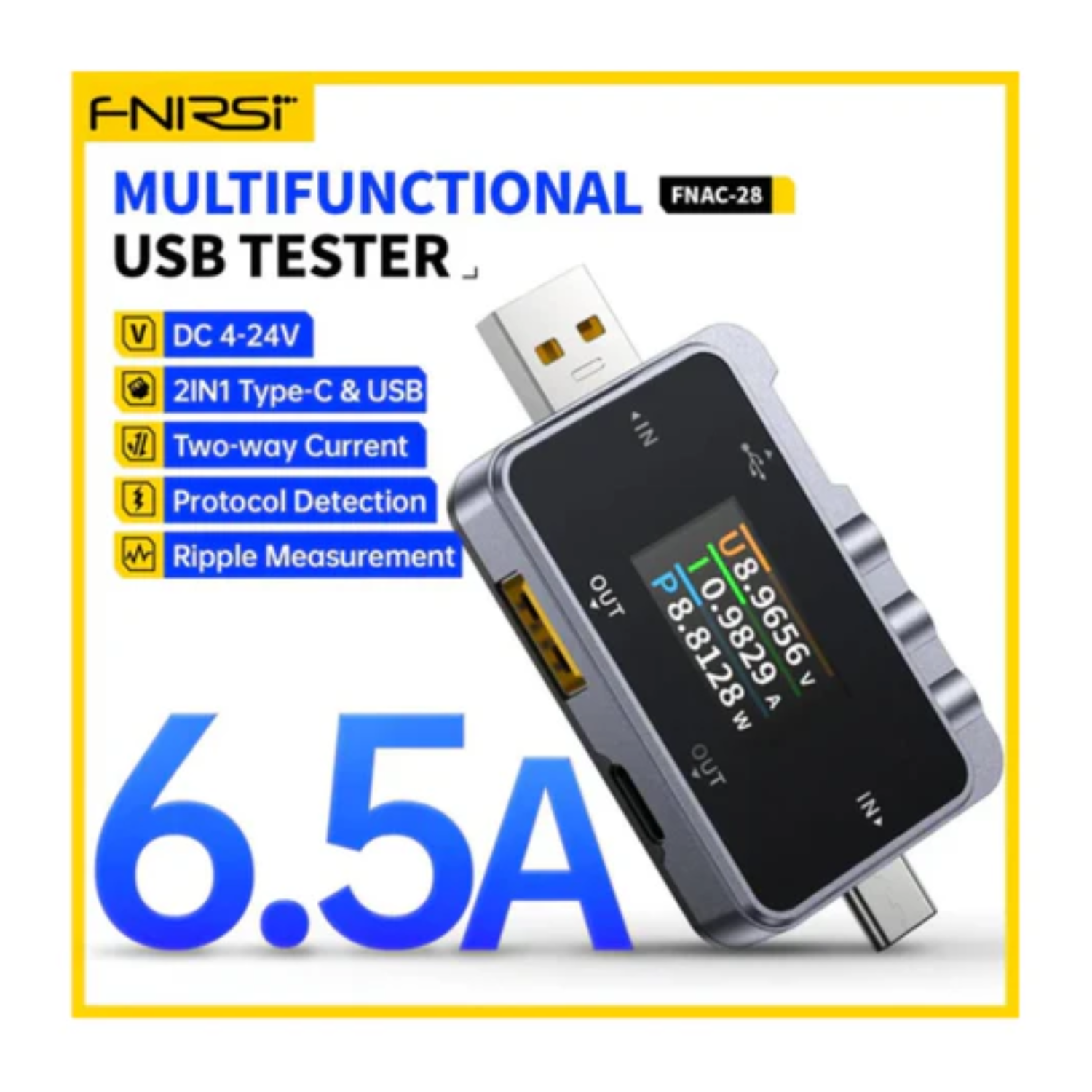

The FNAC-28 USB Tester is a multifunctional USB voltage and current meter as well as a quick charge trigger device for mobile communication terminals.
Specifications:
| Screen |
1.06-inch color screen
|
|
Monitored Voltage
|
4~24V
|
|
Monitored Current
|
0~6.5A
|
|
Monitored Power
|
0~156W
|
|
Protocol Detection
|
1. QC2.0: 5V/9V/12V/20V
2. QC3.0: 3.4-20V 3. FCP: 9V/12V/20V 4. SCP: 5.5-6.0V 5. AFC: 9V/12V 6. VOOC/WARP: 20V 7. SVOOC 1.0: Support 8. SVOOC 2.0: Support |
|
Cable Resistance
|
Support
|
|
Detect DASH Cable
|
Support |
|
Soft DASH Cable
|
Support |
|
Soft APPLE 2.4A
|
Support |
|
Brightness Adjustment
|
Support |
|
Standby Time Setting
|
Support |
|
Temperature symbol
|
℃ and ℉ switch
|
|
Language
|
Chinese and English
|
|
Firmware Upgrade
|
Support |
Features:

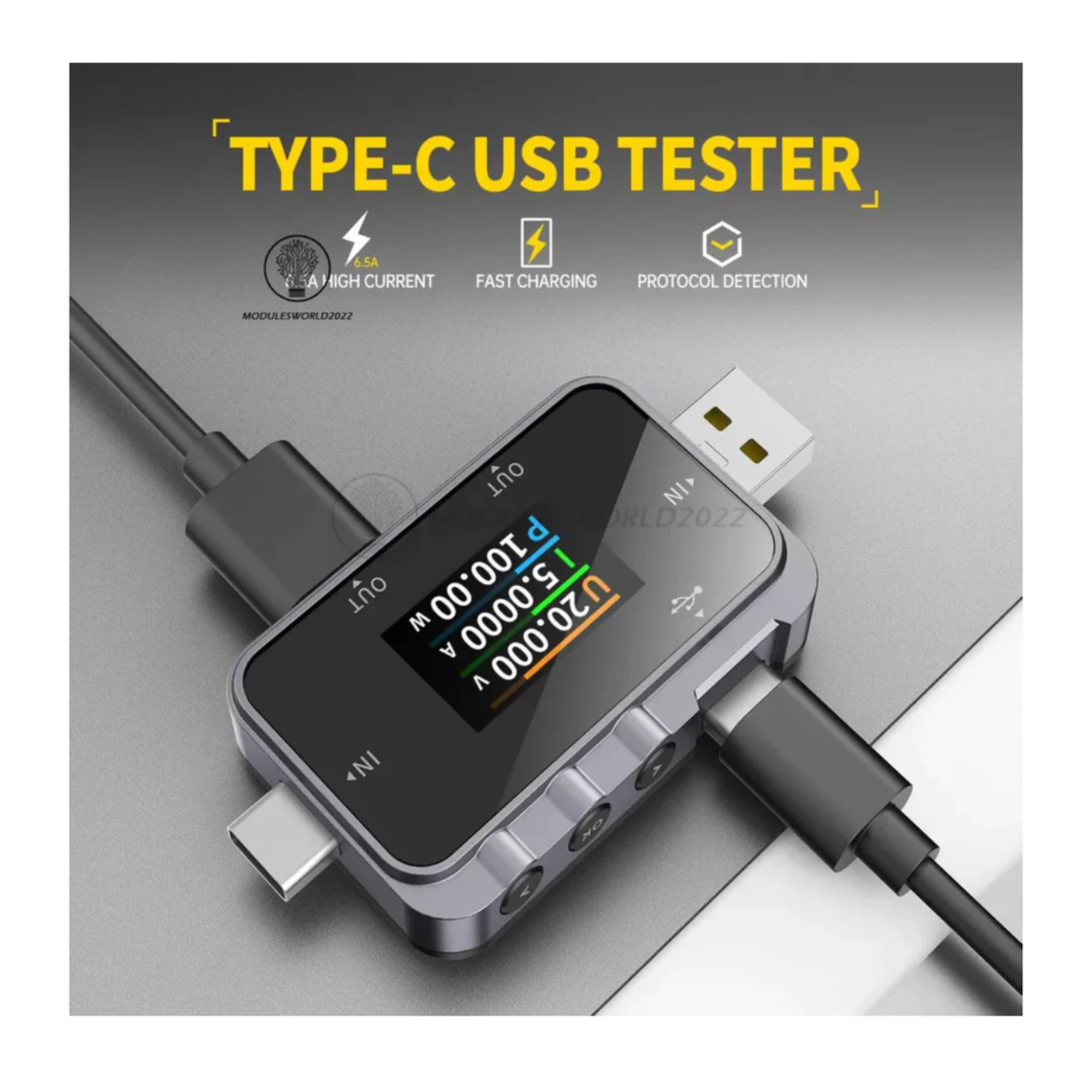

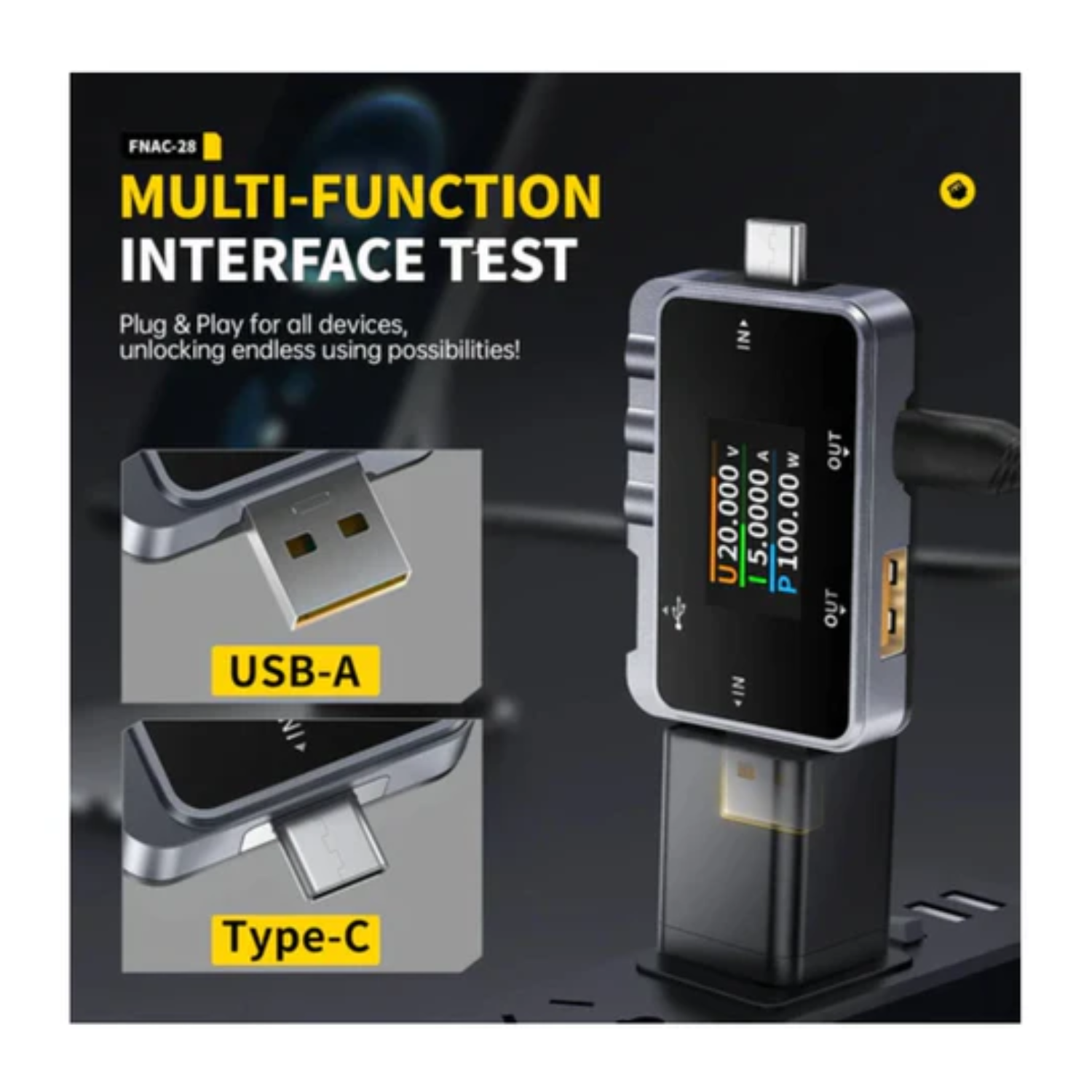

- It features a full-color, ultra-wide viewing angle TFT LCD display and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
- Utilizing an external 16-bit ADC chip, it offers high measurement accuracy.
- This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.
- It can also measure phone charging power and the input and output conditions of power banks and perform quick charge protocol testing for chargers.
Pin Description:
Package Included:
1 x FNIRSI FNAC-28 2-IN-1 Type-C USB Tester
