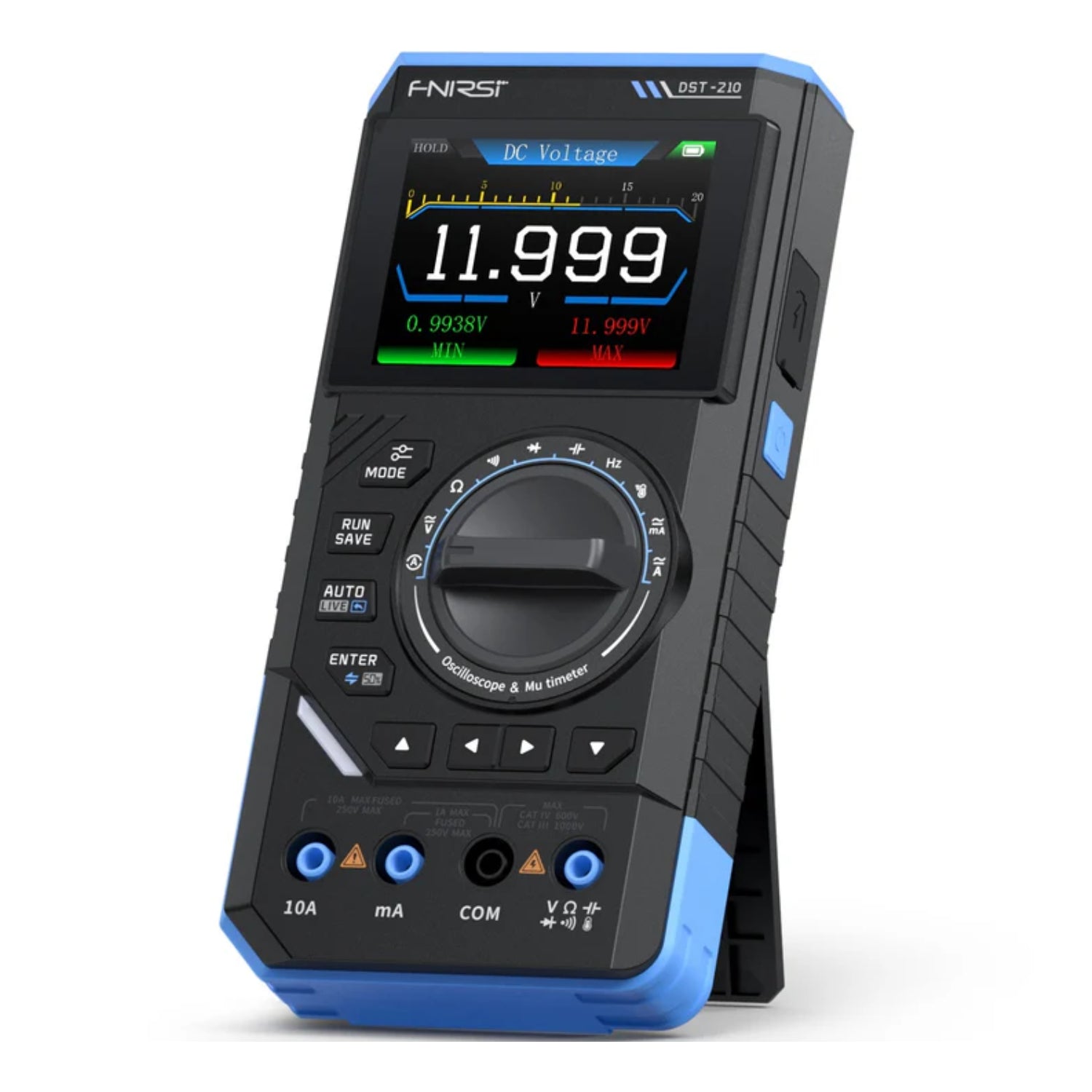

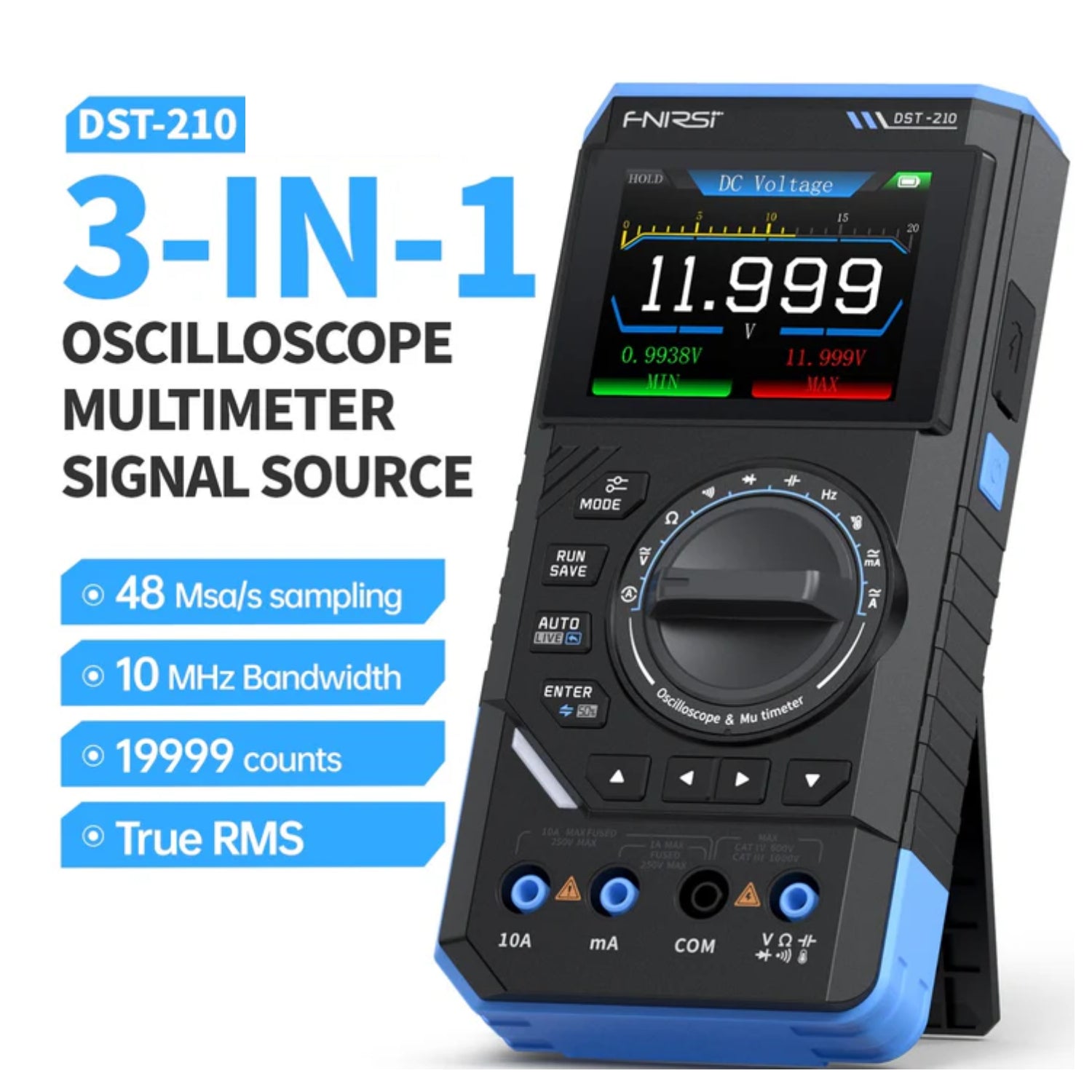

FNIRSI DST-210 3-in-1 Handheld Digital Oscilloscope True RMS Multimeter & Signal Generator - RS7732

Name: FNIRSI DST-210 3-in-1 Handheld Digital Oscilloscope True RMS Multimeter & Signal Generator - RS7732
Brand: FNIRSI
SKU: RS7732
Price: 5199.00 INR
Availability: InStock

FNIRSI DST-210 3-in-1 Handheld Digital Oscilloscope True RMS Multimeter & Signal Generator - RS7732

SKU:RS7732

In stock

Rs. 5,199.00

Sale Sold out

Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

The DST-210 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.

Basic Parameters Specification:

Screen Material	2.8 inches TFT Colorful Screen
Backlight	Brightness adjustable
Power Supply	TYPE-C (5V/1A)
Battery	3000mAh
Languages	中文、English

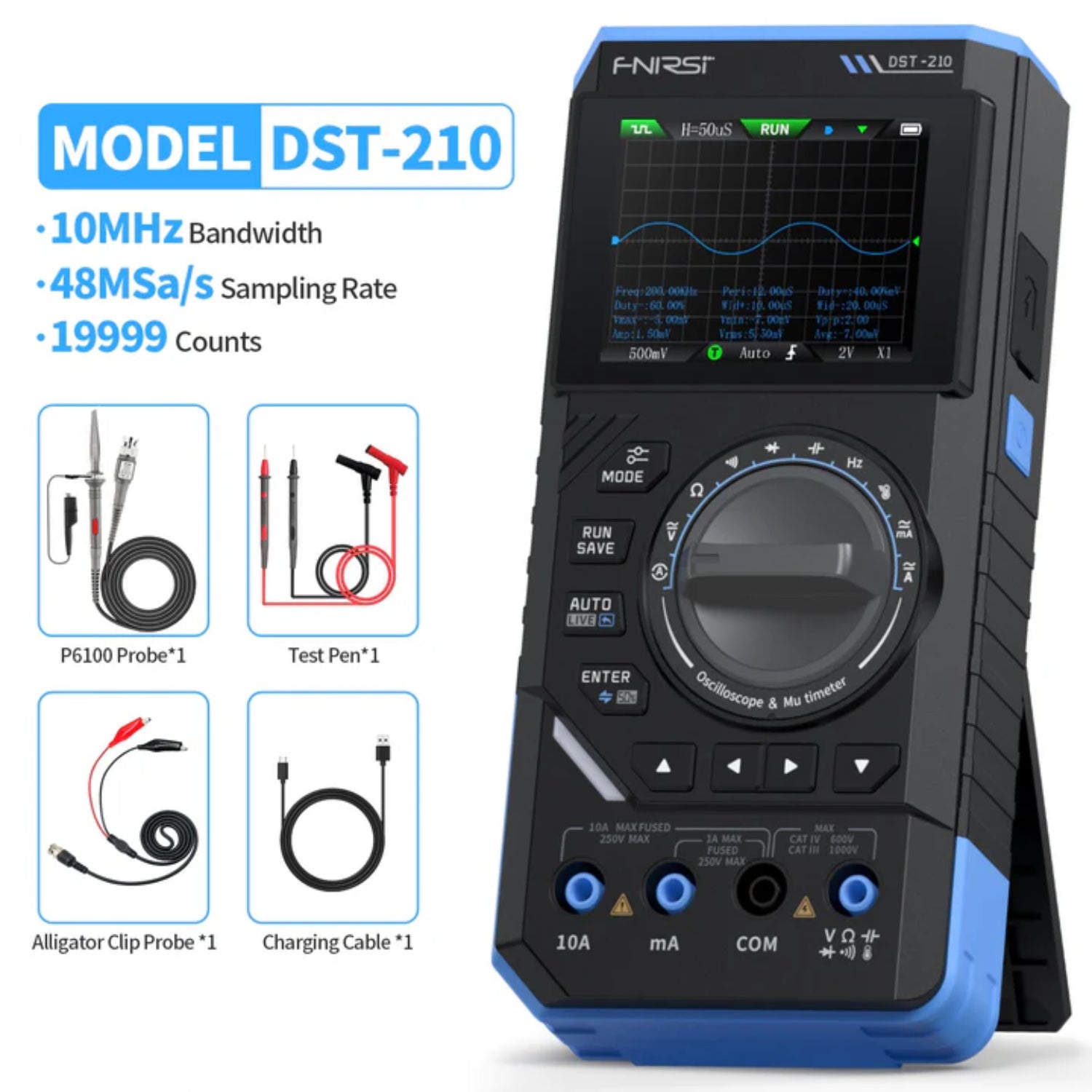

Oscilloscope Parameters Specifications:

Sampling Rate	DST-210: 48MSa/s
Analog Bandwidth	DST-210: 10MHz
Input Impedance	1MΩ
Coupling Mode	AC/DC
Test Voltage Range	1:1 probe: 80Vpp (+40V) 10:1 probe: 800Vpp (+400V)
Vertical Sensitivity	10mV/div ~ 10V/div(x1)
Vertical Displacement	Adjustable with indicators
Horizontal Time Base	DST-210: 50ns~20s
Trigger Mode	Auto / Normal / Single
Trigger Type	Rising Edge & Falling Edge
Trigger Level	Adjustable with indicators
Waveform Freeze	Support(HOLD function)
Auto Measurement	Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle

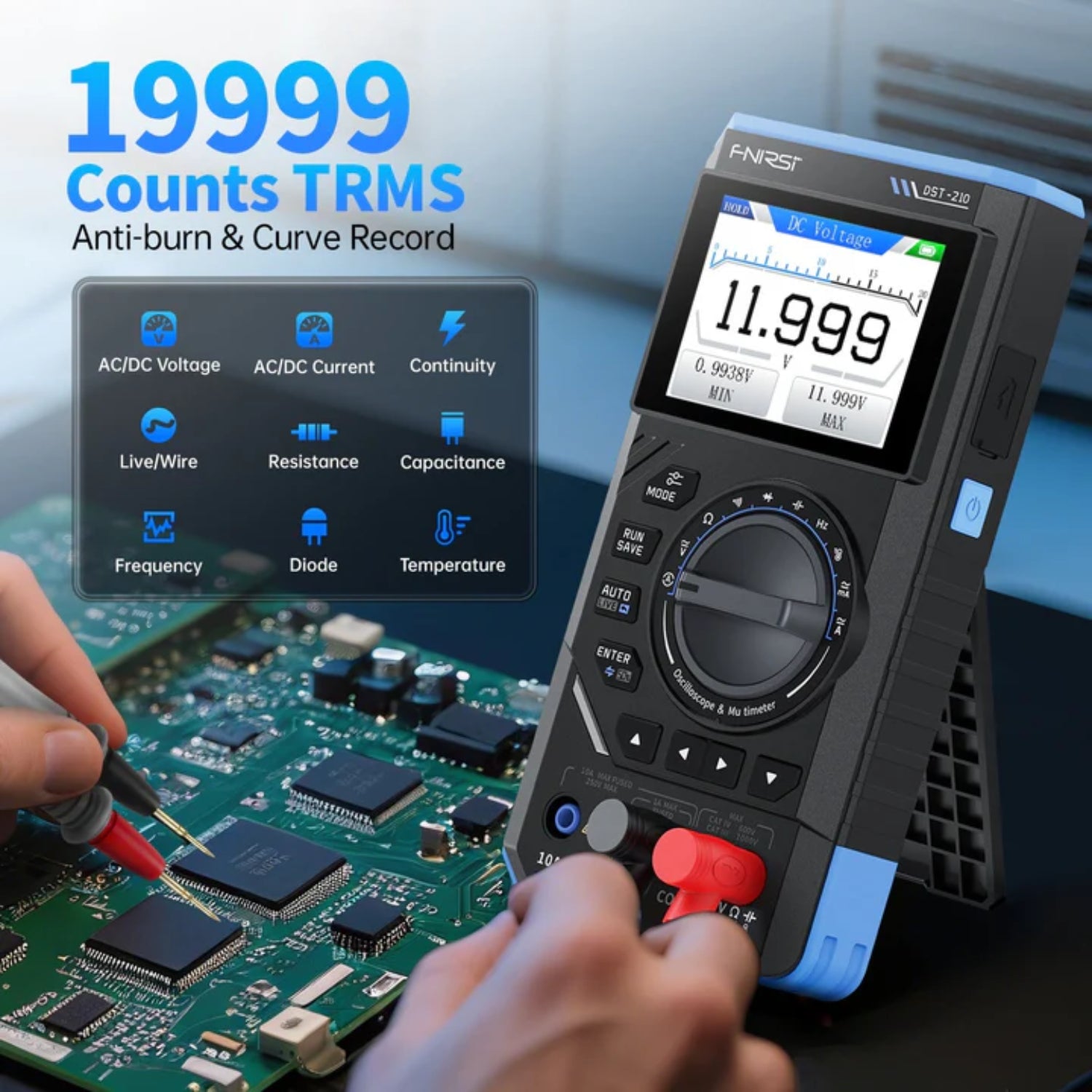

Multimeter Parameters Specifications:

DC Voltage	1.9999V / 19.999V / 199.99V / 1000V
AC Voltage	1.9999V / 19.999V / 199.99V / 750.0V
DC Current	19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current	19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance	19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ 1.9999KΩ / 199.99Ω
Capacitance	999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF 9.999mF / 99.99mF
Frequency	9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature	(-55~1300℃) / (-67~2372℉）
Diode / Continuity	Support
Single Probe AC Voltage Measurement (LIVE)	Support

Signal Generator Parameters Specifications:

Output Waveform	Support 13 types of waveform output
Waveform Frequency	DST-210: 0-50KHz DST-201: 0-10KHz
Square Duty Cycle	0-100%, Square and Sawtooth are adjustable
Waveform Amplitude	0.1V-3.0V

Features:

FNIRSI DST-210 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.
Supports 13 waveforms with a frequency range of 0-10 KHz and an adjustable output voltage of 3V. The frequency, amplitude, and duty cycle can all be fine-tuned to meet various testing needs.
FNIRSI DST-210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold, and LIVE zero/live line, providing powerful functions for various measurements.
The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.
FNIRSI DST-210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists, and home users.
