FNIRSI DST-201 Portable 3-in-1 Handheld Multimeter Oscilloscope & Signal Generator For Versatile Testing - RS8457
FNIRSI DST-201 Portable 3-in-1 Handheld Multimeter Oscilloscope & Signal Generator For Versatile Testing - RS8457
SKU:RS8457
In stock
Regular price
Rs. 4,399.00
Regular price
Sale price
Rs. 4,399.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The DST-201 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.
Basic Parameters Specification:
| Model | DST-201 |
| Screen Material | 2.8 inches TFT Colorful Screen |
| Backlight | Brightness adjustable |
| Power Supply | TYPE-C (5V/1A) |
| Battery | 3000mAh |
| Languages | 中文、English |
Oscilloscope Parameters Specifications:
| Sampling Rate | DST-201: 5MSa/s |
| Analog Bandwidth | DST-201: 1MHz |
| Input Impedance | 1MΩ |
| Coupling Mode | AC/DC |
| Test Voltage Range | 10:1 probe: 800Vpp (+400V) |
| Vertical Sensitivity | 10mV/div ~ 10V/div(x1) |
| Vertical Displacement | Adjustable with indicators |
| Horizontal Time Base | DST-201: 500ns~20s |
| Trigger Mode | Auto / Normal / Single |
| Trigger Type | Rising Edge & Falling Edge |
| Trigger Level | Adjustable with indicators |
| Waveform Freeze | Support(HOLD function) |
| Auto Measurement | Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle |
Multimeter Parameters Specifications:
| DC Voltage | 1.9999V / 19.999V / 199.99V / 1000V |
| AC Voltage | 1.9999V / 19.999V / 199.99V / 750.0V |
| DC Current | 19.999mA / 199.99mA / 1.9999A / 9.999A |
| AC Current | 19.999mA / 199.99mA / 1.9999A / 9.999A |
| Resistance |
19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ 1.9999KΩ / 199.99Ω |
| Capacitance |
999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF 9.999mF / 99.99mF |
| Frequency | 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz |
| Temperature | (-55~1300℃) / (-67~2372℉） |
| Diode / Continuity | Support |
| Single Probe AC Voltage Measurement (LIVE) | Support |
Signal Generator Parameters Specifications:
| Output Waveform | Support 13 types of waveform output |
| Waveform Frequency |
DST-210: 0-50KHz DST-201: 0-10KHz |
| Square Duty Cycle | 0-100%, Square and Sawtooth are adjustable |
| Waveform Amplitude | 0.1V-3.0V |
Features:
- FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.
- Supports 13 waveforms with a frequency range of 0-10 KHz and an adjustable output voltage of 3V. The frequency, amplitude, and duty cycle can all be fine-tuned to meet various testing needs.

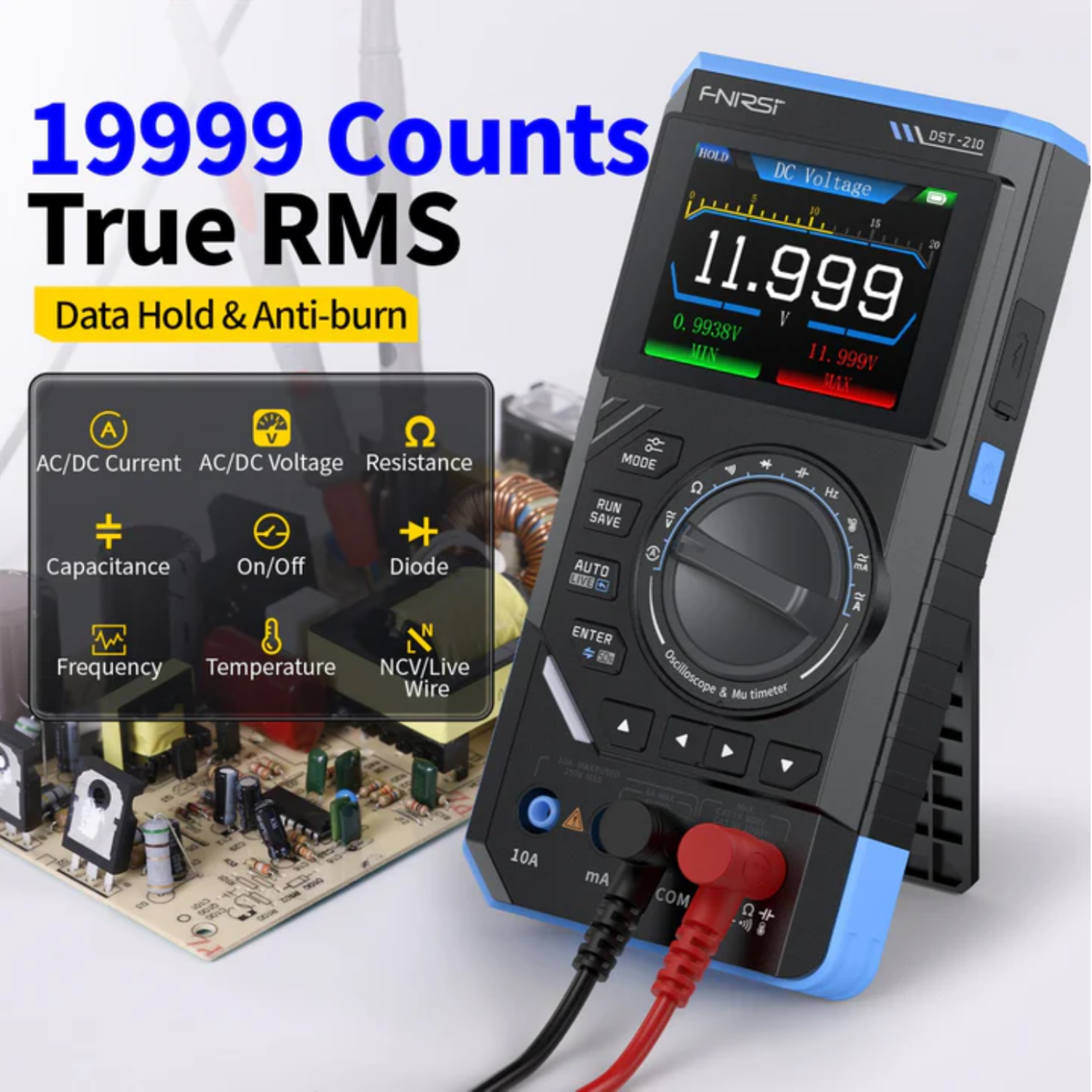

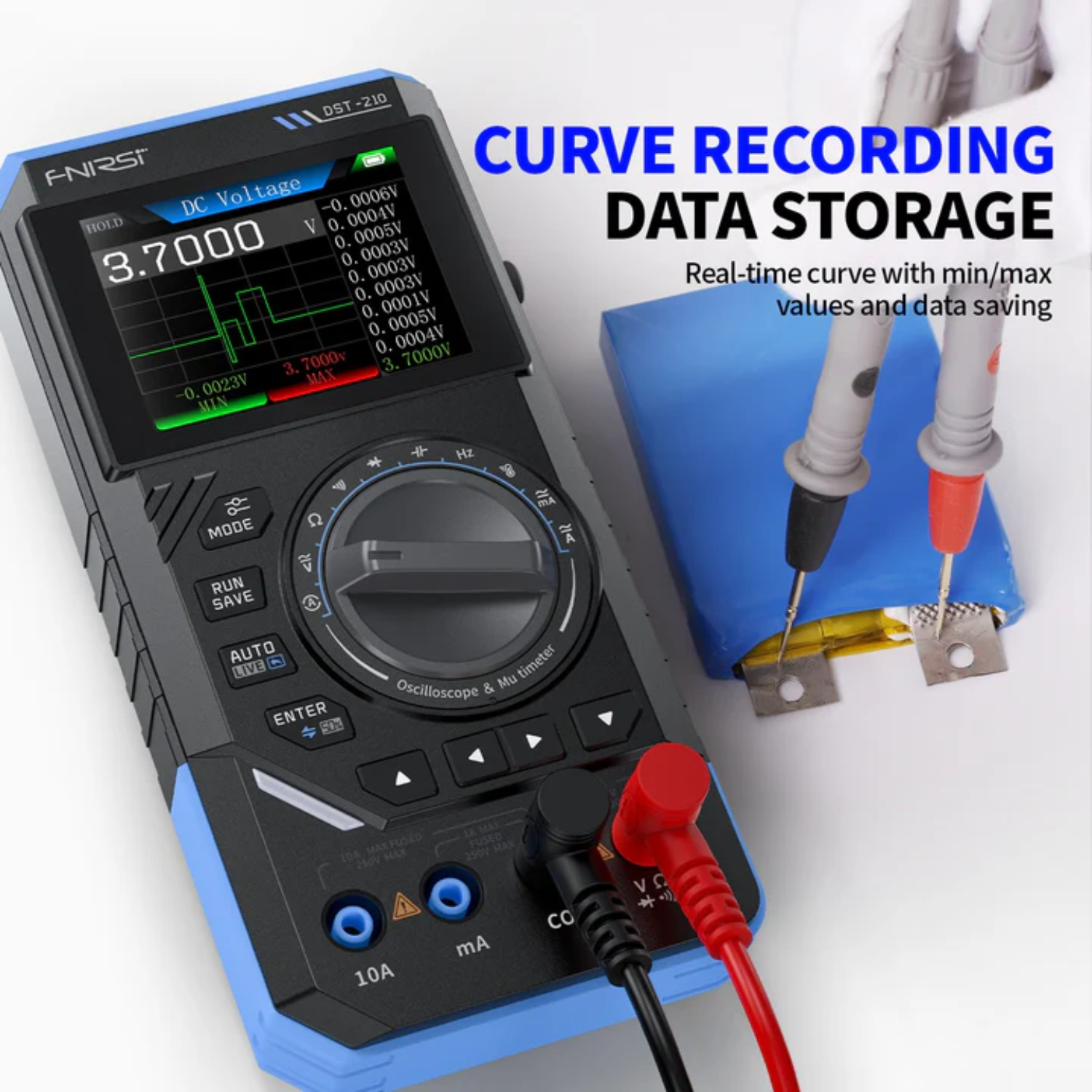

- FNIRSI DST-201 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.
- The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.
- FNIRSI DST-201 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists, and home users.
Package Included:

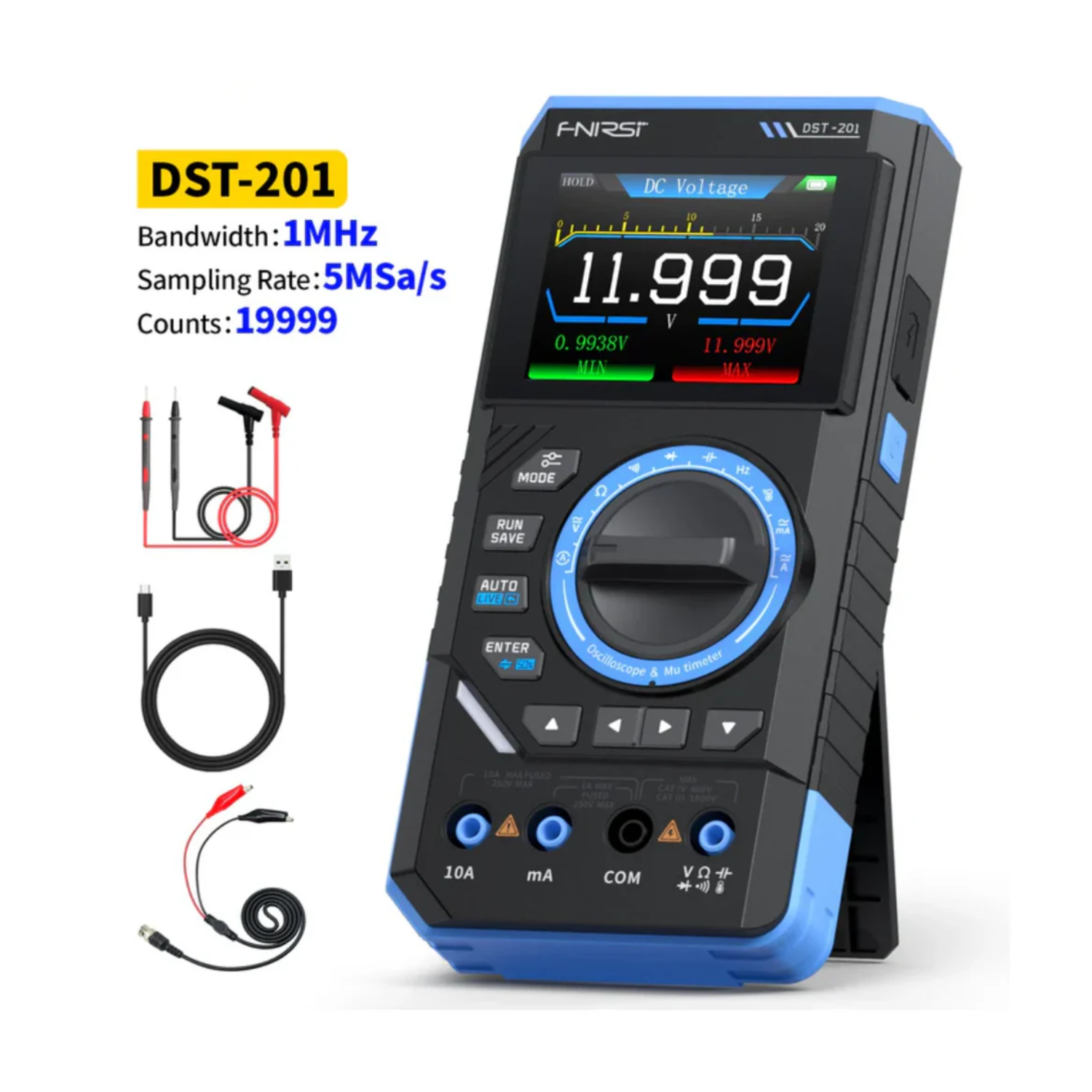

- 1 x DST-201 Handheld 3-IN-1 Multimeter Oscilloscope
- 1 x Test Cable
- 1 x Type-C Cable
- 1 x Alligator Clip Wire
