FNIRSI

FNIRSI DSO-TC3 Oscilloscope 3-in-1 DSO Tester DSO-TC3 Transistor Tester DSO-TC3 Digital Oscilloscope With Integrated Tester Efficient Troubleshooting (Standard) - RS8401

FNIRSI DSO-TC3 Oscilloscope 3-in-1 DSO Tester DSO-TC3 Transistor Tester DSO-TC3 Digital Oscilloscope With Integrated Tester Efficient Troubleshooting (Standard) - RS8401

SKU:RS8401

Low stock: 8 left

Regular price Rs. 4,529.00
Sale price Rs. 4,529.00 Regular price
Sold out
Exclusive of GST
Shipping calculated at checkout.
REES52 REWARDS
Earn an estimated 45 points on this order
Found a better price?

Send the competitor link and price to our team. No automatic price match.

This website form routes enquiries to our support team. Your email app will not open.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

Cash on Delivery is currently unavailable for new orders

Existing COD Orders Only

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

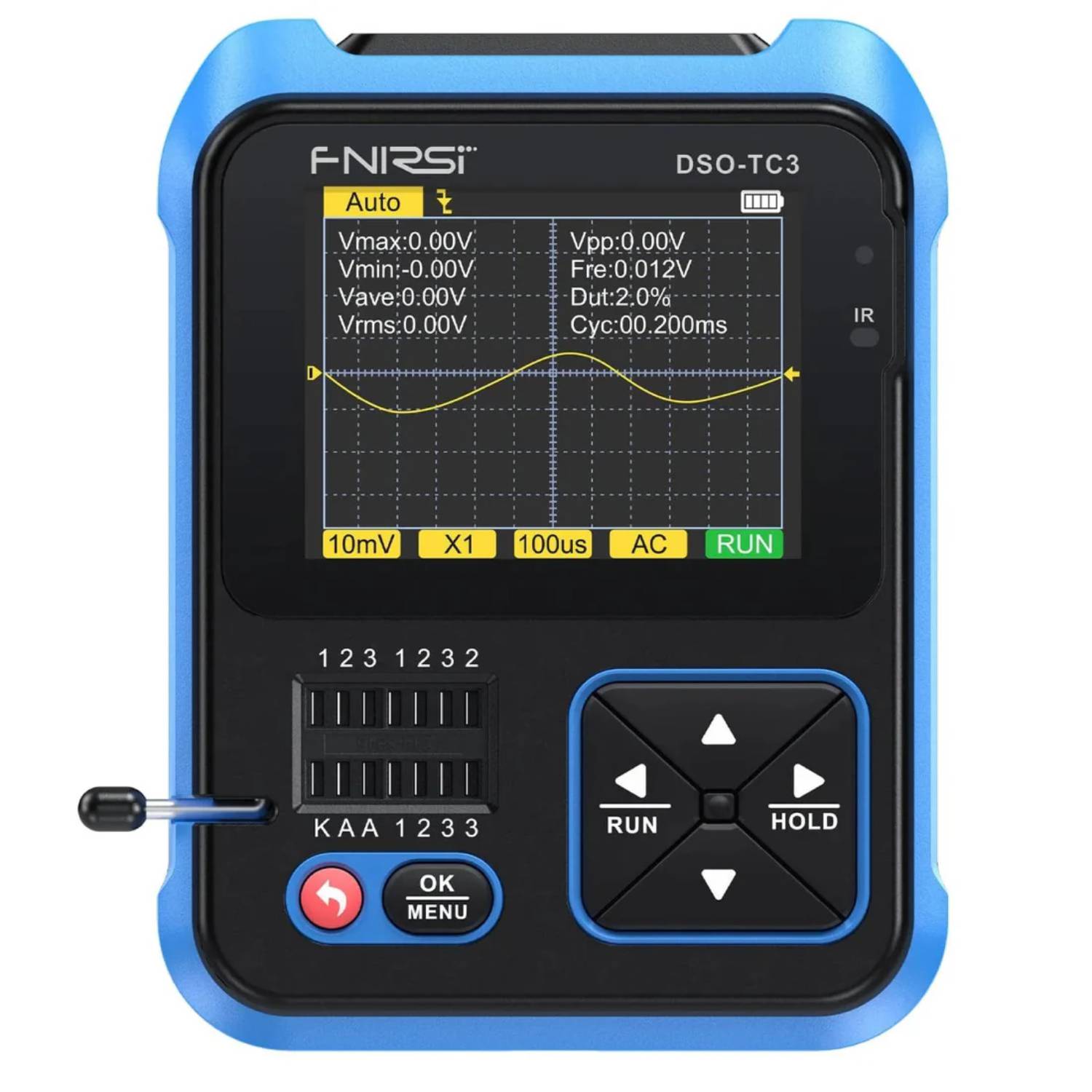

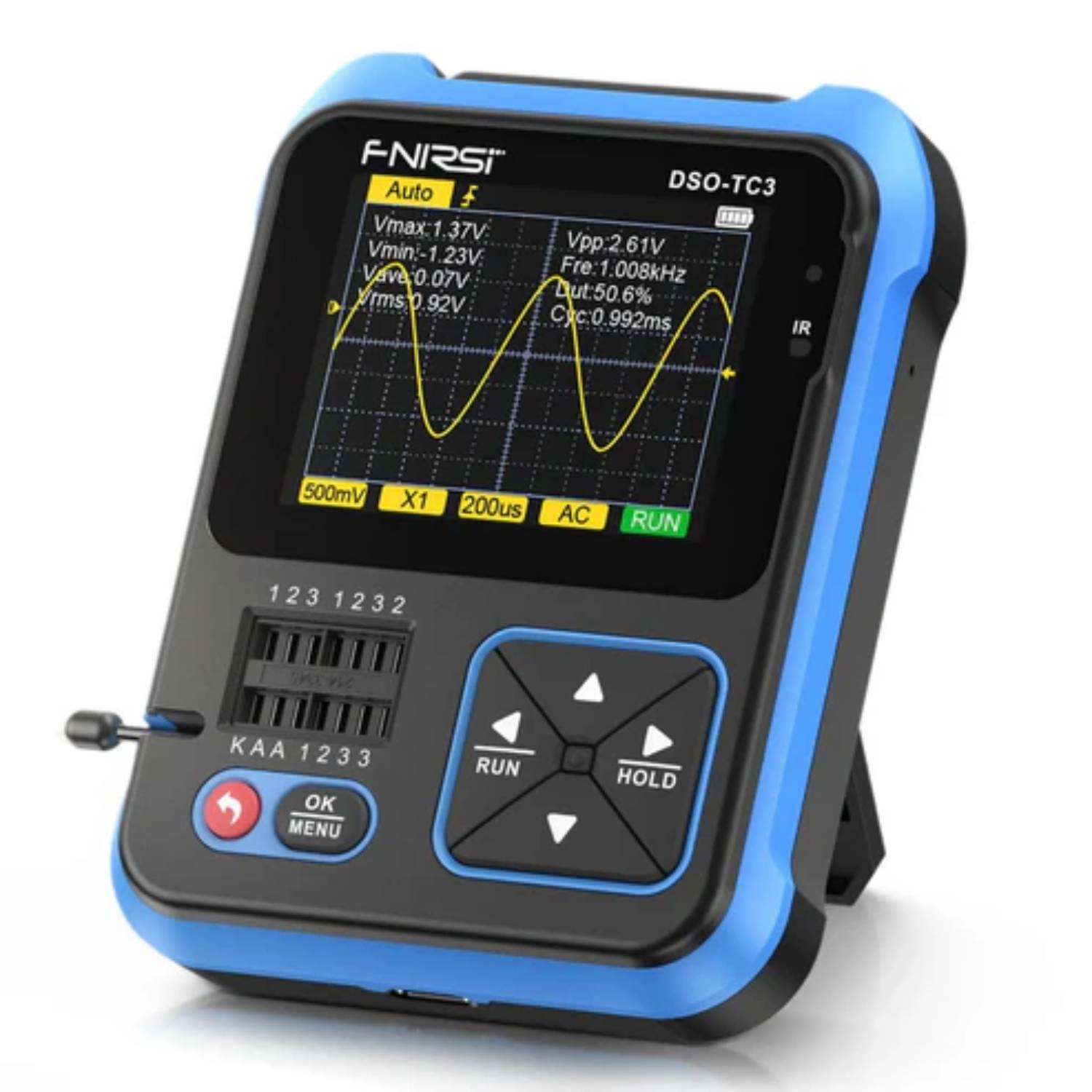

FNIRSI DSO-TC3 combines a digital Electronic measuring instrument, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding, and other functions That are skillfully integrated. It is equipped with a 2.4-inch color TFT display and a built-in rechargeable lithium battery, bringing users stronger and more practical functions with good portability.

FNIRSI DSO-TC3 is an upgraded version of DSO-TC2. based on DSO-TC2, it has upgraded capacitance ESR detection, function signal generator output, Electronic measuring instrument bandwidth and sampling rate improvement, input voltage, diode detection range increase, and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.

Basic Specifications:

  • Display screen: 2.4 inch TFT color screen, LED backlight
  • Supply voltage: Rechargeable lithium battery
  • Charging Specifications: USB Type-C, +5V
  • Product volume: 79*103*31mm
  • Bracket Specifications: All-in-one foldable stand

Digital Oscilloscope Specifications:


Real-time sample rate
10Msa/s

Analog Bandwidth
500Khz
Input resistance
1MΩ
Coupling method
AC/DC

Test voltage range
400V
Vertical Sensitivity (x1)
10mV-10V

Horizontal time base range
1us-10s

Trigger mode
Auto / Normal / Single

Trigger type
Rising edge / Falling edge

Waveform Freeze
Yes
Automatic measurement
Yes

Function Singal Specifications:


Sine wave
1-100KHz/0-3.3V/50%

Square wave
1-100KHz/3.3V/50%

Pulse wave
1-100KHz/3.3V/0-100%

Triangle wave
1-100KHz/0-3.3V/50%

Ramp
1-100KHz/0-3.3V/0-100%

DC
0-3.3V

Transistor Tester Tools Specifications:

Triodes
β is greater than 10 and less than 600

Diodes
Forward voltage drop <4.5V

Regulated diode
0.01~4.5V (1-2-3 test area)
0.01~32V (K-A-A test area)
MOSFET JFET, IGBT, MOSFET
SCRs
TRIAC
Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor 25pF~100mF
Resistor
0.01Ω~50MΩ

Inductor
10uH~1000uH

Battery
0.1~4.5V

Input voltage
0~40V

DS18B20

0-85℃

DHT1
0-60℃/5-95%

Infrared remote decoding
NEC protocol infrared code

Features:

  • 3-IN-1 Integration: digital storage oscilloscope, component tester, and signal generator for beginners, and hobbyists.
  • First handheld oscilloscope: Performance: 10MS/s sampling, 500kHz bandwidth.
  • Large TFT Display: Clear visualization.
  • Rechargeable Battery: Portable convenience.
  • Trigger Functions: Single, Normal, Automatic.
  • Transistor Testing: NPN, PNP, FET, diodes, in-circuit transistor tester, and more.
  • Component Analysis: Pin definition, NEC protocol.
  • MOS Test Mode: Identifies various transistor types.
  • Other Modes: Continuity, voltage, PWM, temperature sensors.
  • Waveform Generator: Sine, square, pulse, triangle, ramp, DC.

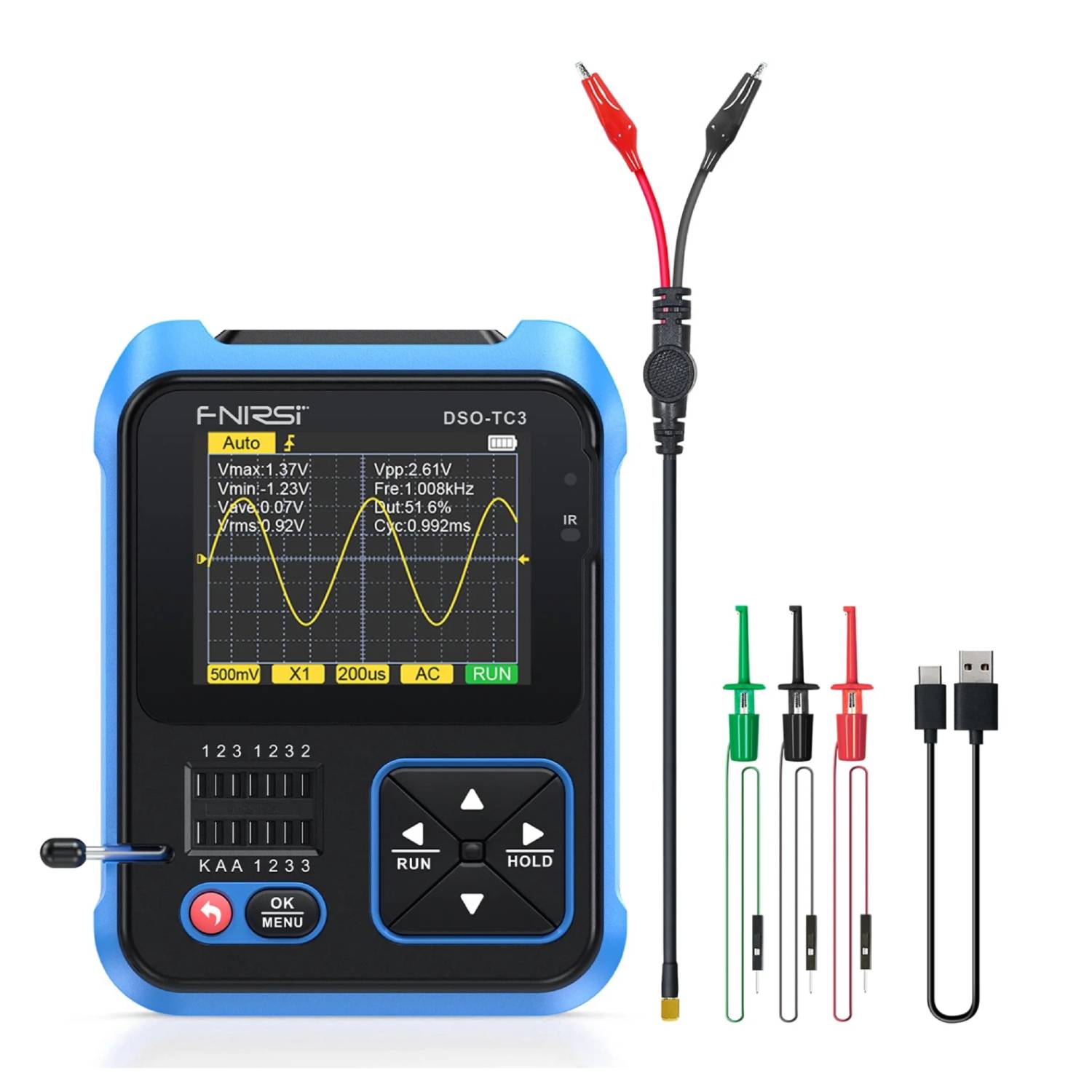

Package Include:

  • 1 x FNIRSI DSO-TC3 Oscilloscope
  • 1 x Ordinary probe
  • 3 x Test hook
  • 1 x Packing box
  • 1 x Manual
  • 1 x Type-C charging cable
