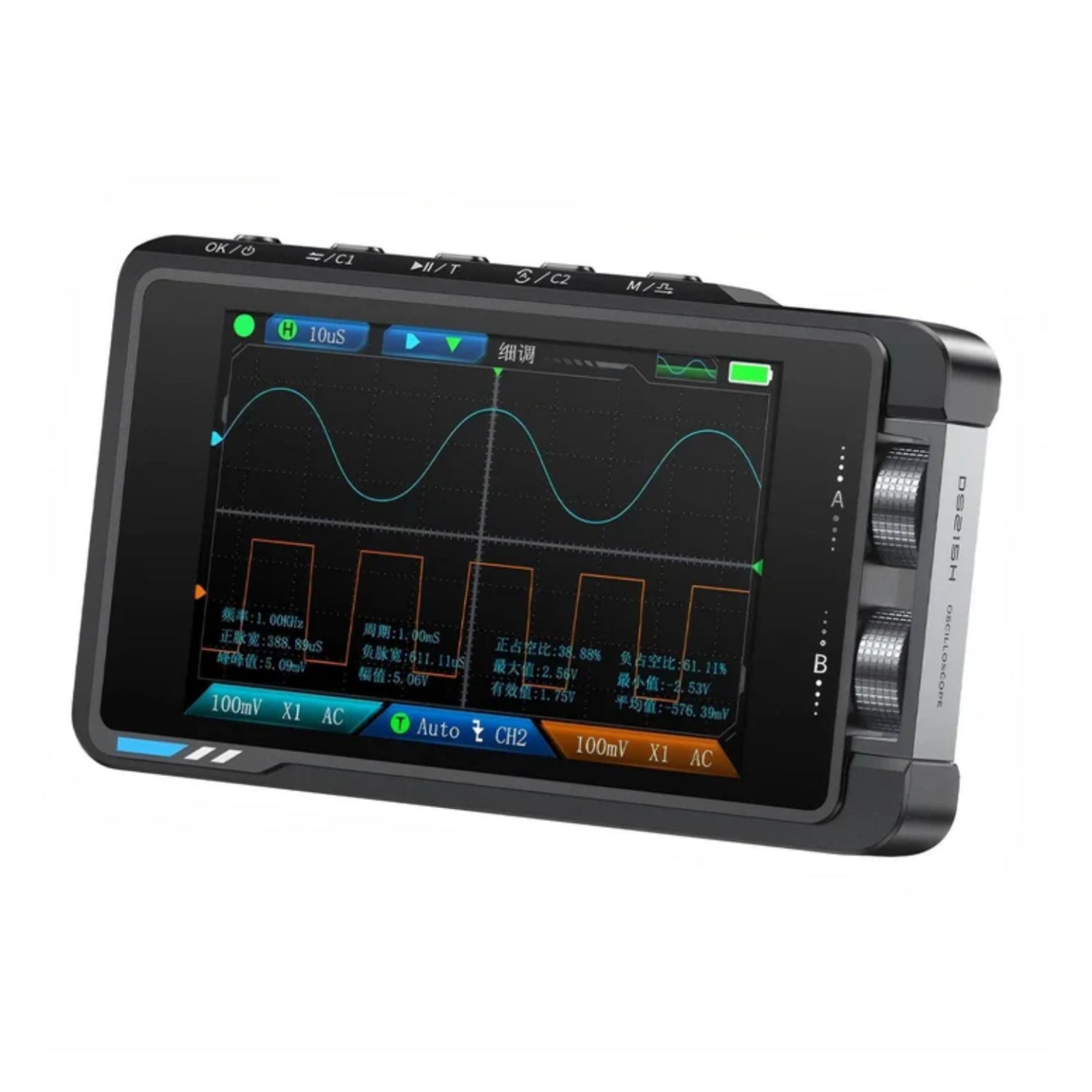

FNIRSI DS215H 2-in-1 Handheld Digital Oscilloscope With Integrated DDS Function Signal Generator - Standard - RS8969

FNIRSI DS215H 2-in-1 Handheld Digital Oscilloscope With Integrated DDS Function Signal Generator - Standard - RS8969

RS8969

In stock

Rs. 9,999.00
Rs. 9,999.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

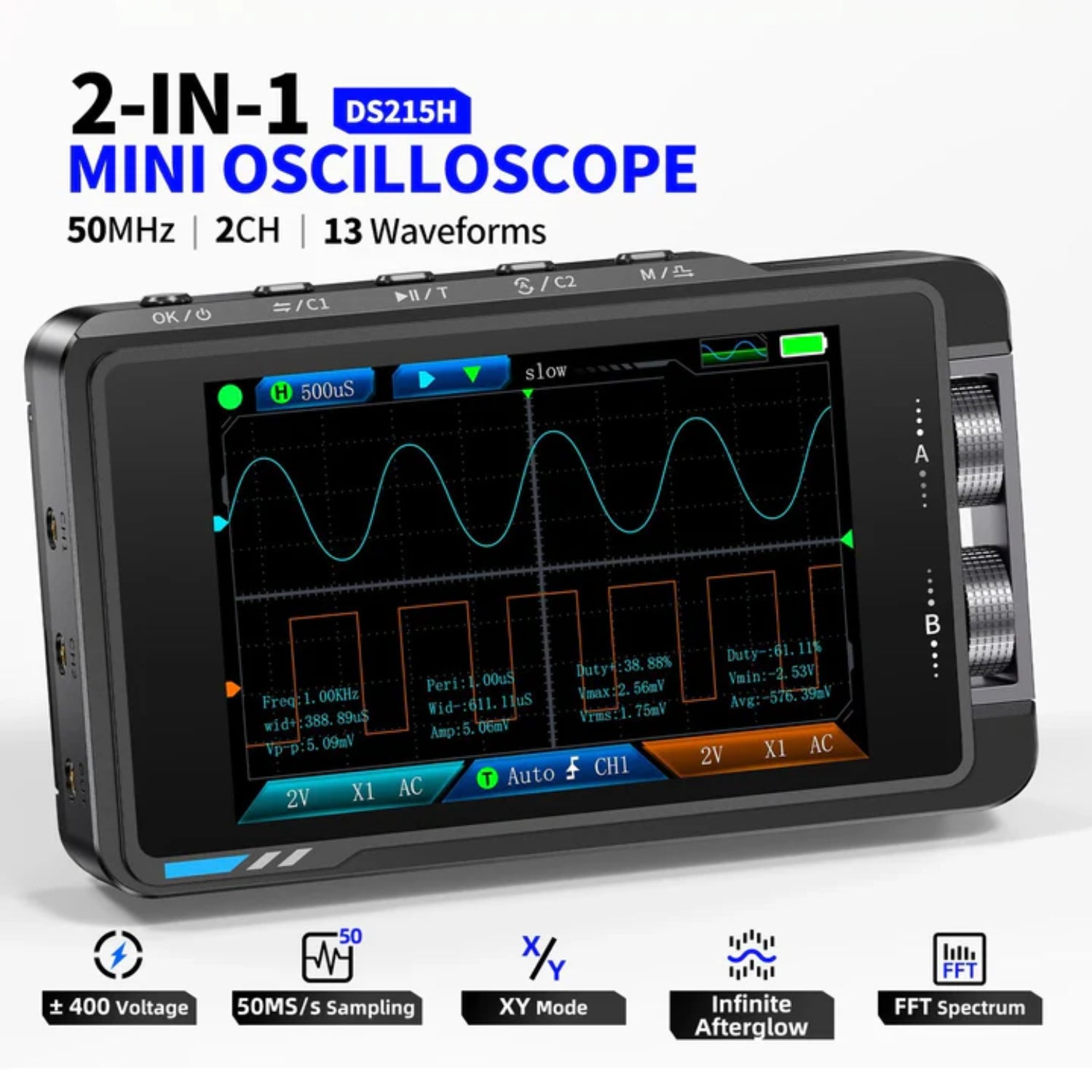

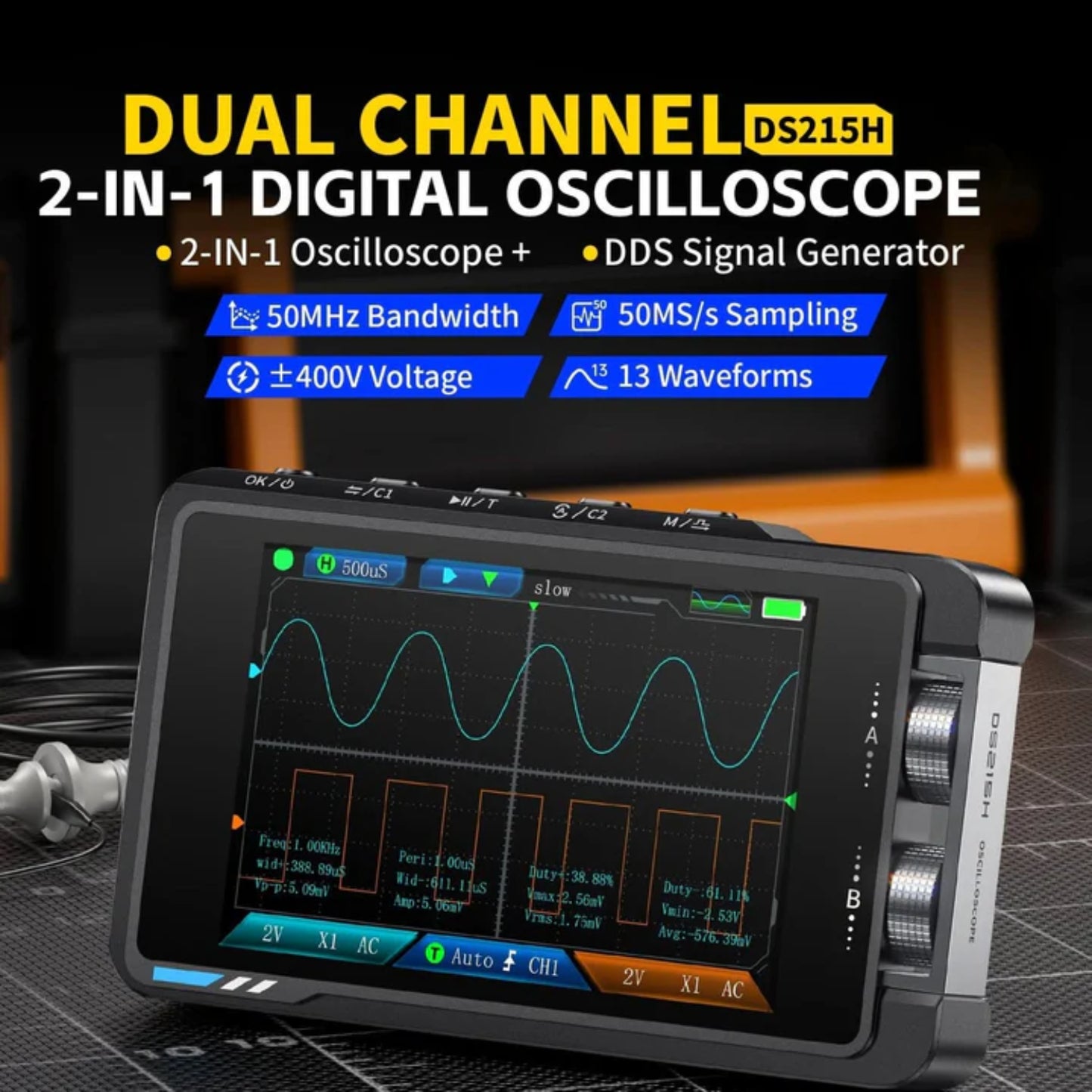

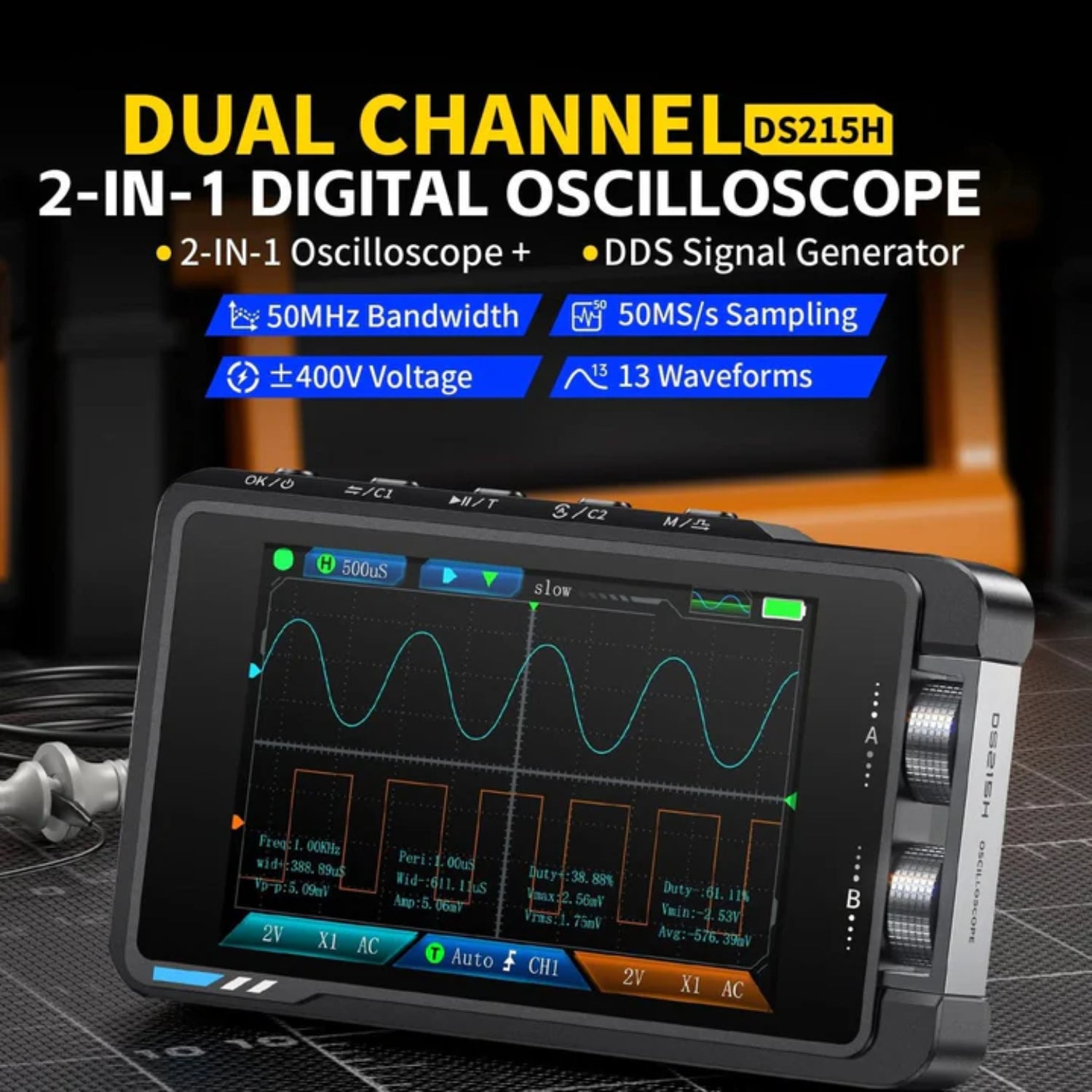

FNIRSI-DS215H is a comprehensive and practical two-in-one dual-channel digital test instrument launched by FNIRSI, designed for the maintenance and R&D industries.

Basic Parameters Specifications:

Display 3.5-inch IPS high-definition color screen
Backlight Brightness Adjustable
Power Supply TYPE-C (5V/1A)
Battery 1500mAh
Languages 中文, English, Deutsch, Português, 日本語, Español, 한국인, Pyccкий

Oscilloscope Parameters Specifications

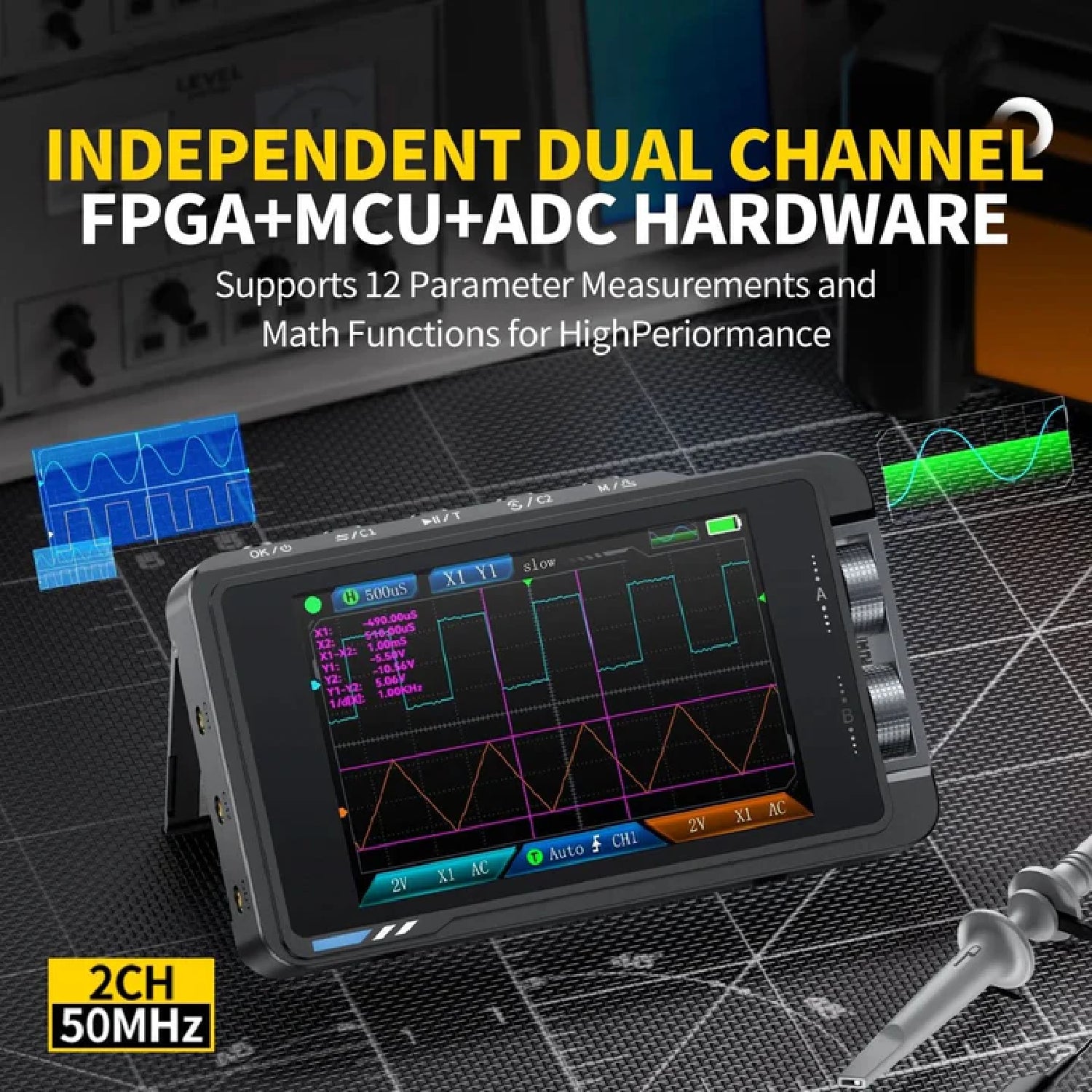

Channel Dual channel
Bandwidth 50MHz
Real-time Sampling Rate 250MSa/s
Storage Space 14M
Time Base Range 20ns/div - 20s/div
Vertical Sensitivity 10mV/div - 10V/div
Vertical Resolution 8 bits
Input Impedance 1MΩ
Waveform Display Mode Scroll
Measurement Data Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, duty cycle, Pulse width
Probe Attenuation Factor 1x/10x
Input Coupling AC/DC
Triggaer Type Rising edge/Falling edge
Peak Voltage ±400V
Trigger Level Range 8 grids (positive and negative)
Trigger Mode Auto / Normal / Single

Signal Generator Parameters Specifications

Output Waveform Supports multiple waveform outputs
Waveform Frequency 0-50KHz
Square Wave Duty Cycle 0-100%
Waveform Amplitude 0.1V-3.0V

Features:

  • High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.
  • Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.

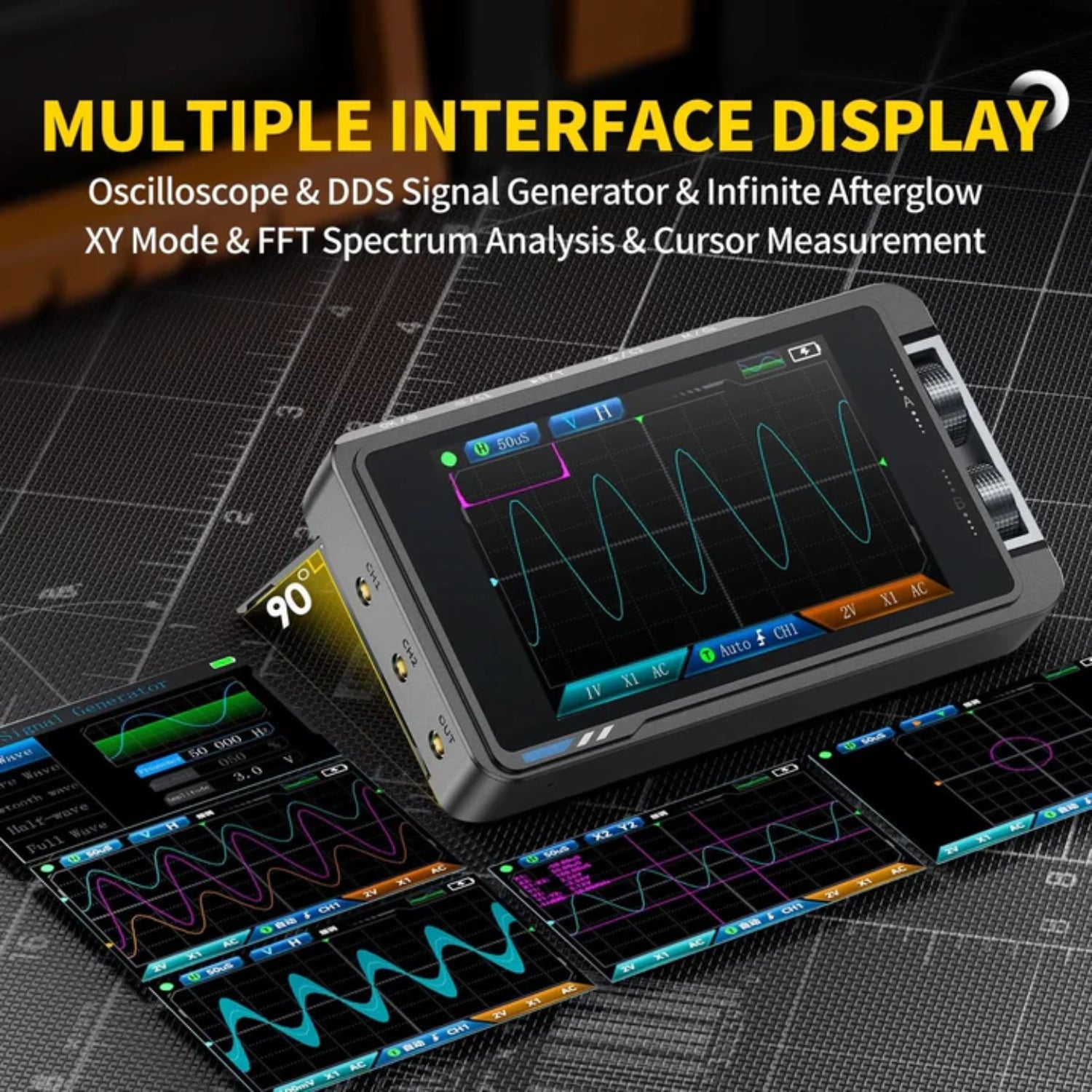

  • Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.

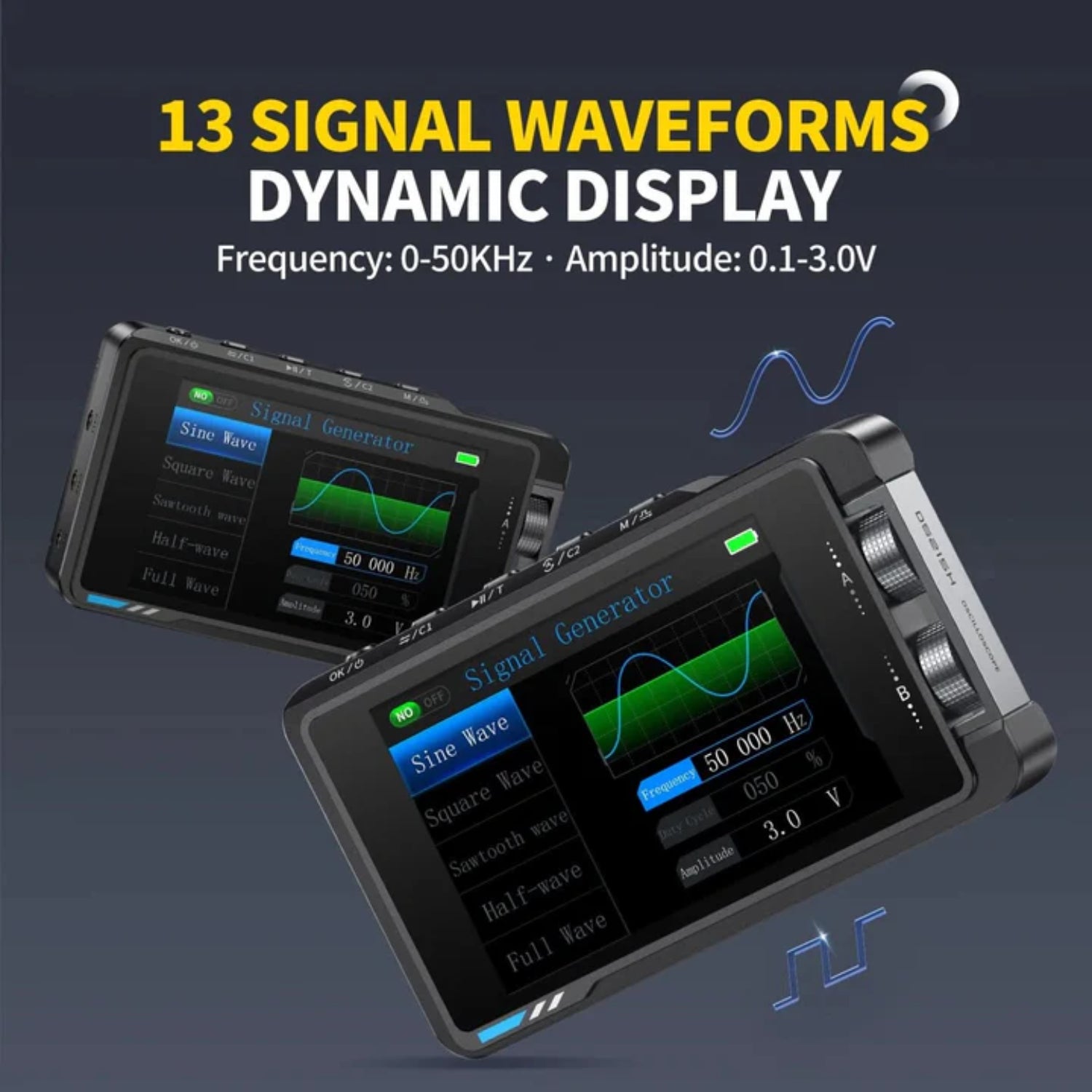

  • Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.
  • Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
  • Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
  • Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.

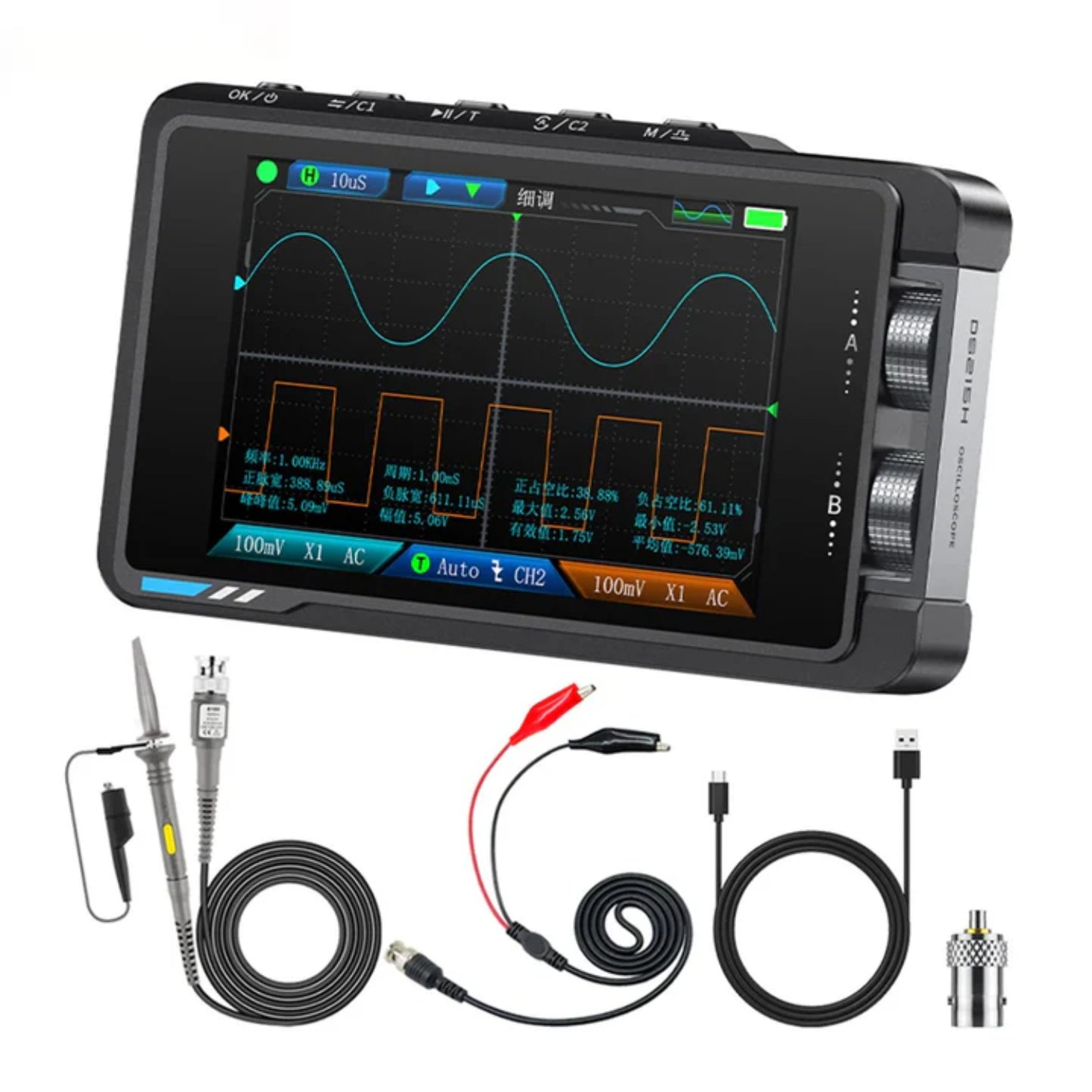

Package Included:

  • 1 x FNIRSI DS215H 2-in-1 Handheld Digital Oscilloscope
  • 1 x Oscilloscope Probe
  • 1 x Alligator Clip Test Leads
  • 1 x USB Type-C Charging/Data Cable
  • 1 x USB Power Adapter
  • 1 x Manual
