Description:

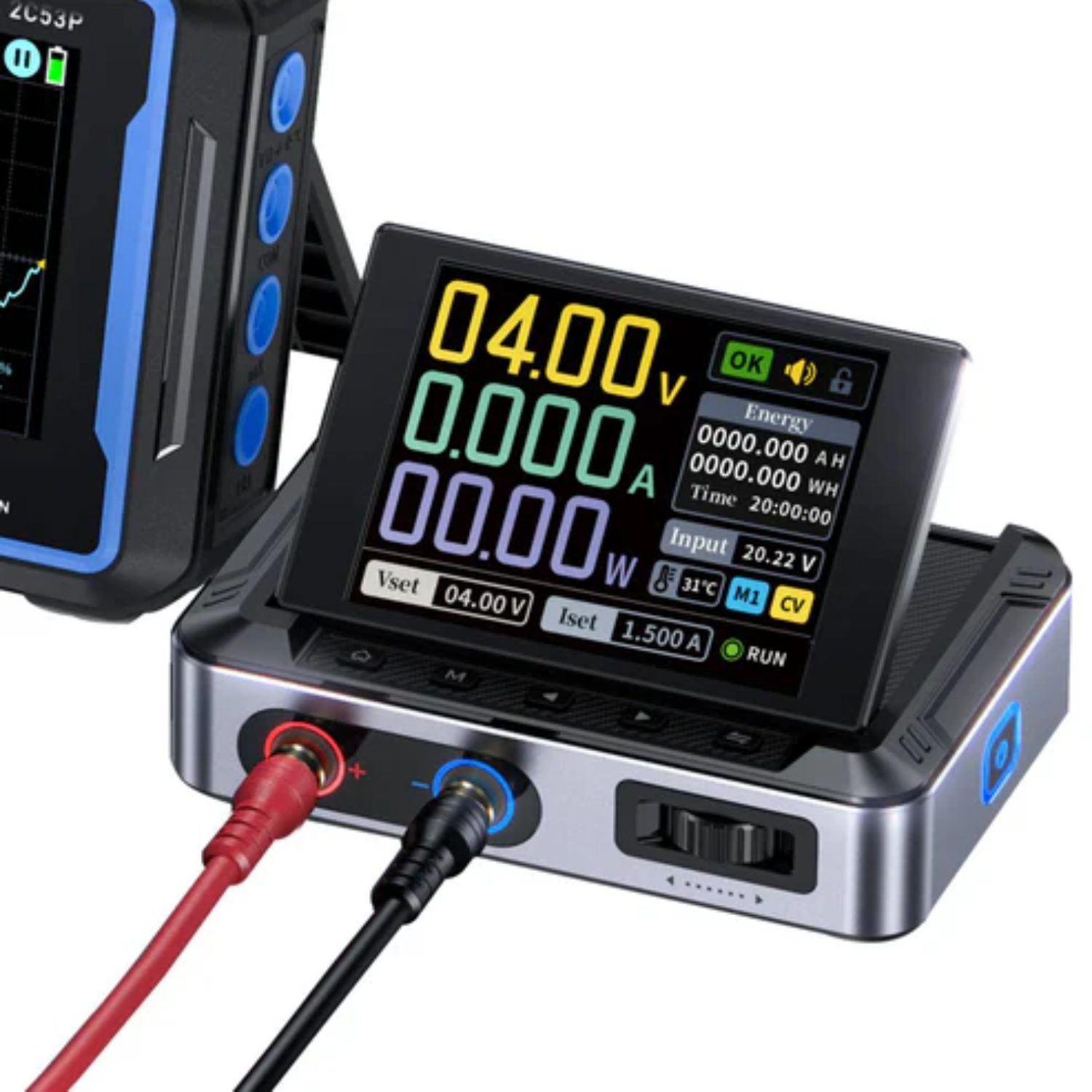

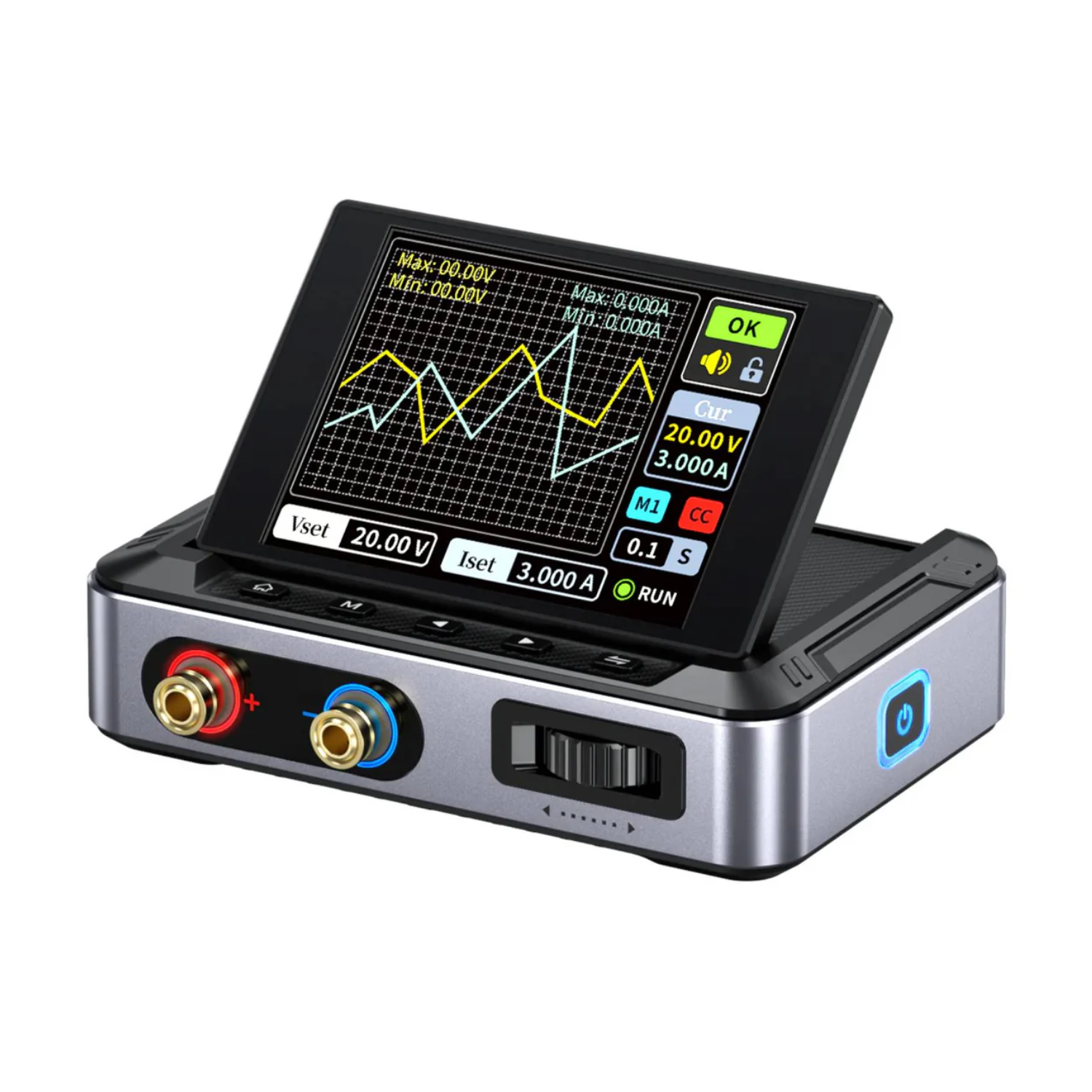

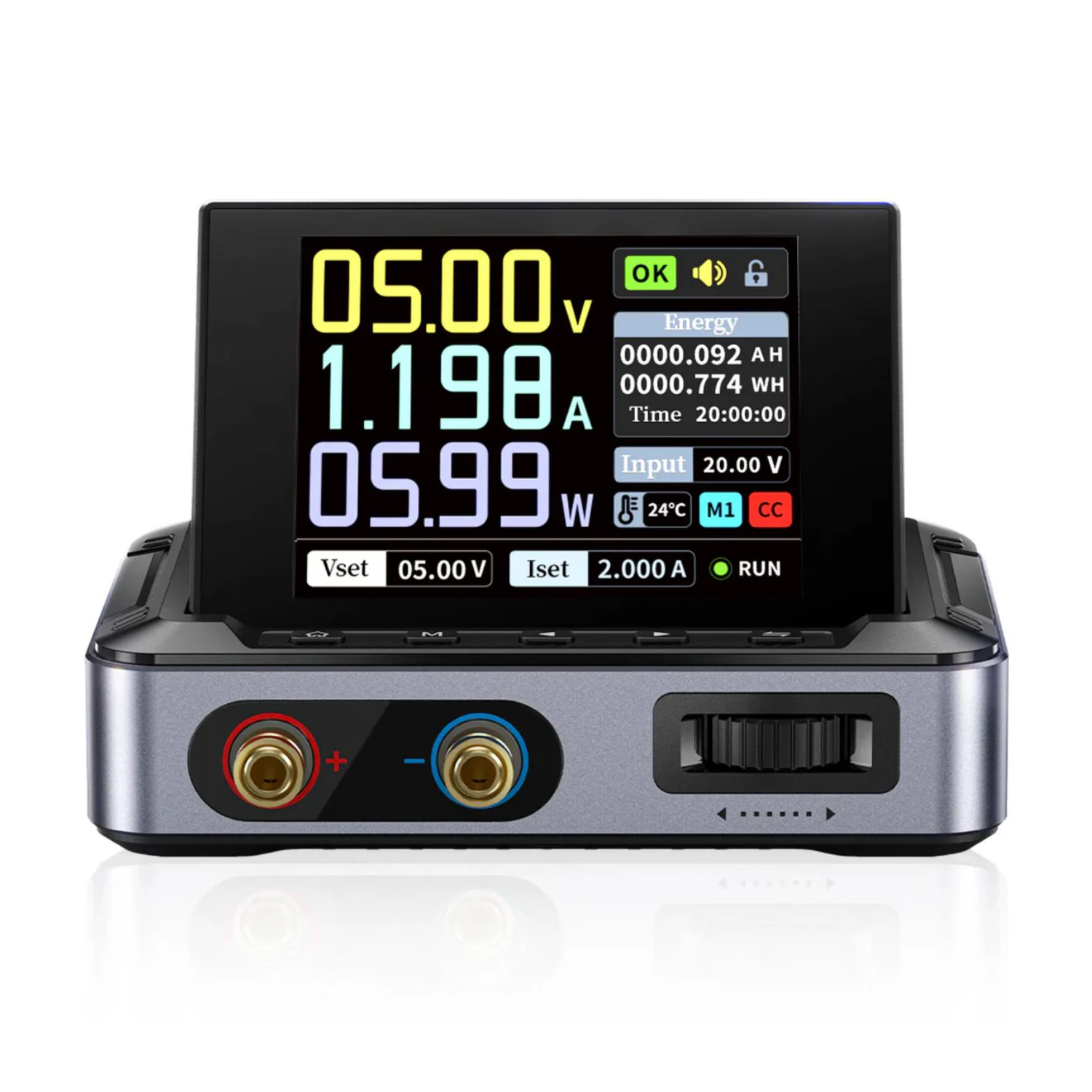

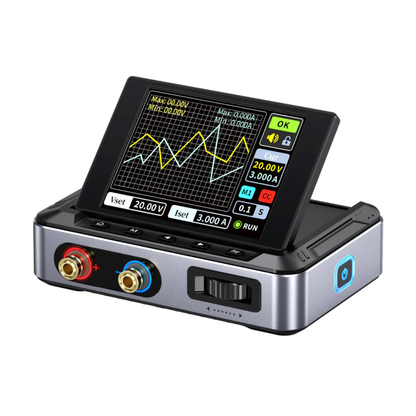

The FNIRSI-DP150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0- 30V) and current (0- 5A). It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection.
It can be flexibly applied to the serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable humanized design, meeting various application needs. It is designed to provide you with a high-performance and stable CNC power supply.
Specifications:
| Brand | FNIRSI |
|
Model
|
DPS-150
|
|
Input Voltage
|
DC 5.0V~32V
|
|
Input Current
|
100mA-5A
|
|
Input Way
|
PD fast charger
QC fast charger Power bank DC power adapters |
|
Output Voltage
|
0~30V
|
|
Output Current
|
0~5A
|
|
Output Power
|
0-150W
|
|
Operating Environment
|
0℃-40℃
|
|
Load Regulation
|
0.49%
|
|
Full Load Efficiency
|
96.30%
|
| Screen |
2.8 Inch (320x240)
|
|
Dimensions
|
106x76x28mm
|
|
Overvoltage Protection
|
Support
|
|
Overcurrent Protection
|
Support
|
|
Undervoltage Protection
|
Support
|
|
Overpower Protection
|
Support
|
|
Overtemperature Protection
|
Support
|
|
Reverse Input Protection
|
Support
|
|
Reverse Output Protection
|
Support
|
|
Short Circuit Protection
|
Support
|
|
Upper Computer Software
|
Support
|
|
Firmware Upgrade
|
Support
|
Features:
- Wide Voltage Range: Adjustable DC output from 0 to 30V and current from 0 to 5A, suitable for various applications.
- High Precision Adjustments: Set Voltage with 10 mV resolution and Current with 1mA resolution for precise control.
- Comprehensive Protections: Includes overvoltage, overcurrent, overpower, and short circuit protections for enhanced safety.
- Portable and Lightweight Design: Compact size (106×76×28mm) and ultra-light weight (~178g) make it easy to transport and store.
- Clear Digital Display: 2.8-inch LCD screen (320x240) for real-time monitoring of voltage, current, and power parameters.

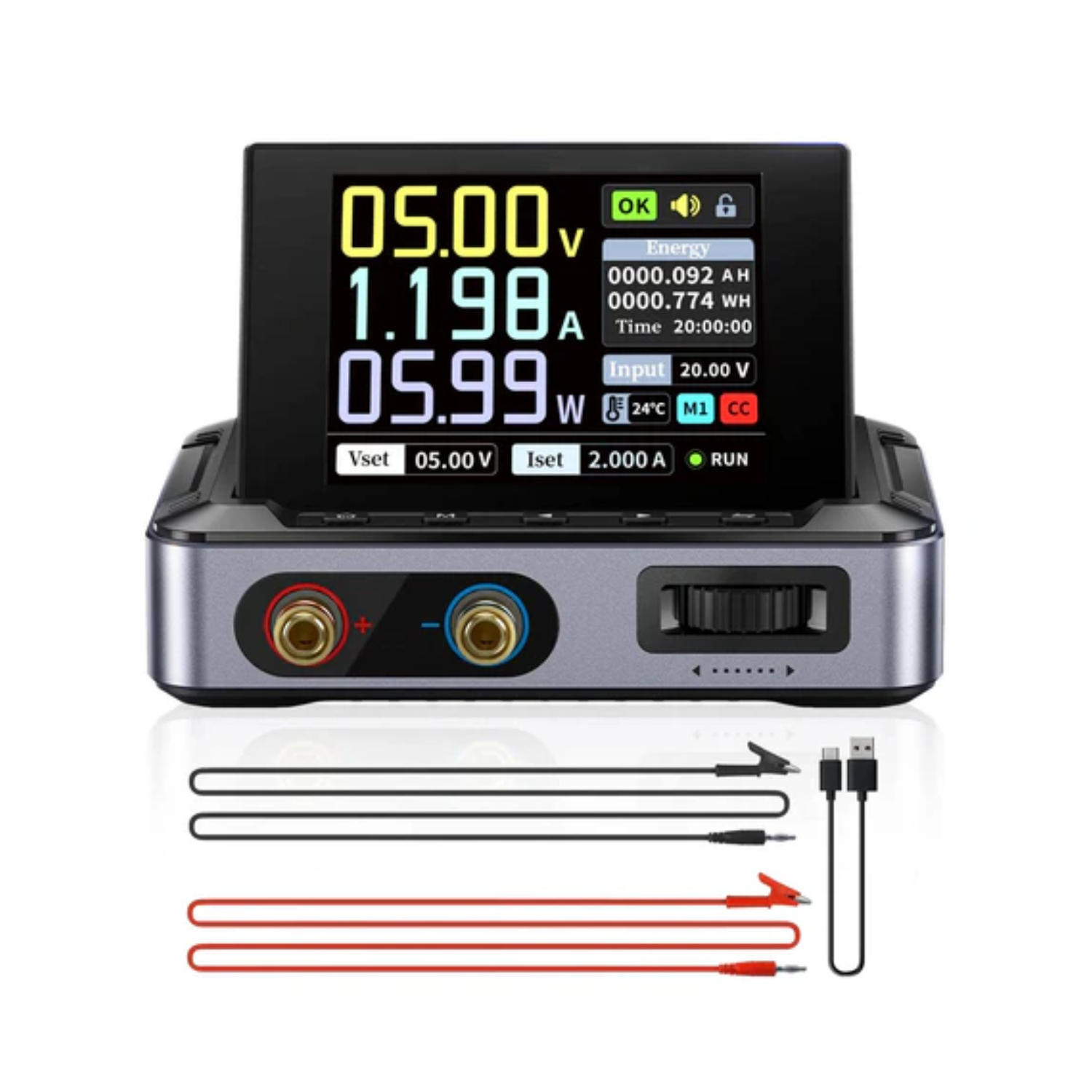

Package Included:
- 1 x FNIRSI DPS-150 Power Supply
- 1 x Accessories Pack
