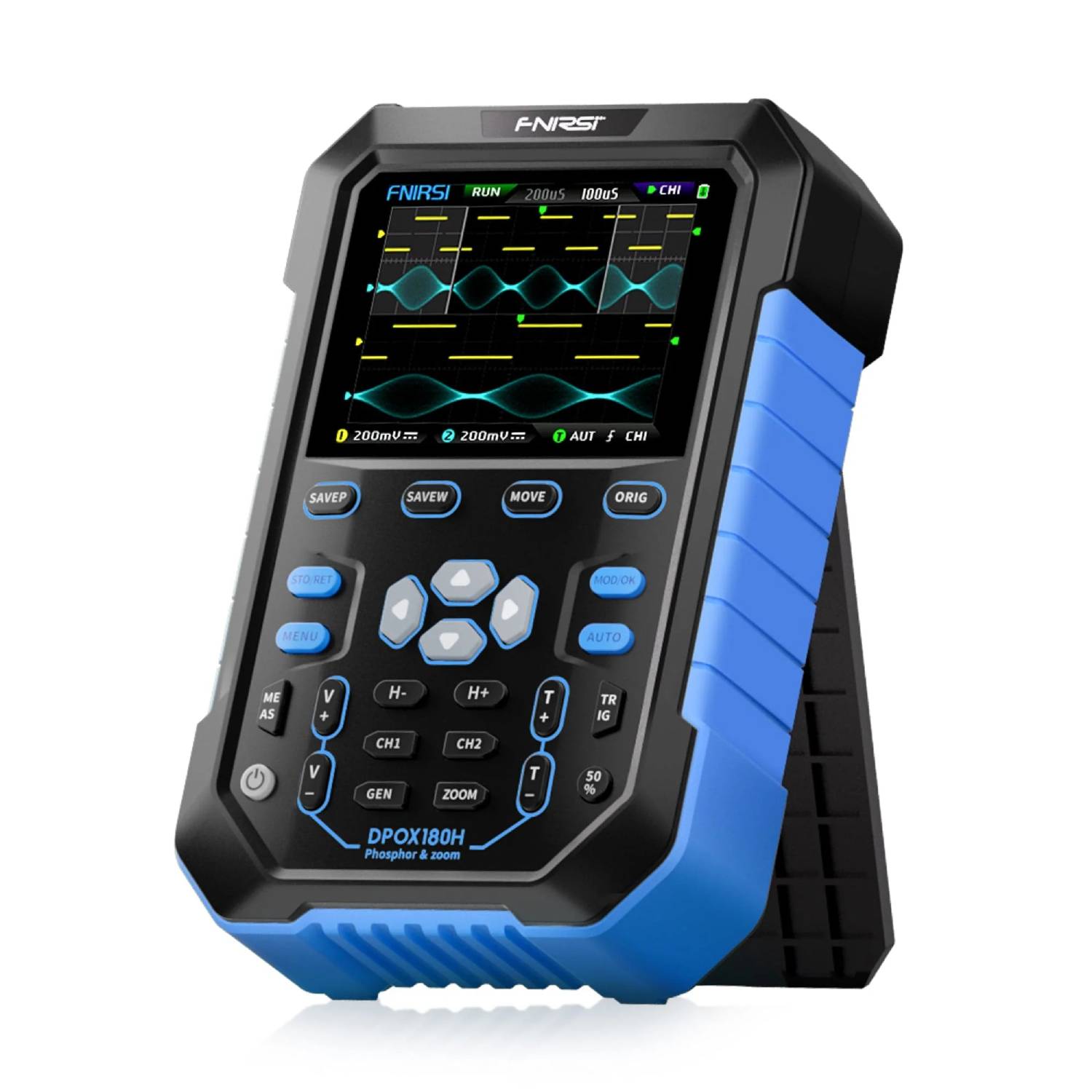

Description:
FNIRSI DPOX180H Oscilloscope is a cost-effective, handheld dual-channel digital phosphor oscilloscope from FNIRSI, combining an oscilloscope and signal generator. It features a 500MSPS real-time sampling rate, 180MHz bandwidth, and a 2.8-inch high-contrast IPS LCD. With a refresh rate of up to 50,000 waveforms per second, it captures even rare signal anomalies.
The ZOOM time base aids digital protocol analysis, and with 5mV sensitivity, it can measure small signals accurately. Key features include noise filtering, a high-precision digital trigger with three modes, and a DDS signal generator supporting up to 20MHz. Additional functions include one-button auto adjustment, waveform storage for up to 250 sets, high-voltage protection up to 400V, USB export, and fast charging (5V/2A).
Specifications:
| Model |
DPOX180H
|
|
Number of Channels
|
2
|
|
Analog Bandwidth
|
180MHz
|
|
Max Waveform Capture Rate
|
50000wfm/s
|
|
Real-Time Sampling Rate
|
500MSa/s
|
|
Maximum Sampling Rate
|
500MSPS
|
|
Input Coupling
|
DC/AC
|
|
Rise Time
|
2.5nS
|
|
Storage Depth
|
120Kpts |
|
Water Resistance Level
|
IPX6 |
|
Input Impedance
|
1MΩ-18PF
|
|
Vertical Sensitivity
|
5mV ~ 10V(1X)
|
|
Time Base Range
|
5nS ~ 50S
|
|
DC Accuracy
|
±2%
|
|
Time Accuracy
|
±0.01%
|
|
Measurement Range
|
40mV ~ 80V(1X)
|
|
Digital Phosphor Technology
|
Support
|
|
Color Temperature Display
|
Support
|
|
Zoom Scaling Time Base
|
Support
|
|
20M Hardware Bandwidth Limitation
|
Support
|
|
Adjustable Automatic Bandwidth Limitation
|
Support
|
|
X-Y Mode
|
Support
|
|
FFT
|
Support
|
|
Cursor Measurement
|
Frequency / Period / Amplitude
|
|
Trigger Detection
|
Digital Trigger
|
|
Trigger Mode
|
Auto / Single / Normal
|
|
Trigger Edge
|
Rising / Falling
|
|
Roll Mode
|
Support
|
|
Screenshot Storage
|
90
|
|
Waveform Storage
|
250 Groups
|
|
Capture Signal
|
500
|
|
Parameter Measurement
|
12 Kinds
|
|
Signal Generator
|
14 Standard Function Signals
|
|
Auto-adjustment
|
Support
|
|
Waveform Manager
|
Support
|
|
Waveform Output
|
Support
|
|
High-voltage Burnout Protection
|
Support
|
|
Screen Size
|
2.8 Inches
|
|
Screen Resolution
|
320x240 Pixels
|
|
Display Technology
|
IPS Full Vie
|
|
Expansion Interface
|
USB Transmission Interface
|
|
Auto Power-off
|
5 minutes ~ 2 hours
|
|
Firmware Upgrade
|
Support
|
|
Charging Requirements
|
5V 2A
|
|
Battery Capacity
|
3000mAh
|
|
Standby Time
|
3.5 Hours at Full Charge
|

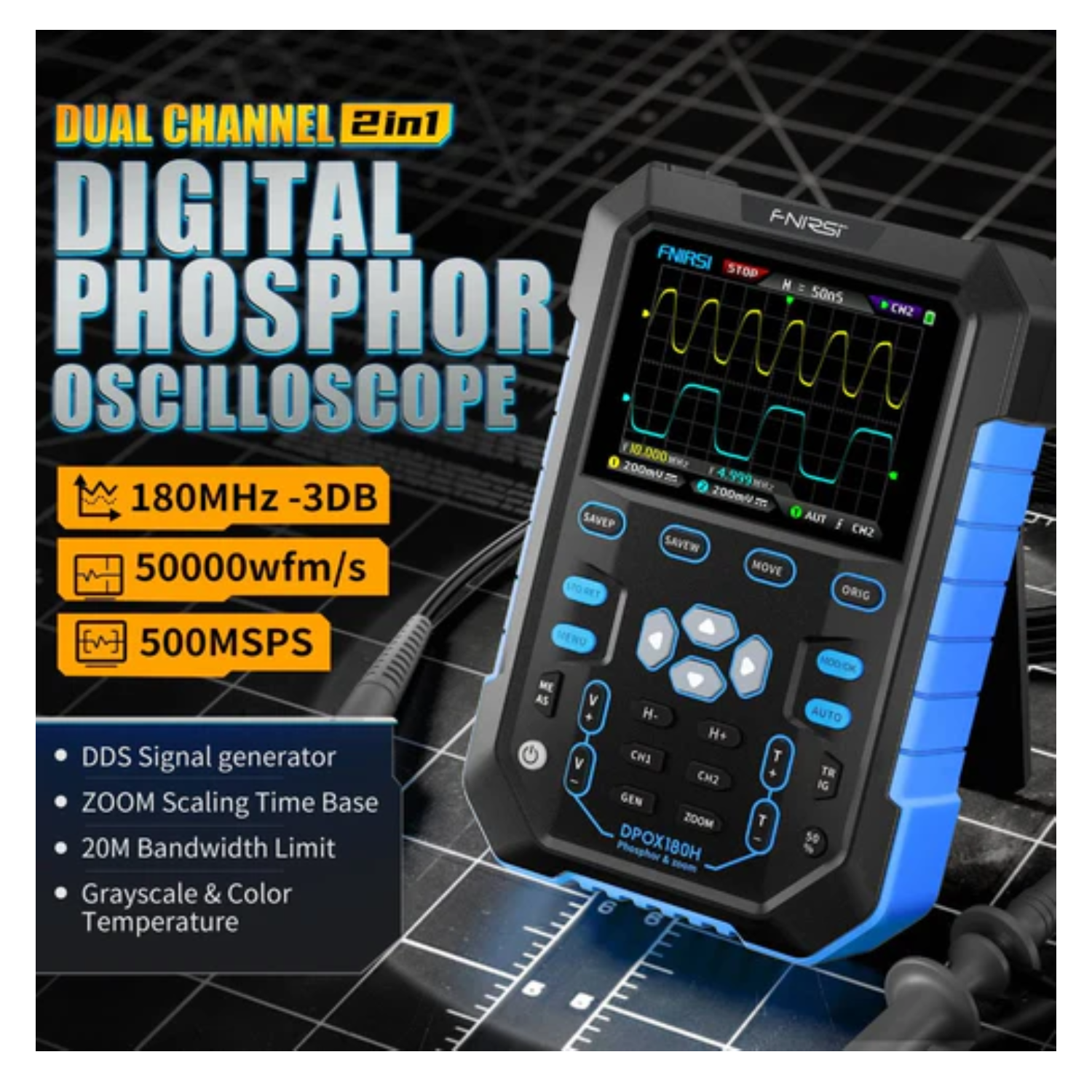

Features:
- 2 Channels Digital Phosphor Oscilloscope
- 2 in 1 Handheld Oscilloscope+ DDS Signal Generator
- 180Mhz Bandwidth 500MSa/s Sampling Rate
- Record depth 32kb
- Maximum measurement voltage ±400V
- 200mv/div-10v/div vertical sensitivity
- Support waveform image storage and export.
- Trigger function: auto/normal/single
- Effortless Usage: one-key-auto
- Seamless Operations: Enhanced Data Saving

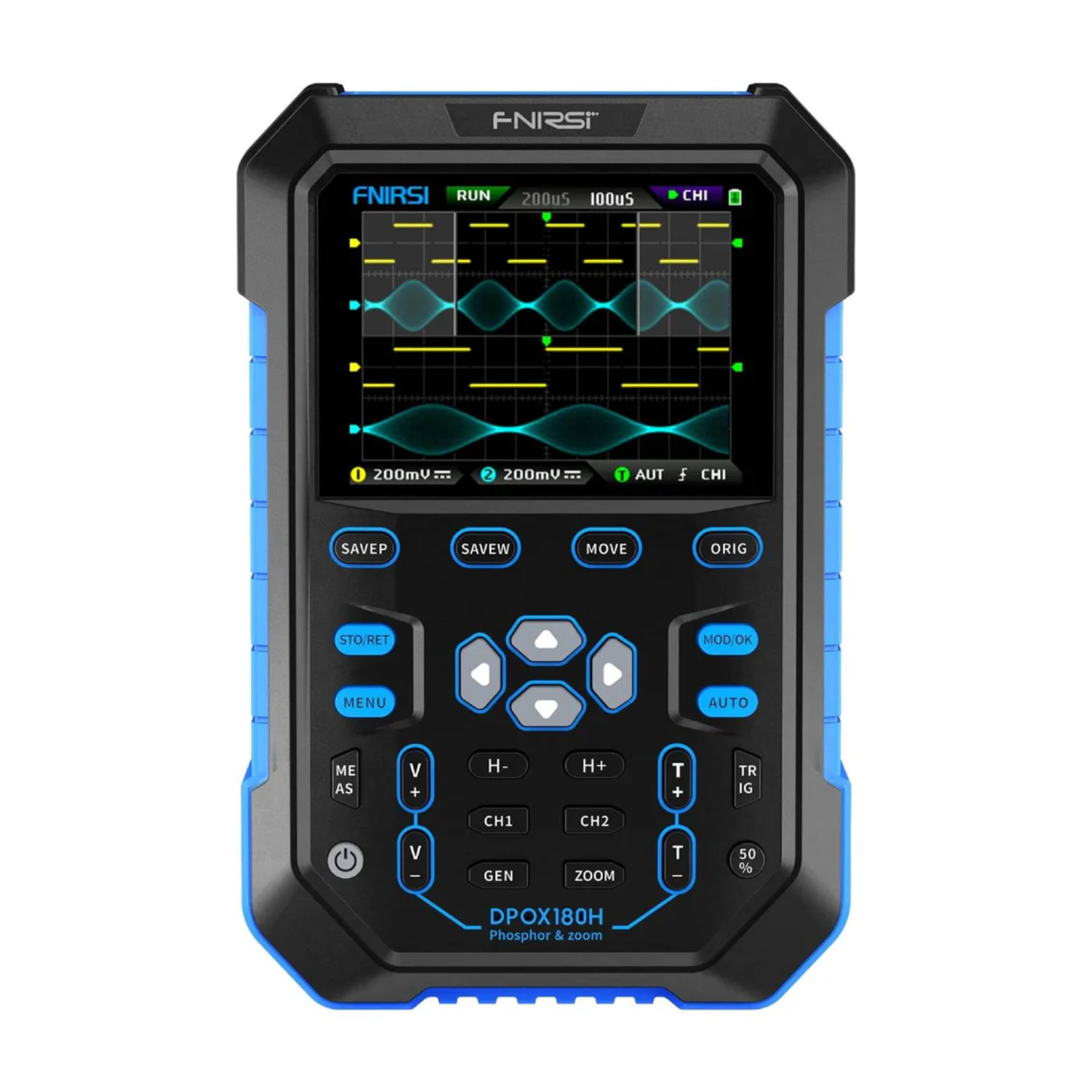

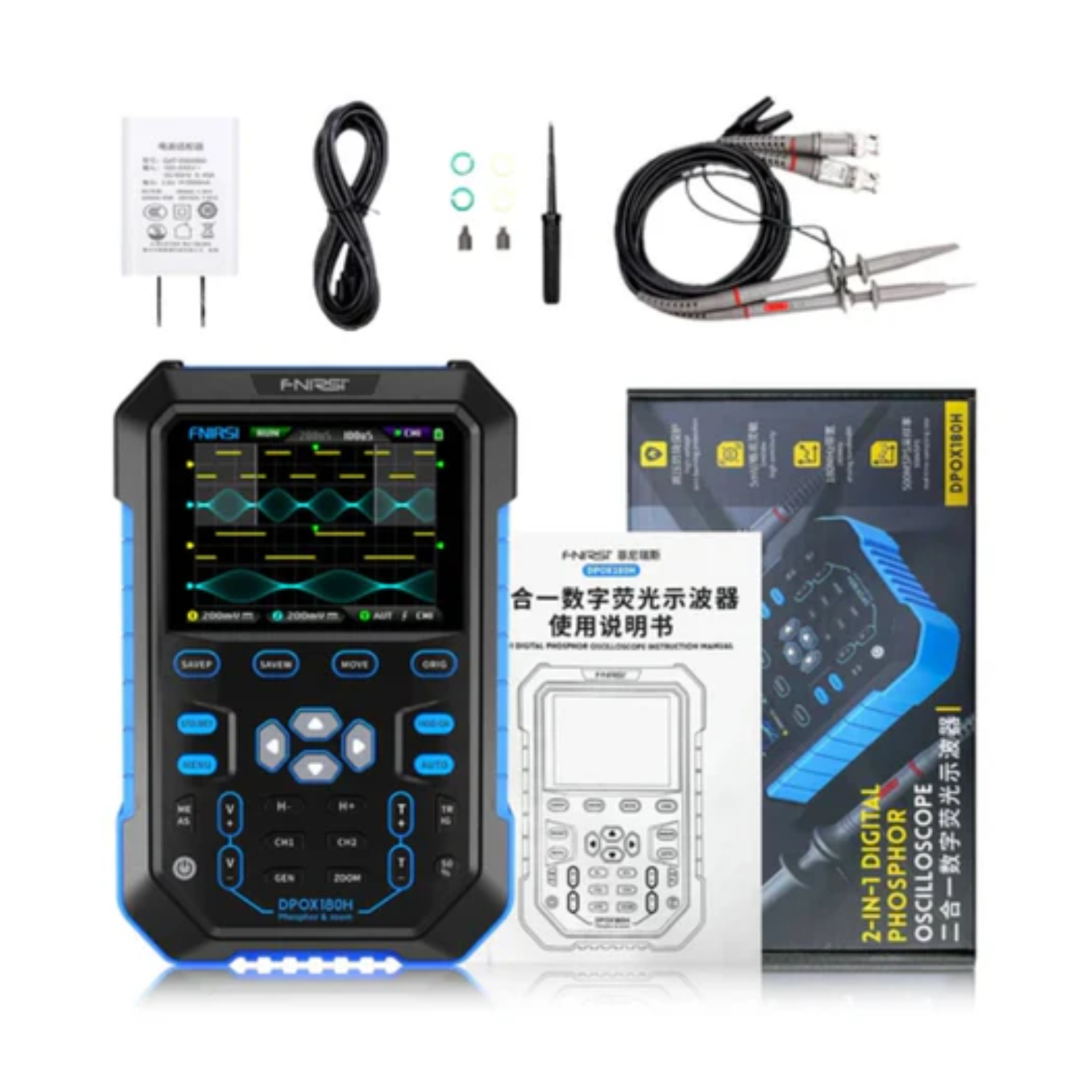

Package Included:
- 1 x FNIRSI DPOX180H Oscilloscope
- 2 x Matching 200MHz Probe
- 1 x 5V 2A Power Adapter
- 1 x USB Data Line
