Description:
DMT-99 is FNIRSI's newly launched 10000-count intelligent digital multimeter, with a wider measurement range and higher resolution, helping you measure more accurate values.
It can accurately measure AC/DC voltage, AC/DC current, and 10A current, and can also be used to test conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire, etc.

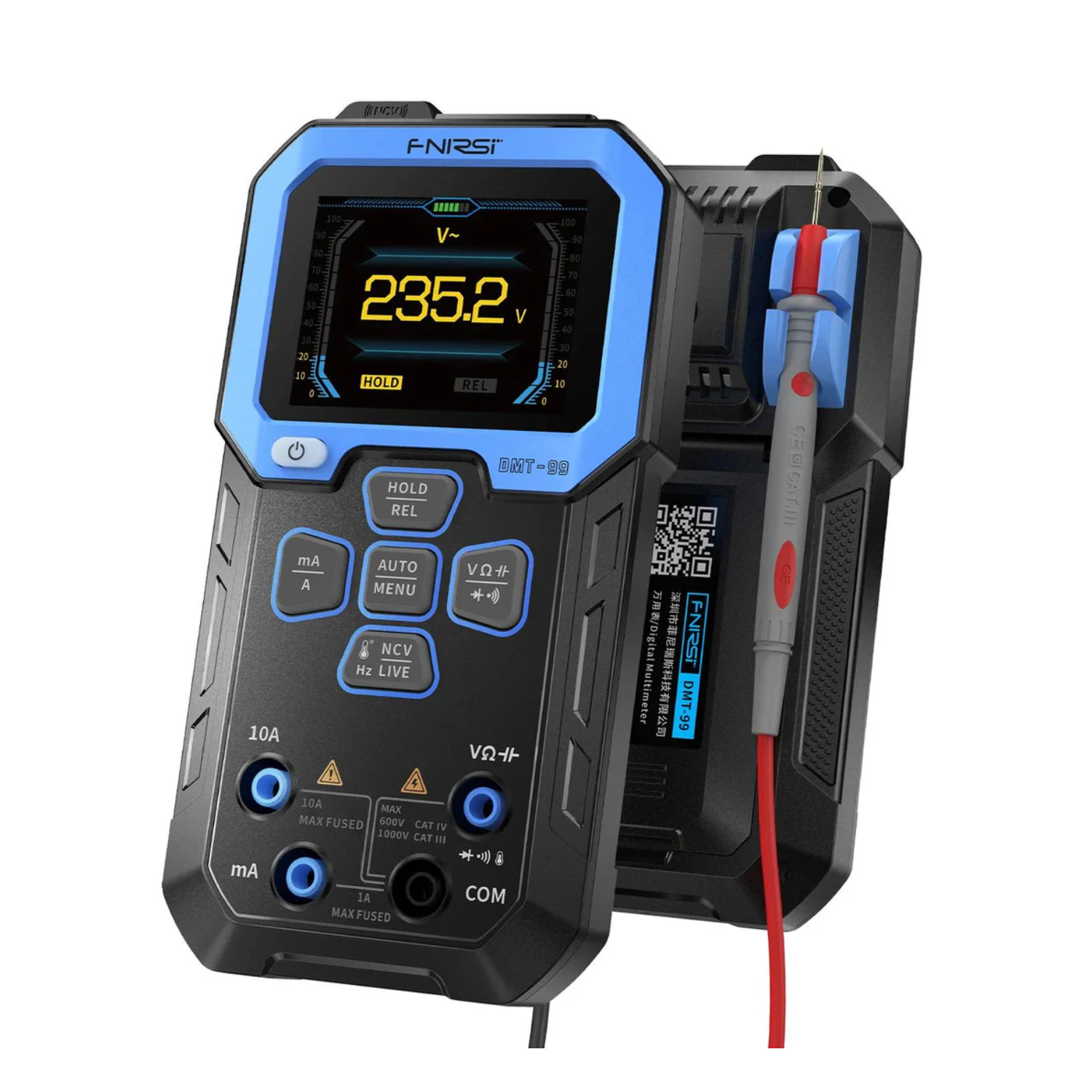

Suitable for various fields of electronic maintenance such as engineering, laboratories, cars, and home appliances. it is equipped with a 2.4-inch full-color TFT display, a screen with a resolution of up to 240 * 320, and a DIY boot interface. A new UI interface design and the first monitoring mode function enrich your user experience and make operation more convenient in various scenarios.
Specifications:
| Model |
DMT-99
|
|
Certification
|
CE
|
| Display |
2.4-inch full-color TFT display Resolution: 240*320 |
| Weight | 185g |
|
Battery Capacity
|
1500mAh |
|
DC Voltage
|
9.999V-999.9V
|
|
AC Voltage
|
9.999V-750.0V
|
|
DC Current
|
9999uA-9.999A
|
|
AC Current
|
9999uA-9.999A
|
|
Measuring Resistance Range
|
999.9Ω-99.99MΩ
|
|
Measuring Capacitance Range
|
9.999nF-99.99mF
|
| Frequency |
9.999Hz-9.999MHz
|
|
Temperature
|
(-55~1300℃) / (-67~2372℉)
|
|
Diode
|
Yes |
|
Continuity Test
|
Yes |
|
NVC
|
Yes |
|
LIVE
|
Yes |
|
Operating Conditions
|
Temperature: 0-40℃ Humidity: <75% |
|
Storage Conditions
|
Temperature: -20-60'C
Humidity: <80% |

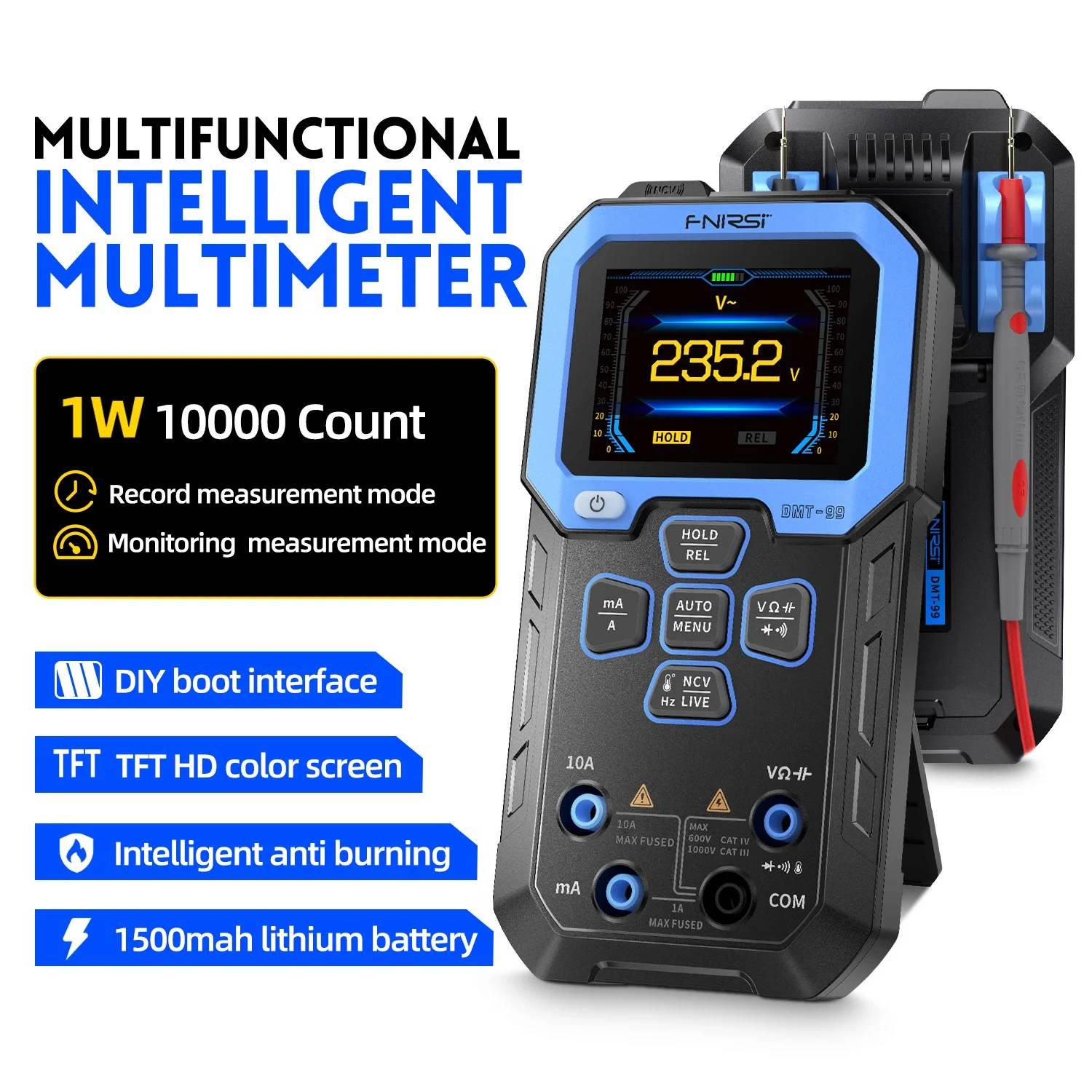

Features:
- Professional digital multimeter multitester
- Automotive Multimeter: 1000V 10A True RMS
- 2.4 inch full-color TFT display (240 * 320 resolution screen)

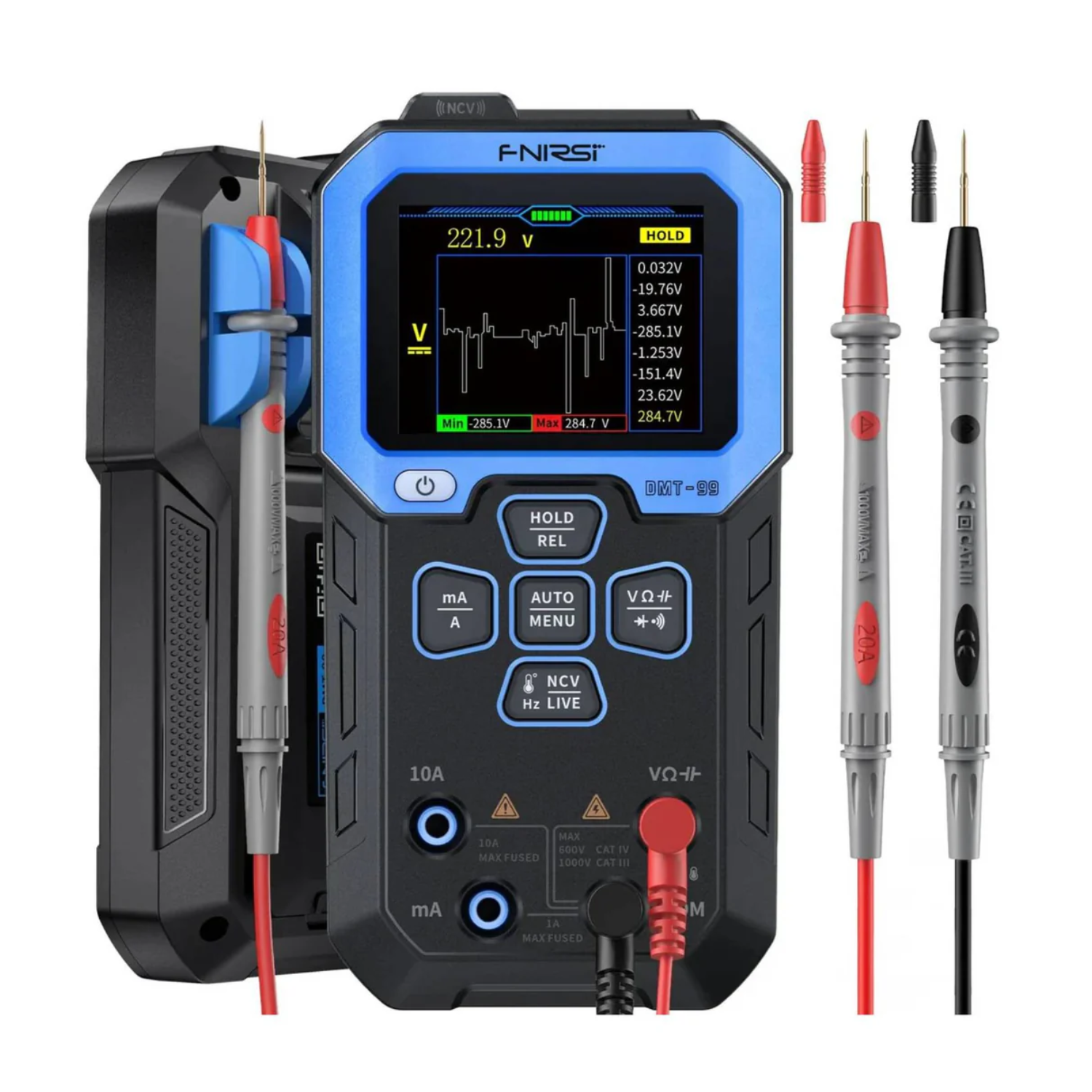

- 3 measurement modes( recording, normal, and monitoring)
- Intelligent anti-burning digital multimeter
- Multimeter Use: tests conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire, etc.
- Measures AC/DC voltage, AC/DC current, and 10A current.
- Built-in 1500mAh rechargeable battery multimeter tester
- Supports DIY startup interface

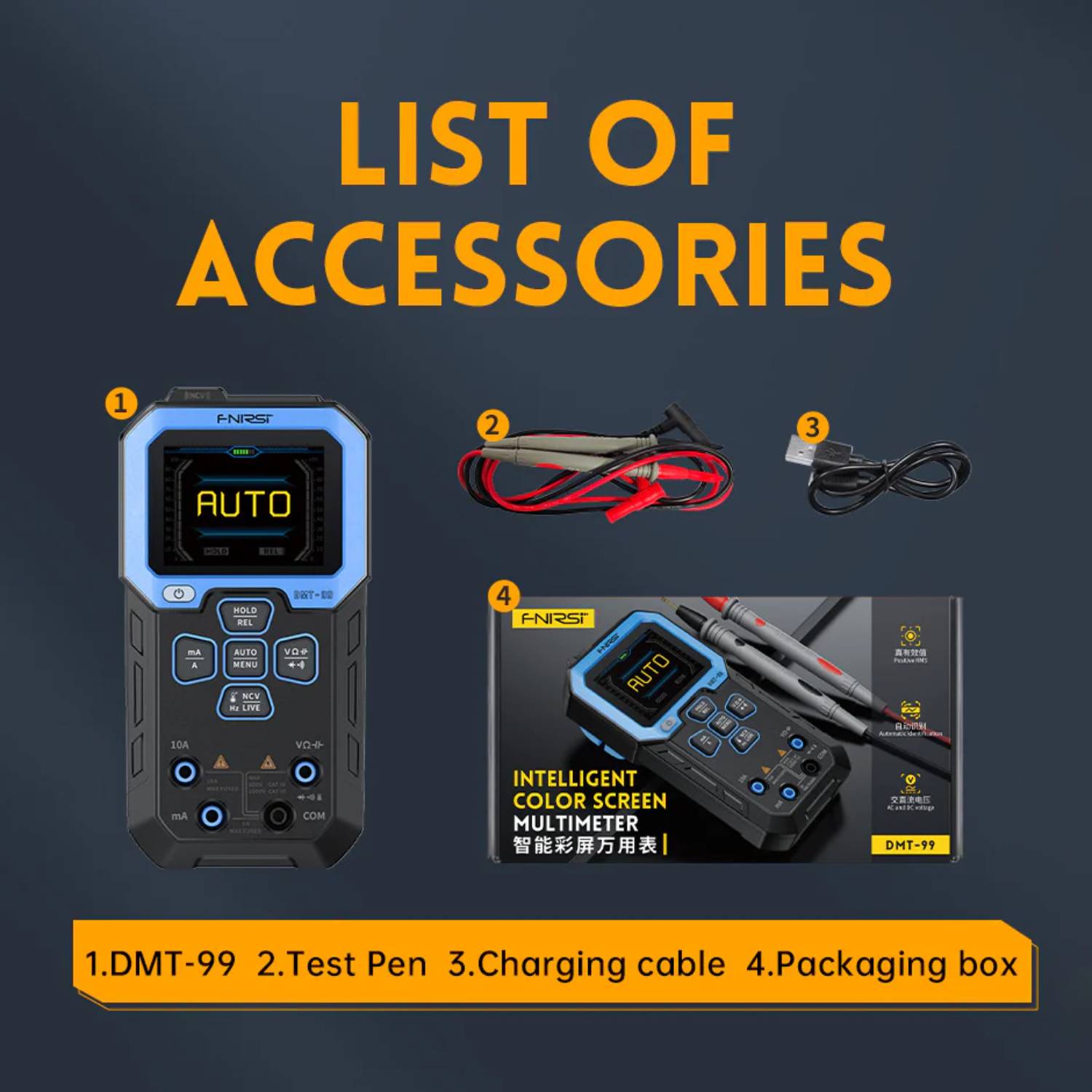

Package Included:
- 1 x FNIRSI DMT-99 Digital Multimeter
- 1 x Test pen
- 1 x Charging Cable
- 1 x Packaging Box
