Description:

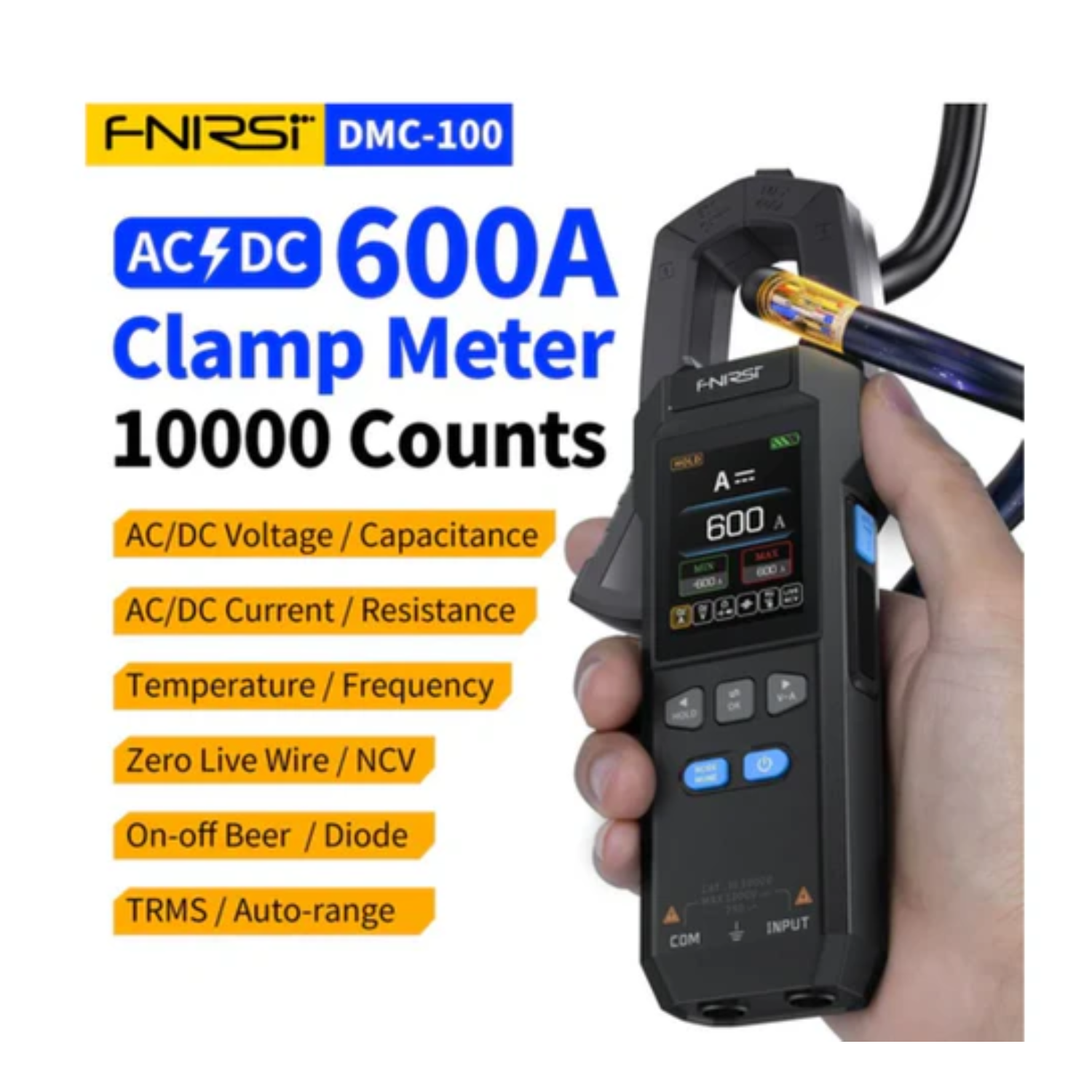

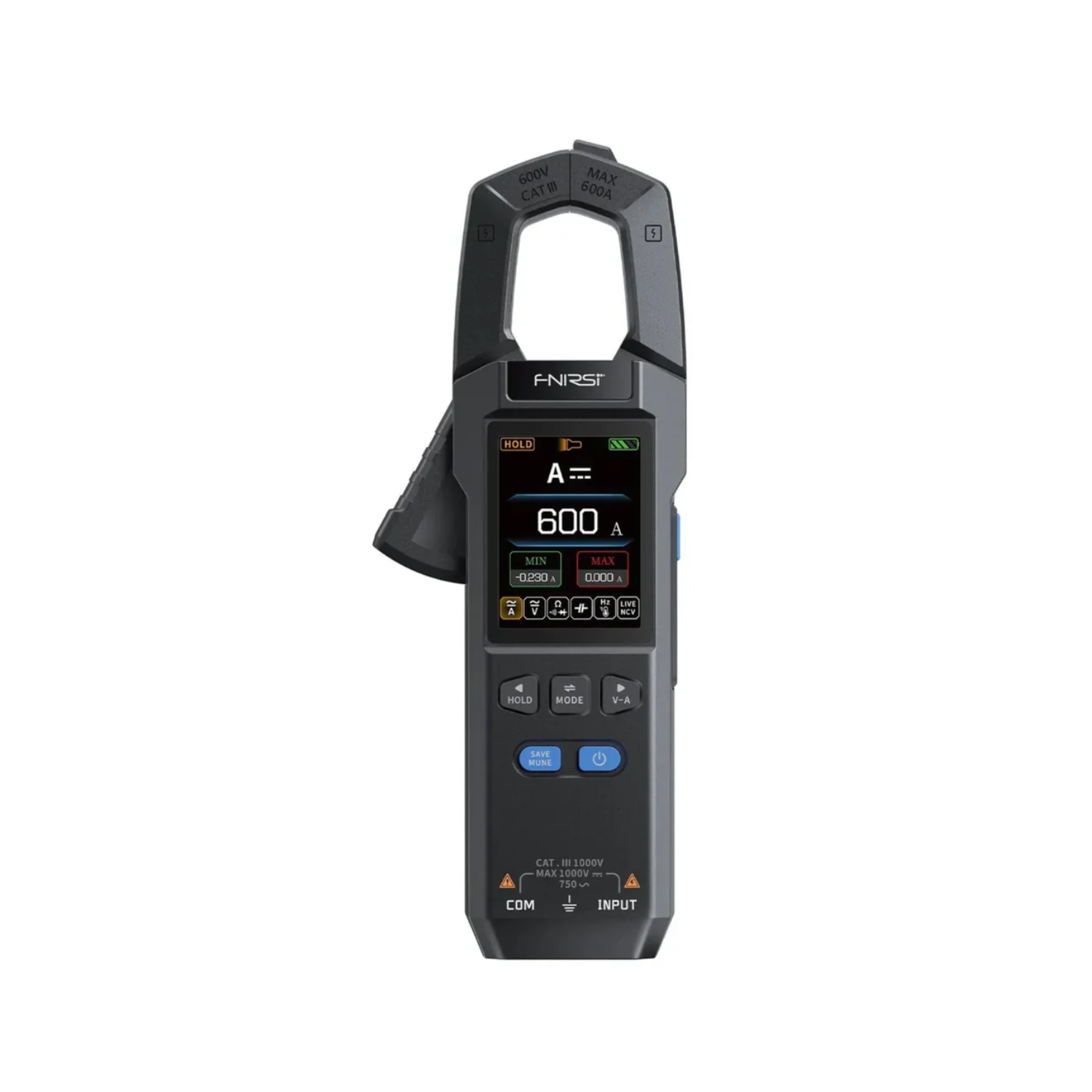

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, vehicle overhaul, or home electrical diagnostics, and can be easy to handle.
Specifications:
| Model |
DMC-100
|
|
Screen
|
2.0'' TFT color screen
|
|
Screen Resolution
|
240*320 pixels
|
| Battery |
3.7V, 1500mAh Lithium Battery
|
|
Charging Specification
|
USB Type-C, 5V/1A
|
|
Maximum Jaws Size
|
25mm |
|
Temperature Unit
|
℃/℉
|
|
Product Size
|
193x74x32mm
|
|
Product Weight
|
194g |
|
DC Voltage
|
9.999V / 99.99V / 999.9V
|
|
AC Voltage
|
9.999V / 99.99V / 750.0V
|
|
DC Current & AC Current
|
99.99A / 600.0A
|
| Resistance |
99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
|
| Capacitance |
9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
|
| Frequency |
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
|
| Temperature |
-55~1300℃ / -67~2372℉
|
|
Diode Measurement
|
Support |
|
On-off Test
|
Support |
|
Non-Contact Voltage Check (NCV)
|
Support |
|
Zero Fire Wire Check
|
Support |
|
Measuring Mode
|
1. General Measurement 2. Waveform Display 3. Power Measurement |
|
Measurement Gear
|
Manual Adjustment
|
| Torch | Support |
|
Data Zeroing
|
Support |
|
Maximum/Minimum Value
|
Support |
|
Waveform Display
|
Support |
|
Power Calculation
|
Support |
|
Data Hold
|
Data Hold
|
|
Data Storage and Viewing
|
Up to 30 groups of data
|
|
Language
|
Chinese / English
|
|
Brightness Adjustment
|
10-speed adjustment
|
|
Auto Power Off
|
OFF / 5min / 15min / 30min
|
|
Firmware Upgrade
|
Support |
|
AC Current
|
4A / 40A / 600A
|
|
Resistance
|
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
|
Features:
- High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
- Wide Measurement Range: Supports up to 750V voltage and 600A current.
- High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
- Intuitive Interface: New UI with data curve display for easy reading at a glance.
- Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
- NCV Function: Non-contact voltage measurement and zero/fire line identification.
- Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
- Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
- Type-C Interface: Convenient charging and data transmission via Type-C port.
- Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
- Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
- Temperature Unit Switching: Easily switch between temperature units (℃/℉).
- Adjustable Brightness: Screen brightness is adjustable for various environments.
- Firmware Upgradeable: Supports firmware updates to enhance functionality.

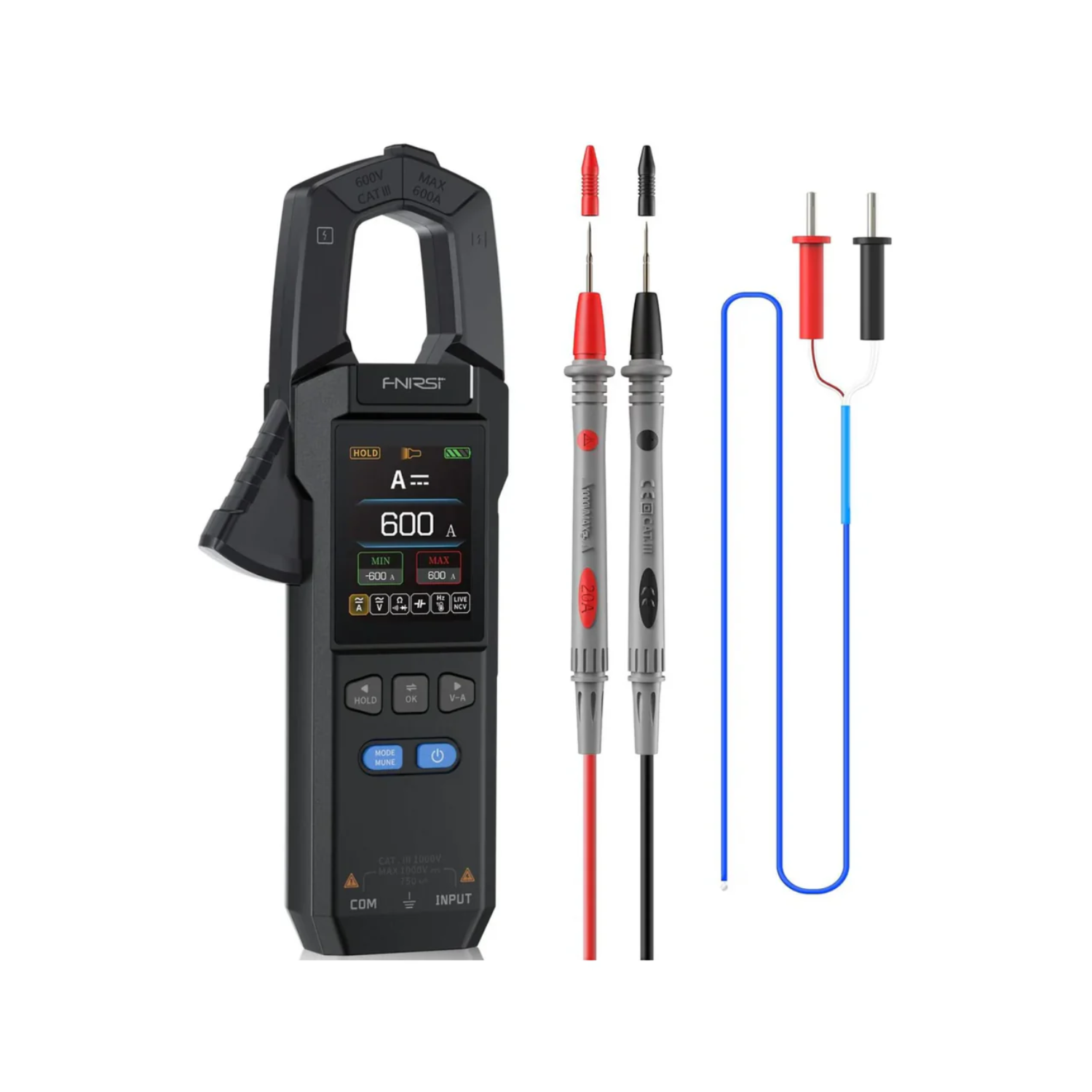

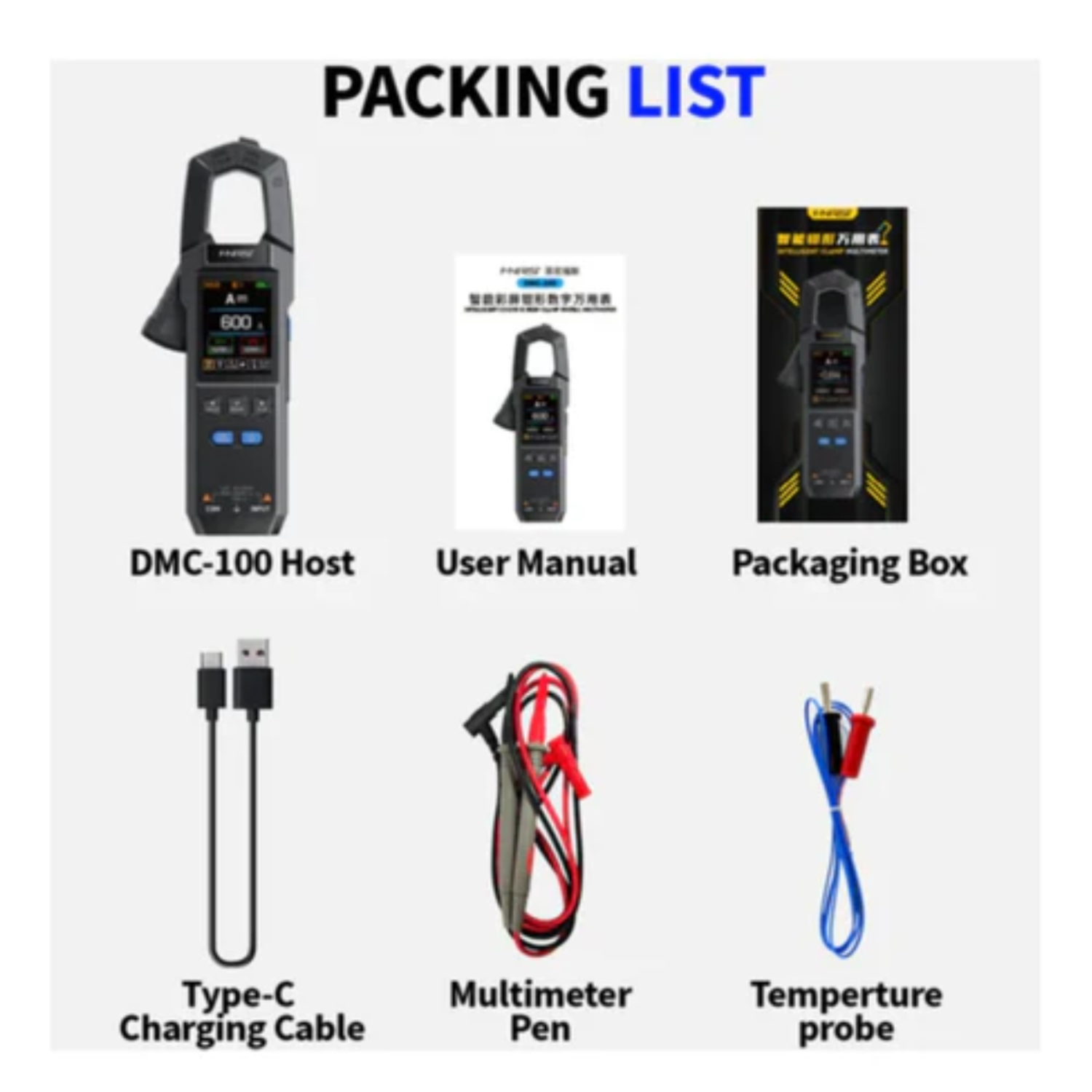

Package Included:
- 1 x FNIRSI DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter
- 1 x User Manual
- 1 x Packaging Box
- 1 x Type-C Charging cable
- 1 x Multimeter pen
- 1 x Temperature probe
