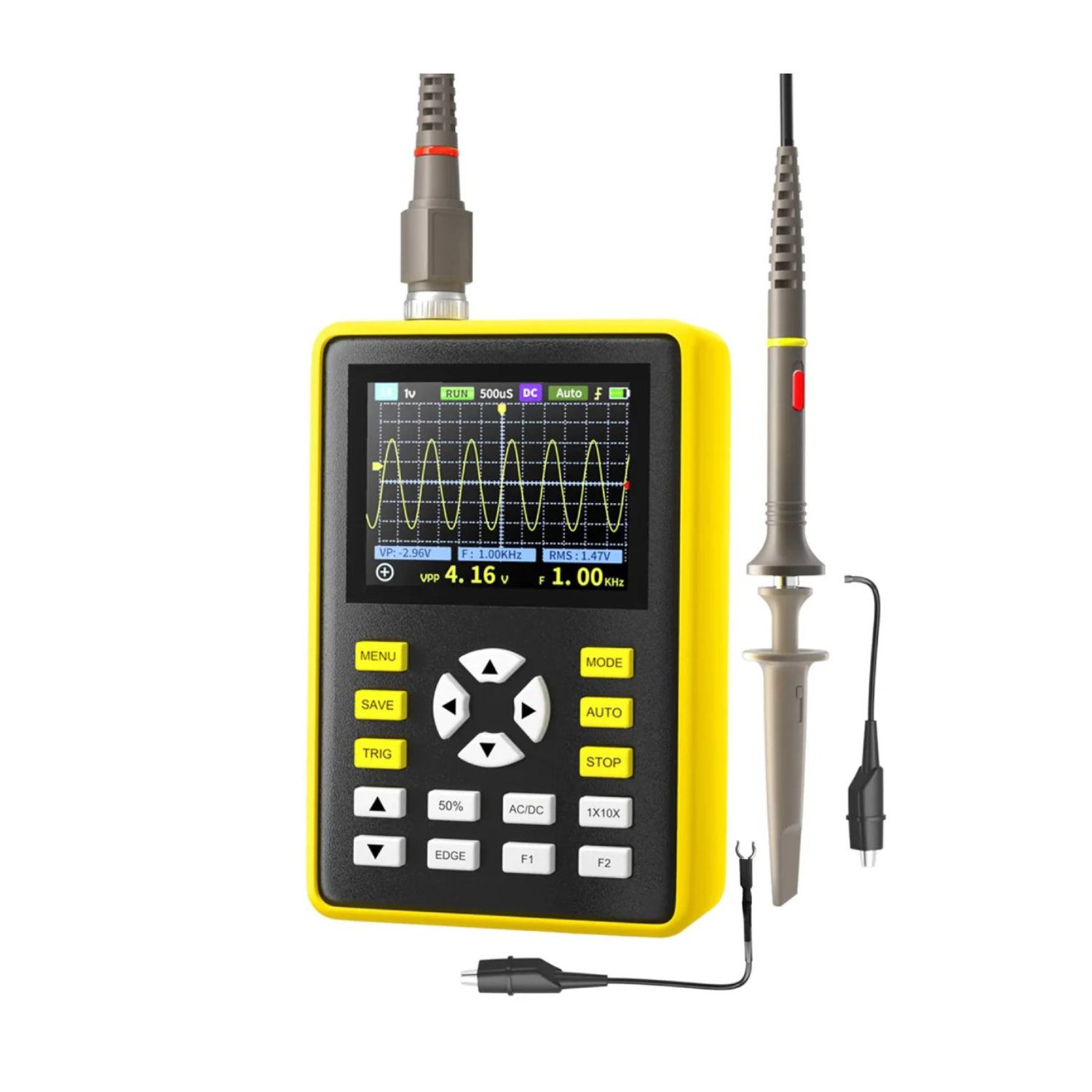

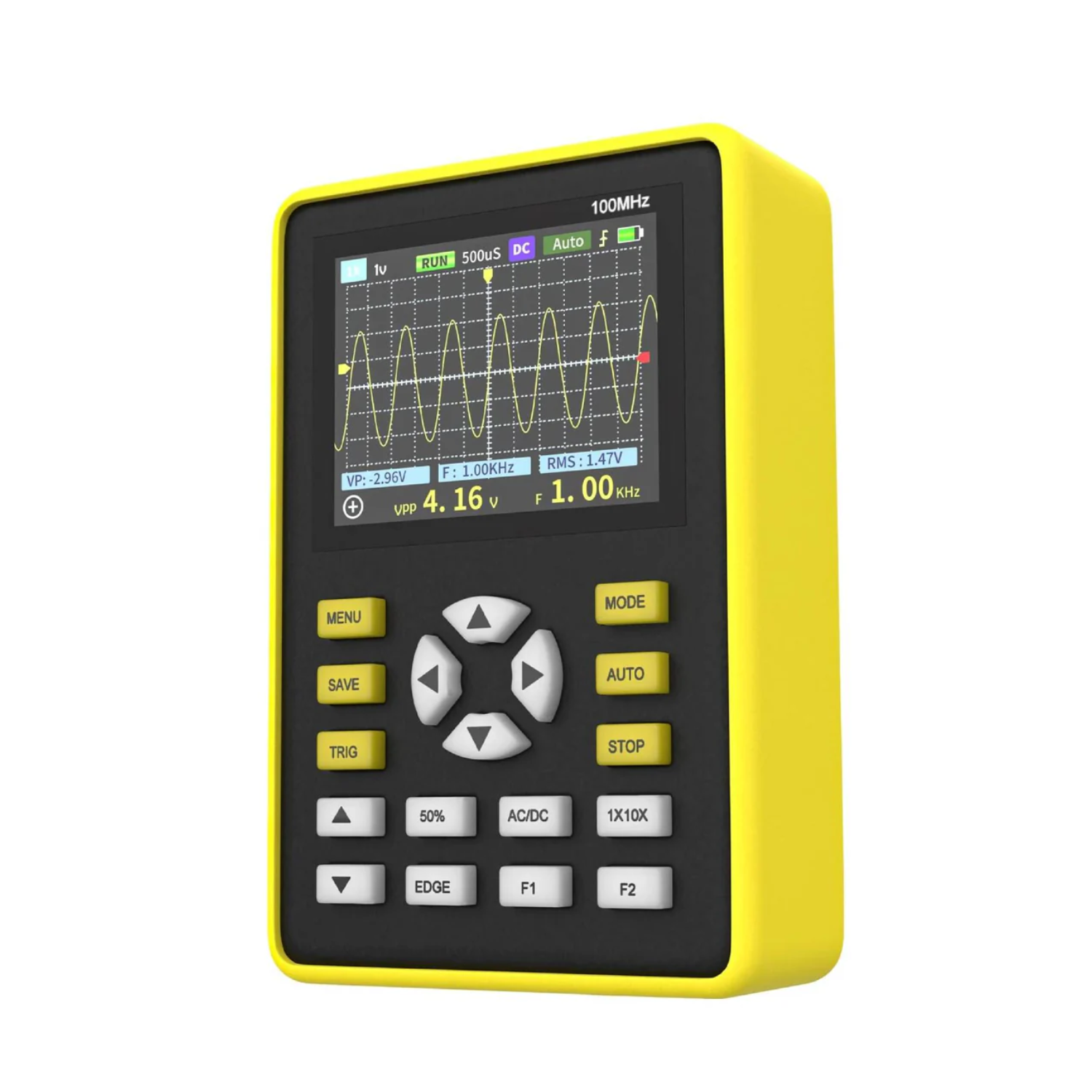

Description:
The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth. With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high-voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position. Large time-based scan mode that monitors slow-level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices, quietly It is very convenient to save the current waveform. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page-turning, deletion, and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged. The body is equipped with a high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock, and shockproof, comprehensive protection of the fuselage, soft texture, and feels very comfortable.
Specifications:
| Brand | FNIRSI |
|---|---|
| Manufacturer | FNIRSI |
| Model number | FNIRSI-5012H |
| Colour | Yellow |
| Number of Memory Sticks | 1 |
| Item Weight | 458 g |
| Package Dimensions | 19.71 x 10.01 x 7.19 cm; 458 g |
| Item model number | FNIRSI-5012H |
| Sampling rate | 500 Mega Samples per Second |
| Are batteries included? | Yes |
| Lithium battery energy content | 3000 Watt Hours |
| Lithium Battery Packaging | Batteries contained in equipment |
| Lithium battery weight | 0.04 Pounds |
Features:
- Versatile, practical, cost-effective handheld oscilloscope for maintenance and R&D industries
- The Real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth
- Full trigger function for periodic analog and non-periodic digital signals
- Built-in high voltage protection module (up to 400V continuous voltage, 600V peak voltage)
- Large time base scan mode for monitoring slow-level changes
- High-efficiency one-button AUTO for easy waveform display
- High-definition LCD screen with 320*240 resolution
- Convenient waveform storage function with 64M built-in storage space (up to 2000 waveform pictures)
- Powerful waveform file manager with thumbnail browsing, viewing, and deletion capabilities
- Built-in 3000mAh lithium battery for 8 hours of continuous use
- High-quality silicone protective cover for anti-skid, anti-shock, and shockproof properties, providing comprehensive protection
- Non-toxic and lead-free environmental protection
- Soft texture for comfortable feel

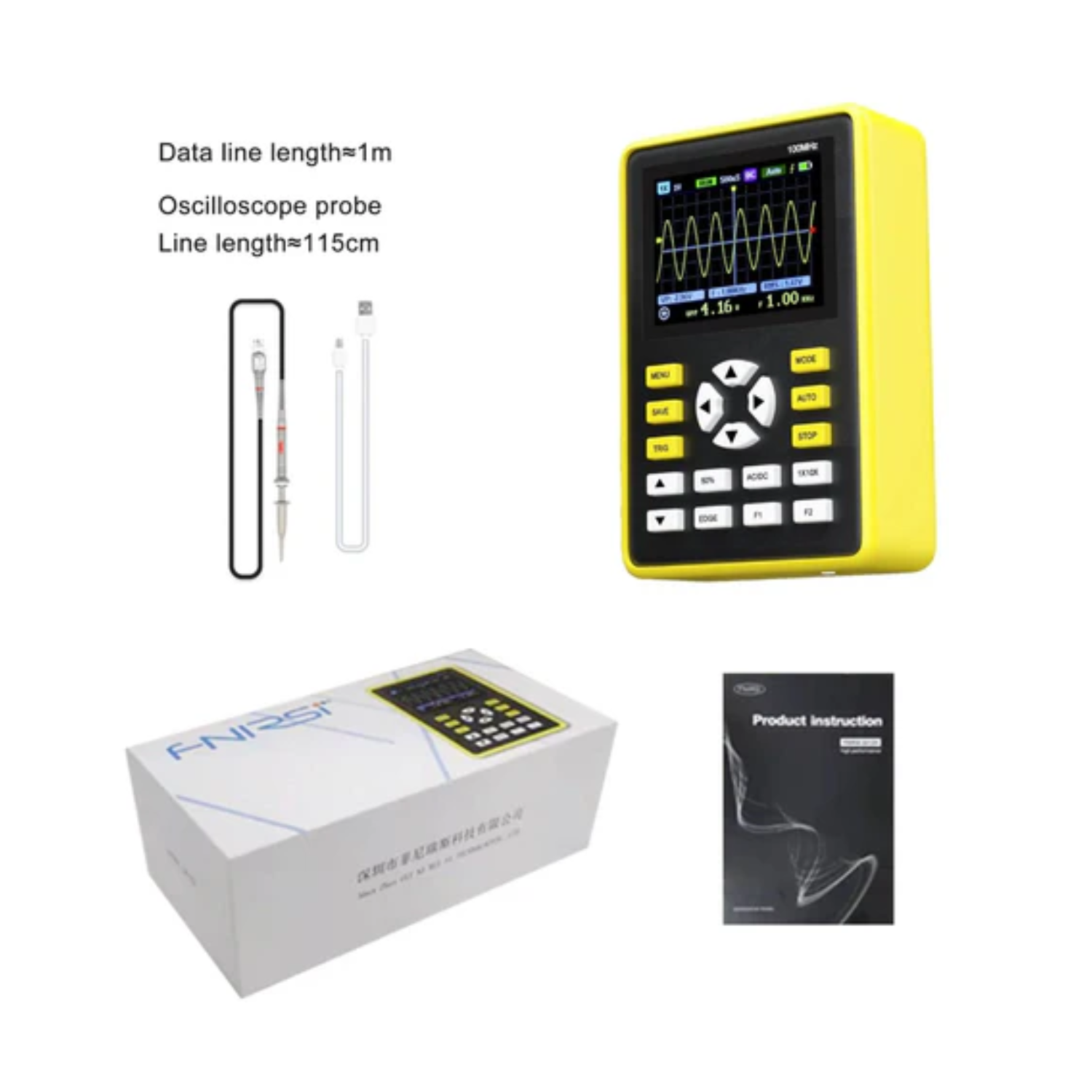

Package Included:
- 1 x Data line Length ~1m
- 1 x Oscilloscope Probe
- 1 x Line Lengh ~115cm
