Description:

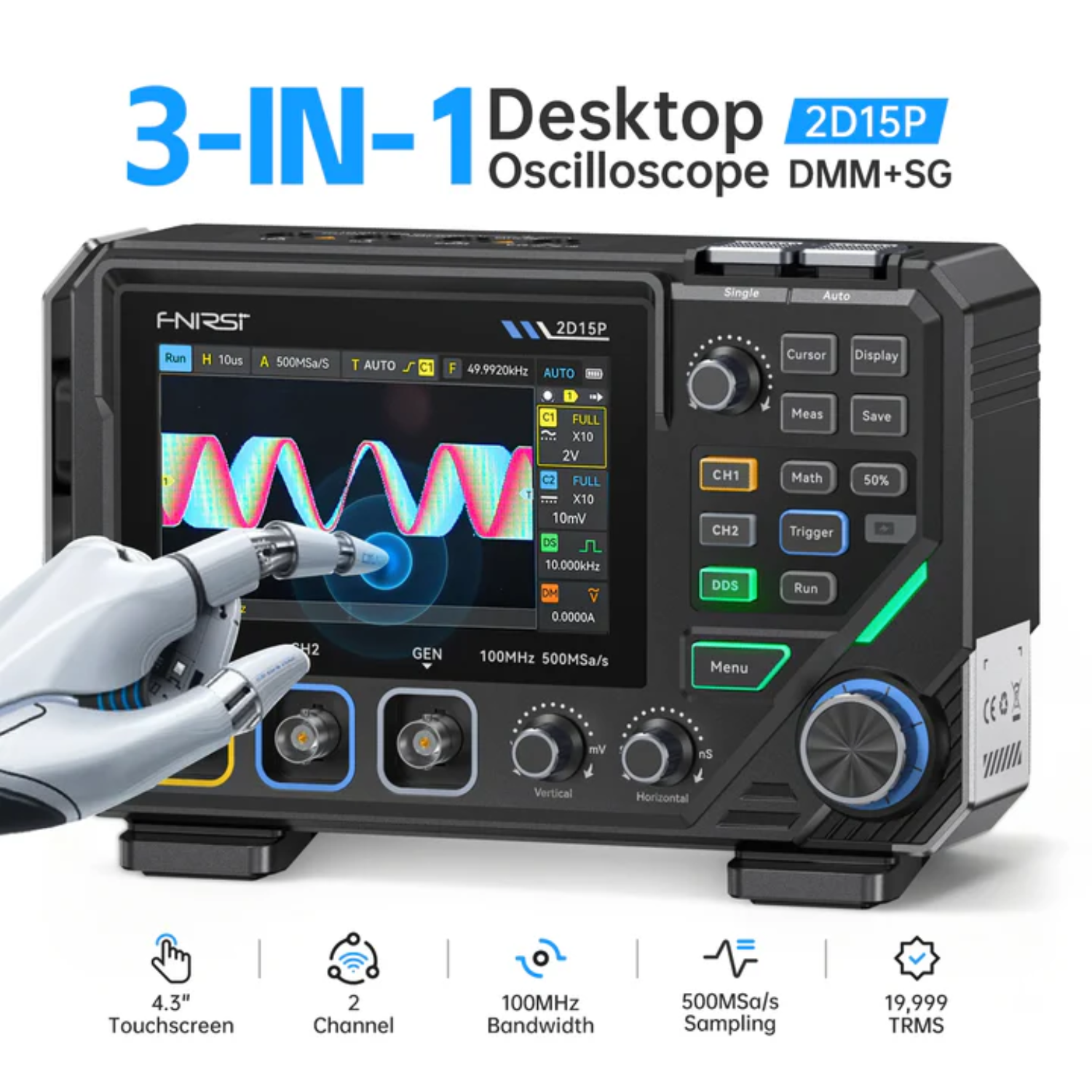

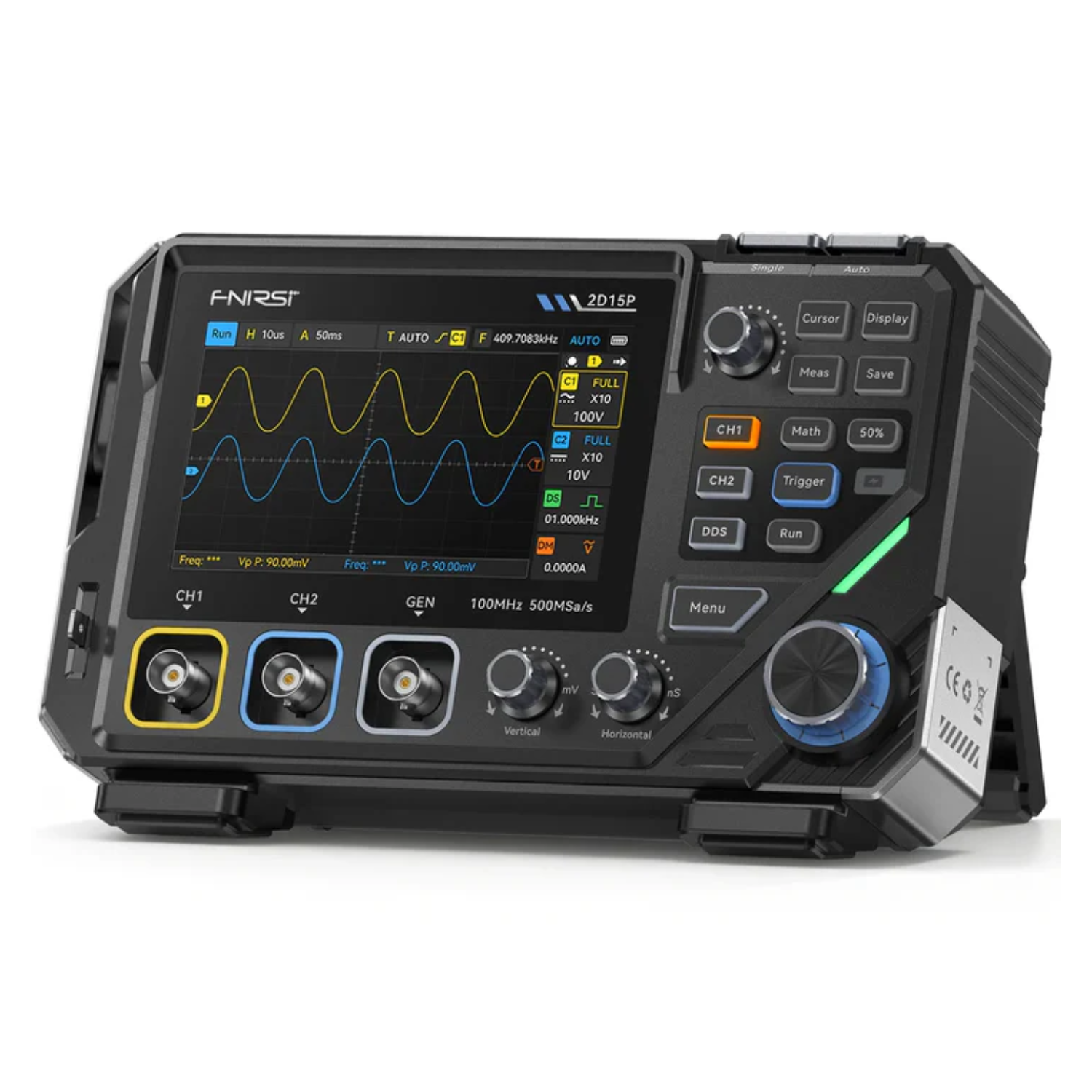

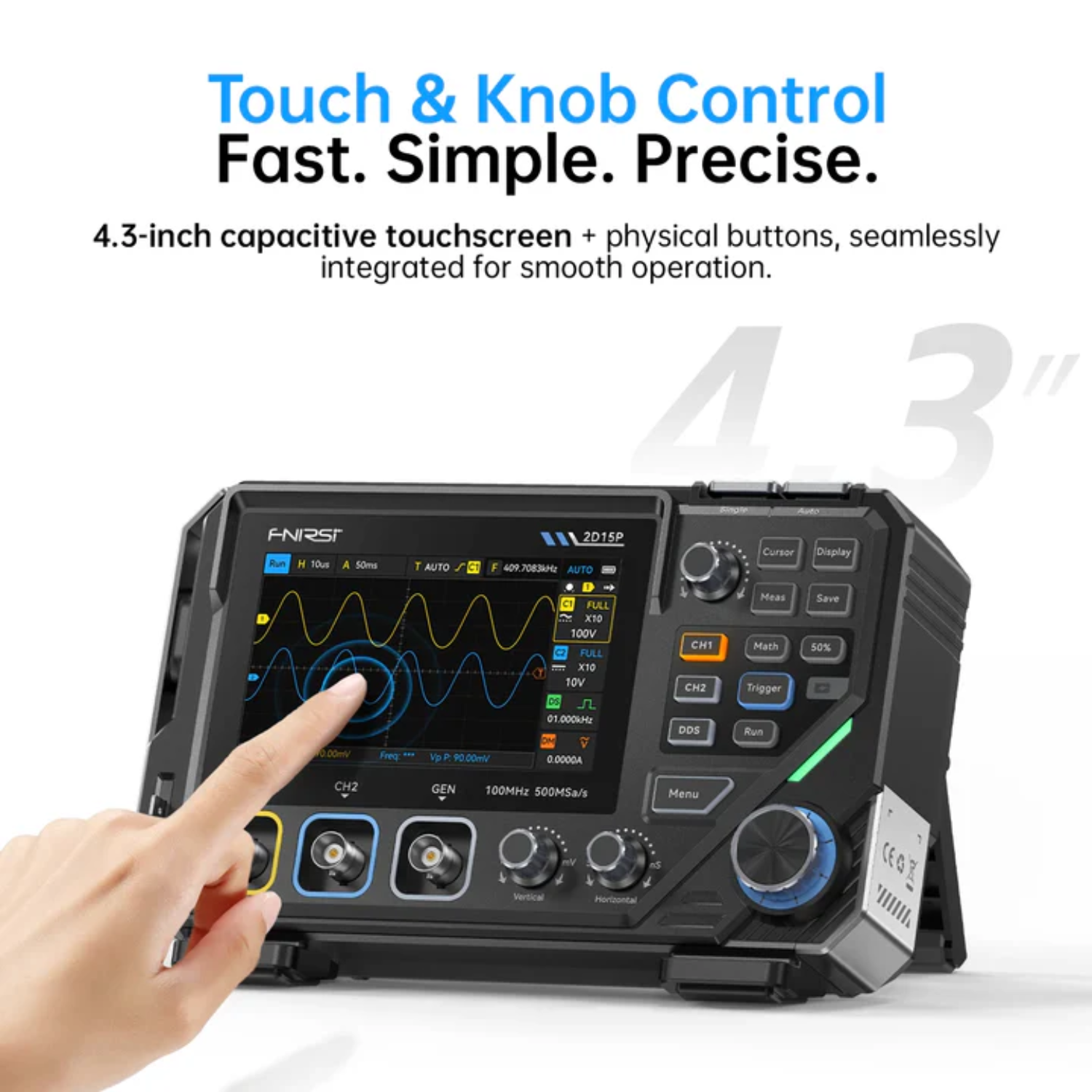

The FNIRSI 2D15P combines physical buttons with a 4.3" capacitive touchscreen. It offers 500 MSa/s sampling, 100 MHz single-channel bandwidth (50 MHz dual-channel), and 10K–1M memory depth. Features include 128-level grayscale display, 1200 fps waveform capture, math functions, 18 automatic measurements, a 10 MHz waveform generator, and a 19999 Counts True RMS multimeter supporting voltage, current, resistance, capacitance, diode, and continuity tests.
Product Parameters Oscilloscope Specifications:
| Channel | Dual Channel |
| Sample Rate | 500MSa/s |
| Analog Bandwidth | 100MHz |
| Memory Depth | 10K, 100K, 1M |
| Input Impedance | 1MΩ |
| Timebase Range | 5ns - 50s |
| Vertical Sensitivity | 10mV - 10V/div |
| Max Input Voltage | 800V (x10 Probe) |
| Trigger Mode | Auto, Normal, Single |
| Trigger Type | Rising, Falling, Both Edges |
| Display Mode | Dot, Vector, Color Temp |
| Coupling | AC/DC |
| Persistence | min / 2s / 5s / 10s / 20s / 50s / ∞ |
| Math Operations | ✔ |
| Waveform Capture | ✔ |
| Waveform Export | ✔ |
| Cursor Measurement | ✔ |
Multimeter Specifications:
| DC Voltage | 1.9999V / 19.999V / 199.99V / 1000V |
| AC Voltage | 1.9999V / 19.999V / 199.99V / 750.0V |
| DC Current | 19.999mA / 199.99mA / 1.9999A / 9.999A |
| AC Current | 19.999mA / 199.99mA / 1.9999A / 9.999A |
| Resistance | 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99Ω |
| Capacitance | 999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF |
| Diode | ✔ |
| Continuity | ✔ |
Signal Generator Specifications:
| Channel | 1CH |
| Frequency | 0 - 10 MHz |
| Amplitude | 0.1 - 3.0 Vpp |
| Duty Cycle | 0 - 100% |
Features:
- Dual-Channel Input — 100 MHz single-channel / 50 MHz dual-channel operation.
- Selectable Memory Depths — 10 K / 100 K / 1 M for flexible data capture.
- 20 MHz Bandwidth Limit — Reduces noise for accurate ripple and precision testing.
- Grayscale & Color Temperature Visualization — Reveal waveform persistence and signal dynamics.
- Math Operations (Add, Subtract, Multiply, Divide, etc.) — Real-time signal computation.
- XY Mode & Infinite Persistence — Visualize phase relationships and waveform overlap.

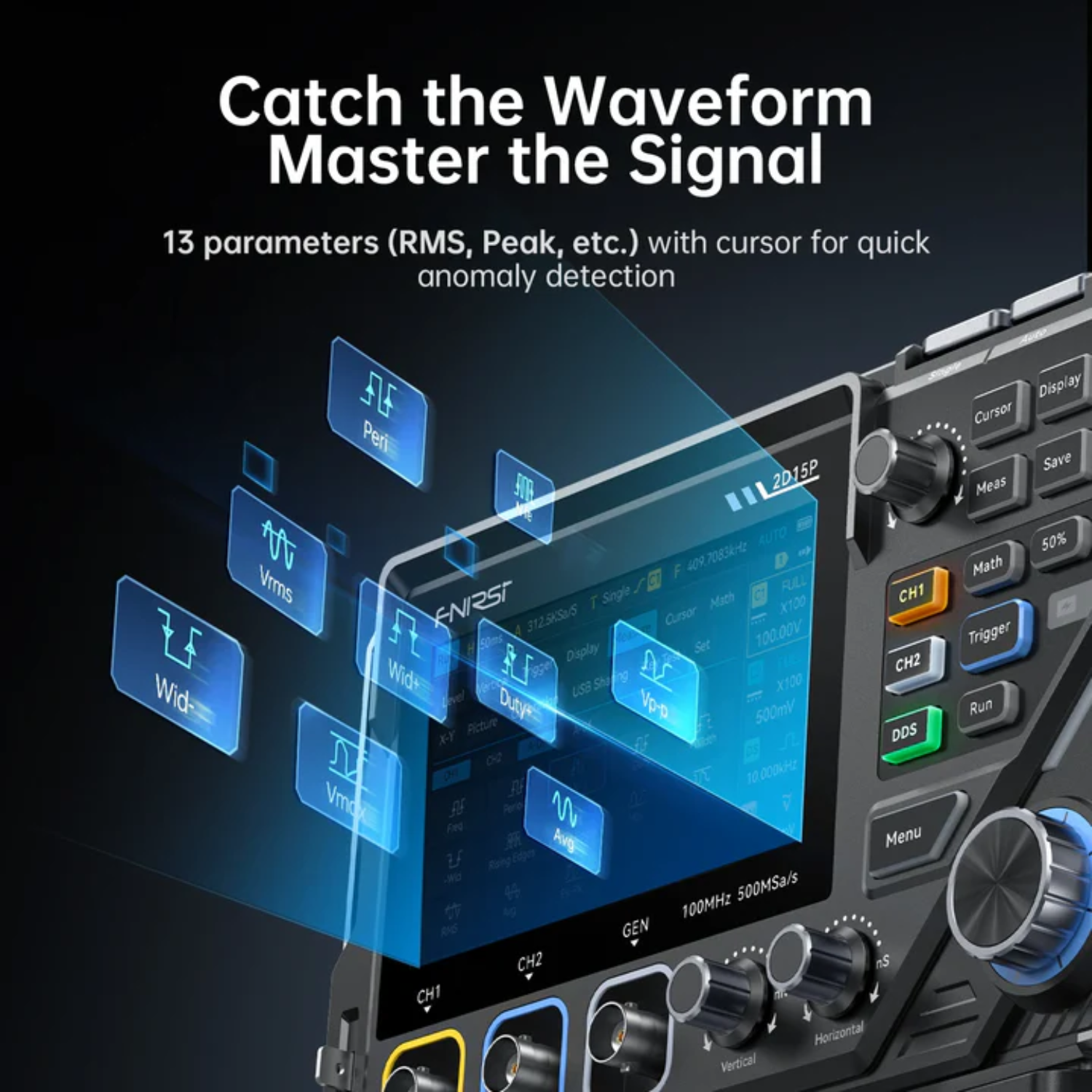

- Cursor Function & 13 Auto Measurements — Quick and clear parameter analysis.
- Auto / Normal / Single Trigger Modes — Flexible signal capture for every testing need.
- 10 MHz DDS Signal Generator — Output up to 11 common waveforms with adjustable amplitude and duty cycle.
- True RMS Multimeter (19,999 Counts) — Supports V/A (AC/DC), Ω, capacitance, diode, and continuity tests.
- Curve View Function — Displays real-time trend graphs for visual signal tracking.
- FPGA + MCU + ADC Architecture — Ensures high-speed signal processing and stable performance.

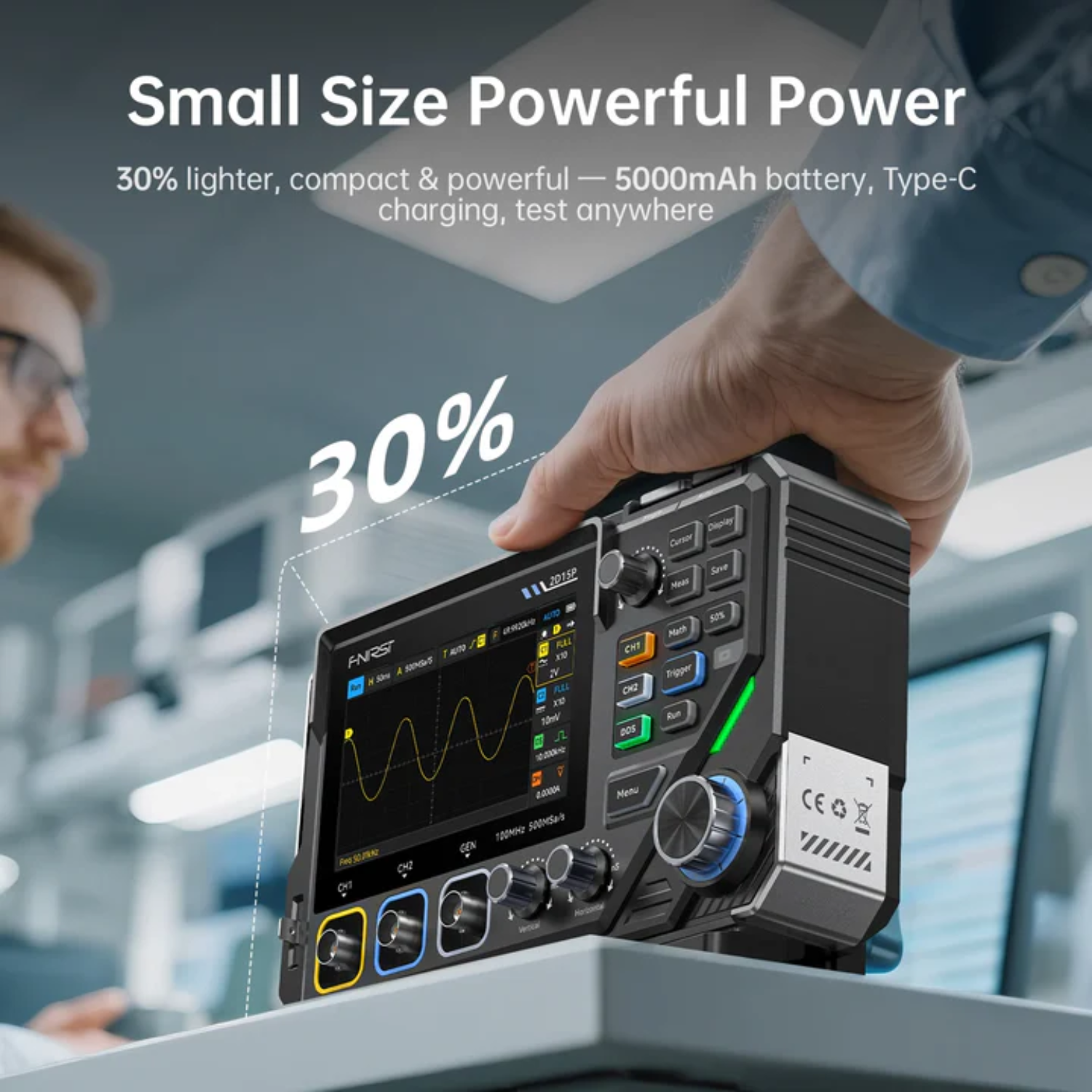

- Compact & Lightweight Design — 30 % lighter body with a powerful 5000 mAh battery.
- Wave Save & Export Function — Store and transfer waveform data for post-analysis.
- Type-C Charging Interface — Convenient, fast, and universal power connection.

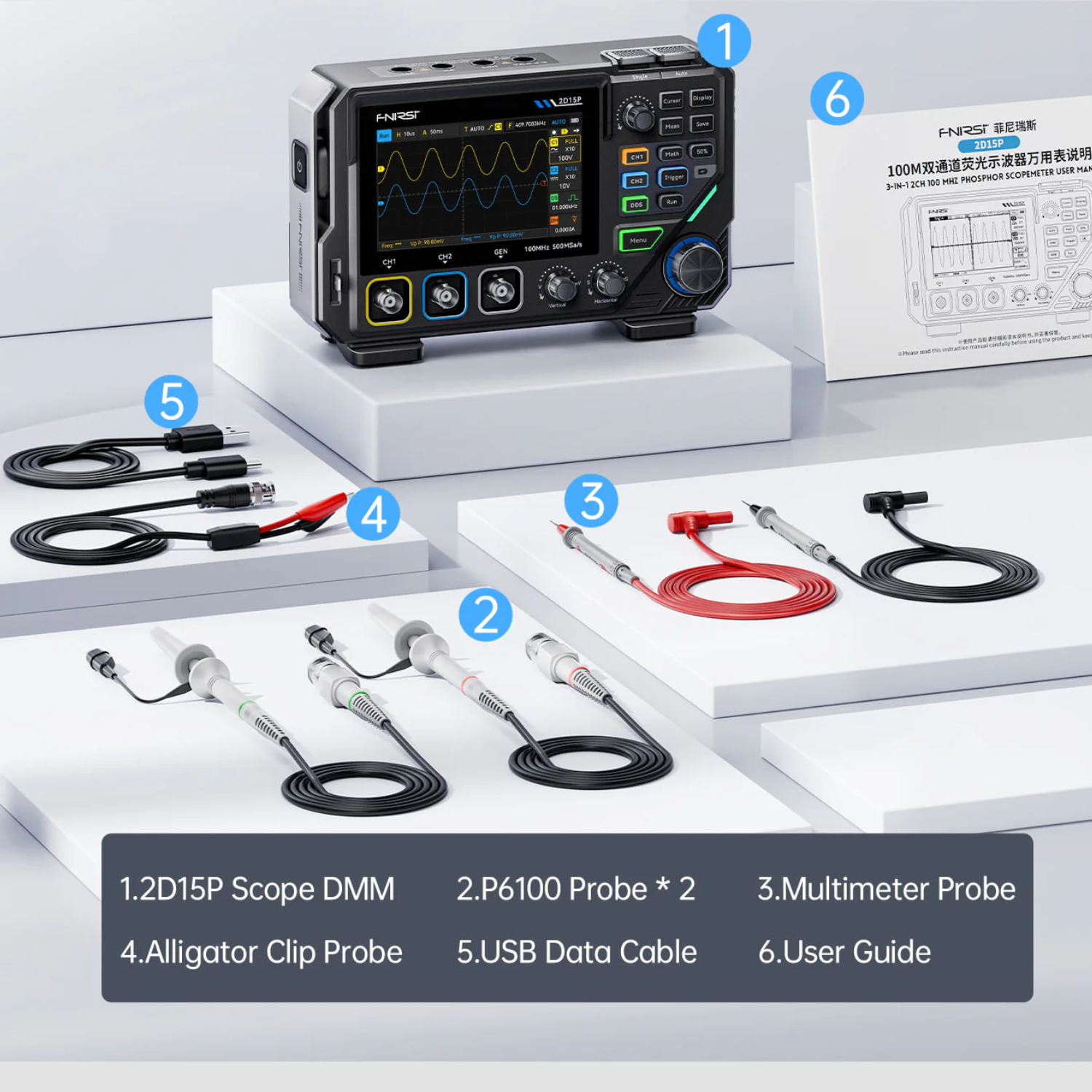

Package Included:
- 1 x 2D15P Scope DMM
- 2 x P6100 Probe
- 1 x Multimeter Probe
- 1 x Alligator Clip Probe
- 1 x USB Data Cable
- 1 x User Guide
