Description:

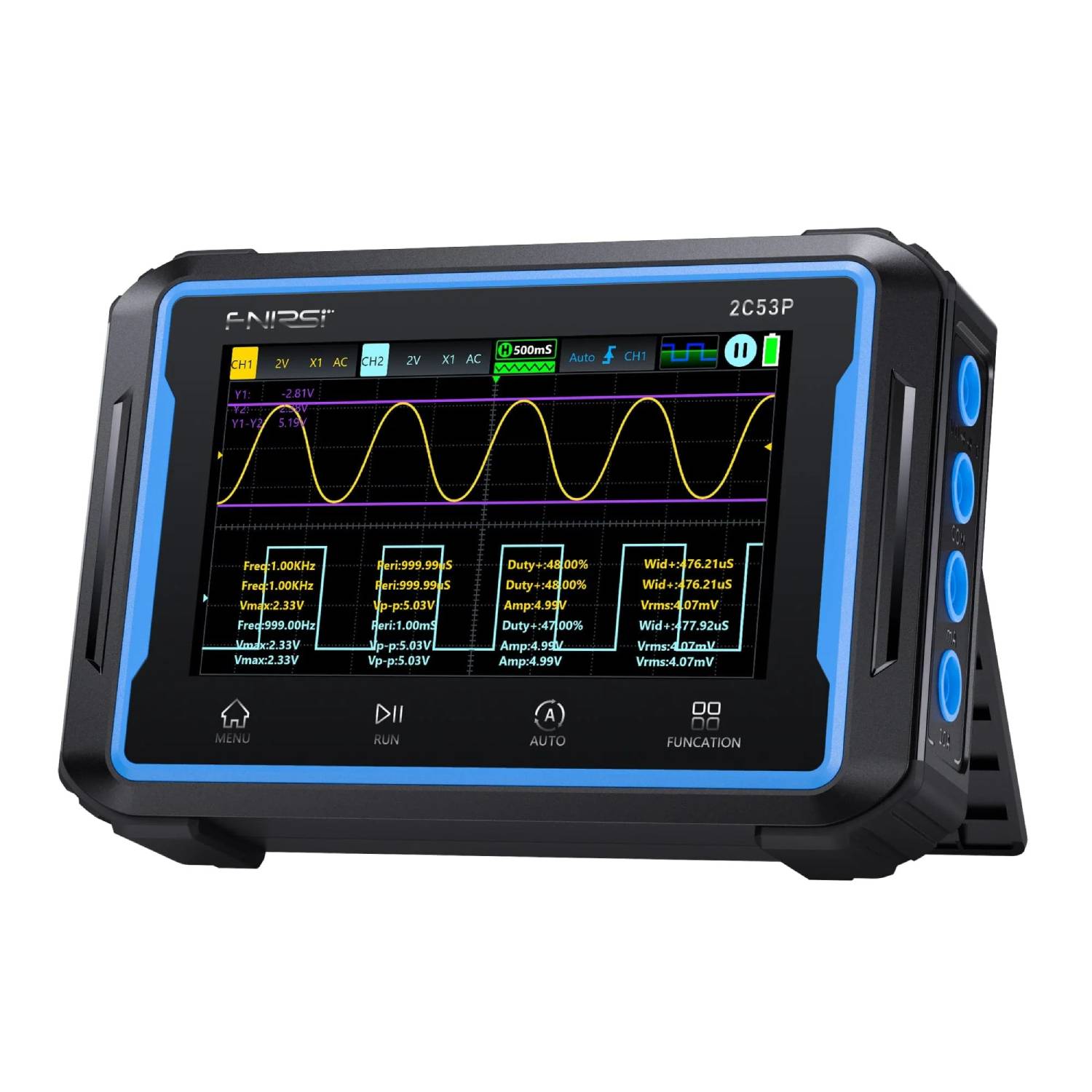

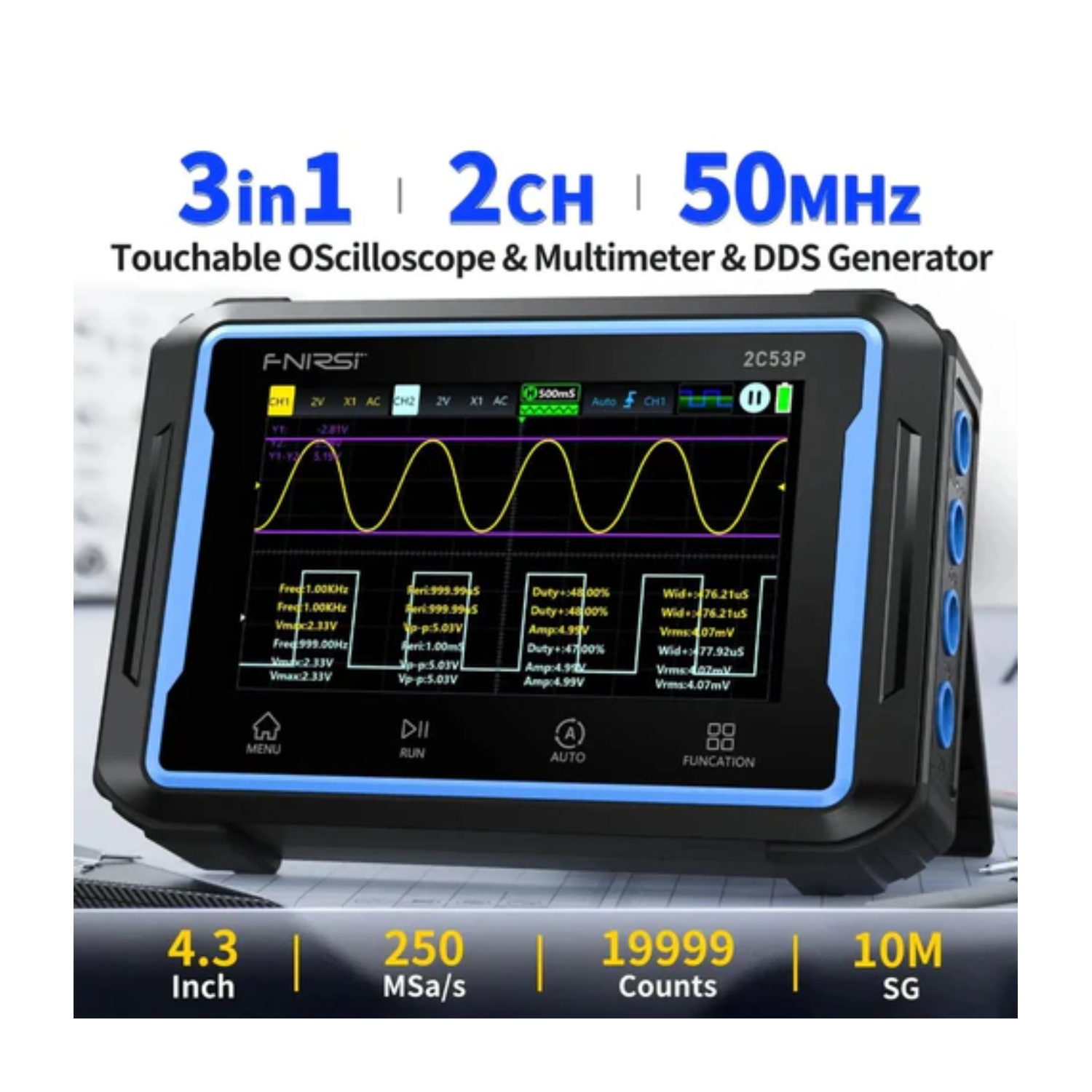

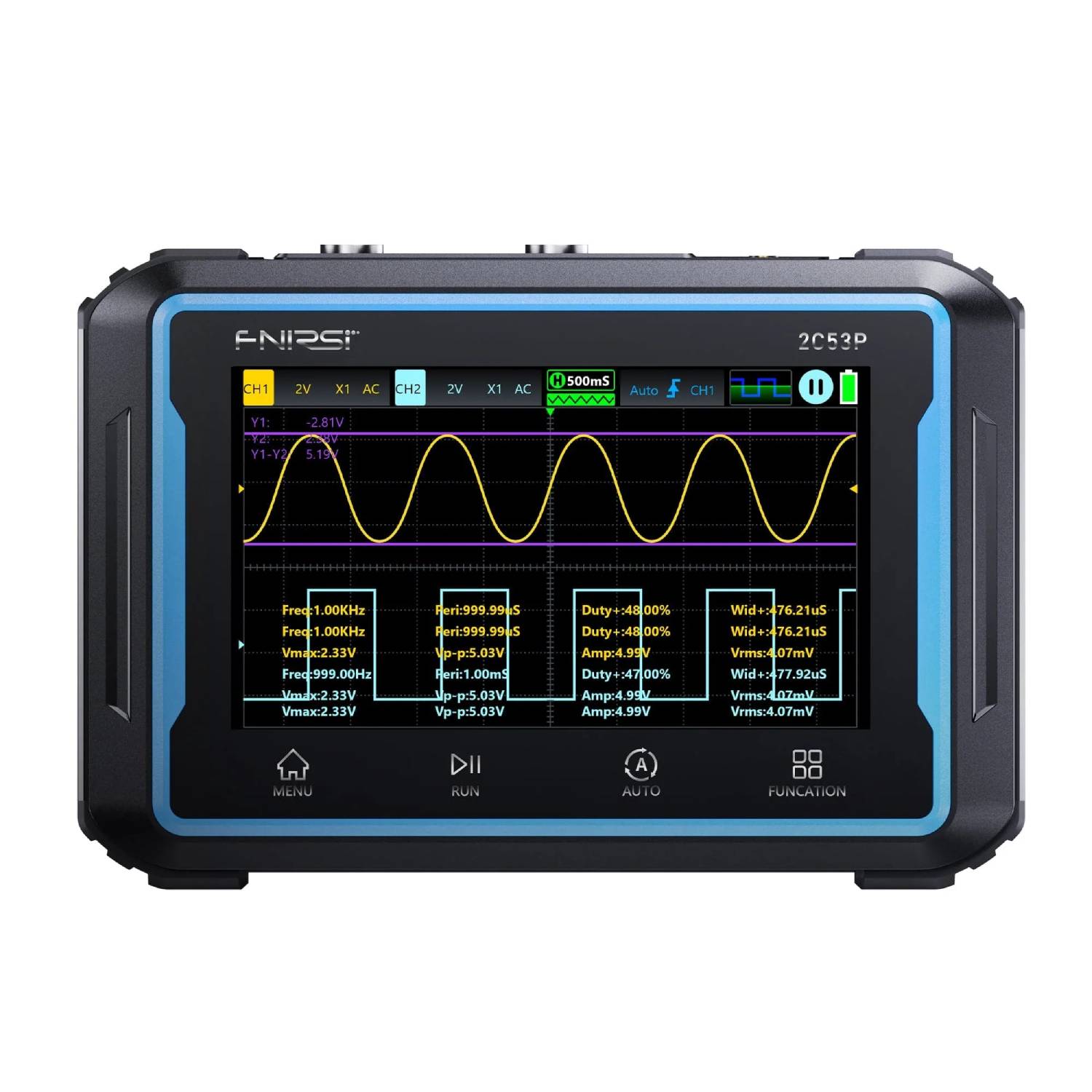

FNIRSI 2C53P is a dual-channel digital oscilloscope with comprehensive functions and high practicality. This device has 3 major functions:
The oscilloscope adopts FPGA+MCU+ADC hardware architecture, has a sampling rate of 250MS/s, an analog bandwidth of 50MHz, and supports a peak voltage measurement of ±400V; It supports waveform screenshots, saving, and viewing; Built-in 4.5-digit 19999-point true RMS multimeter, supports AC and DC voltage and current measurements;
The built-in function signal generator can output 12 kinds of function signals, with a maximum output frequency of 10MHz, and the output frequency, amplitude, and duty cycle are adjustable.
It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery which makes standby time up to 4 hours. It is an ideal multifunctional instrument for electronic maintenance personnel and electronic major students.
Basic Specifications:
| Brand | FNIRSI |
| Model | 2C53P |
|
Screen Size & Resolution
|
4.3 Inch (480*272 pixels)
|
|
Screen Material
|
Surface tempered glass + touch screen made of glass + IPS color screen
|
| Backlight |
Backlight brightness can be set
|
|
Power Supply
|
TYPE-C (5V/2A)
|
| Battery |
4000mAh lithium battery
|
| Language |
Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
|
|
Product Size
|
≈145x98x35mm
|
|
Product Weight
|
≈360g
|
Oscilloscope Specifications:
| Channel |
Dual channel
|
| Bandwidth | 50MHz |
|
Real-time Sample Rate
|
250MSa/s
|
|
Storage Depth
|
Up to 64kByte
|
|
Input Resistance
|
1MΩ
|
|
Time Base Range
|
10ns/div - 10s/div
|
|
Vertical Sensitivity
|
10mv/div - 10v/div
|
|
Maximum Measured Voltage
|
±400V
|
|
Vertical Resolution
|
8 bits
|
| Probe |
1x/10x
|
|
Storage Space
|
13M |
|
Bandwidth Limit
|
Support 20MHz limit
|
|
Trigger Mode
|
AUTO / Normal / Single
|
|
Trigger Type
|
Rising / Falling edge
|
|
Trigger Level
|
8 div (positive/negative)
|
|
Waveform Display Mode
|
XY / YT / Scroll
|
|
Input Coupling
|
AC/DC
|
|
Measured Data
|
Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid-
|
|
Math Alculations
|
1+2, 1-2, 1*2, 1/2, -1, -2, |1|, |2|, FFT
|
|
Save Waveform Screenshot
|
Yes
|
|
USB Computer Transfer
|
Yes
|
Multimeter Specifications:
|
DC Voltage
|
Range: 1.9999V / 19.999V / 199.99V / 1000.0V Accuracy: ±(0.5%+3) |
|
AC Voltage
|
Range: 1.9999V / 19.999V / 199.99V / 760.0V Accuracy: ±(1%+3) |
|
DC Current
|
Range: 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ±(1.2%+3) |
|
AC Current
|
Range: 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ±(1.5%+3) |
| Resistance |
① Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ ② Range: 1.9999KΩ / 199.99Ω |
| Capacitance |
① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF ② Range: 9.999mF / 99.99mF |
|
Temperature
|
Range: (-55~1300°C) / (-67~2372°F) |
|
Continuity Test
|
Yes |
| Diode | Yes |
Signal Generator Specifications:
| Channel |
Single channel
|
|
Frequency
|
0-10MHz (Sine wave: 10MHz, other waveforms 5MHz) |
| Amplitude |
0.1-3.0V
|
|
Square Wave Duty Cycle
|
0-100%
|
|
Signal Type
|
sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
|
Feature:
- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 48MS/s, 10MHz bandwidth, ±400V voltage range.
- Signal Generator: 50KHz
- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.
- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
- One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.
- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Ideal for advanced repairs, development, and education projects.
Package Included:
- 1 x FNIRSI 2C53P 3-in-1 Oscilloscope
- 1 x Aligator clip probe
- 1 x P6100*2
- 1 x Multimeter
- 1 x Data cable
- 1 x Product Manual
-
1 x Storage bag
