Description:

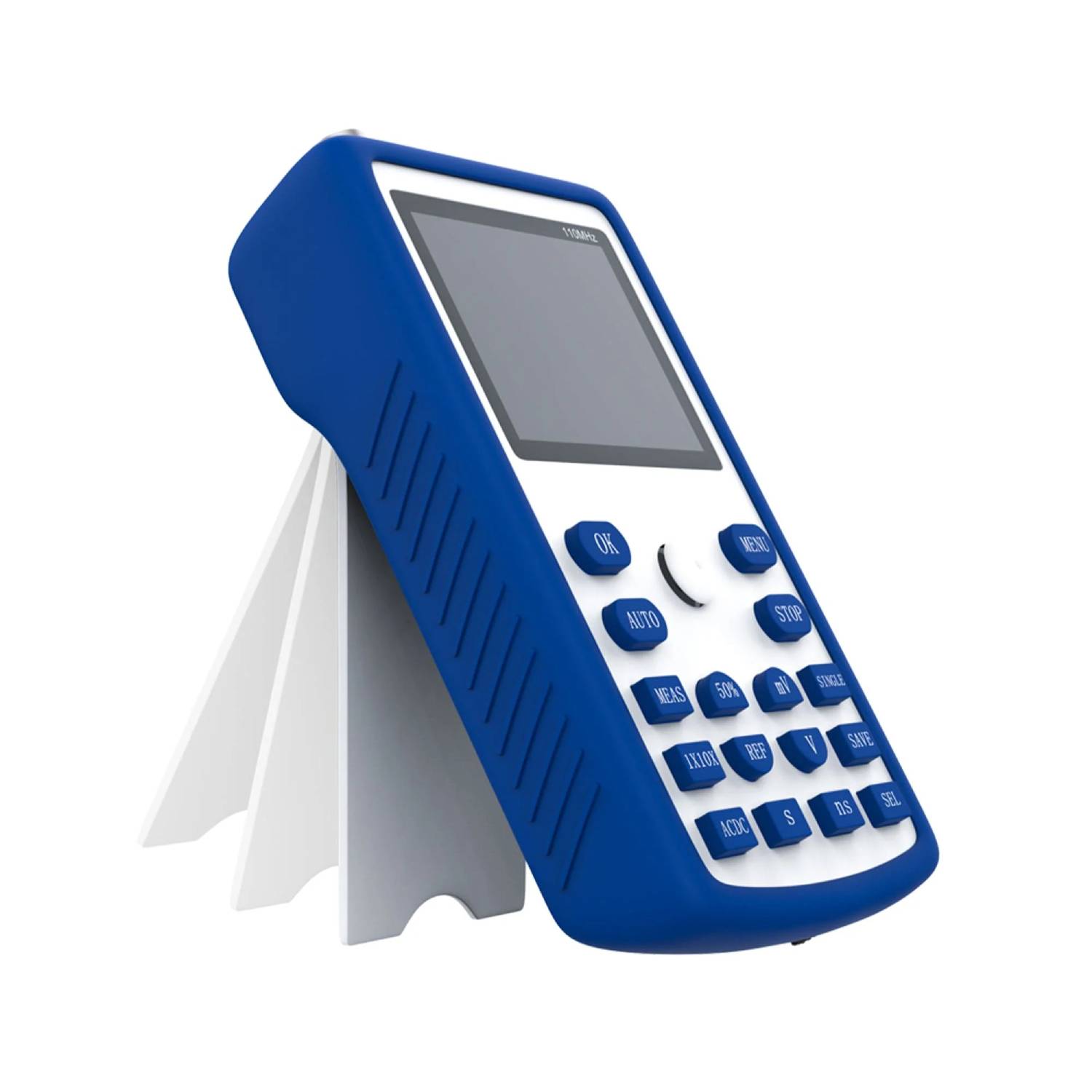

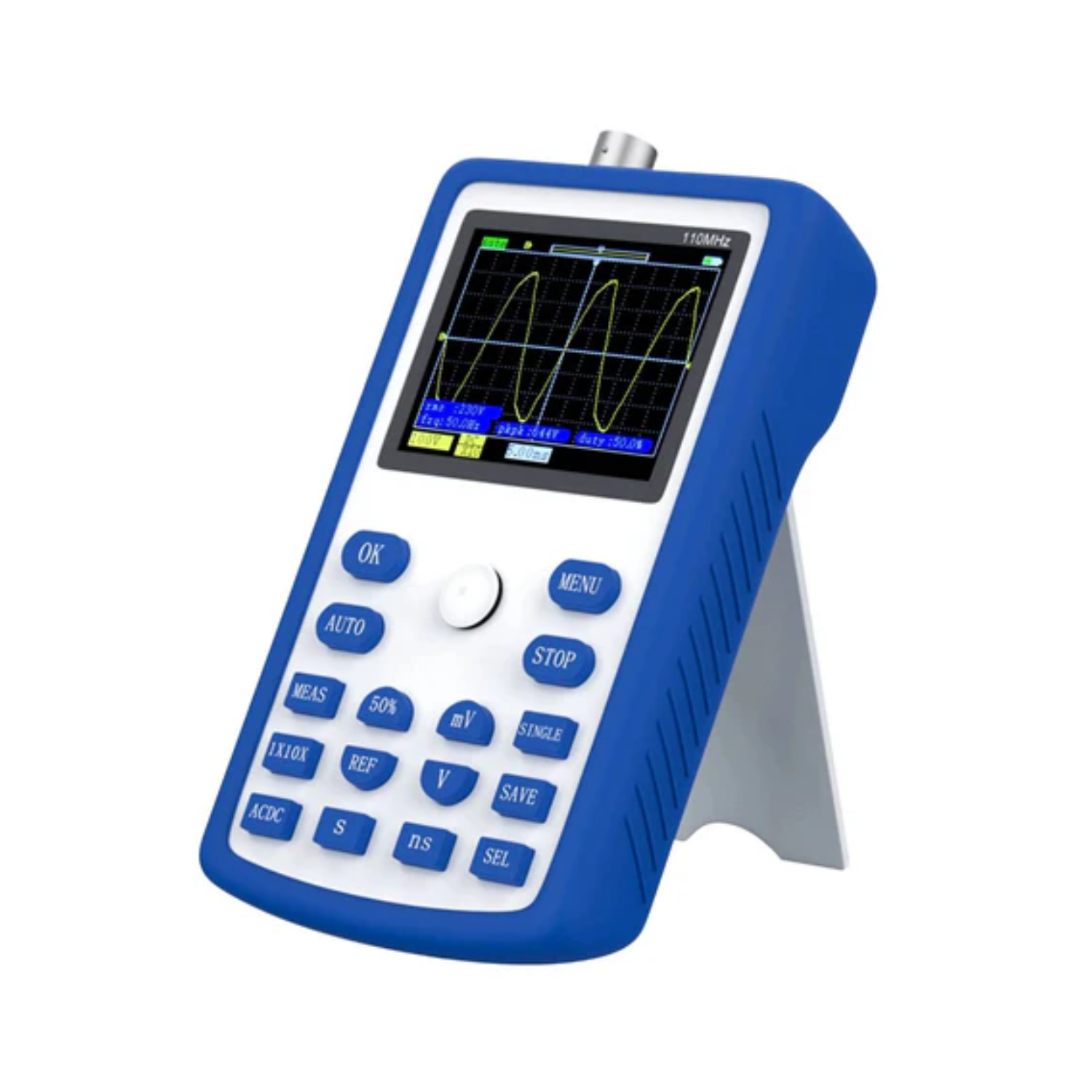

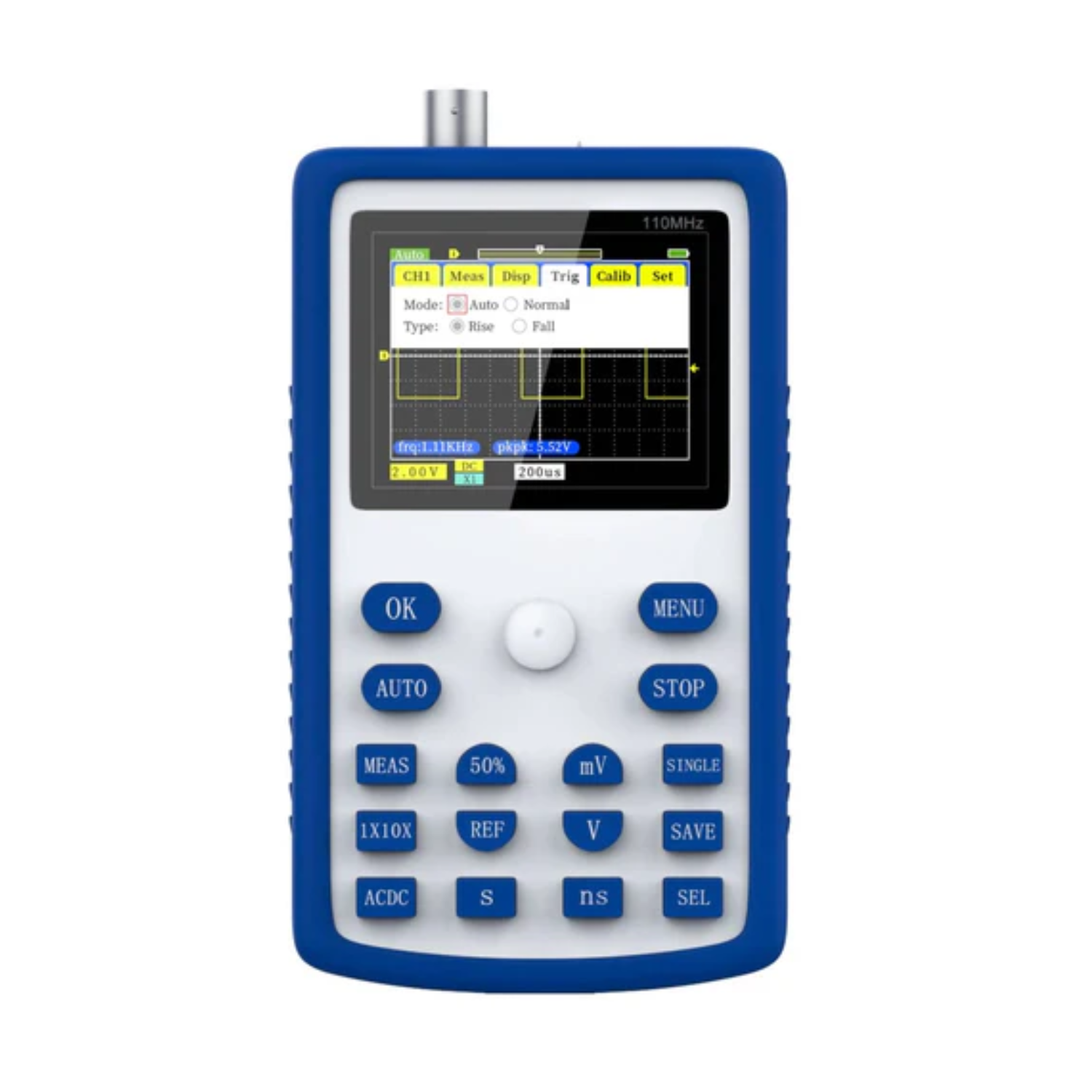

FNIRSI-1C15 Professional Digital Oscilloscope 500MS/s Sampling Rate 110MHz Analog Bandwidth Support Waveform Storage. FNIRSI-1C15 is a fully functional, practical, and cost-effective handheld oscilloscope newly launched by FNIRSI. The real-time sampling rate is 500M, and the analog bandwidth is 110MHz. In addition to all the functions of a conventional handheld oscilloscope, we also added a one-key quick auto function on this basis, so you can easily grasp the waveform like a desktop computer.
We have added a 1k Hz self-test square wave for FNIRSI-1C15, and the storage depth has been upgraded to 12kpts. With reference to the waveform, you can pause at any time to save the previous frame waveform to the screen, and you can compare it with the currently refreshed waveform. Afterglow and scroll modes make it easier to detect and record waveforms.
Built-in 3000mAH rechargeable battery, it can work continuously for more than 10 hours after being fully charged. The body is equipped with a high-quality silicone sleeve, which is non-slip and anti-drop. The joystick replaces the original arrow keys, making the operation simpler and more effective.
Specifications:
- Model: FNIRSI-1C15
- Material: ABS
- Color: Blue+White
- Channel coupling: AC/DC
- Timebase range: 5ns-10s
- Single trigger: support
- Number of channels: 1
- One key automatic: support
- Vertical sensitivity: 20mV/div-100V/div
- 50%/back to the middle: support
- Screen size: 2.4inch
- Waveform measurement: 14 types
- Trigger mode: auto/normal/single
- Operation mode: button+joystick
- Screen resolution: 320 * 240
- Measurement accuracy: ±2%
- Trigger type: rising edge/falling edge
- Waveform analysis: support drag/expand
- Analog bandwidth: 110M
- Reference waveform: support
- Display mode: YT/scroll
- Language: Chinese/English
- Sampling rate: 500M
- Waveform save: support
- Afterglow time: none/1s/∞
- Rise time: <3ns
- Frequency accuracy: ±0.01%
- Charging method: 5V/800mA
- Battery: 1 * lithium battery,3000mAh
- Storage depth: 12kpts
- Input resistance: 1MΩ
- Voltage measurement range: ±40V(*1 file), ±400V(*10 files)
Features:
- High Performance: 500M sampling, 110MHz bandwidth.
- Durable Design: Silicone sleeve, non-slip, anti-drop.
- Enhanced Control: Joystick for easier operation.
- Long Battery Life: 3000mAH, over 10 hours.
- Quick Auto Function: Capture waveforms like desktop.
- Ample Storage: 81 waveform pictures.
- Versatile Modes: Persistence, scrolling for detection, recording.
- Maintenance, R&D: Comprehensive, cost-effective.

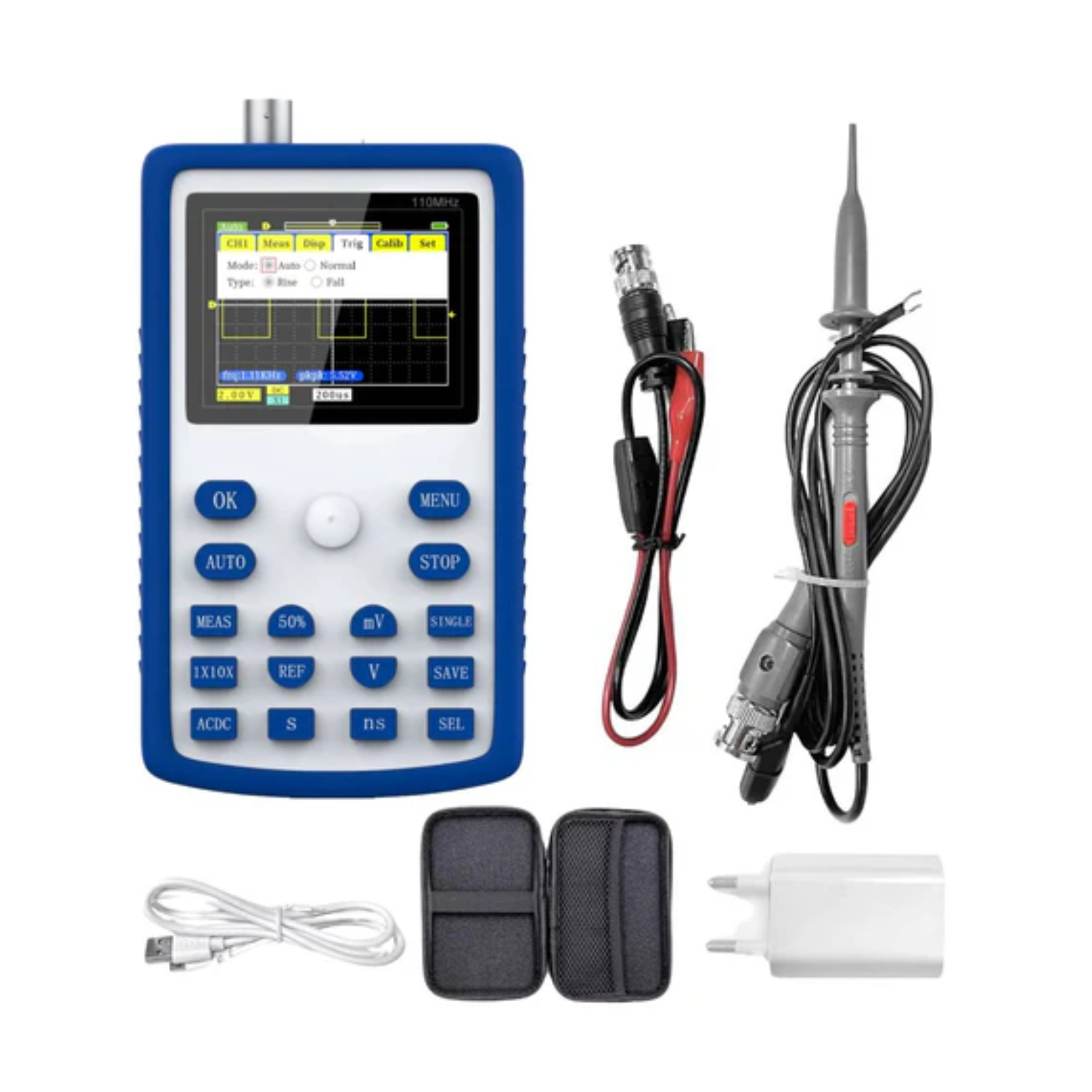

Package Included:
- 1 x Fnirsi 1C15 Oscilloscope
- 1 x High-Voltage probe
- 1 x BNC Alligator Clip Probe
- 1 x Micro USB Charging Cable
- 1 x English User Manual
- 1 x Cloth Bag
