Description:

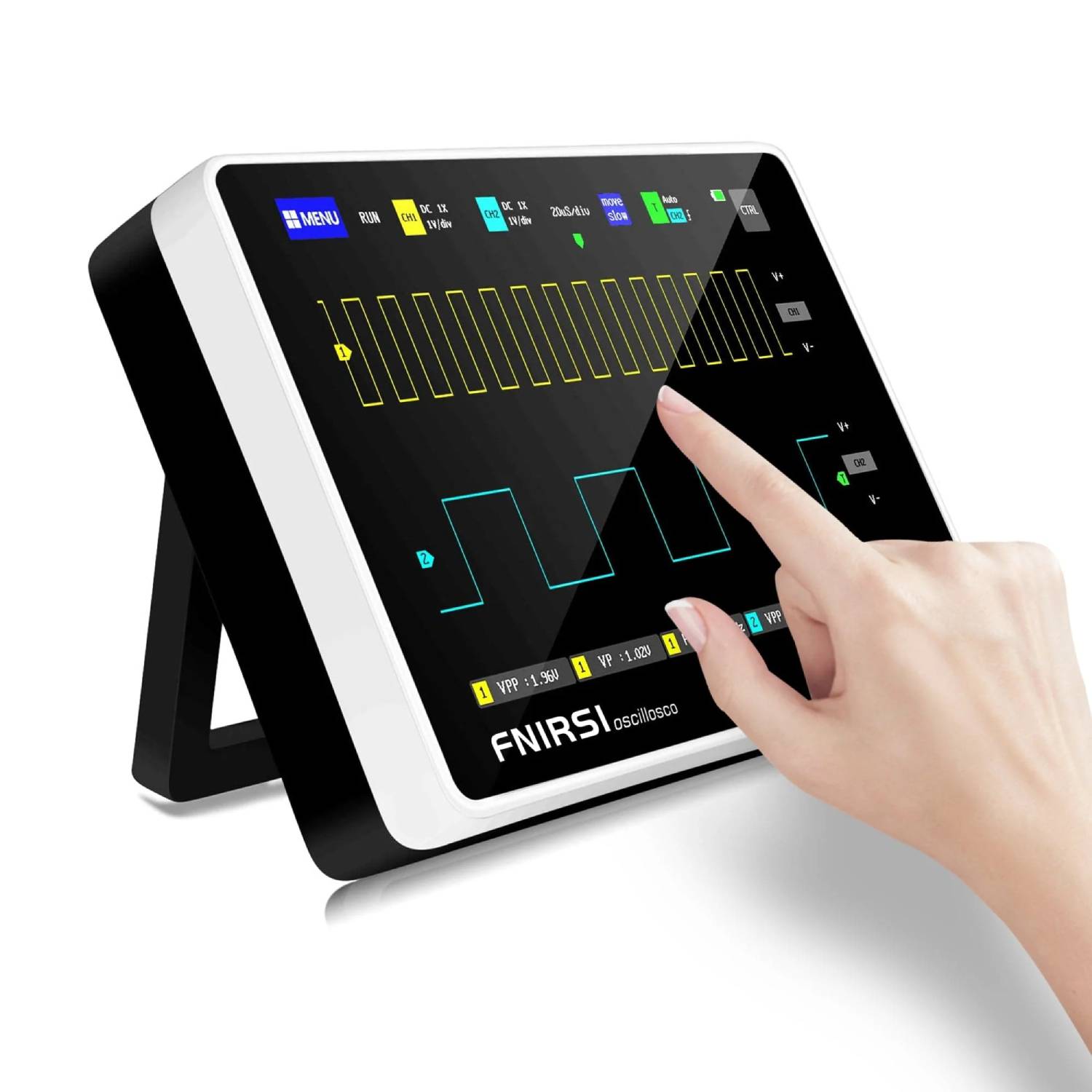

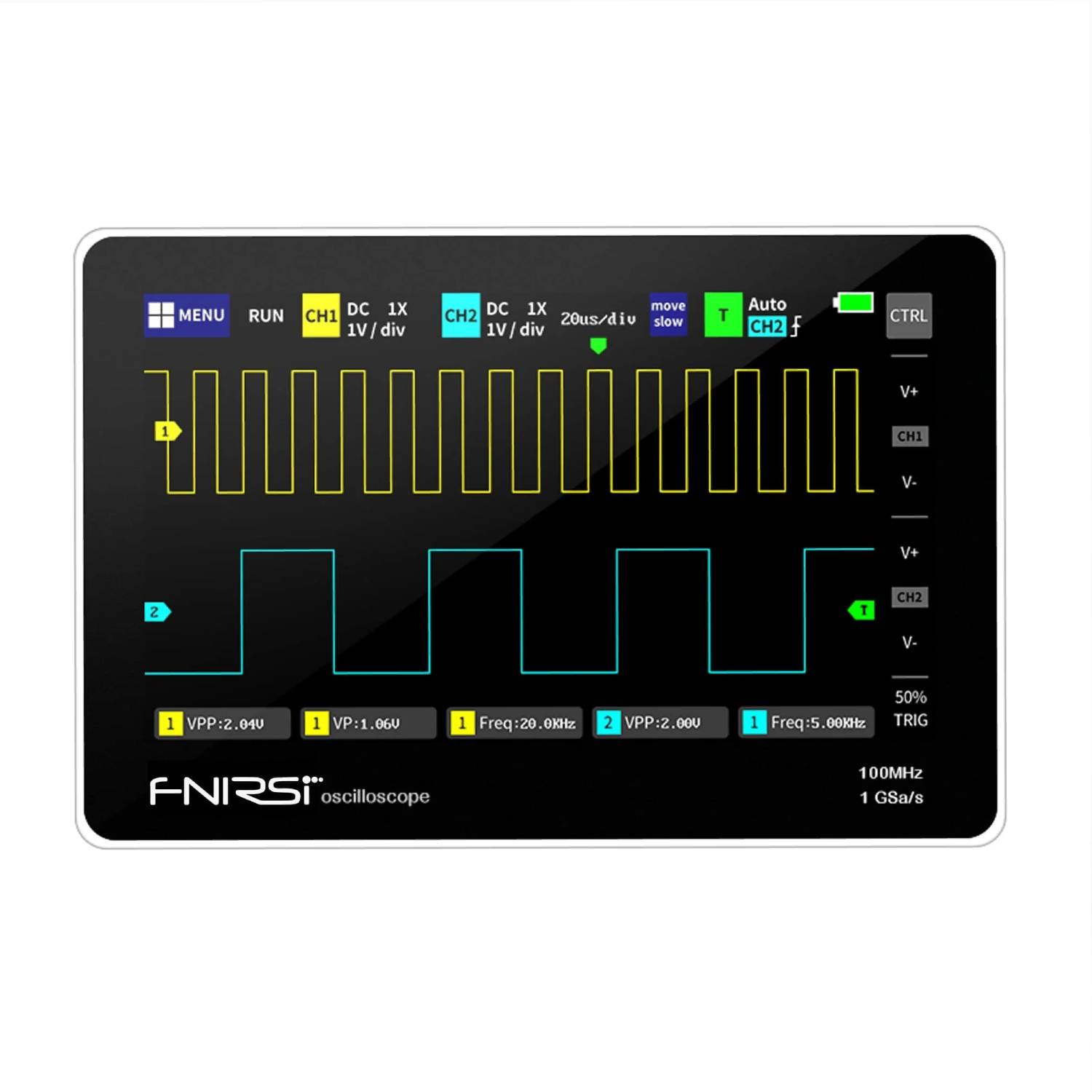

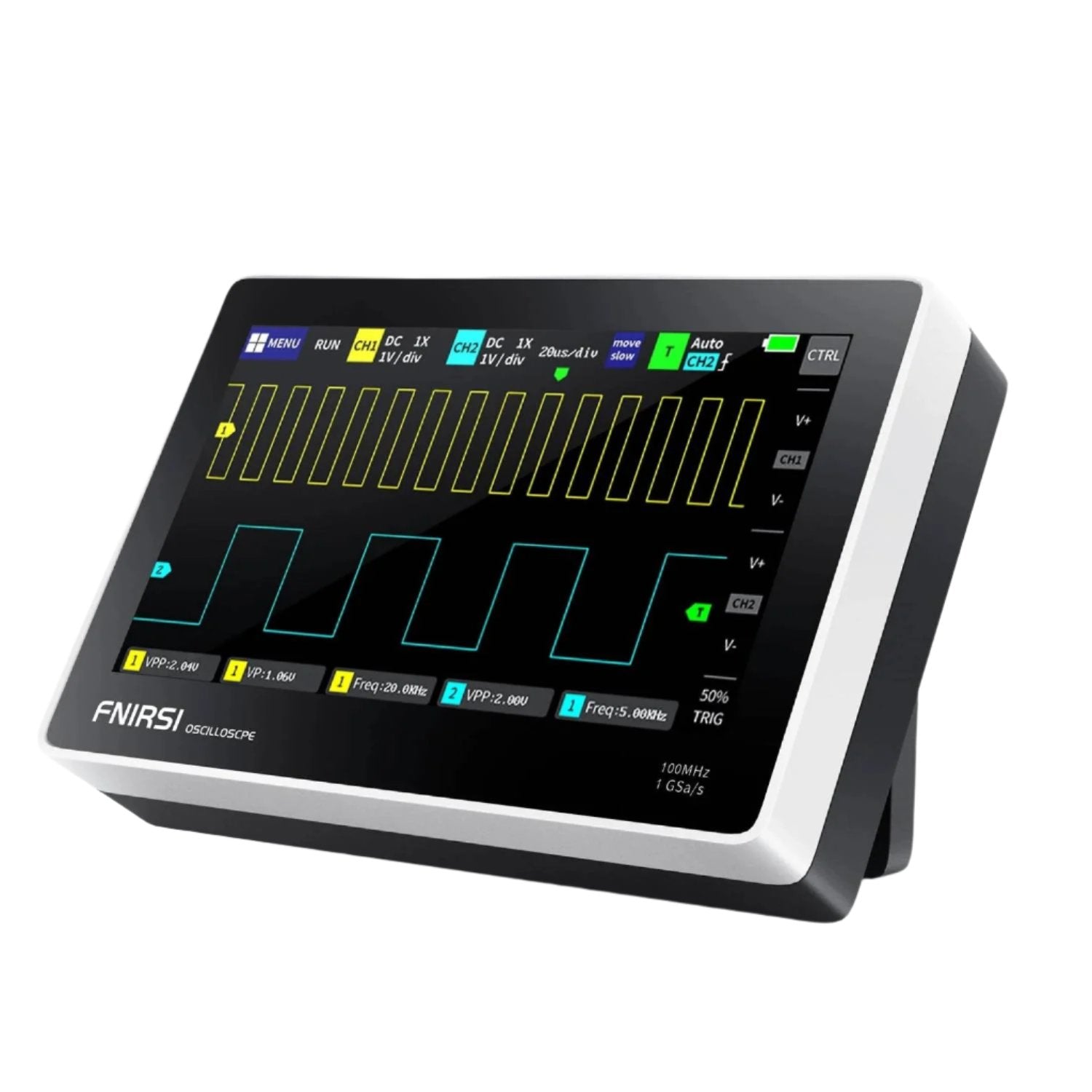

FNIRSI-1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800x480 touchscreen provides easy control with a one-key AUTO function for quick waveform display.
It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, which is usable even while charging.
Specifications:
| Model | 1013D |
| Channels |
2
|
| Display |
7-inch 800*480 Pixels
|
| Bandwidth | 100MHz |
|
Sampling Rate
|
1GSa/s
|
|
Rise Time
|
<3nS
|
|
Storage Depth
|
240 Kbit
|
|
Timebase
|
50S~10ns
|
|
Vertical Sensitivity
|
50mV-500V
|
|
Input Resistance
|
1MΩ
|
|
Trigger Mode
|
Single / Normal / Auto
|
|
Trigger Edge
|
Rising / Falling
|
|
Coupling
|
AC/DC
|
|
Highest Test Voltage
|
1X:40V 10X:400V
|
| Cursor |
Position XY / Trigger Y
|
|
Roll Mode
|
Support
|
|
One-Button AUTO
|
Support
|
|
Waveform Manager
|
Support (1000 Pic + 1000 Waveform)
|
|
Voltage Accuracy
|
±2%
|
|
Frequency Precision
|
±0.01% High Precision
|
|
Parameter
|
12 Kinds in Total
|
|
Power Supply
|
6000mah Lithium Battery
|
|
Standby
|
4 Hours
|
|
Extension
|
USB Export
|
|
Charging
|
Type-C 5V 2A/3A/4A
|
Features:
- Portable Handheld Tablet Oscilloscope
- 1GSa/s Sampling Rate (1X=5MHz,10X=100MHz)
- 100MHZ * 2analog bandwidth
- 7" TFT LCD Touch Screen
- Complete trigger function (single/normal/automatic).
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- Versatile usage for both periodic analogue and aperiodic digital signals.
- high-voltage protection module.
- 1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V
- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.
- Powerful Waveform Picture Manager.
- Lissajous Graphic Display & FFT Viewing.
- USB Picture Export
- Ideal for both periodic analogue and aperiodic digital signals.
- 6000mah battery, continuous usage for 4 hours
- Targeting the maintenance industry and the research and development industry.

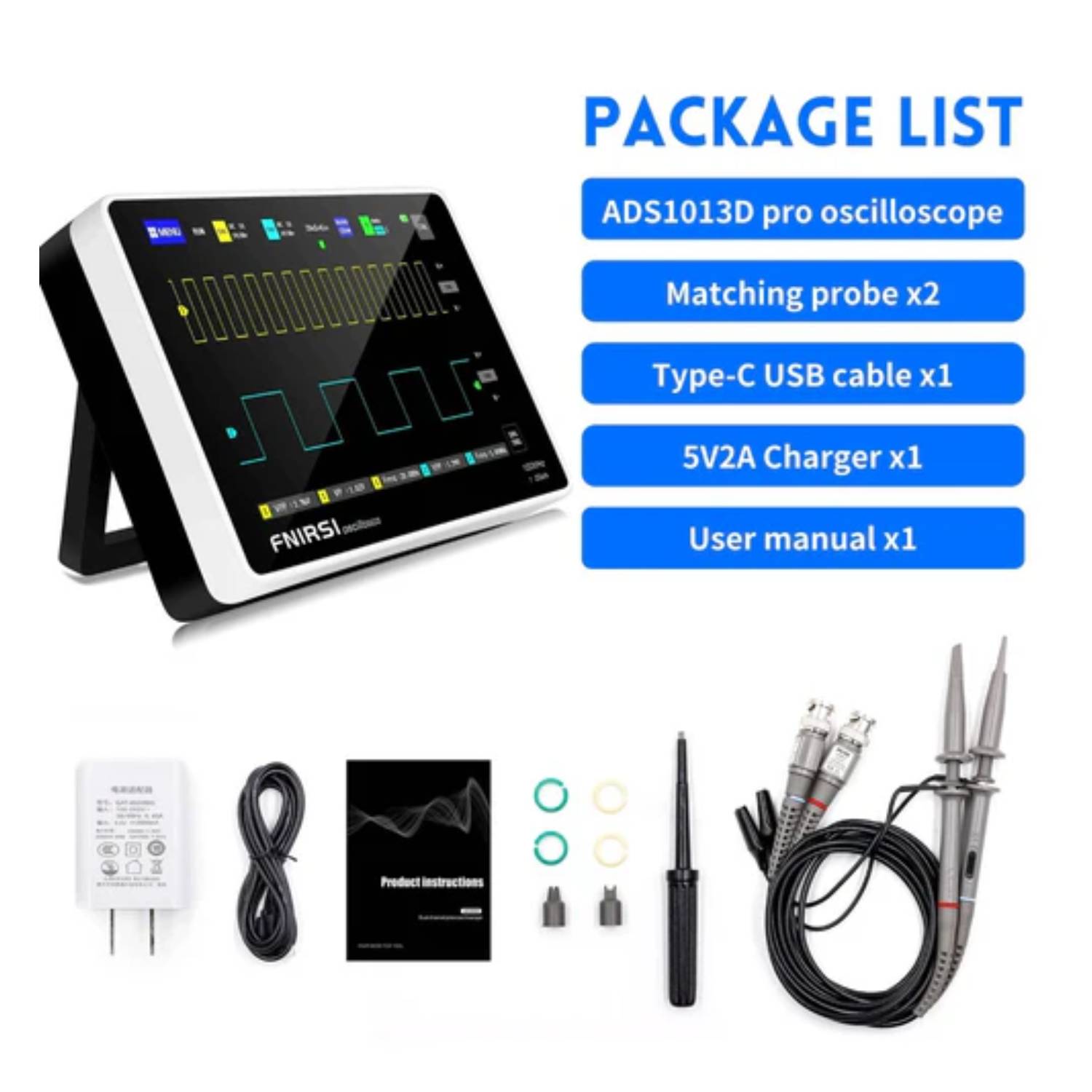

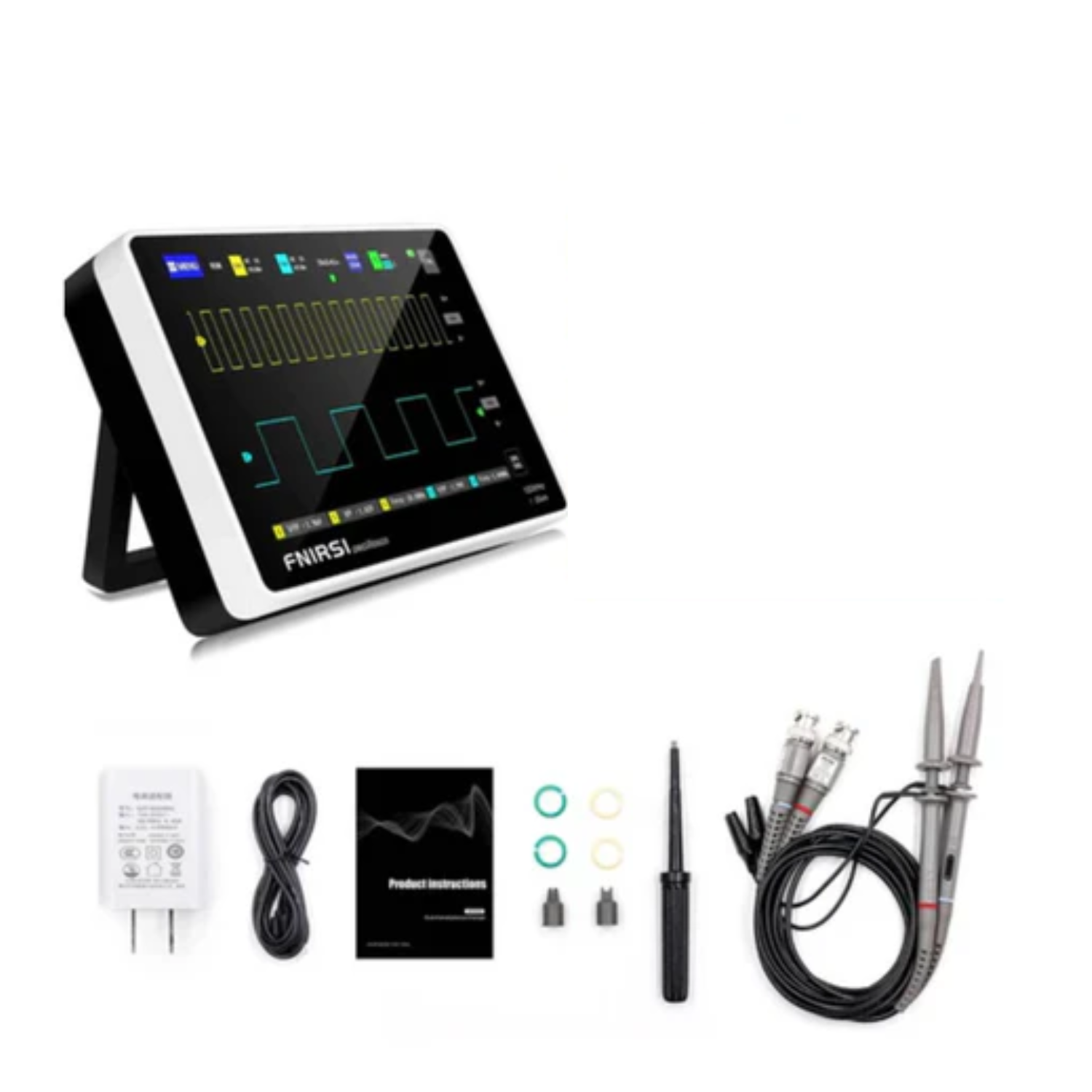

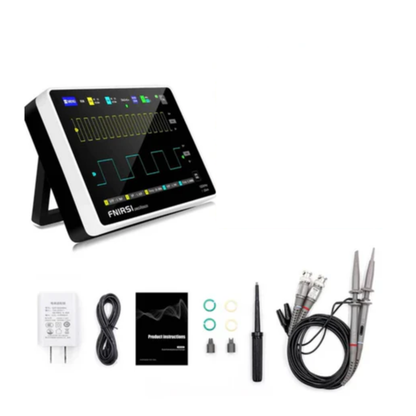

Package Included:
- 1 x ADS1013D Pro Oscilloscope
- 2 x Matching Probe
- 1 x Type - C USB Cable
- 1 x 5V2A Charger
- 1 x User Manual
