Description:

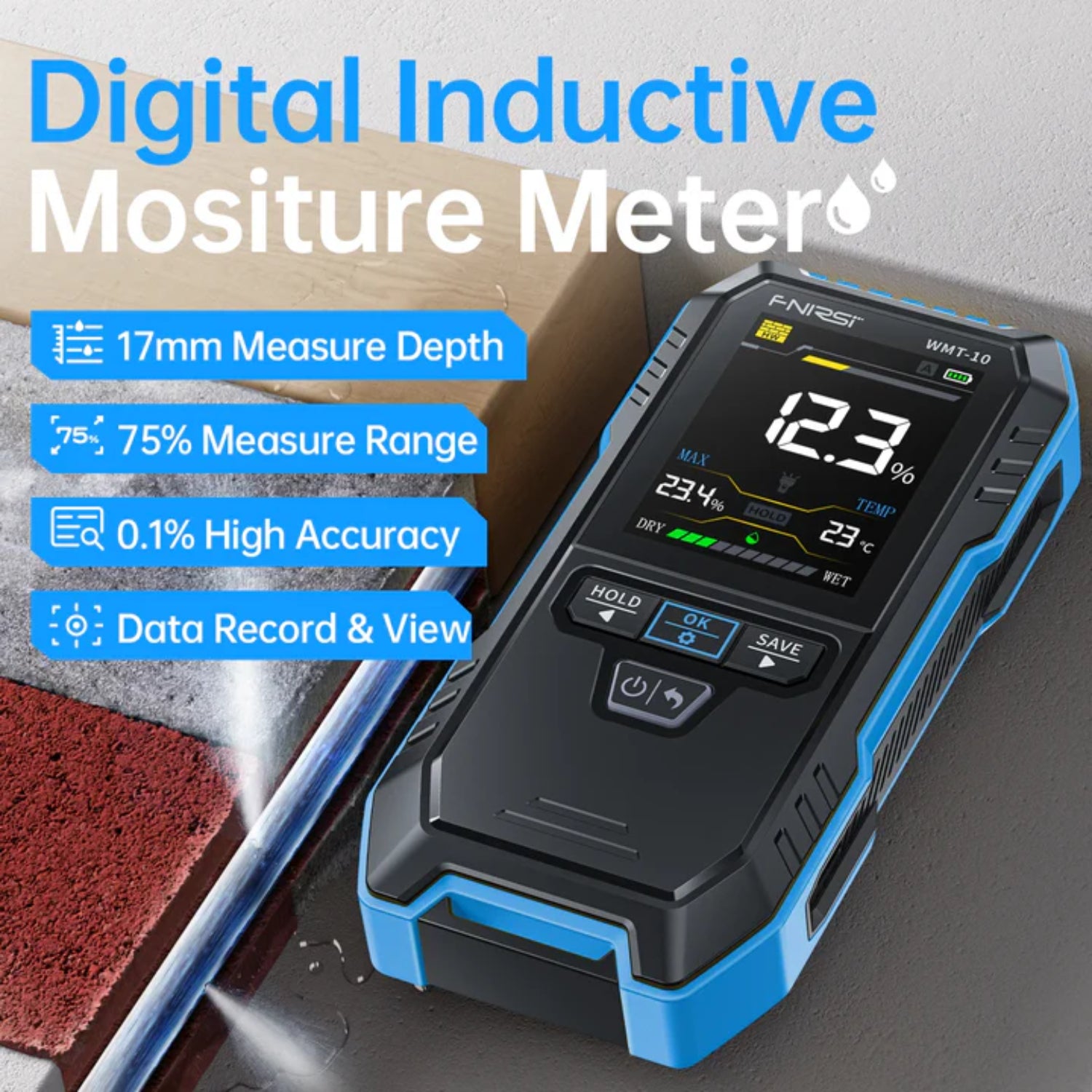

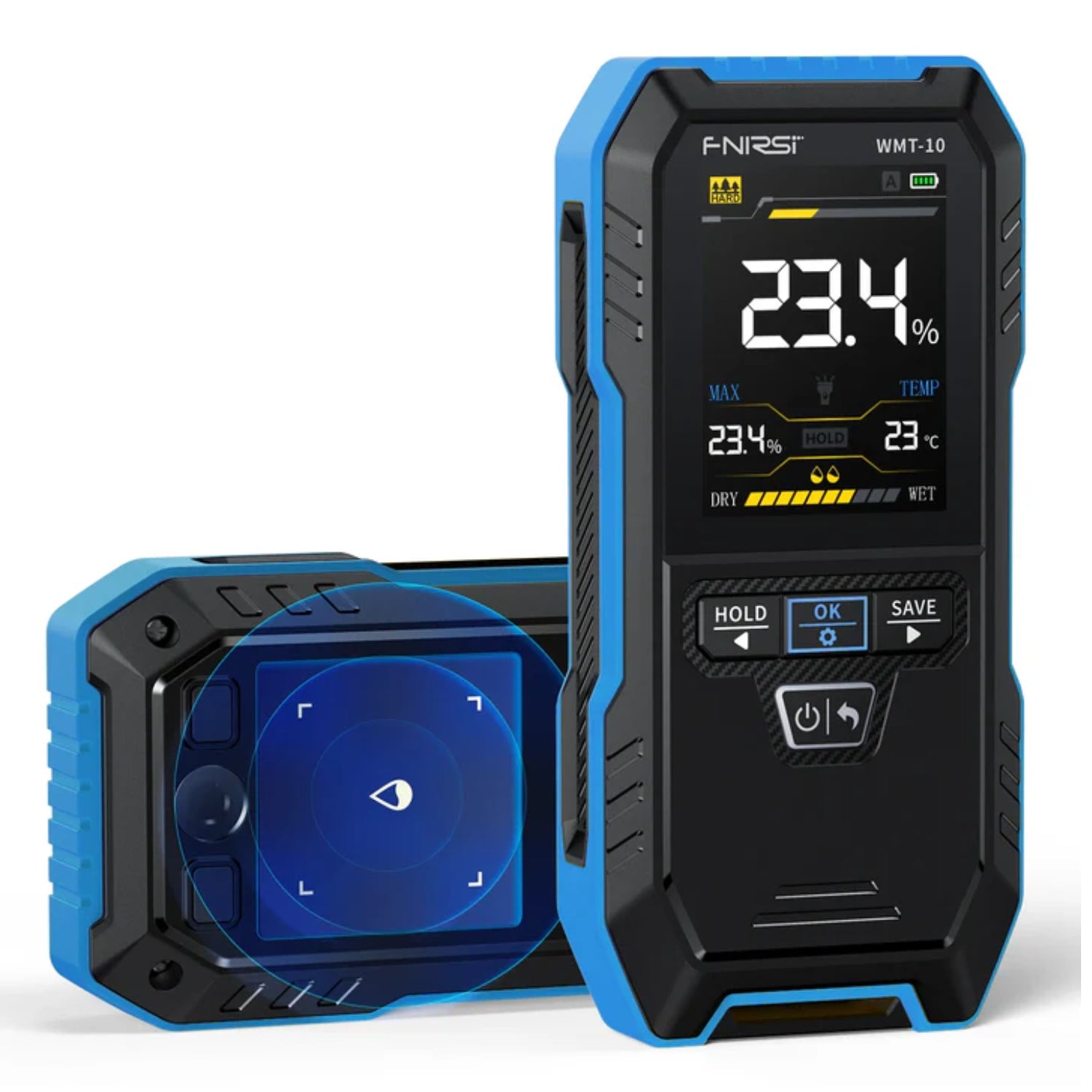

The WMT-10 Inductive Wood Moisture Meter is equipped with a 2.4-inch high-definition color screen, designed specifically to meet the needs of the wood processing industry and wood users. This advanced tool ensures accurate measurement of wood moisture content, supporting four distinct measurement modes: hardwood, softwood, plaster wall, and brick wall.
Specifications:
| Brand | FNIRSI |
| Model |
WMT-10
|
|
Measurement Type
|
Non-destructive / Pinless / Inductive / Non-contact Testing
|
|
Screen Display
|
2.4 Inch Color Screen
|
|
Display Resolution
|
0.1%
|
|
Max Measuring Depth
|
17mm |
|
Sensor Size
|
40.5x40.5(mm)
|
|
Operating Temperature
|
0~40℃
|
|
Measurement Range
|
Plaster Wall: 0~25% Brick Wall: 0~43% Softwood: 0~75% Hardwood: 0~75% |
|
Measurement Range
|
0~75%
|
|
Measurement Error
|
±1.5%
|
| Language |
Chinese, English
|
|
Humidity Alarm
|
Sound Alarm / Color Alarm
|
|
Auto Power Off
|
5/10/15 Minutes
|
|
Data Saving and Viewing
|
Supported, save,d and view up to 30 sets of data
|
|
Power Supply
|
1000mAh lithium battery
|
|
Flashlight Function
|
Supported
|
|
Temperature Display
|
Supported
|
|
Brightness and Sound Adjustment
|
Supported
|
|
Firmware Upgrade
|
Supported
|
Feature:

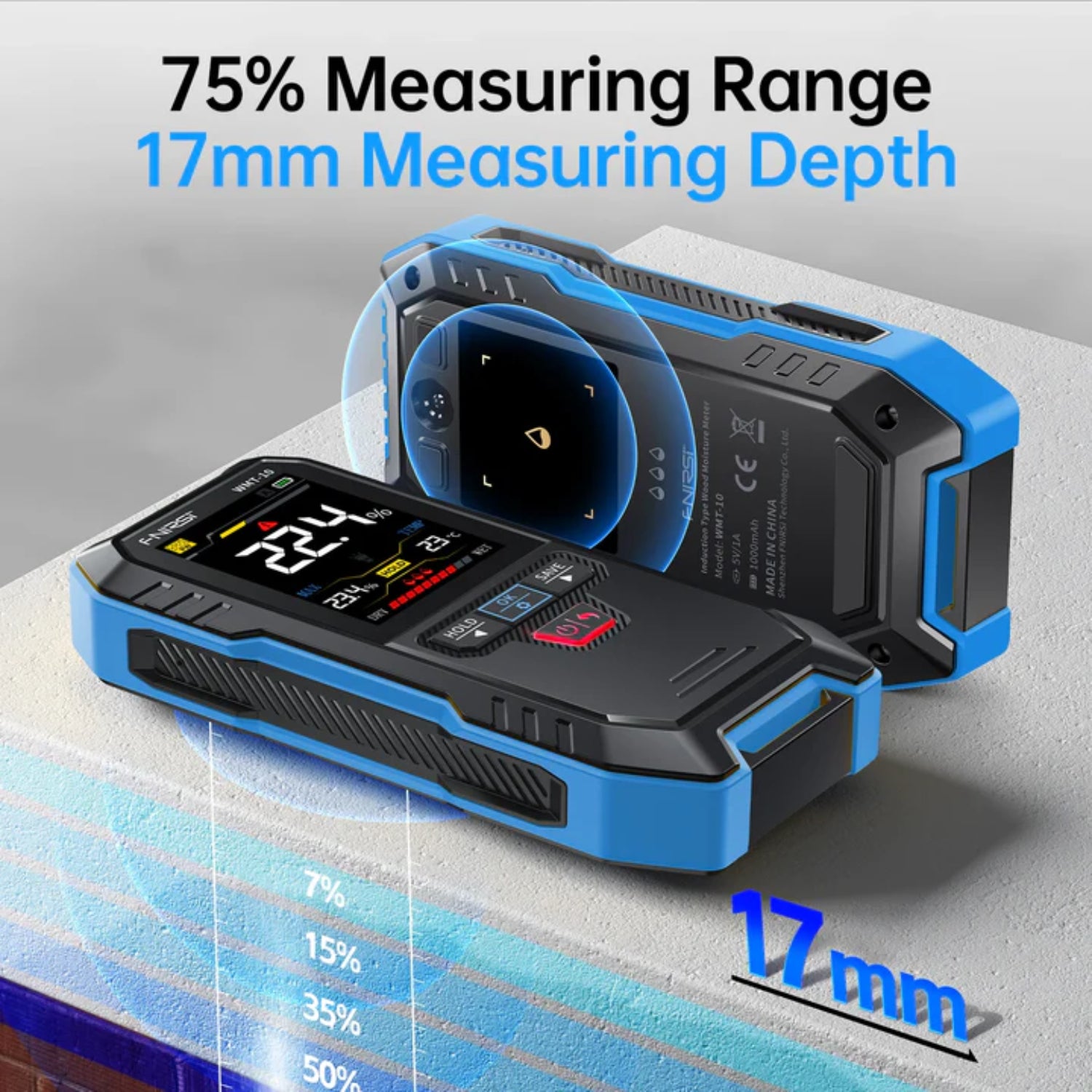

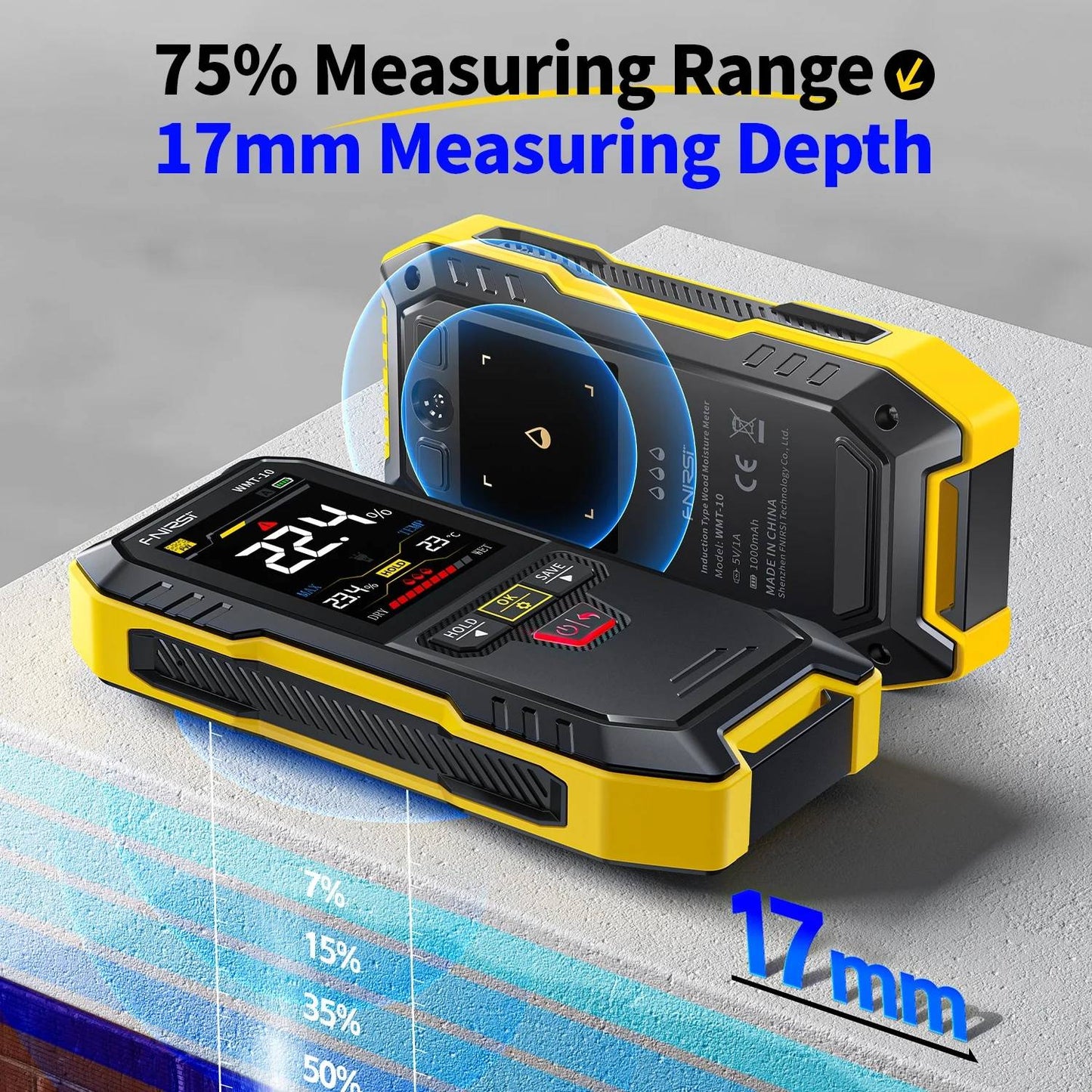

- High-Precision Measurements: The WMT-10 provides high-accuracy moisture detection with a resolution of 0.1%, ensuring precise readings for various materials. It covers a broad range of measurement depths, up to 17mm.

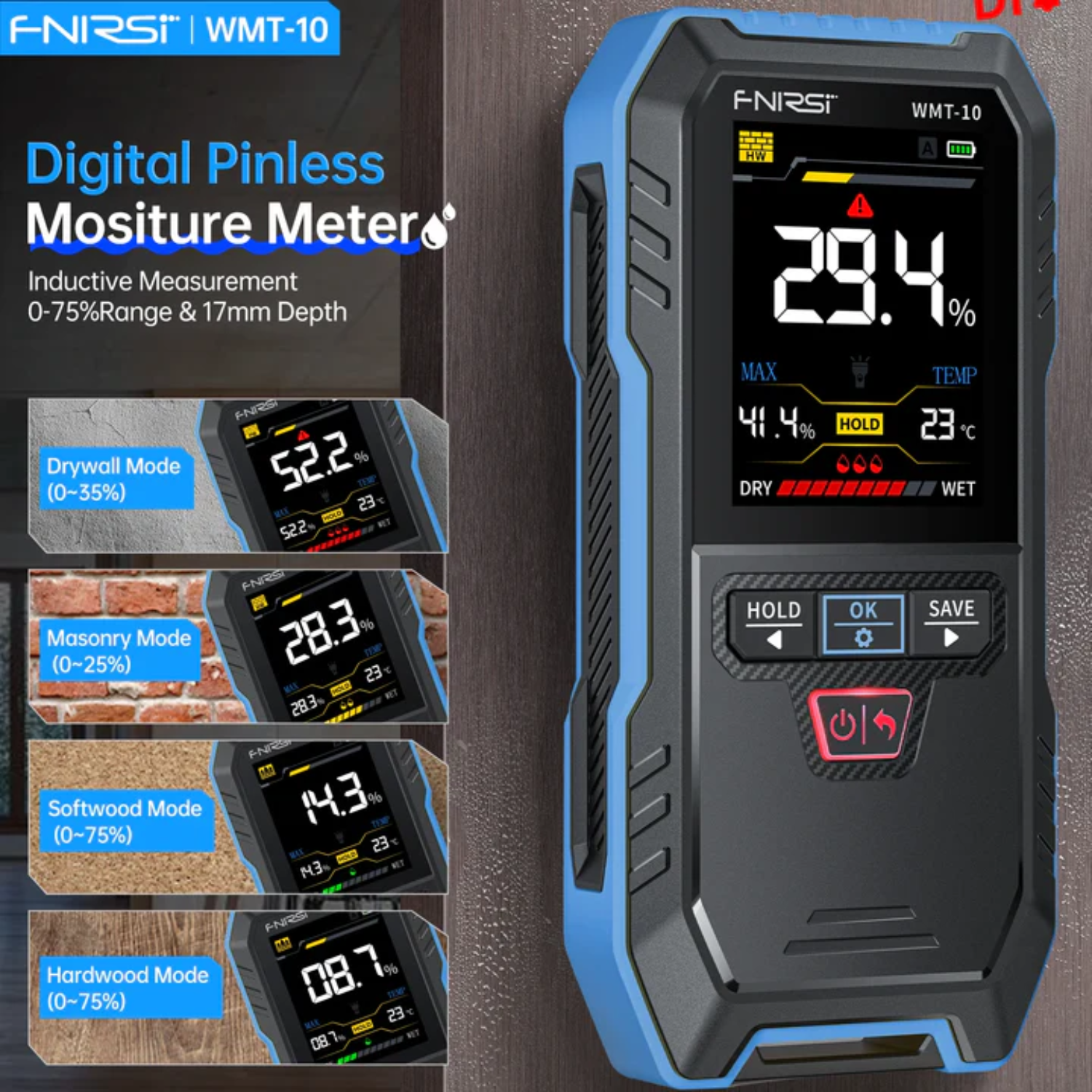

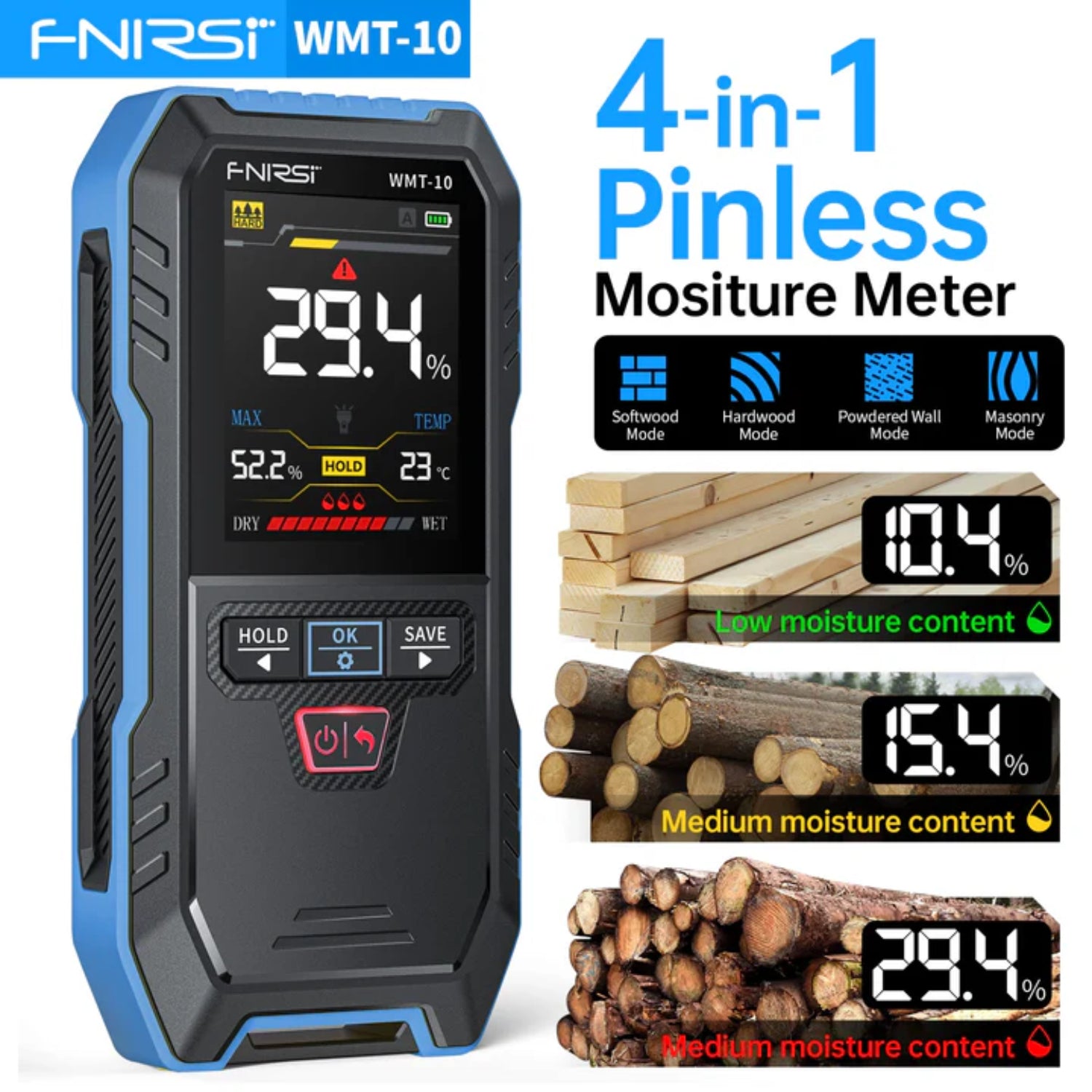

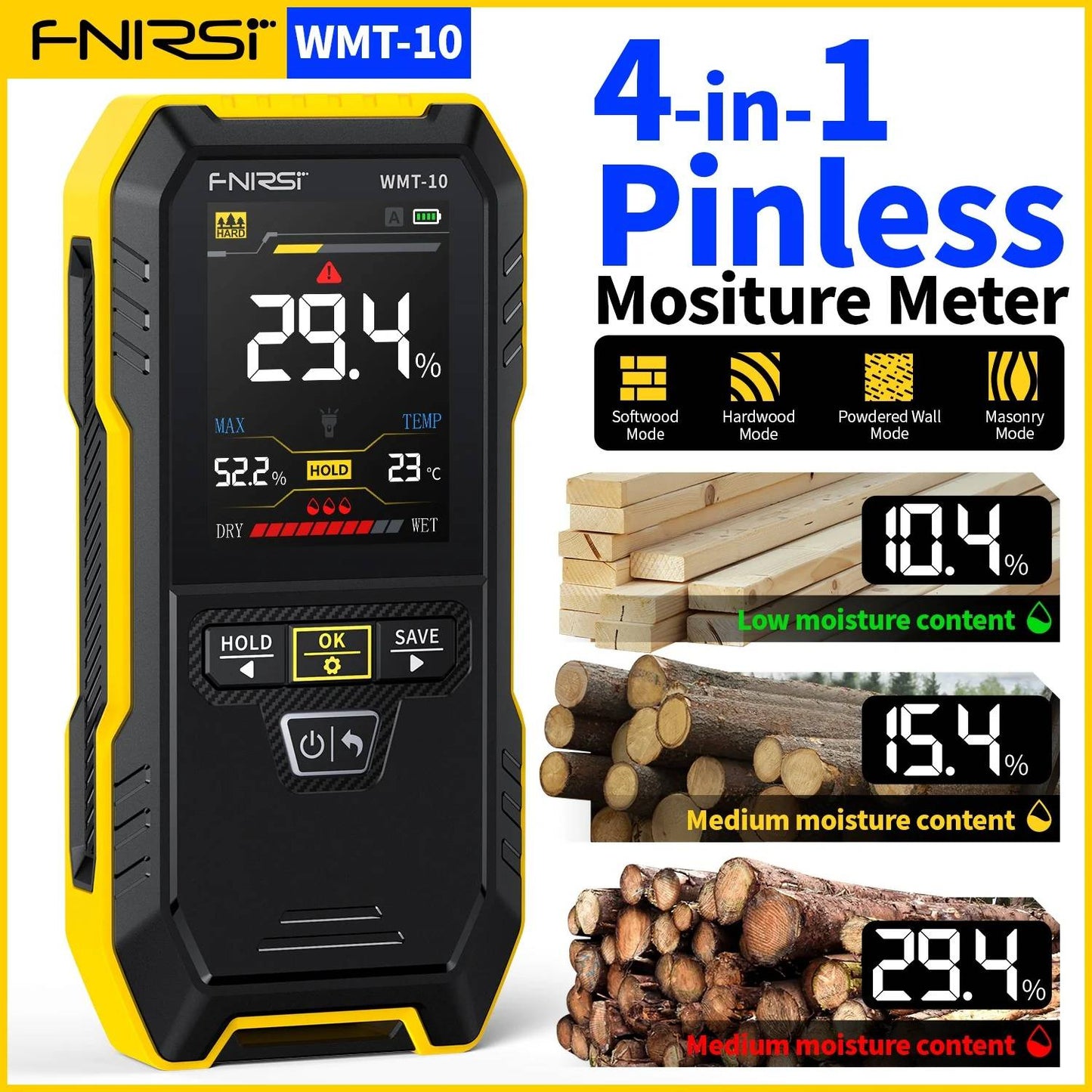

- Wide Measurement Range: This moisture meter supports a comprehensive measurement range from 0% to 75%, making it versatile for different applications. It measures moisture in plaster walls (0-25%), brick walls (0-43%), softwood (0-75%), and hardwood (0-75%).

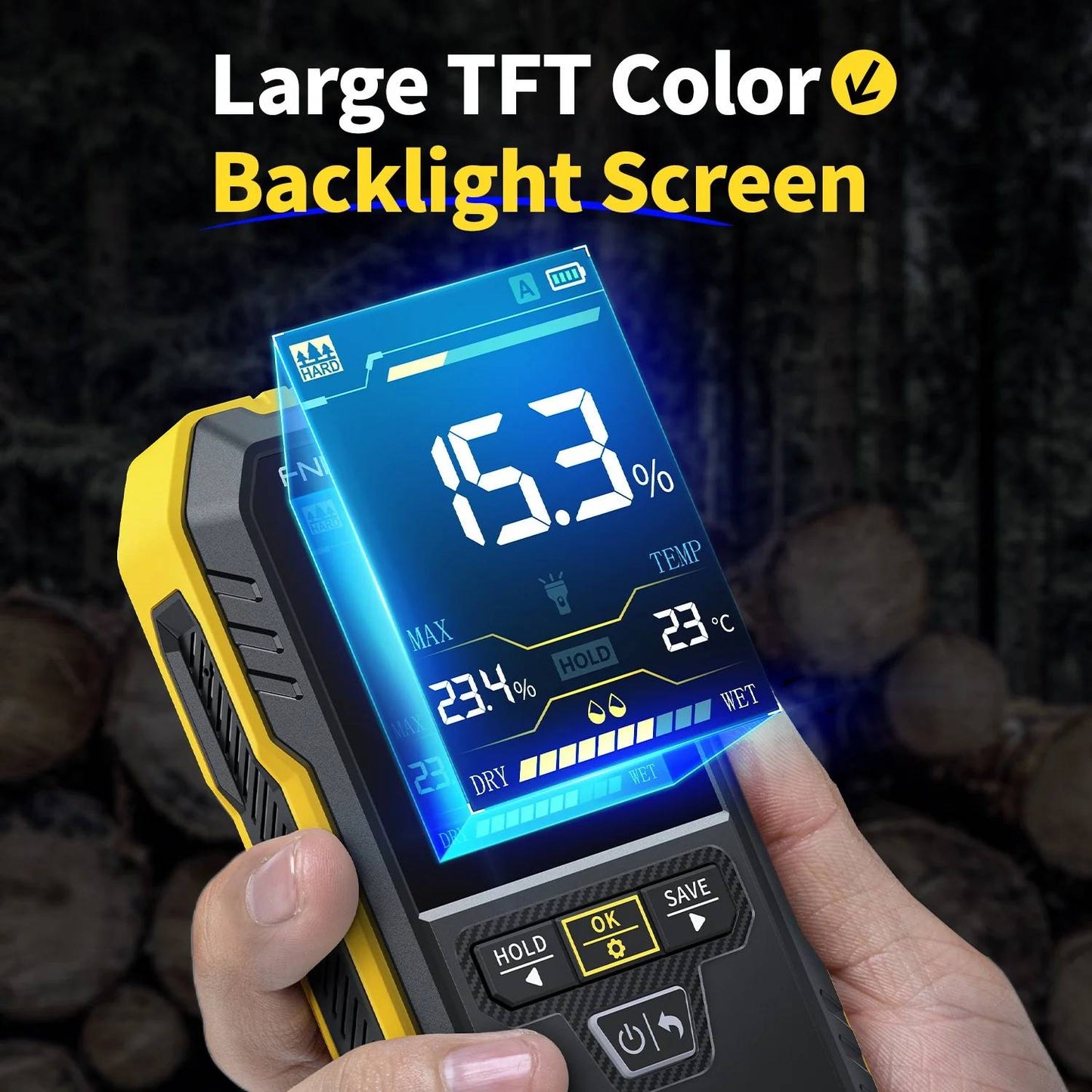

- User-Friendly Display: The 2.4-inch color screen offers a clear and vivid display, making it easy to read and interpret measurement results.
- Advanced Alarm System: Stay alert with sound and color alarms that notify you when moisture levels exceed safe thresholds, protecting your materials from potential damage.
- Data Storage & Viewing: Save and review up to 30 sets of measurement data directly on the device, providing a convenient way to manage and analyze your moisture readings over time.
- Durable Design: Powered by a 1000mAh lithium battery, the WMT-10 offers long-lasting performance. Additional features include a built-in flashlight for low-light conditions and a temperature display for monitoring environmental conditions.
- Convenient Operation: With features like auto power-off settings (5/10/15 minutes), brightness and sound adjustment, and firmware upgrade support, the WMT-10 is designed for ease of use and enhanced functionality.
Pin Description:
Package Included:
- 1 x WMT - 10 Non-Contact Moisture Meter
- 1 x Type - C Cable
- 1 x Packing Box
-
1 x User Manual
