Description:

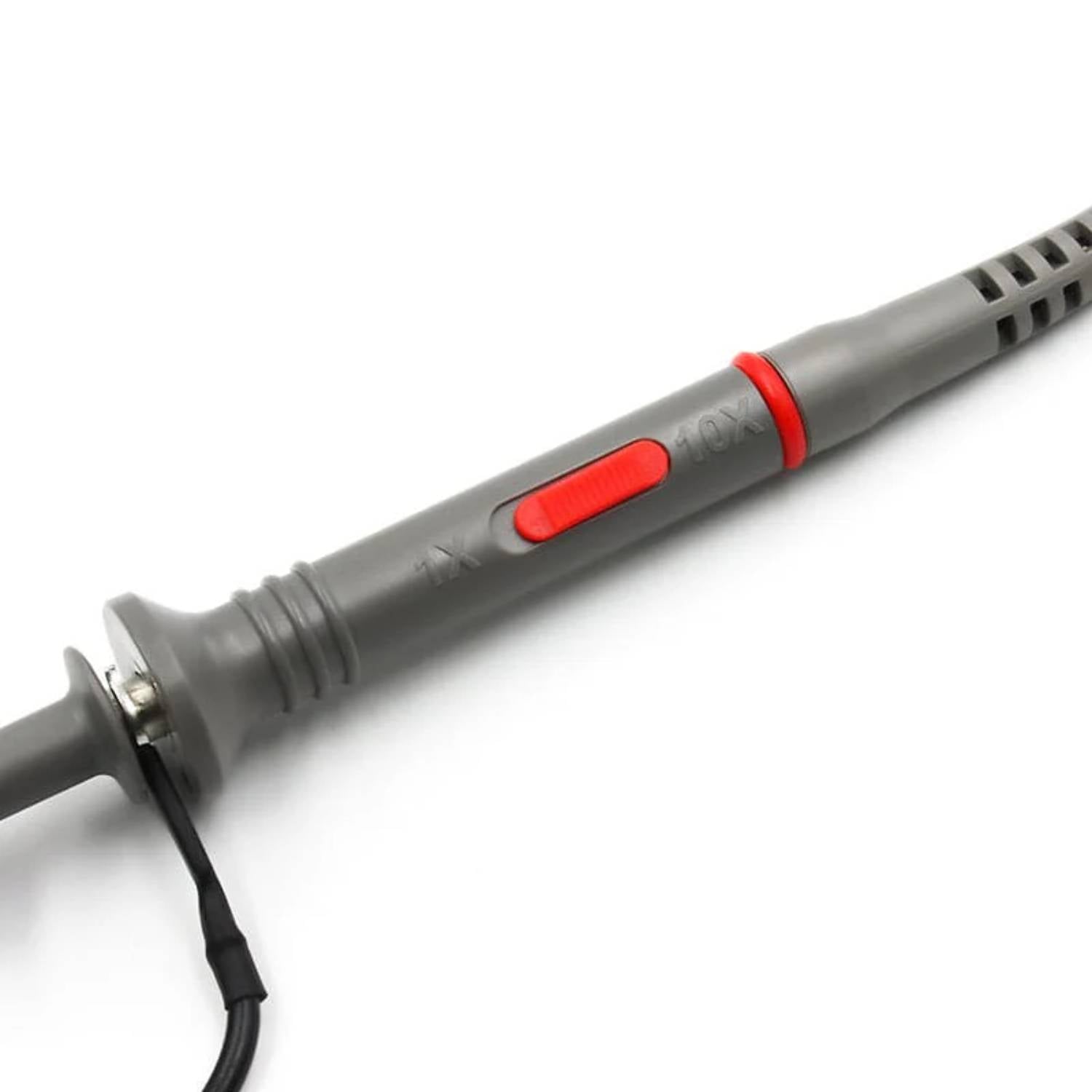

FNIRSI P6100 Demanding Applications Experience superior performance with our high-quality P6100 Oscilloscope Probes. Universal P6100 Oscilloscope Clip Probes are perfect for connecting the circuit under test and any oscilloscope input. Crafted with superior materials and advanced technology, they offer a smooth surface for easy handling and ensure reliable performance. Our probes feature a 1X/10X sliding switch for adjustable attenuation, you can easily adjust the probe attenuation to fit your specific needs. The grounding crocodile clip provides a secure grounding, ensuring safe operation and accurate signal reading every time.
Specifications:
Bandwidth |
DC-6MHz DC-100MHz |
Attenuation Ration
|
1:10
|
Colour
|
Grey + Black
|
Input Resistance
|
1M: 10
|
Input Capacitance
|
1X: 85pF-120pF
10X: 18.5pF-22.5pF |
Compensation Range
|
10pF-30pF
|
Rise Time
|
<3.5ns
|
Working Voltage
|
1X: <200V DC+ACPeak 10X: <600V DC+AC |
PeakCable Length
|
120cm
|
Temperature
|
Operating -10℃ ~ +50℃
Nonoperatting -20℃ ~ +75℃ Humidity: ≤5% (relative humidity) |
Package Included:
1 x FNIRSI P6100 Oscilloscope Probe
