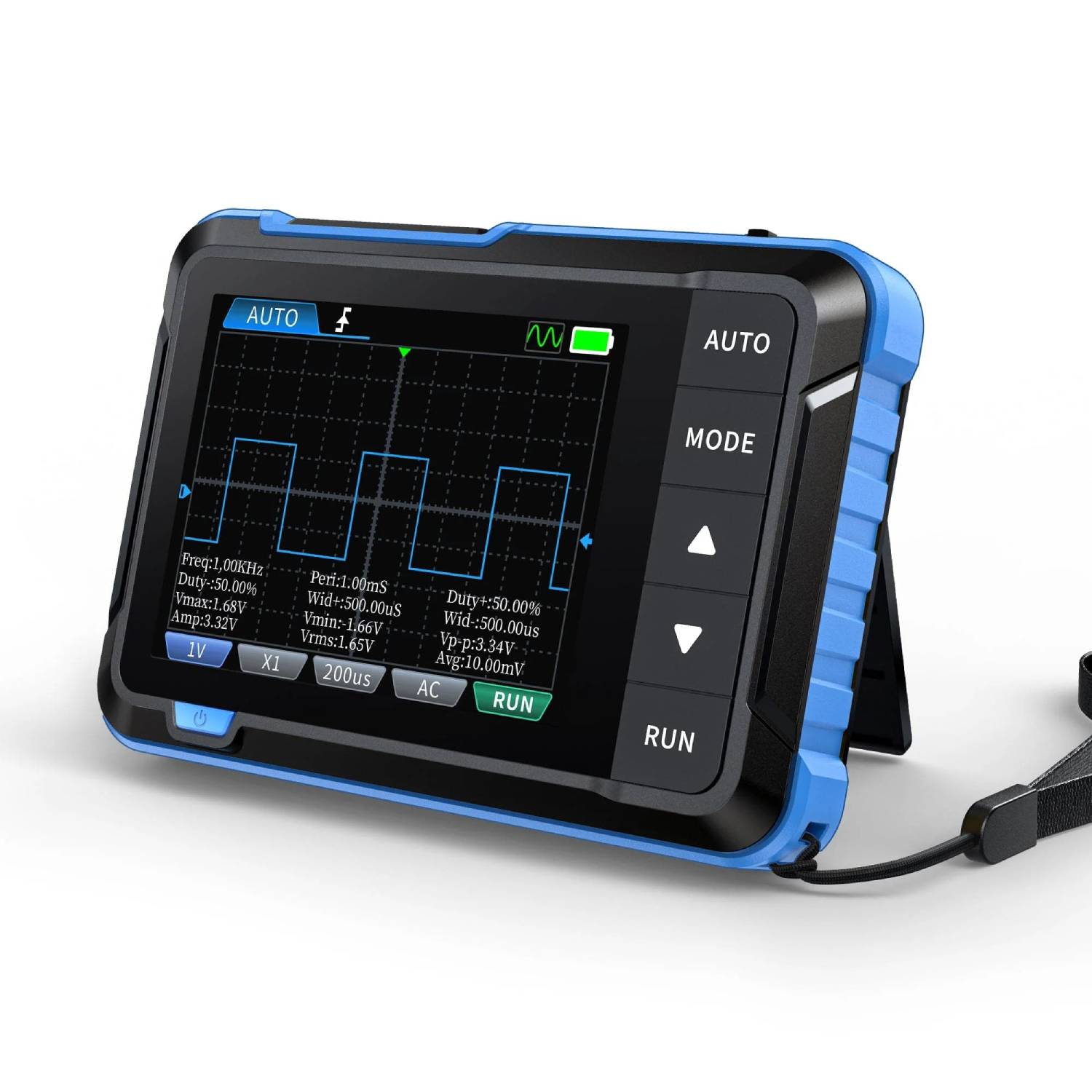

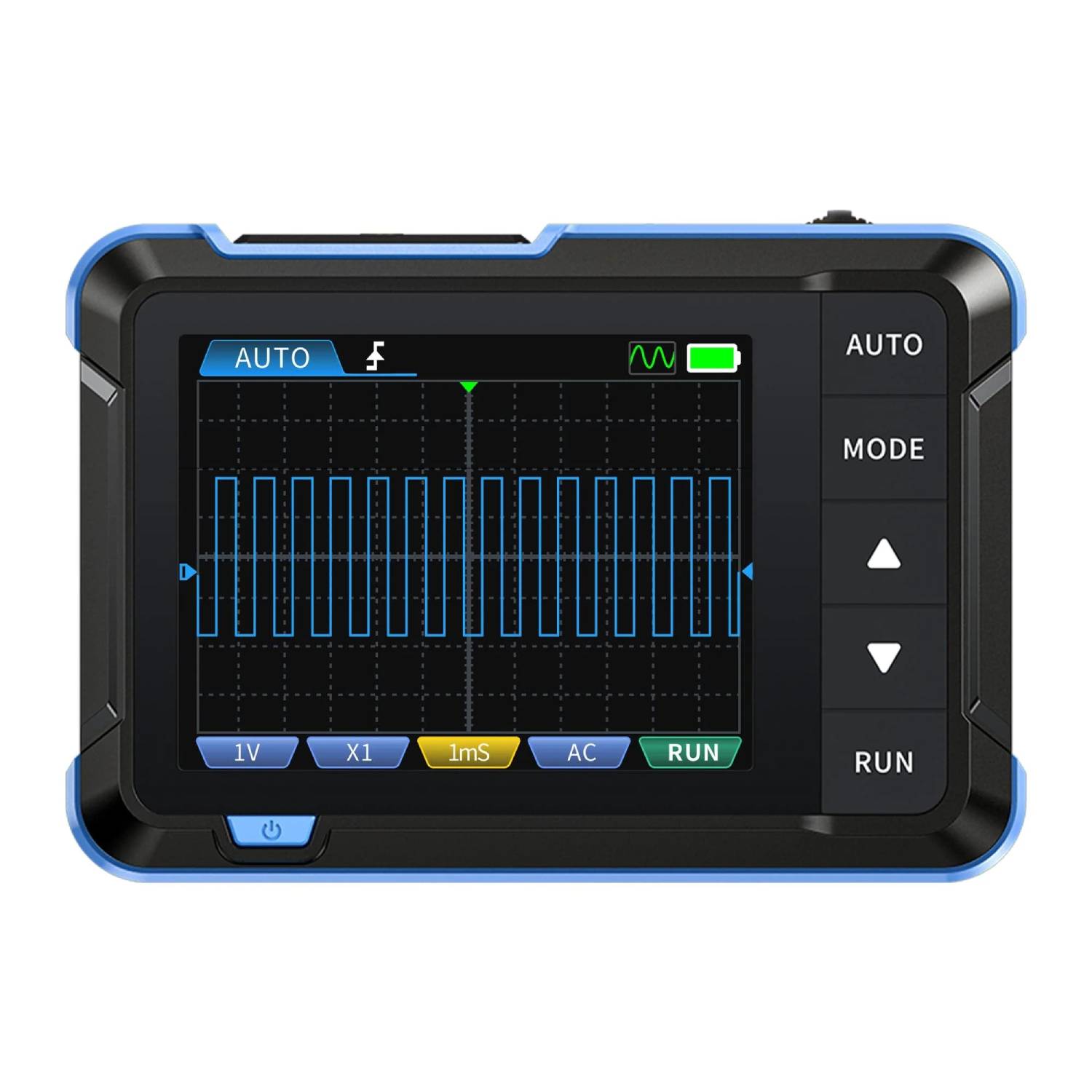

Description:
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and a complete triggering function (single, normal, auto).
It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Basic Specifications:
| Brand | FNIRSI |
| Model |
DSO-153
|
| Display |
2.8 Inches / PPI:320*240
|
|
USB Charging
|
5V/1A
|
|
Lithium Battery Capacity
|
1000mAh |
| Size |
99x68.3x19.5mm
|
| Weight | 100g |
Mini Oscilloscope Specifications:
| Channel |
1
|
|
Sampling Rate
|
5MS/s
|
| Bandwidth | 1MHz |
|
Vertical Sensitivity
|
10mV/Div-20V/Div (Progress according to the 1-2-5 way)
|
|
Time Base Range
|
500ns/Div-20s/Div (Progress according to the 1-2-5 way)
|
|
Voltage Range
|
X1:±40V (Vpp:80V) X10:±400V (Vpp:800V) |
|
Trigger Mode
|
Auto / Normal / Single
|
|
Trigger Edge
|
Rising edge / Falling edge
|
| Coupling |
AC/DC
|
Singnal Specifications:
| Frequency |
0-10KHz
|
|
Duty Cycle
|
0-100% (rectangular and sawtooth waves)
|
| Amplitude |
0.1-3.3V
|
| Waveforms | Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi-tone, Sink pulse, Lorentz wave. |
Feature:
- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
- Signal Generator: 10KHz
- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.
- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
- One-Click AUTO Mode: Effortlessly display waveforms with minimal input.
- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.

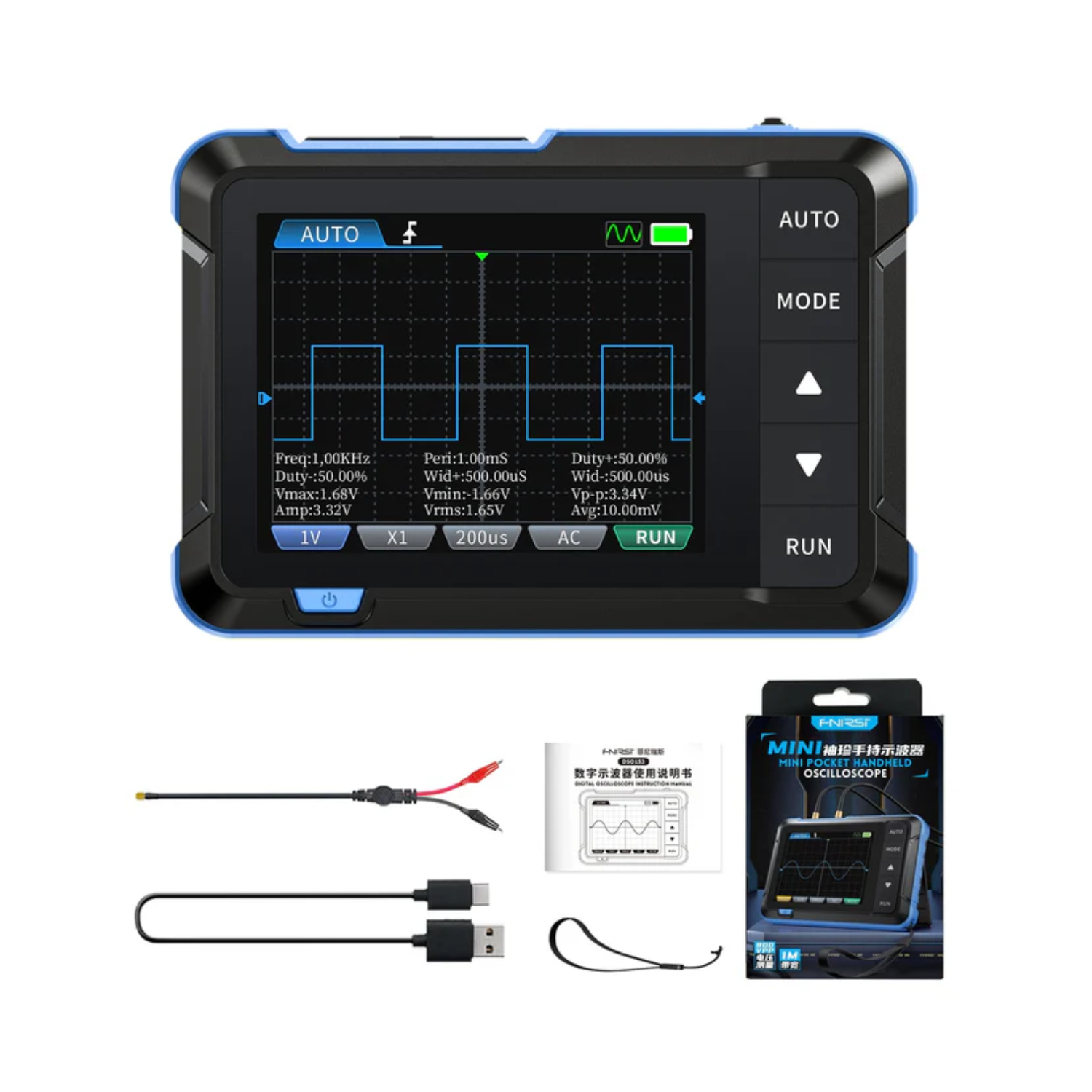

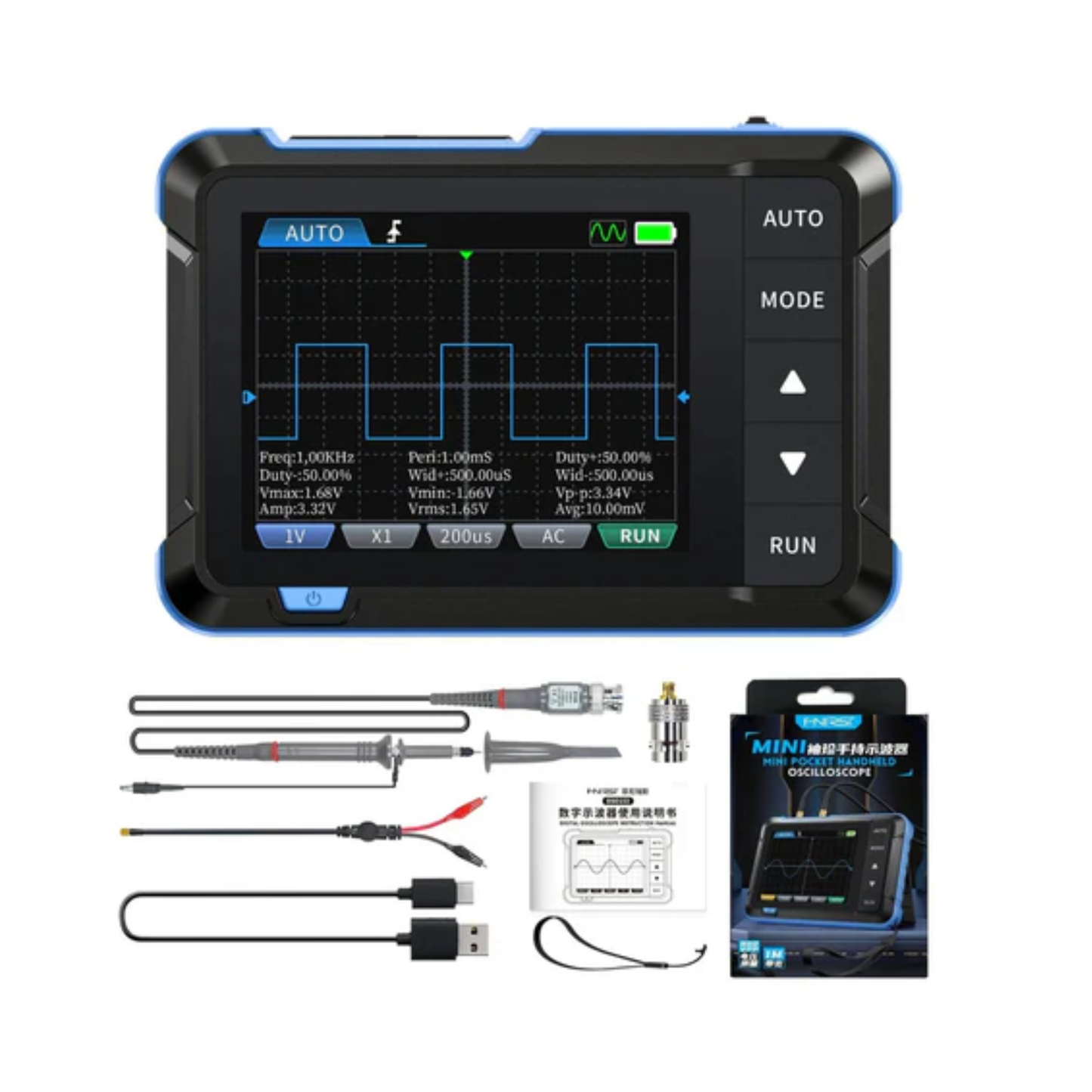

Package Included:
- 1x FNIRSI DSO-153 2-in-1 Mini Oscilloscope
- 1 x Packaging colour box
- 1 x Alligator clip probe
- 1 x Charging cable
- 1 x Lanyard
- 1 x Instruction manual
- 1 x Adapter
- 1 x P6100 high voltage probe
