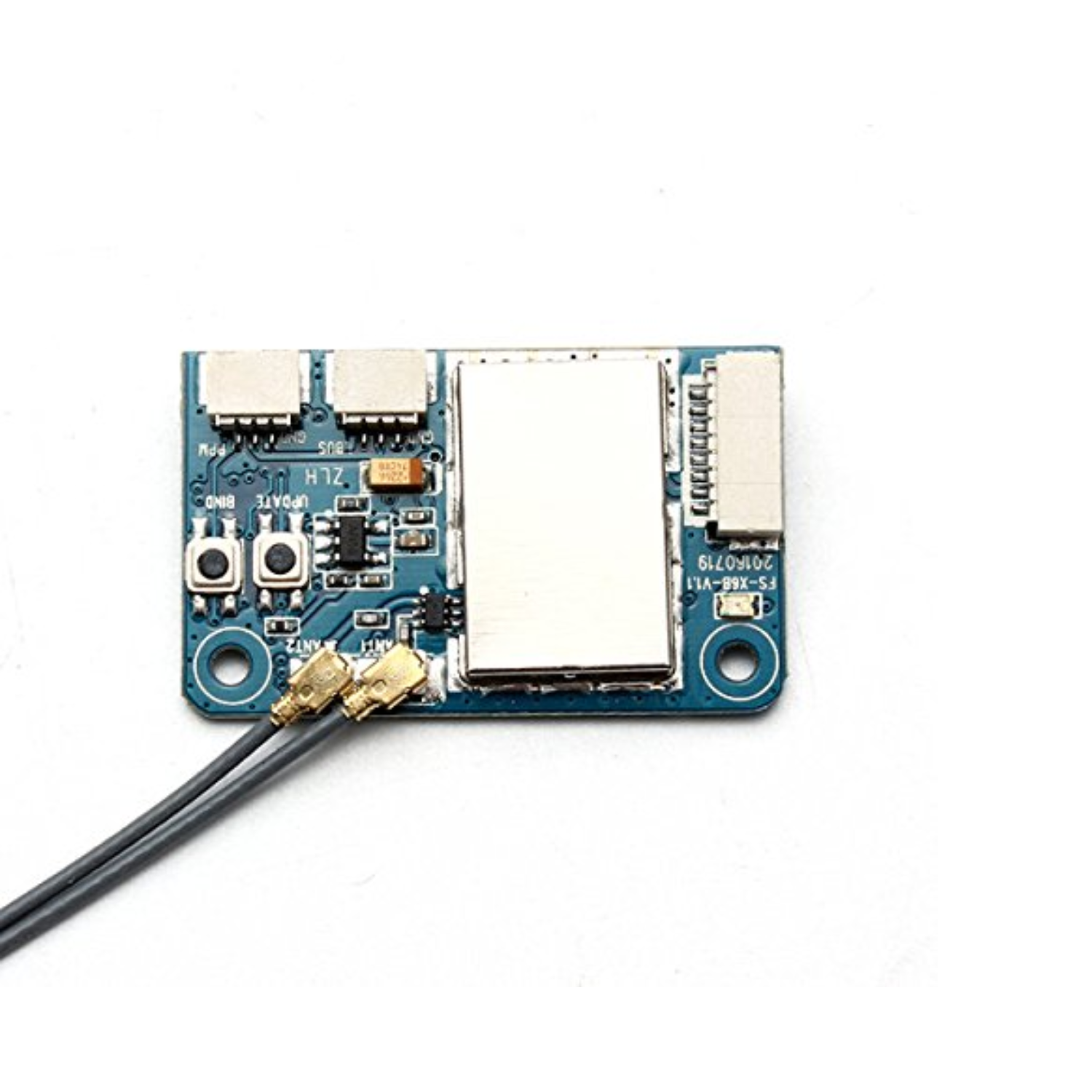

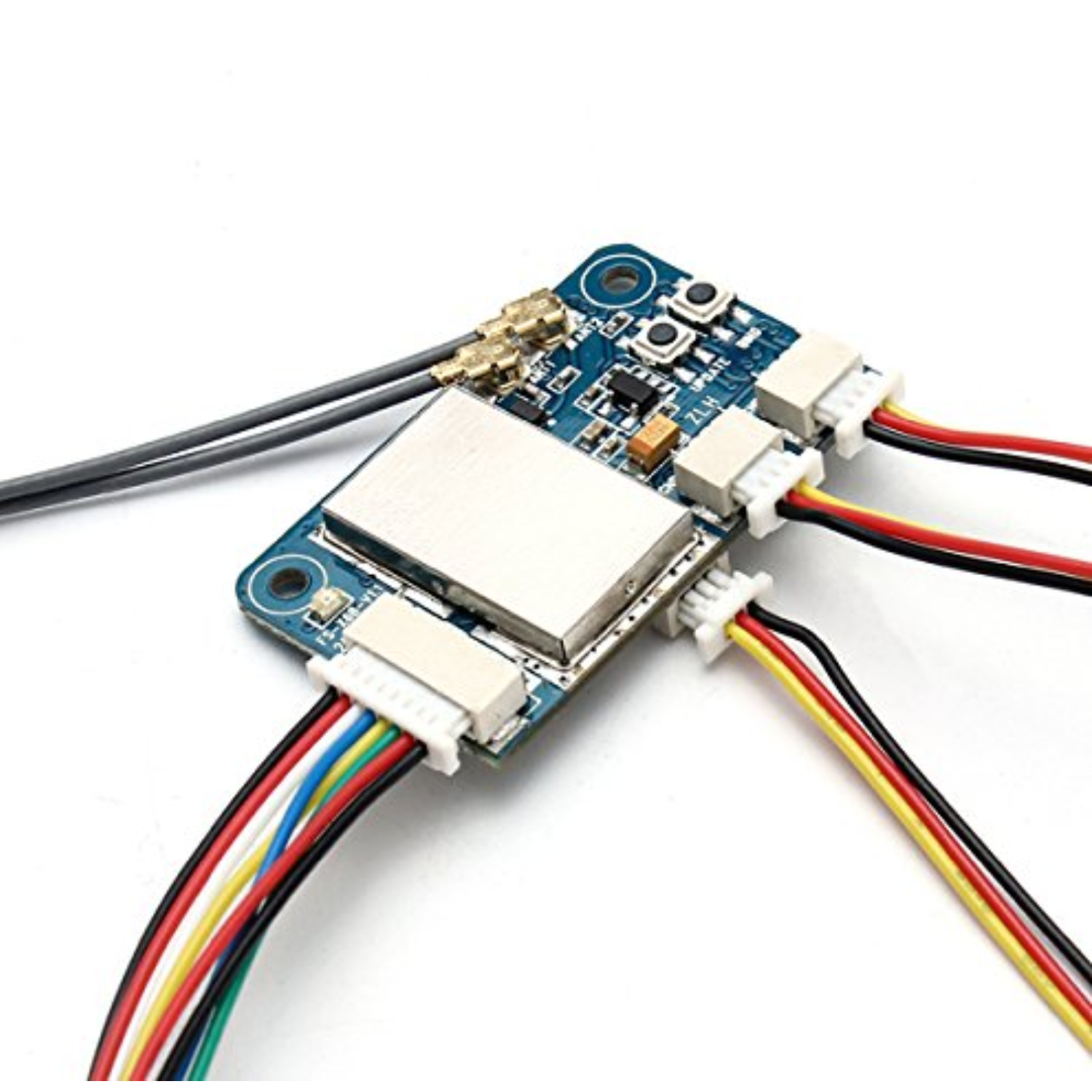

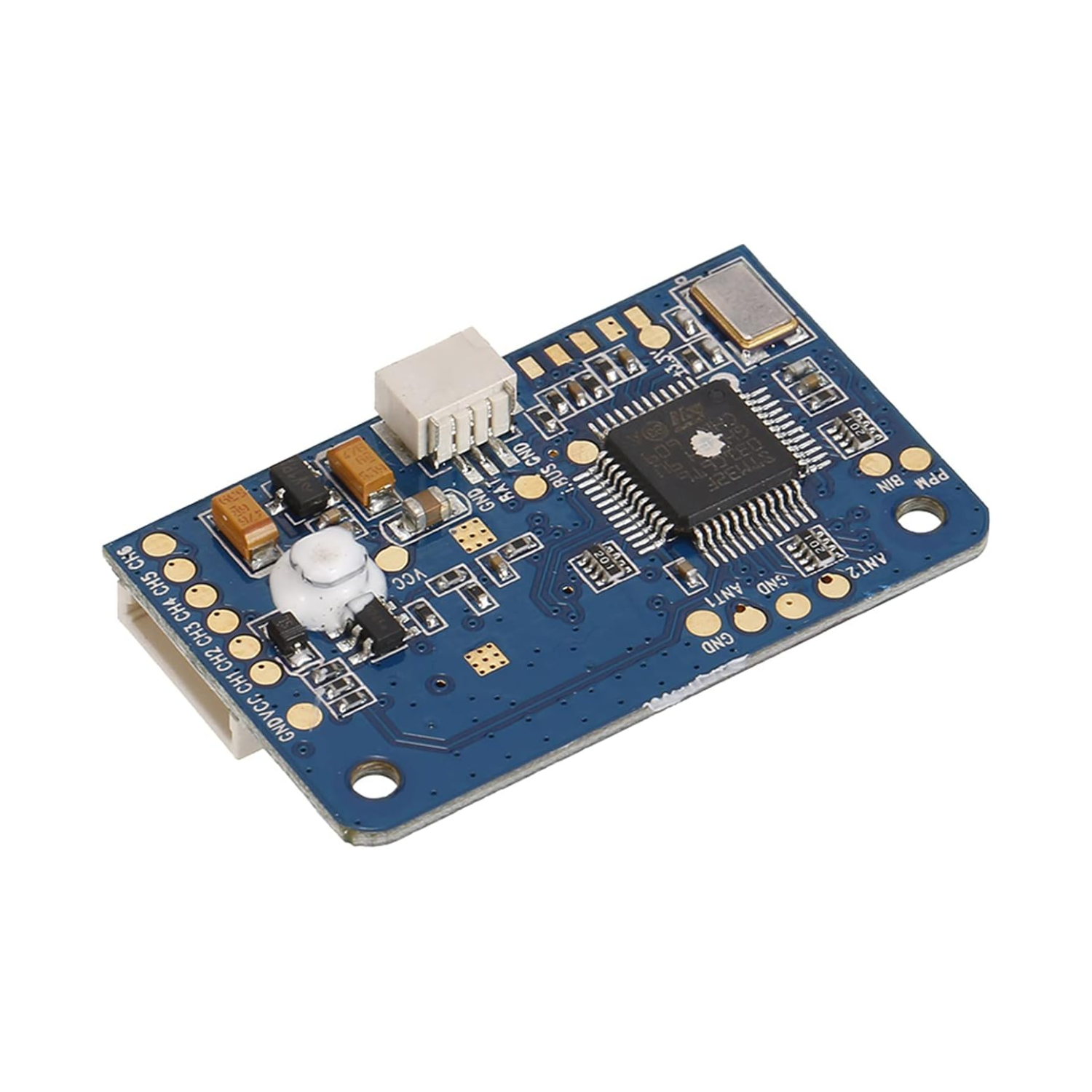

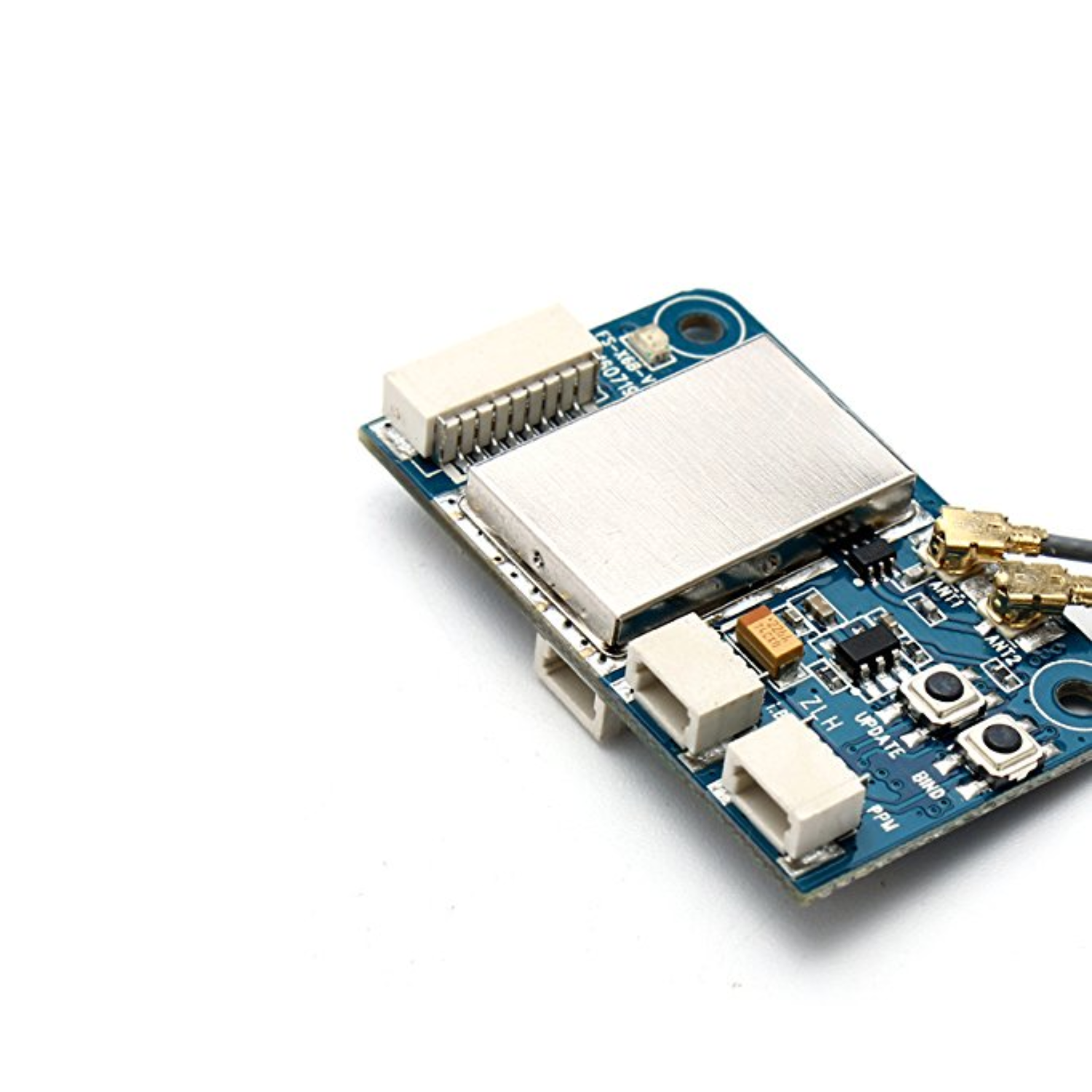

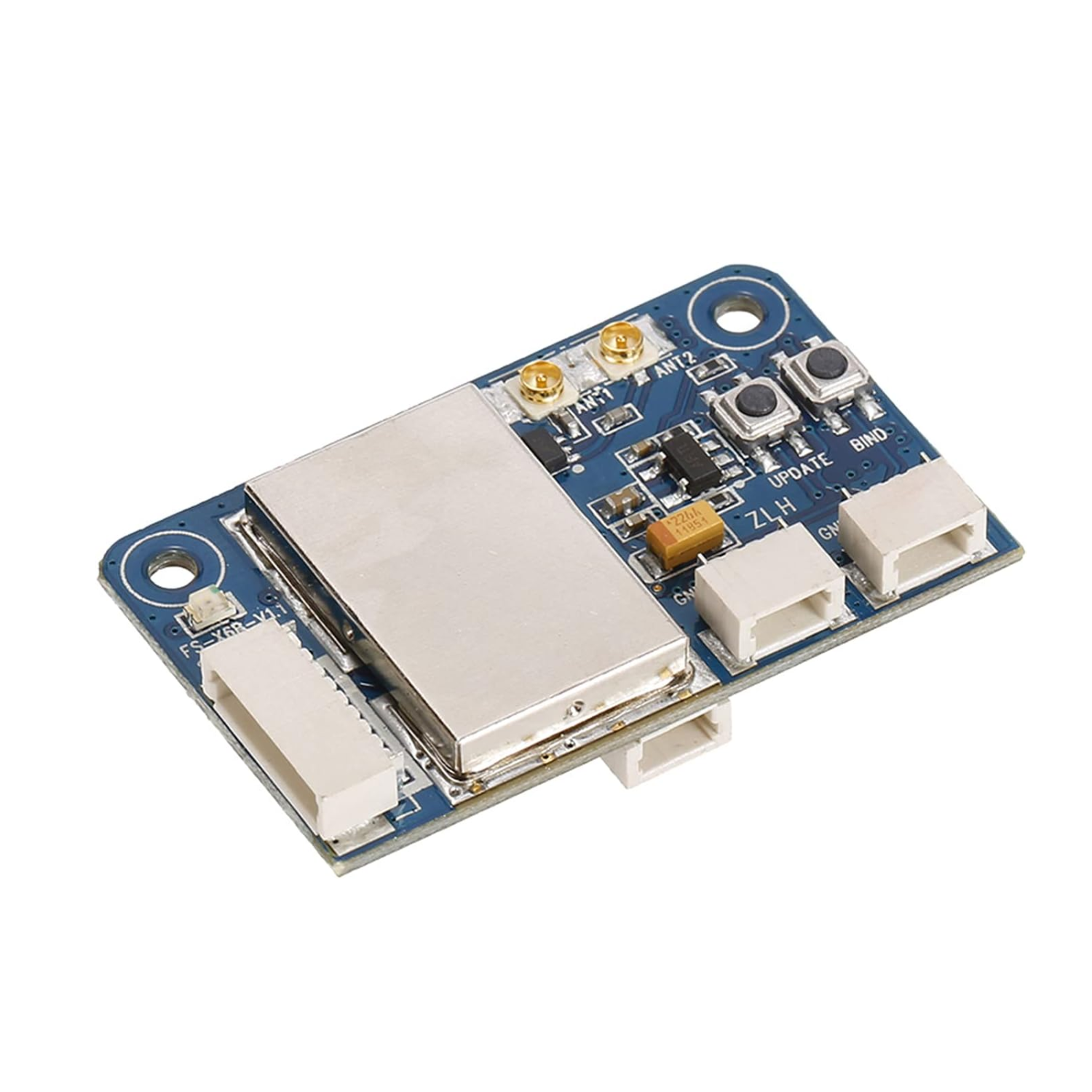

Flysky X6B 2.4G 6CH Receiver i-BUS PPM PWM AFHDS Receiver For FPV Racing Drone - RS2949

Description:

The X6B 2.4G 6-Channel Receiver is engineered for reliability, This compact receiver utilizes the advanced AFHDS 2A protocol and dual omnidirectional antennas with enhanced noise reduction for a stable connection. Enjoy versatile output options with 6 PWM channels, standard PPM, and expandable i-BUS support for up to 18 channels. Seamlessly integrate with a wide range of Flysky transmitters (FS-i10, i8, i6, i6s, i6x, i4, i4x, etc.) and monitor your power with the integrated 0- 18V voltage sensor interface, supporting 1S-4S batteries.

Specifications:

• Item Type: Receiver
• No. of Channels: 6
• Frequency: 2.4GHz
• Sensitivity: -95 dBm
• Bandwidth: 500 KHz
• Modulation Type: GFSK
• Resolution: 1024
• Operating Voltage: 3.3 ~ 5VDC
• Current Consumption: 30mA
• Control Distance: 300m
• i-Bus Interface: Yes
• Antenna Length: 93mm
• Color: Blue

Features:

• Multi-Rotor Model
• 20 dBm RF Power
• AFHDS 2A Protocol (2.4GHz)
• Low Voltage Alarm
• PPM/PWM/i-BUS DSC Port
• Power Input: 4.0- 8.4V
• On-line Update
• AFHDS 2A Transmitter Compatible (FS-i10, i6 Series, i4 Series)

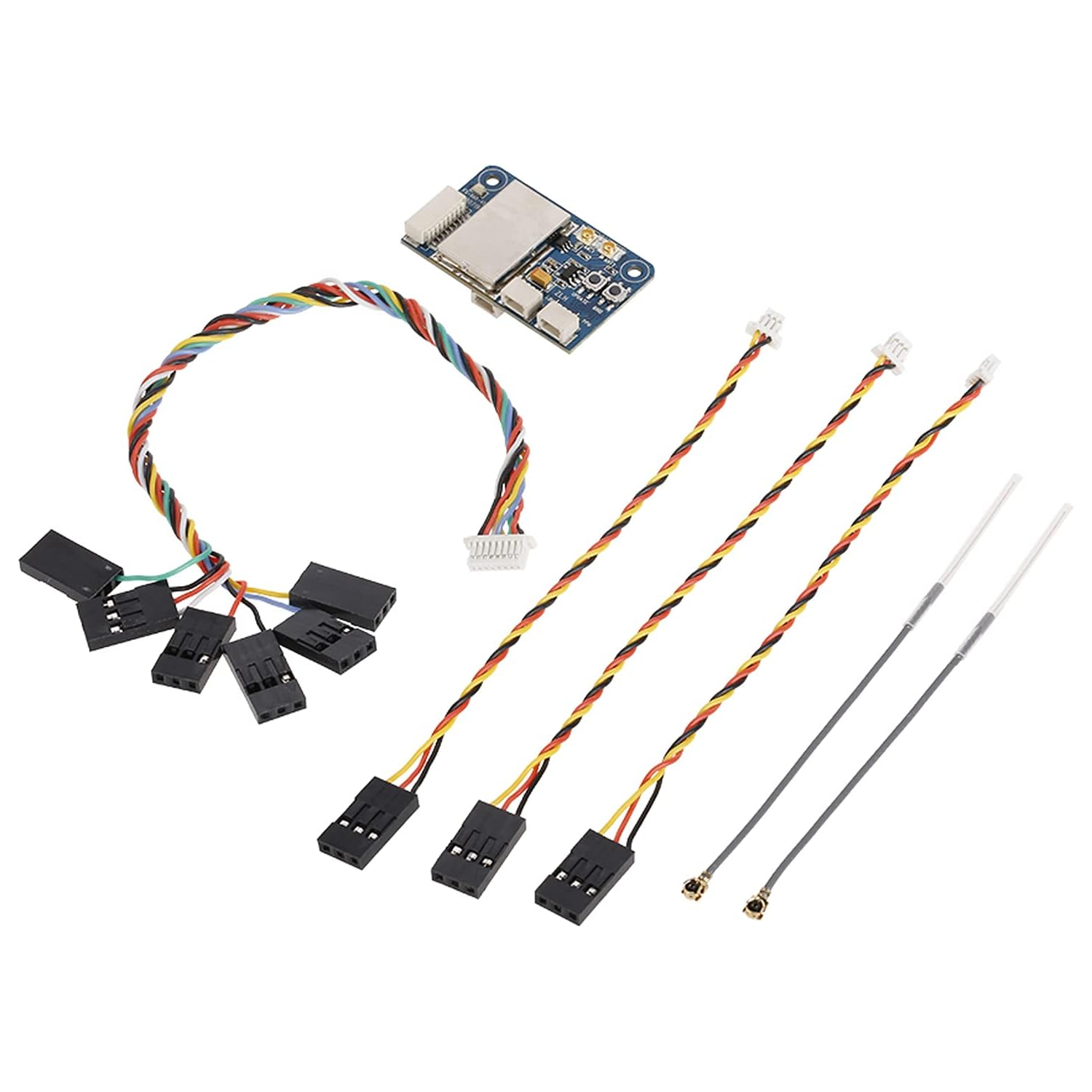

Package Included:

• 1 x  Flysky X6B 2.4GHz 6CH Receiver
• 3 x Signal Cable For Voltage Sensor, PPM, and i-Bus port

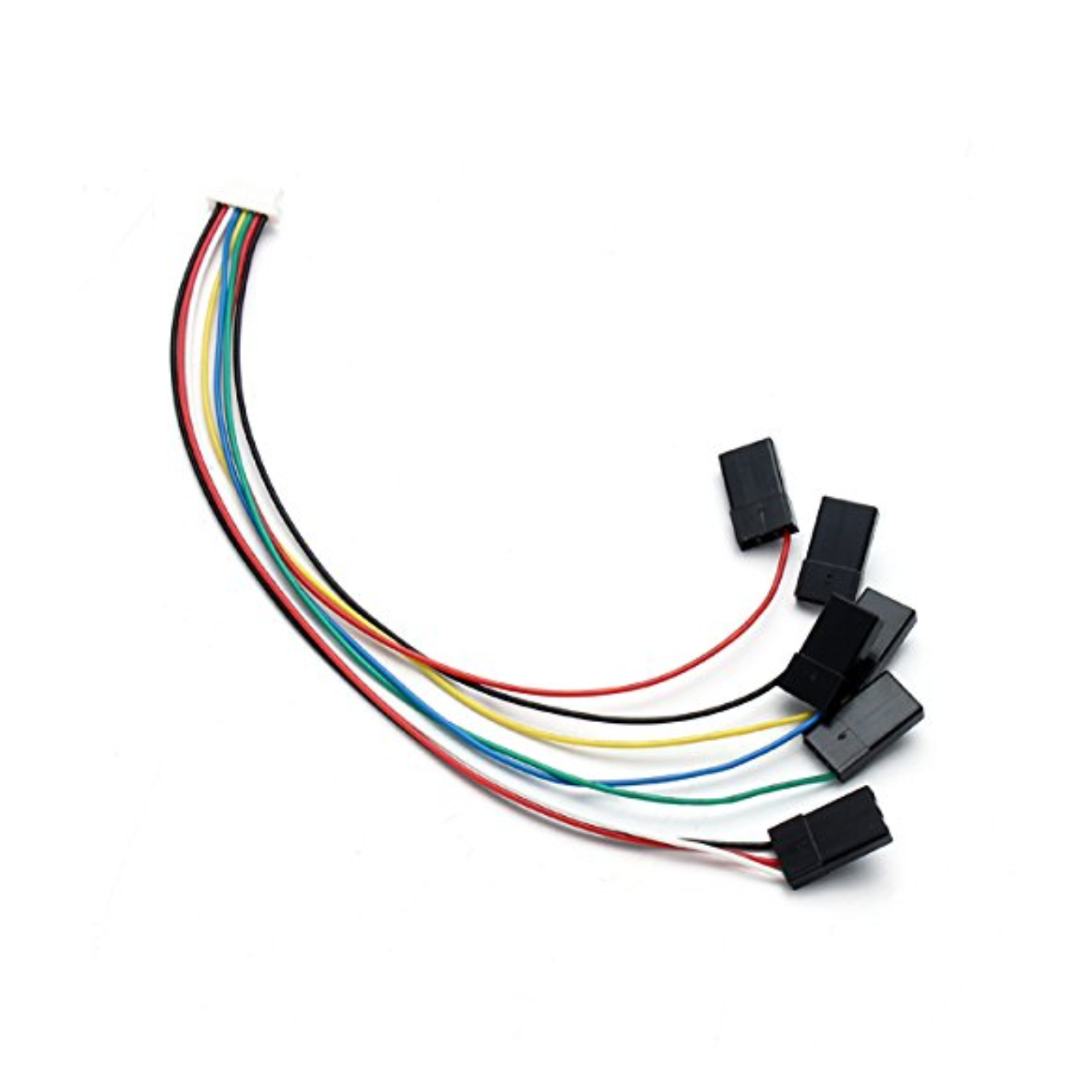

• 1 x Signal Cable for PWM Port
