Description:
Unleash Intuitive Control with the FlySky FS-T6 6CH 2.4GHz System. Building upon the legacy of FlySky's popular CT6B, the FS-T6 offers a streamlined and user-friendly 6-channel experience. This powerful yet accessible transmitter and FS-R6B receiver combo is perfect for sport modelers, providing essential programmable features for helicopters, gliders, and airplanes without overwhelming complexity. Enjoy the simplicity of its intuitive click-and-scroll menu navigation on a large backlit LCD, the convenience of 20-model memory, and the reliable anti-interference of FlySky's AFHDS 2.4GHz technology.
Specifications:
FS-T6 6CH Transmitter
- Channels: 6
- Model type: glider/heli/airlane
- RF range: 2.4000-2.485GHz
- Bandwidth: 500 KHz
- Band: 160
- RF power: less than 20 dBm
- 2.4G system: AFHDS
- Code type: GFSK
- Sensitivity: 1024
- Low voltage warning: yes(less than 9V)
- DSC port: yes(PS2; output: PPM)
- Charger port: yes
- Power: 12V DC(1.5V AA x 8)
- ANT length: 26mm
- Certificate: CE0678, FCC

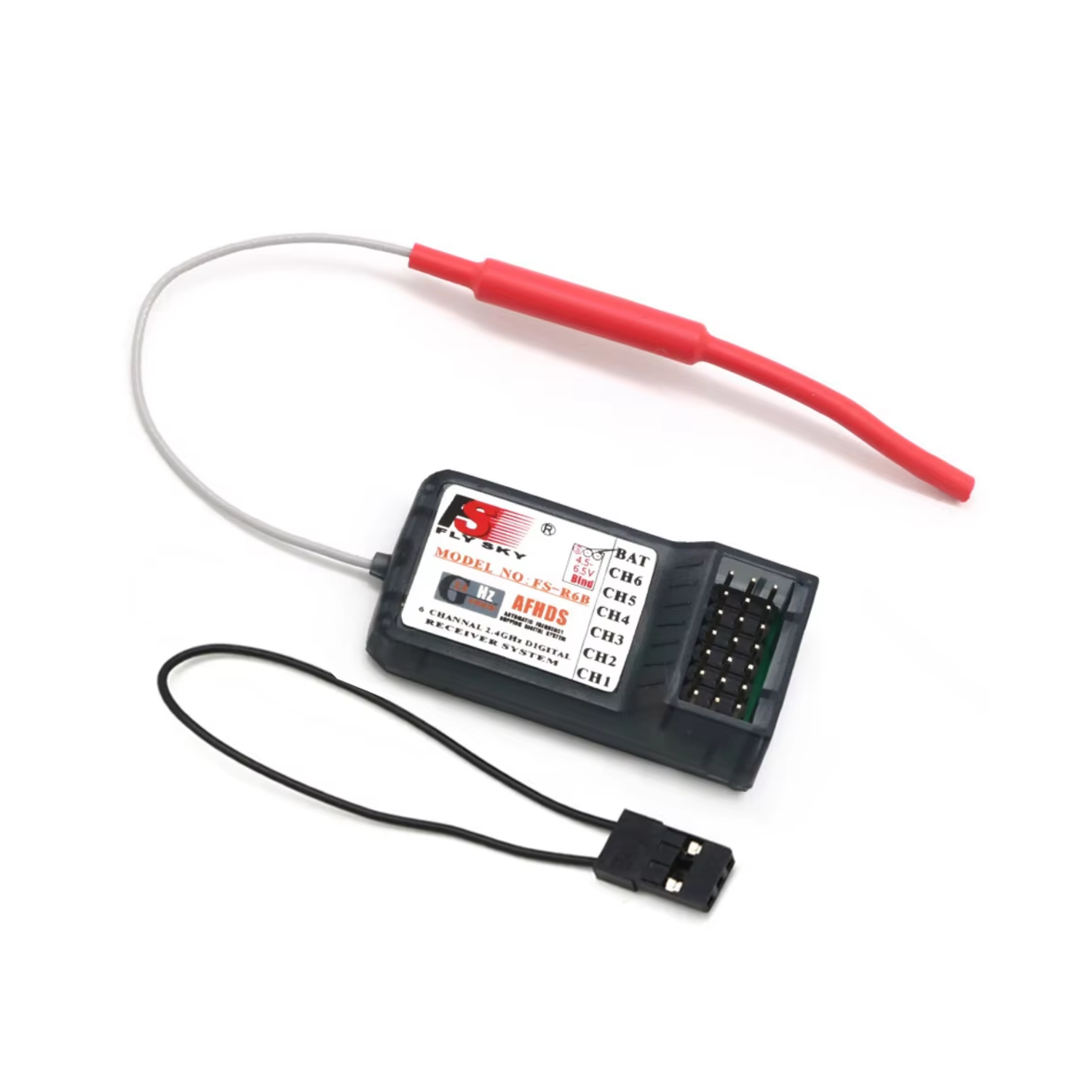

FS-R6B Receiver
- Brand Name: Flysky
- Channels: 6 Channels
- Model type: heli/airplane
- RF power: less than 20 dBm
- modulation: GFSK
- Code type: PCM
- Sensitivity: 1024
- Low voltage warning: LED
- Charger port: yes
- ANT length: 26mm
- Frequency: 2.4G
- Power: 5V DC(1.5V AAA*4)
- Certificate: CE, FCC, RoHS
Features:
- Intuitive 6CH 2.4GHz System
- Perfect for Sport Modelers
- Versatile Model Support
- 20 Model Memory
- Easy Programming
- Clear Backlit LCD
- Simplified Menus
- Graphical Programming
Pin Description:
Useful Link:
Package Included:
- 1 x FlySky FS-T6 6CH Transmitter Remote
- 1 x FS-R6B 6-channel Receiver
- 1 x User Manual
