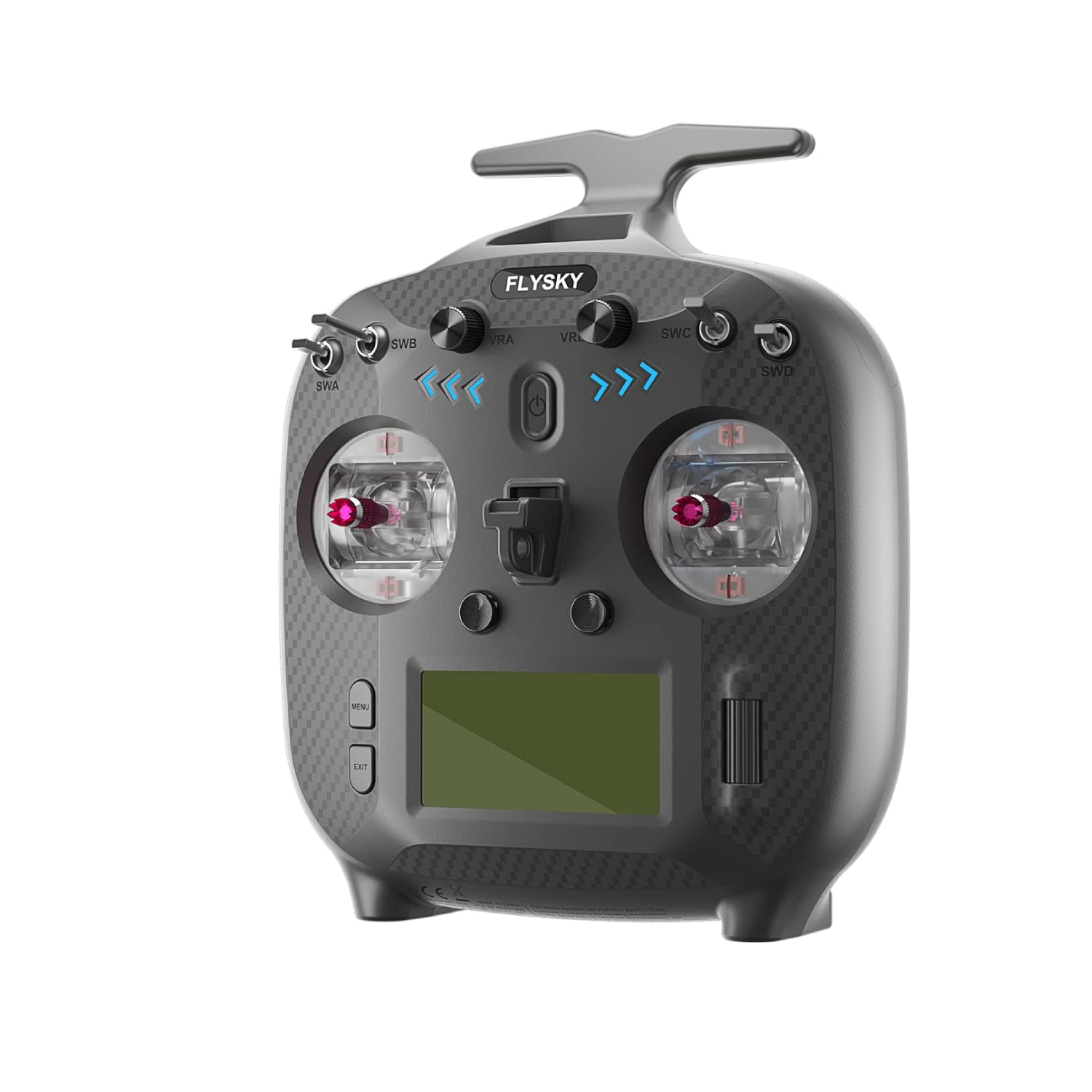

FlySky FS-ST8 2.4GHz ANT RC Transmitter FS-SR8 Receiver For RC Airplane Car FPV Drone (Upgraded Version)

Description:

Introducing the Upgraded FlySky FS-ST8 2.4 GHz ANT Transmitter with FS-SR8 Receiver: Bridging the gap between Flysky's budget-friendly FS-I6x and their high-end PL18, the brand-new FS-ST8 arrives boasting Flysky's innovative ANT (Advanced Novel Transmission) protocol. This next-generation technology offers a significant step up from the older AFHDS 2A, delivering enhanced performance and reliability while positioned as a more accessible alternative to the premium AFHDS 3.

Equipped with 10 channels, the FS-ST8 provides ample control for various applications, from intricate quadcopters and sophisticated airplanes to ground vehicles. The transmitter also features a JR-style external module bay, expanding its versatility. However, it's important to note that this port is exclusively compatible with FLYSKY modules, limiting its use with third-party systems like Crossfire or ELRS.

Specifications:

Transmitter:

• Channels: 8-10
• Adaptive Receiver: FS-SR8 ( Adapts Receiver with ANT Protocol )
• Model Type: Helicopters, Gliders, Delta-wing Airplanes, Multicopters, Engineering vehicles, Robots, Cars or Boats, etc.
• RF: 2.4GHz ISM
• Maximum Power: 20dBm (e.i.r.p.) （EU）

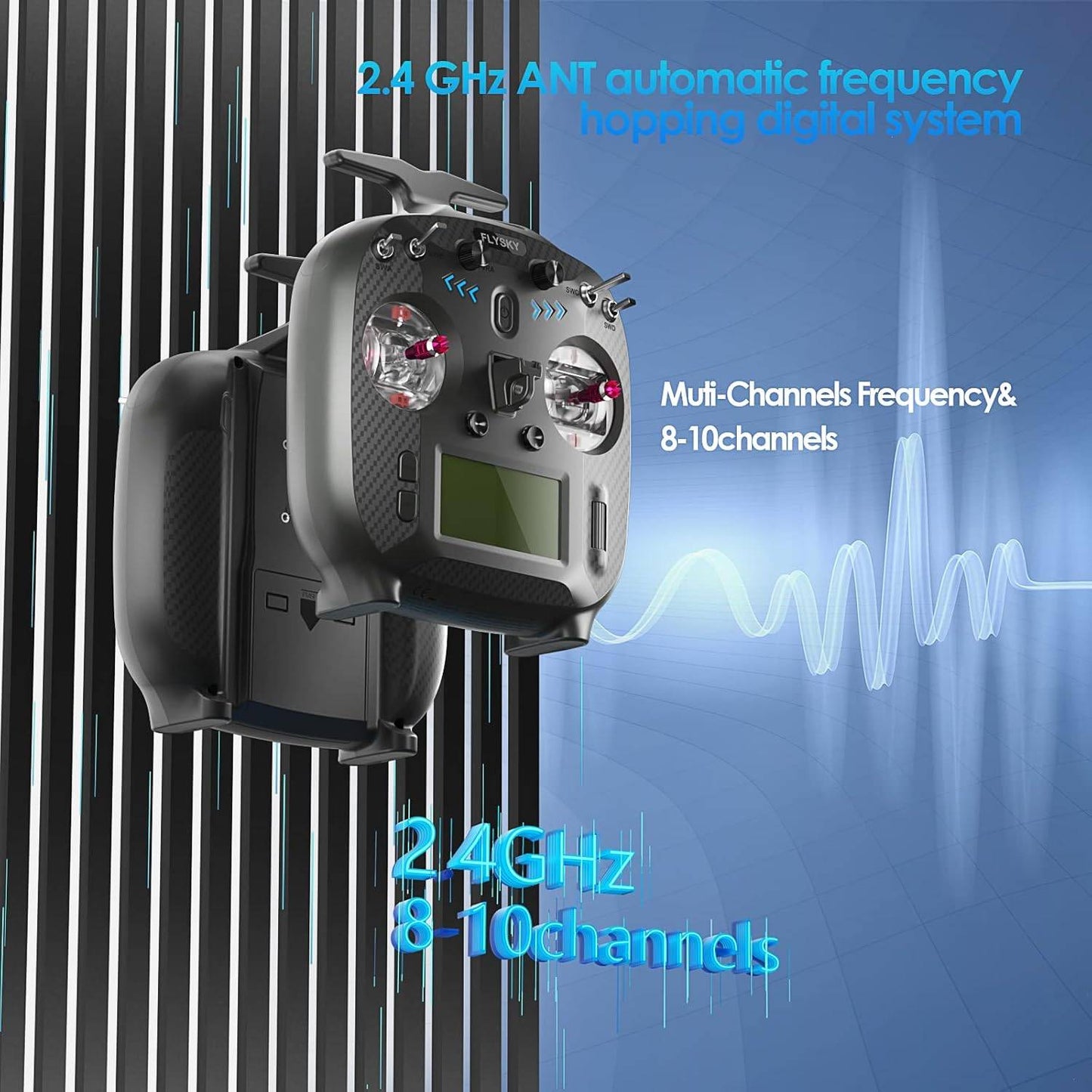

• 2.4GHz Protocol: ANT
• Distance: 1000m（Air distance without interference）
• Channel Resolution: 4096
• Battery: 1.5AA*4 / 2S Lipo（JST）
• Charging Interface: NO
• Data Output: PWM/PPM/i-BUS/S.BUS
• Low Voltage Warning: AA battery: 4.2V/ Lipo battery: 7.2V

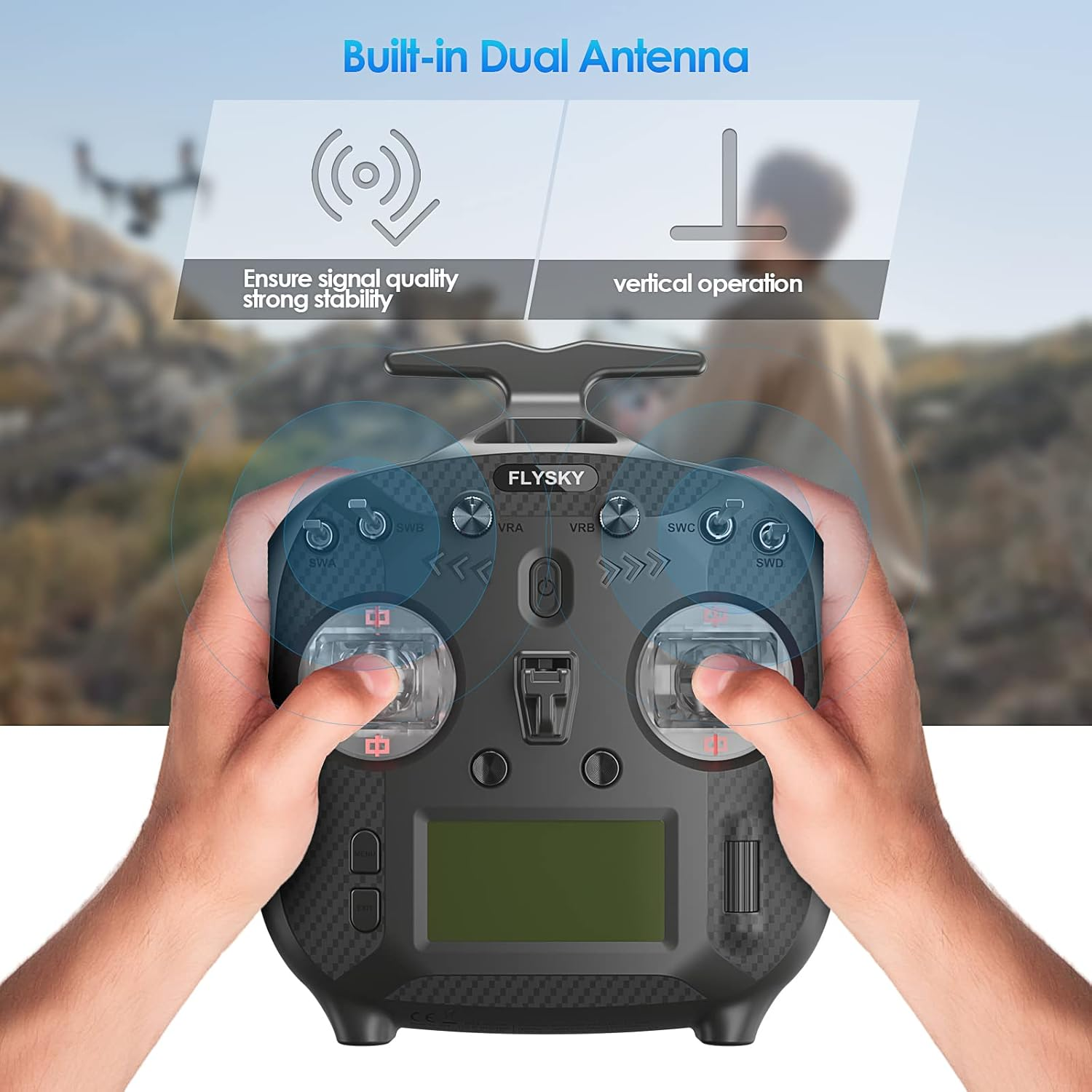

• Antenna Type: Built-in double antennas
• Display: 128*64 LCD (Black and white Dot Matrix Screen)
• Temperature Range: -10℃ ~ +60℃
• Humidity Range: 20% ~ 95%

• Online Update: Yes
• Color: Black

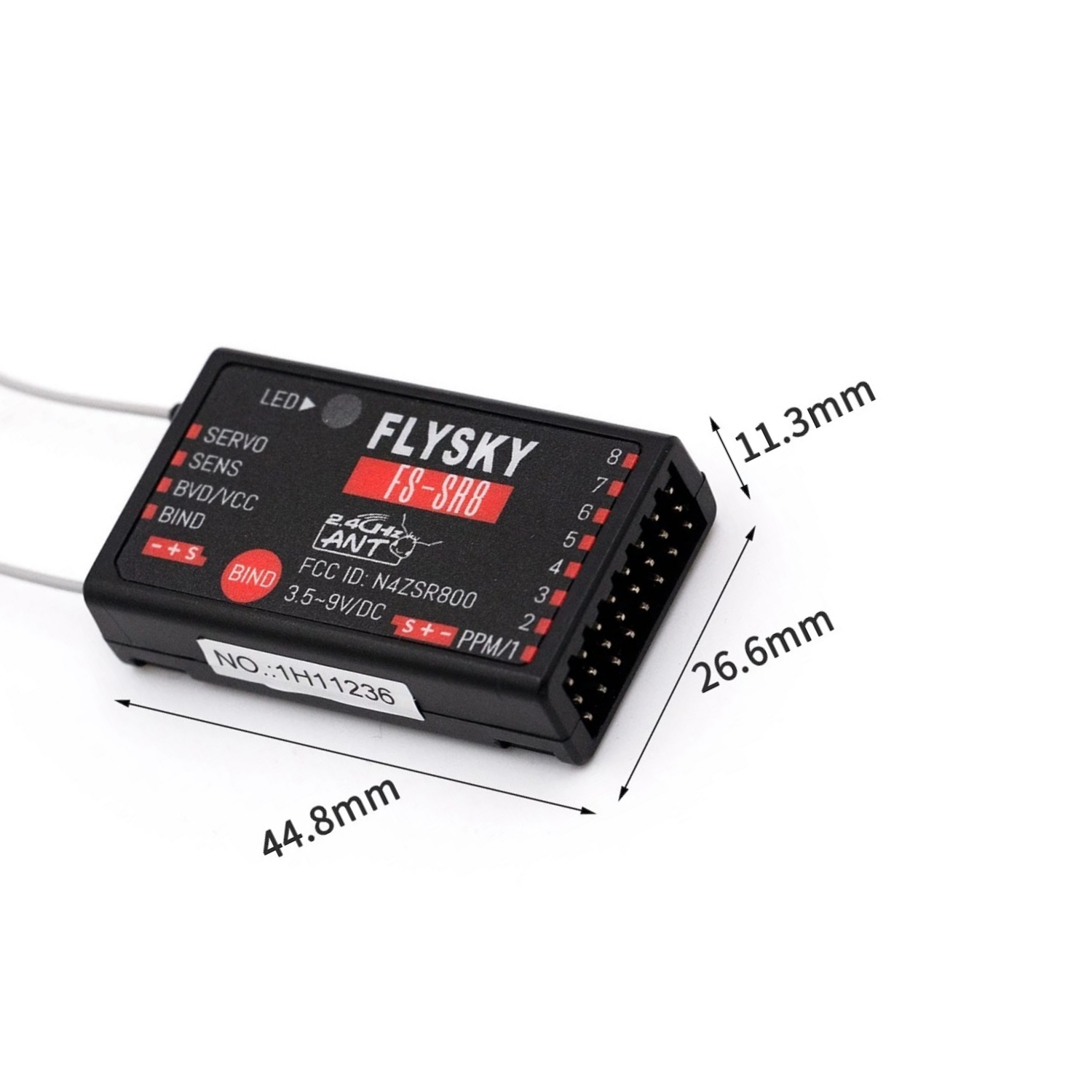

Receiver:

• Adaptive Transmitter: FS-ST8 (Adapts Transmitter with ANT Protocol )
• Adaptive Models: Helicopters, Gliders, Delta-wing airplanes, Multicopters, Engineering Vehicles, Robots, Cars or Boats, etc.
• Channels: 8-10
• Maximum Power: 20dBm (e.i.r.p.) （EU）
• RF: 2.4GHz ISM
• 2.4GHz Protocol: ANT
• Distance: 1000m (Air Distance without Interference）
• Antenna Type: Two Antennas
• Input Power: 3.5~9V/DC
• Data Output: PWM/PPM/i-BUS/S.BUS
• Online Update: Yes
• Temperature Range: -10℃ ~ +60℃
• Humidity Range: 20% ~ 95%


Useful Link:

• Firmware EN(Potentiometer)
• Firmware EN(Potentiometer)
• User Manual

Package Included:

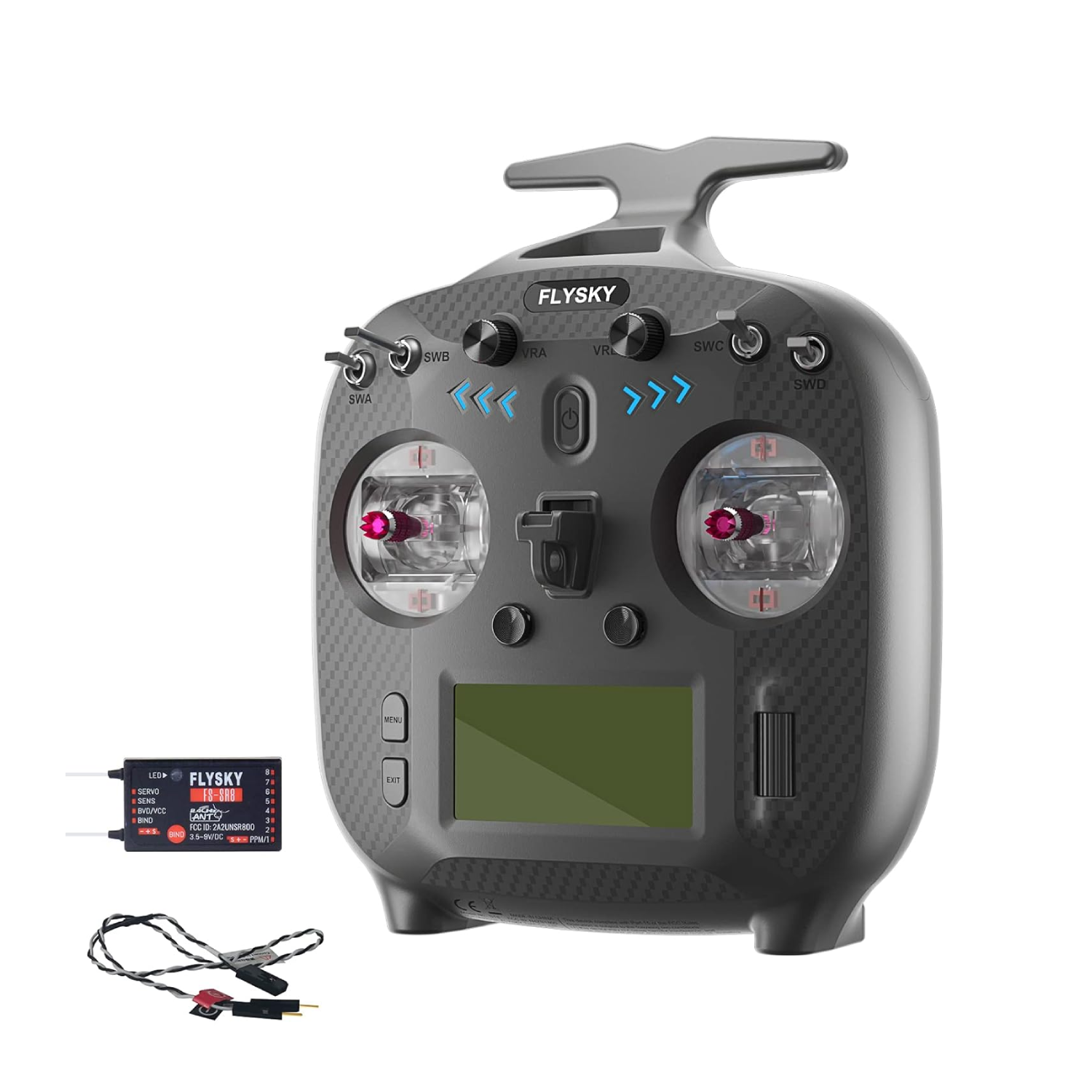

• 1 x FlySky FS-ST8 2.4 GHz ANT Transmitter
• 1 x FS-SR8 receiver
