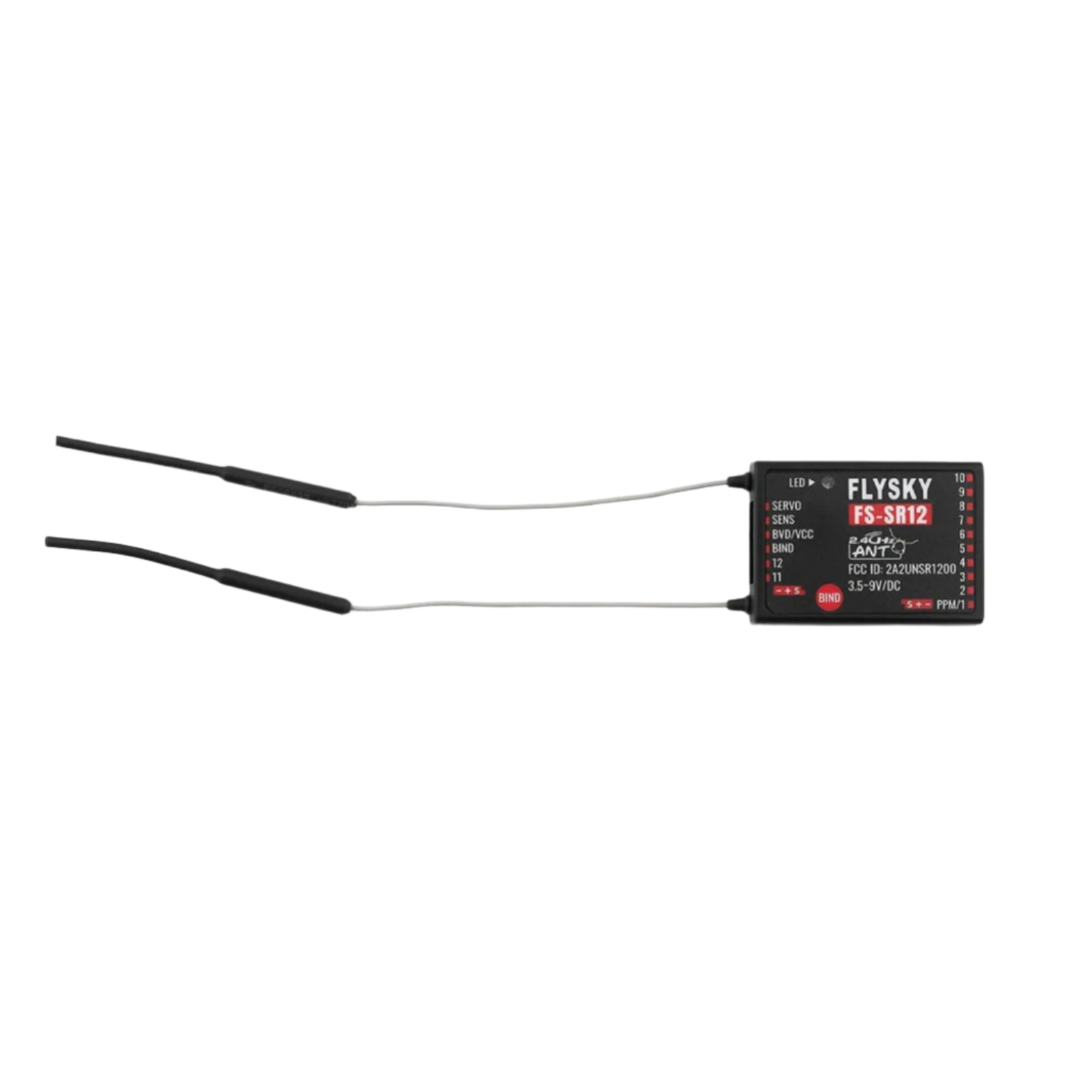

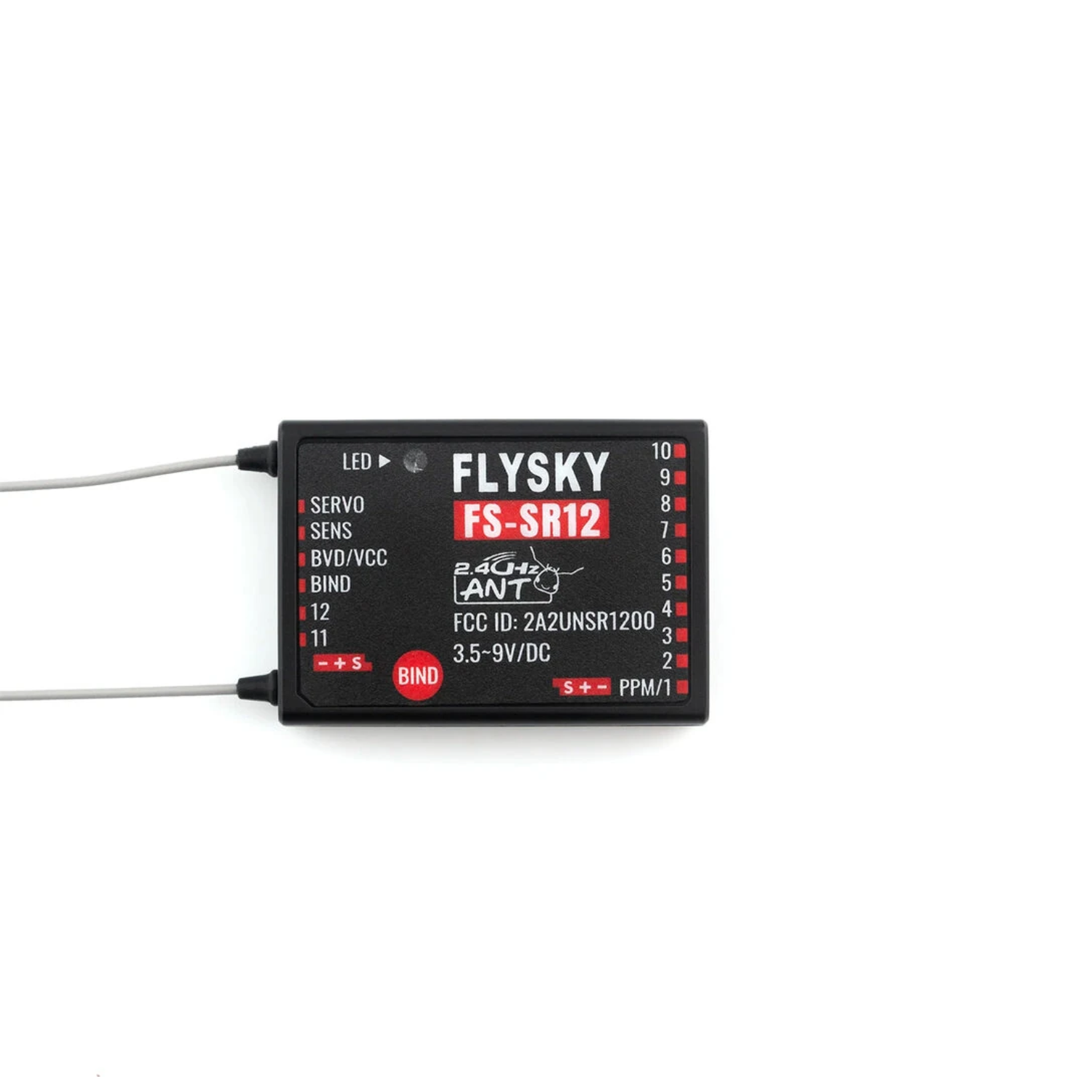

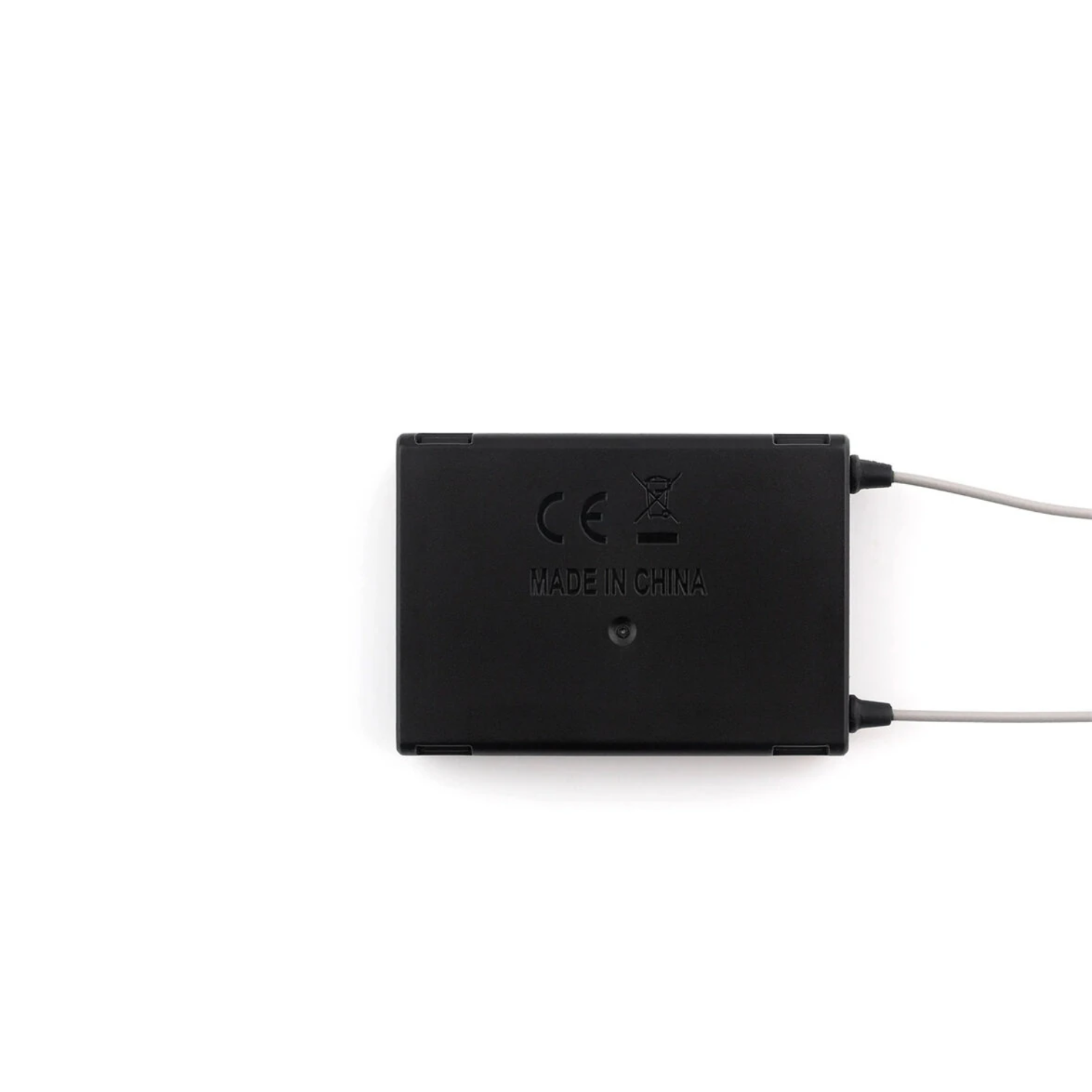

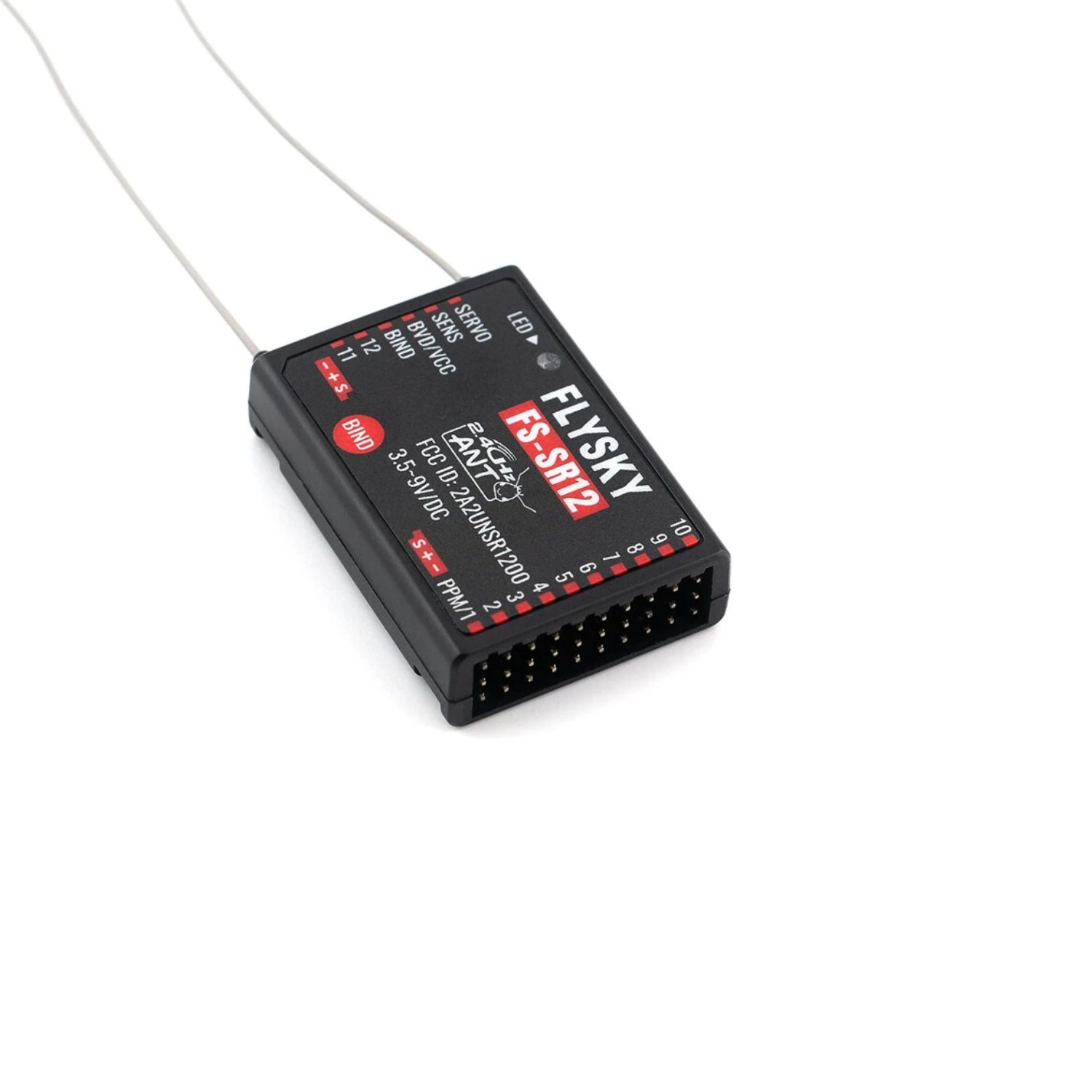

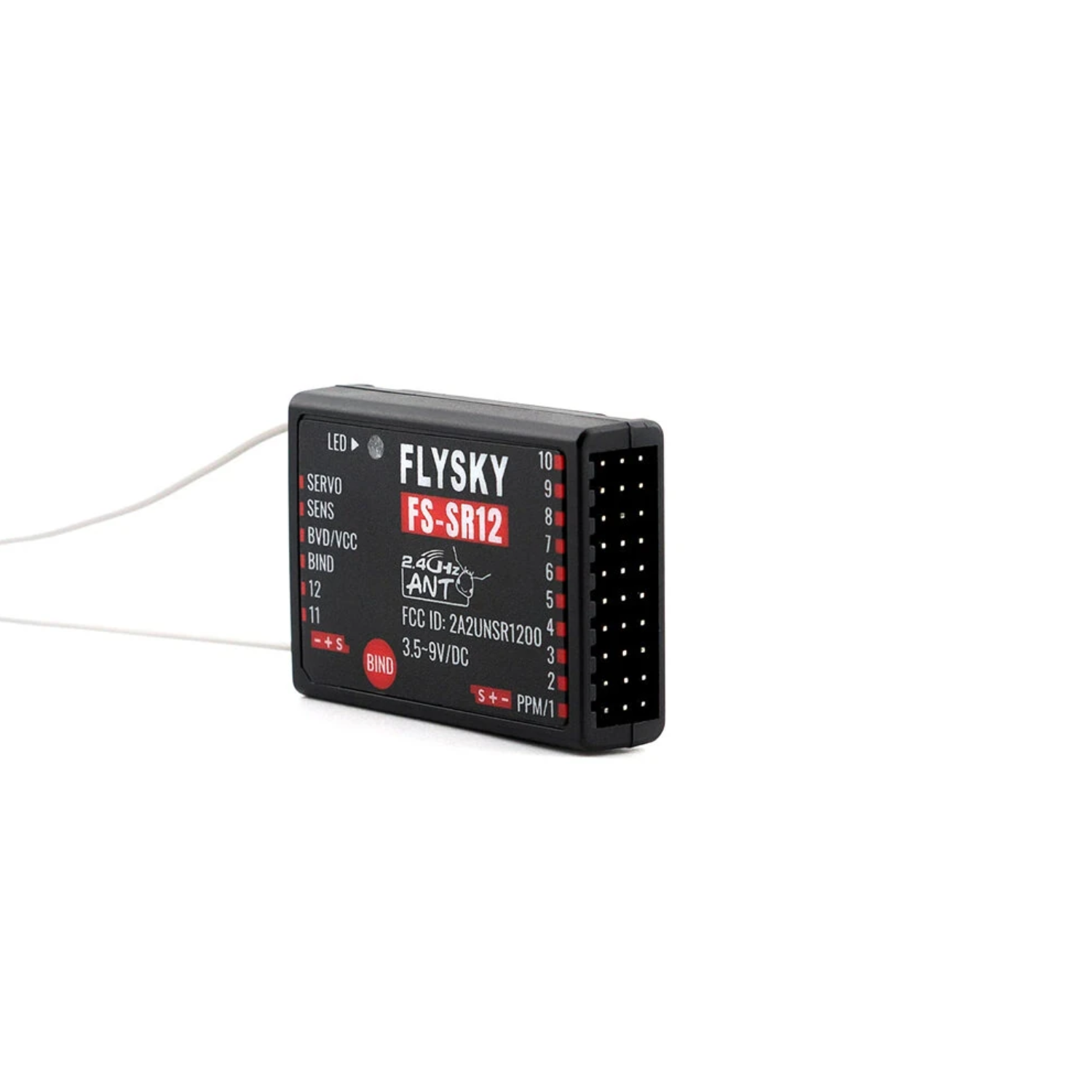

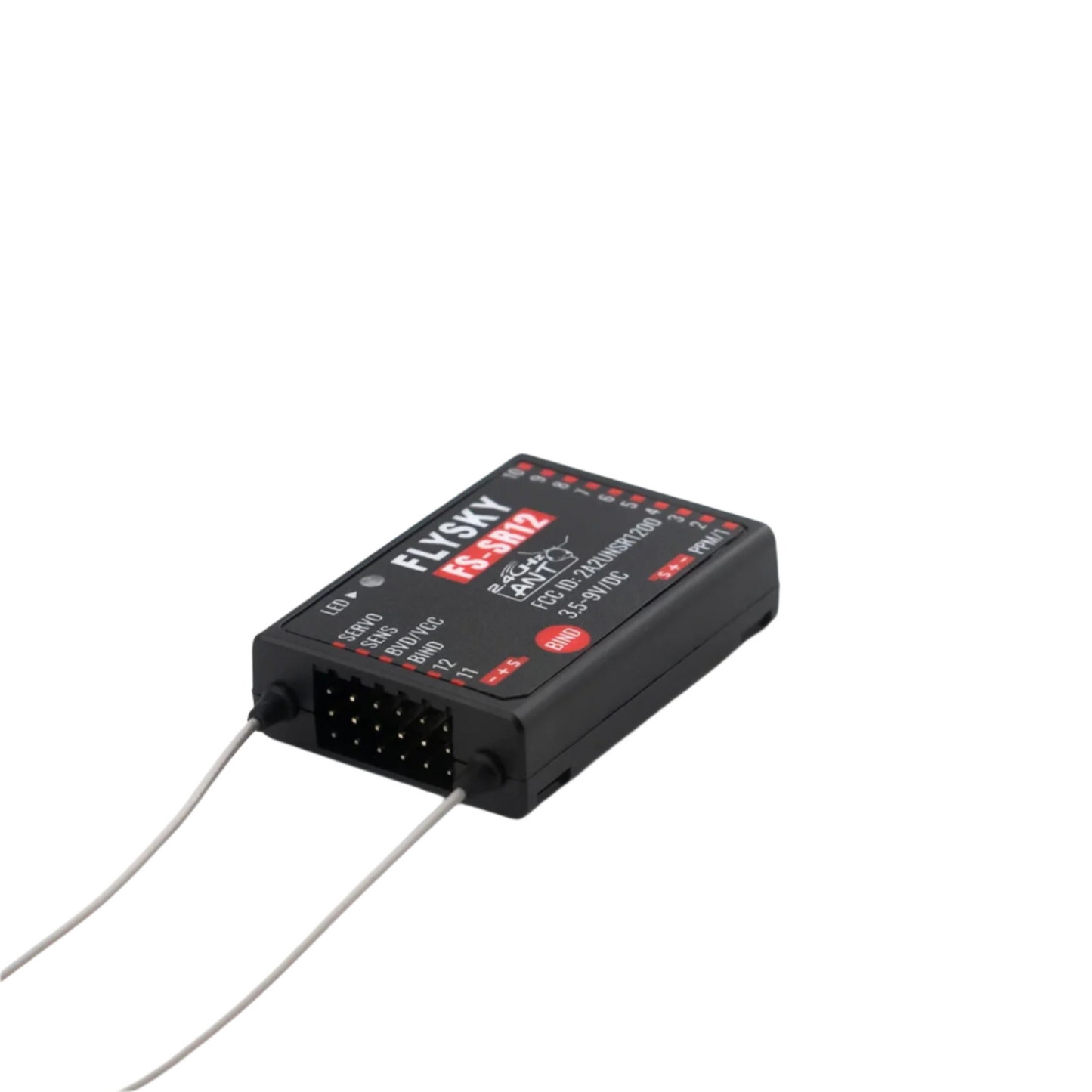

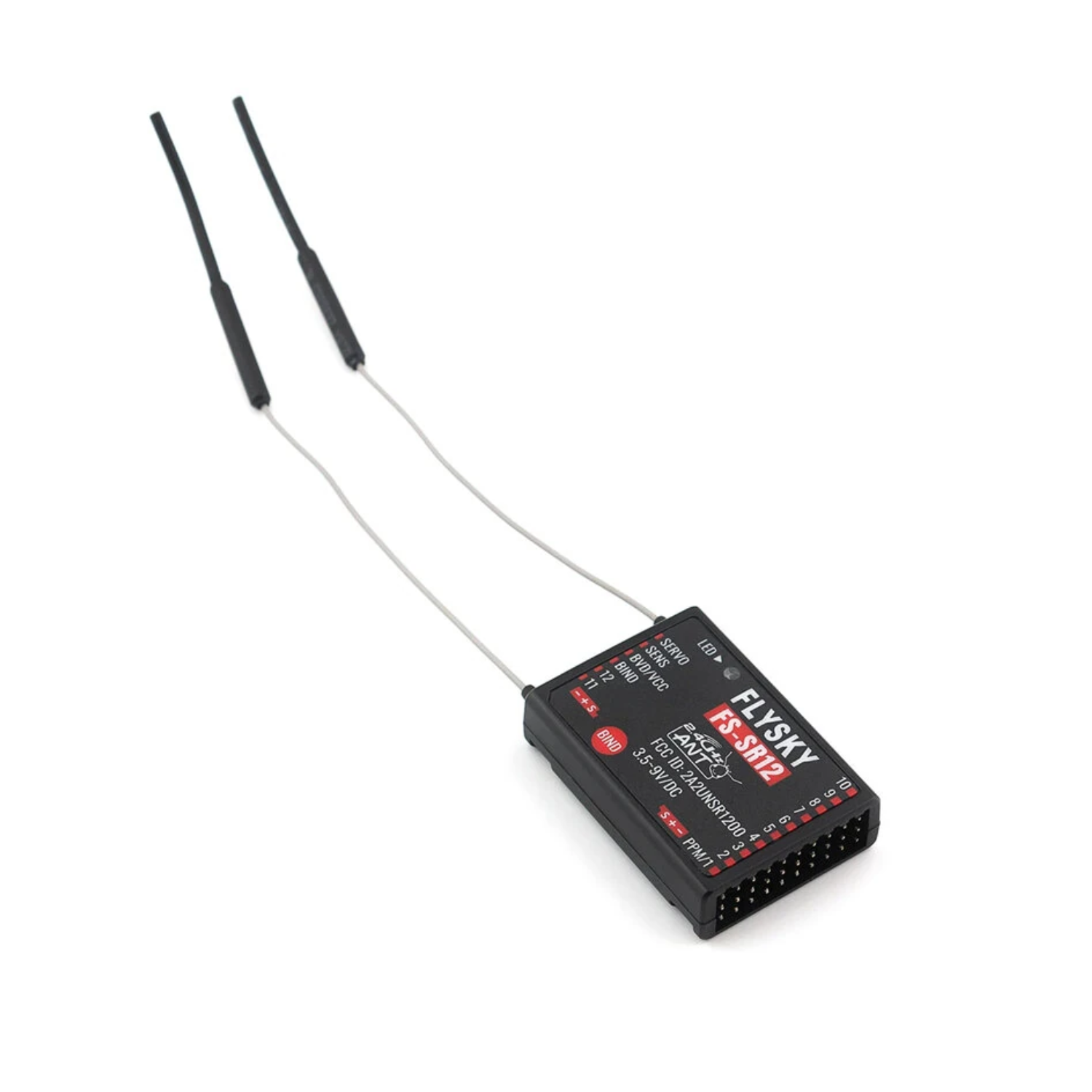

Flysky FS-SR12 12CH Receiver 2.4Ghz ANT Protocol PWM Output Receiver Dual Antenna For Fixed Wing RC Car Boat Robot Model

Flysky FS-SR12 12CH Receiver 2.4Ghz ANT Protocol PWM Output Receiver Dual Antenna For Fixed Wing RC Car Boat Robot Model

In stock

Rs. 1,900.00
Rs. 1,900.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

FS-SR12 is a receiver in compliance with the ANT protocol, supporting the output of 12 PWM channels signals.It has two antennas, supporting two-way transmission and transfer-back function. Featuring the compact design, FS SR12 can be adapted for a variety of models.

Specifications:

  • Product Name: FS-SR12
  • Compatible Transmitters: Adapts transmitters with ANT protocol, such as FS-ST8
  • Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, engineering vehicles, boats, robots or cars.
  • PWM Channels: 12
  • RF: 2.4GHz ISM
  • Maximum Power: 20dBm (e.i.r.p.) （EU）
  • 2.4G Protocol: ANT
  • Resolution: 4096
  • Antenna: Two antennas
  • Distance: 1500m (Air distance without interference)
  • Input Power: 3.5~9V/DC
  • Working Current: 70mA/5V
  • Data Output: PWM/PPM/i-BUS/S.BUS
  • Online Update: Yes
  • Temperature Range: -10℃ ~ +60℃
  • Humidity Range: 20% ~ 95%

Useful Link:

User Manual

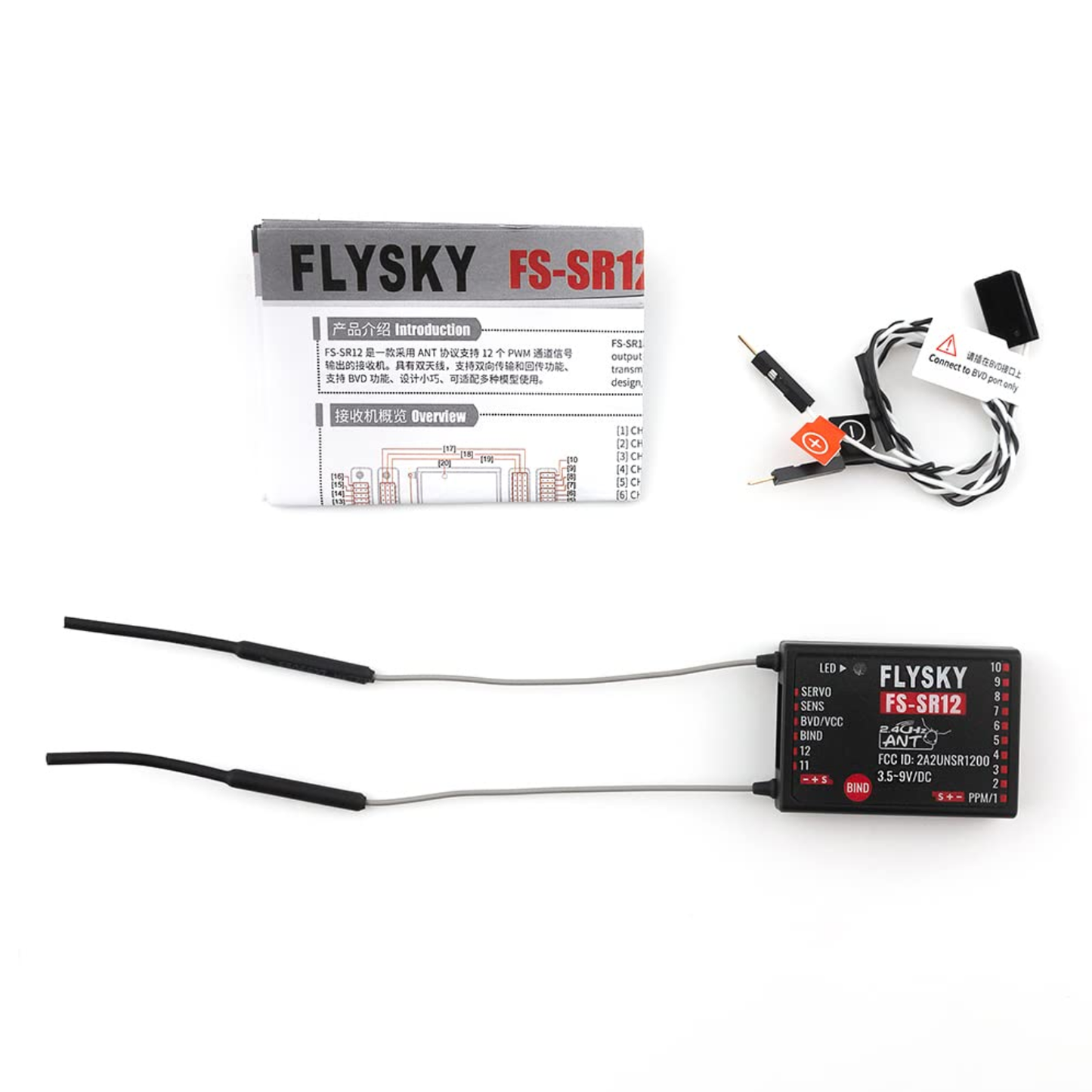

Package Included:

1 x Flysky FS-SR12 Receiver
