Description:

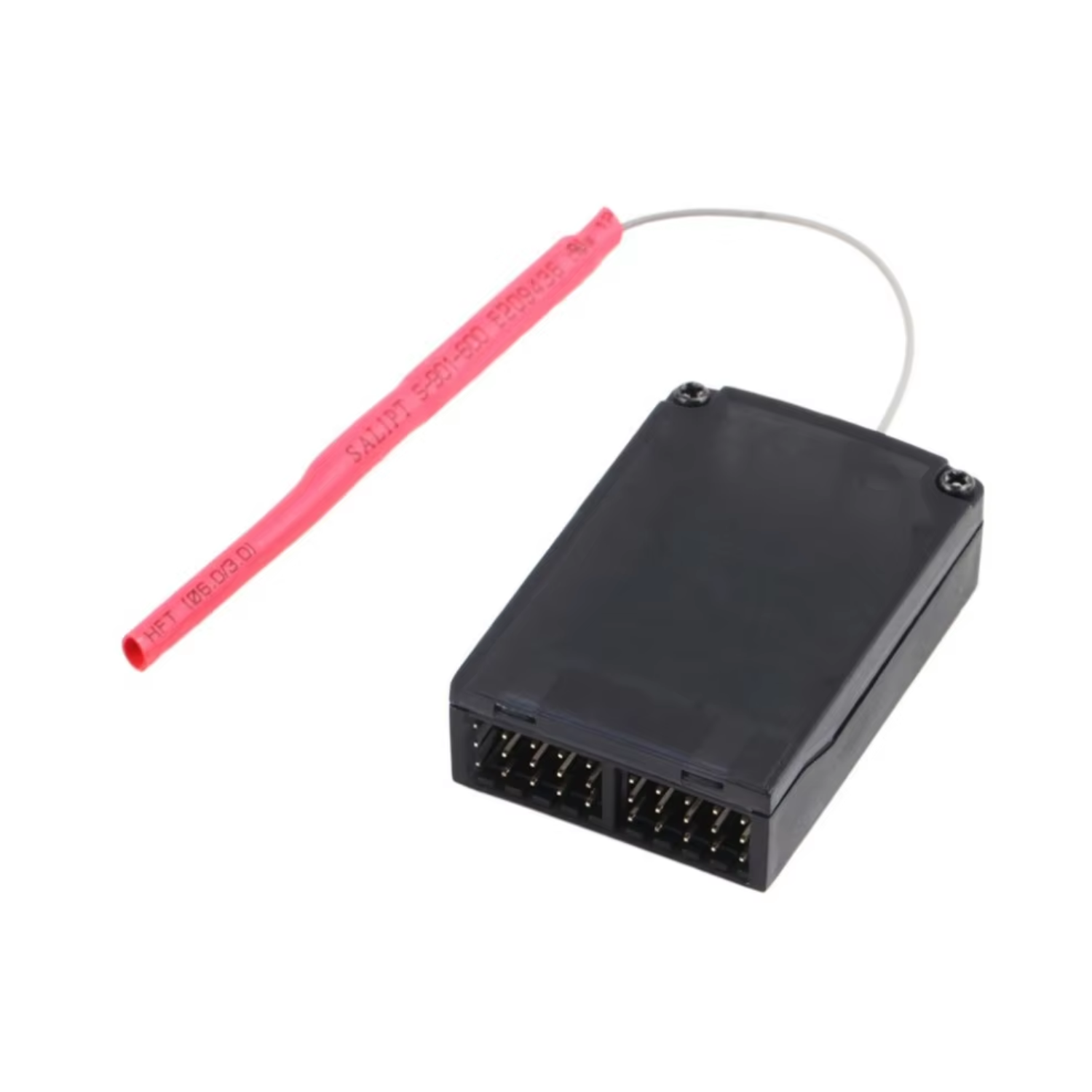

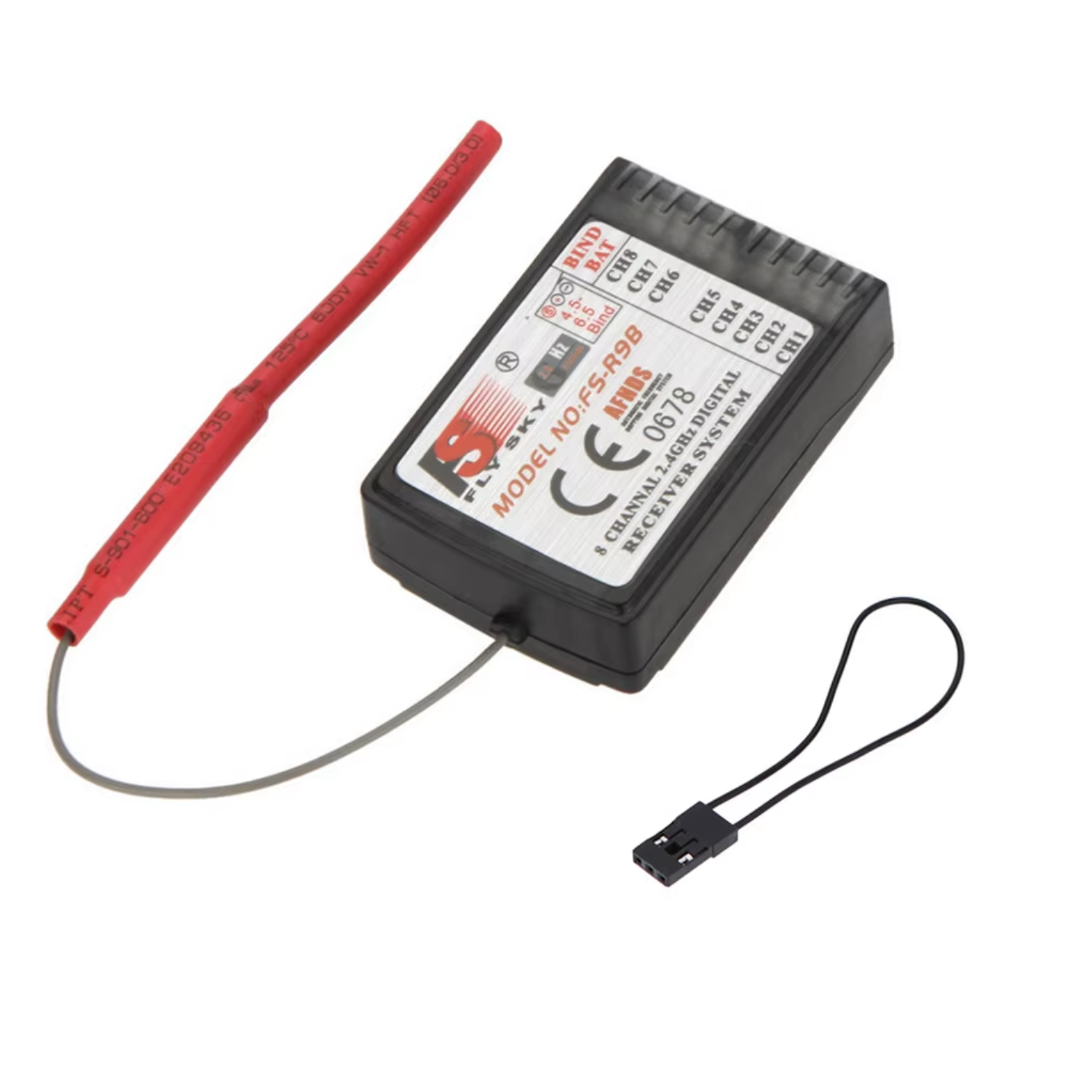

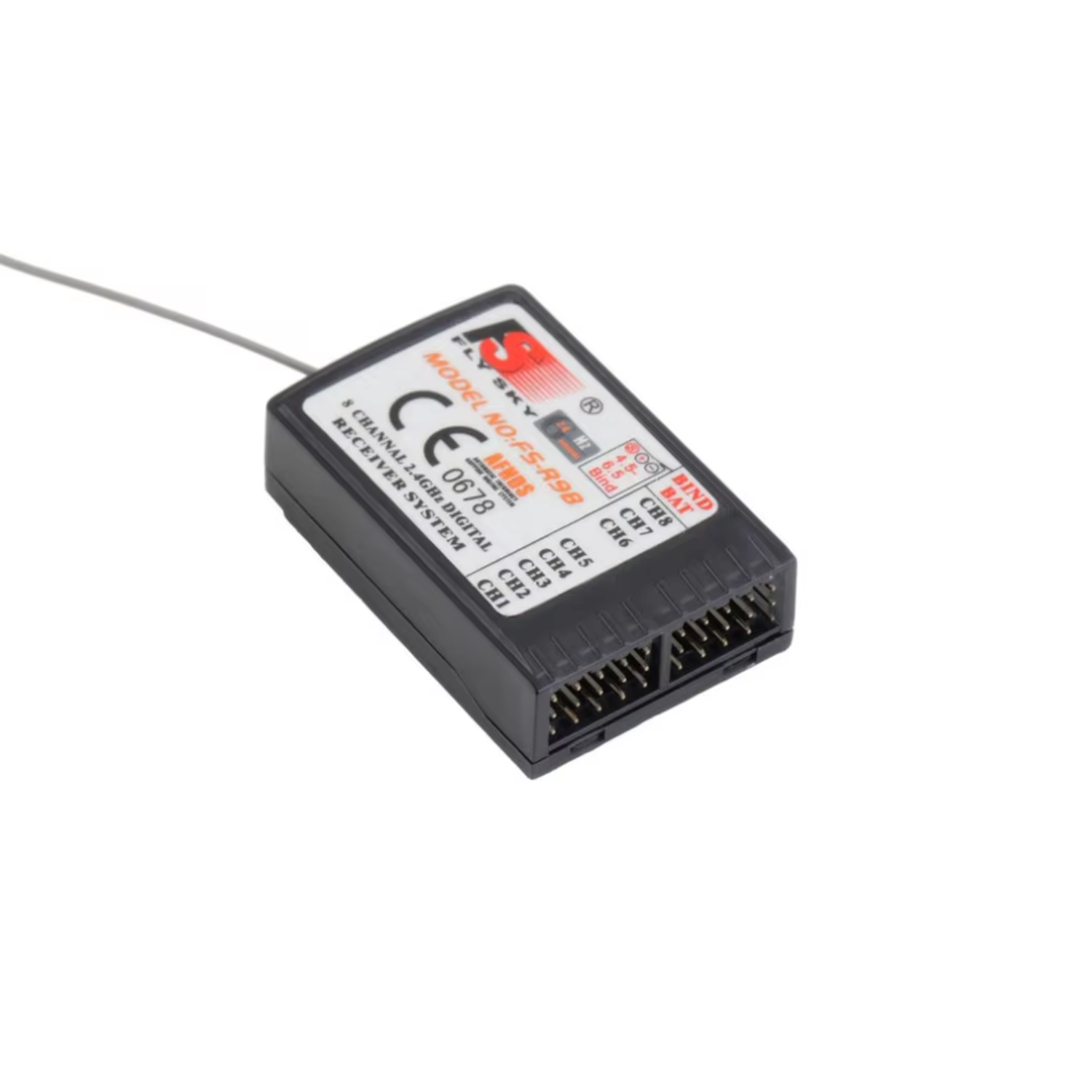

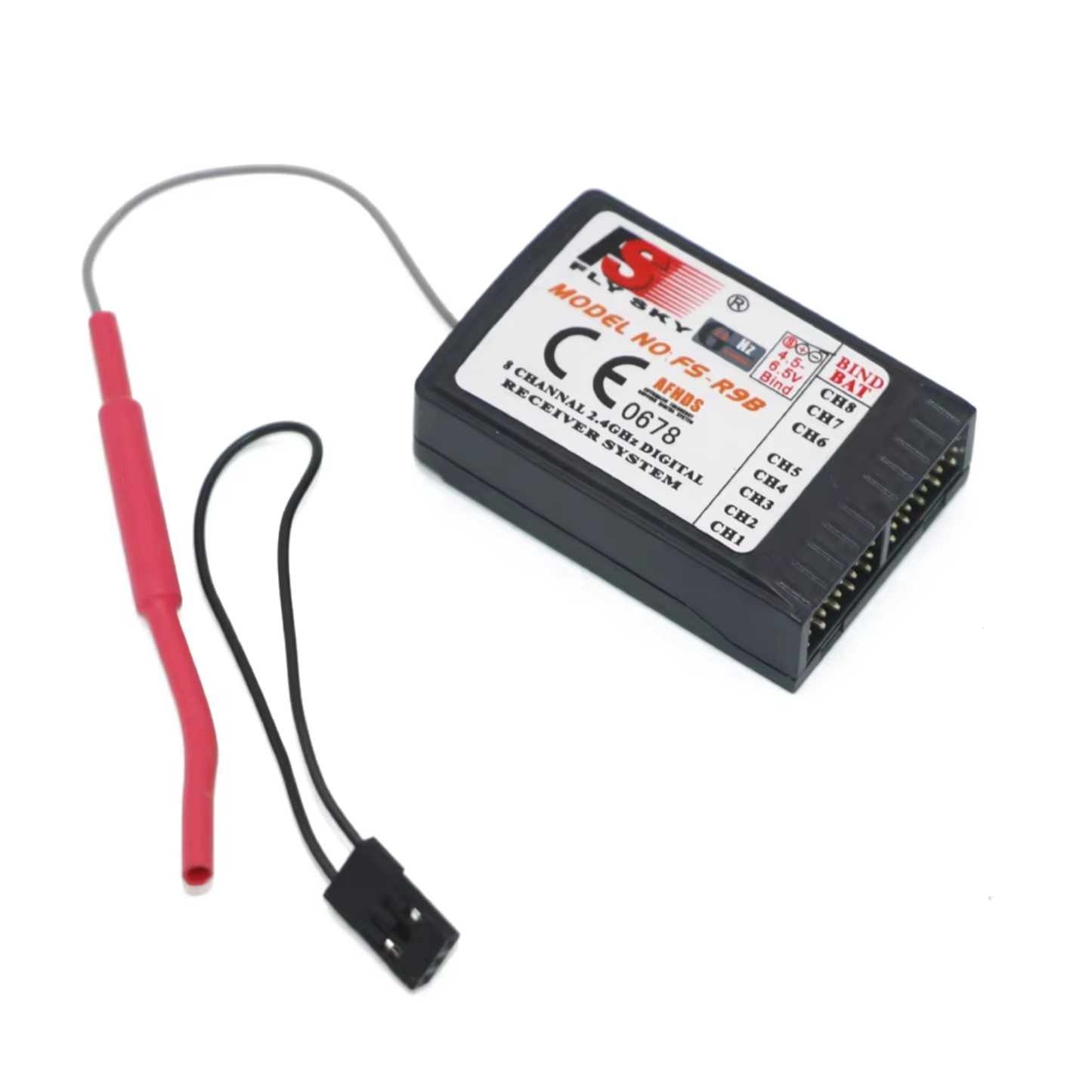

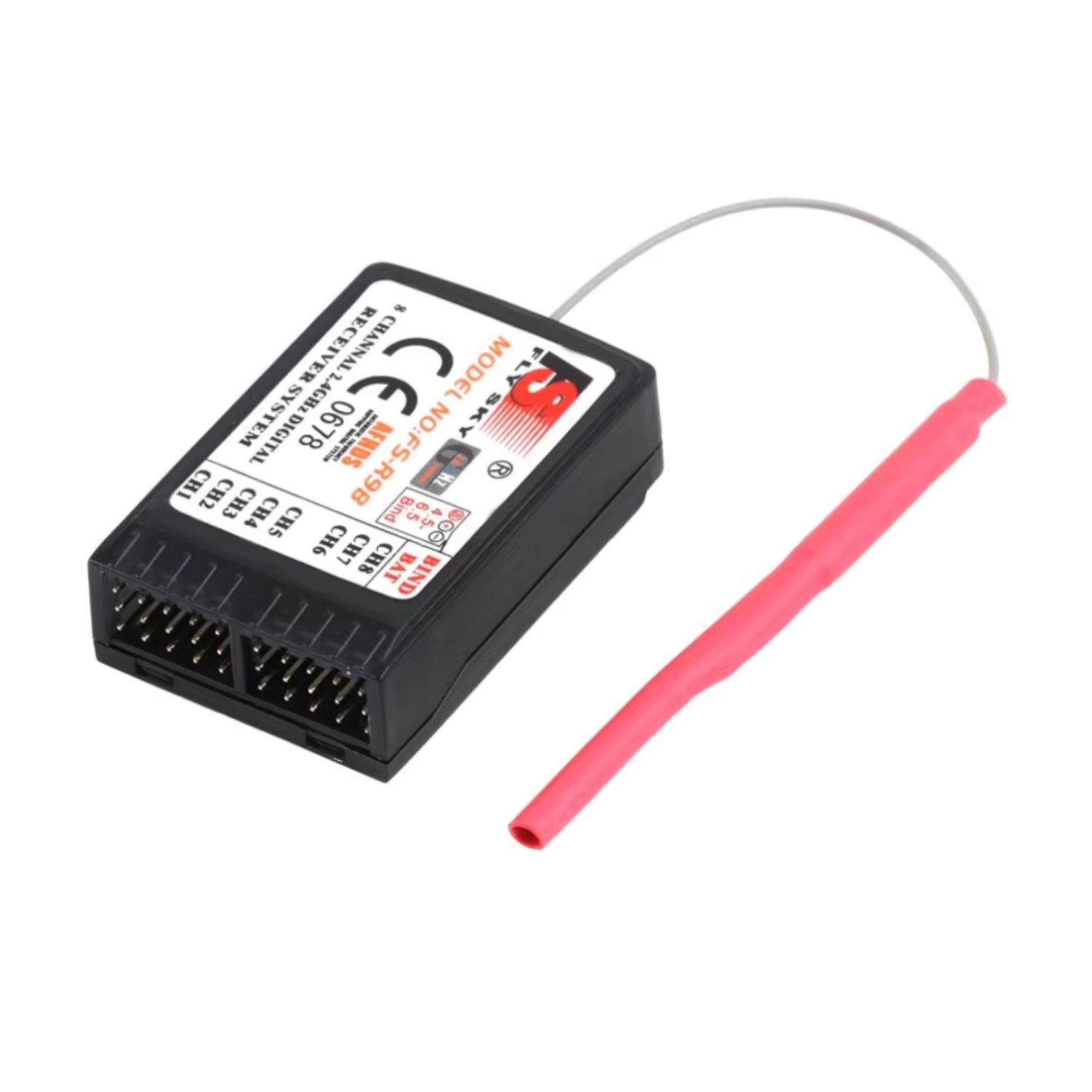

The FlySky FS-R9B 2.4GHz 8-channel receiver is Engineered for ultra-low power consumption and boasting high receiving sensitivity, this receiver ensures extended operation and a rock-solid connection. Benefit from FlySky's proven AFHDS (Automatic Frequency Hopping Digital System), a technology honed through rigorous testing and years of market understanding, establishing it as a premier choice for discerning RC enthusiasts. Operating on the advanced 2.4GHz band inherently shields your control signals from disruptive noise generated by onboard electronics like motors, ESCs, and servos, effectively eliminating interference and glitches that plague traditional frequency systems.
Specifications:
- Model: FS-R9B
- PWM channels: 8
- Wireless frequency: 2.4GHz
- Wireless protocol: AFHDS
- Range: 500 ～ 1000m (in the air)
- Antenna type: single antenna (150mm)
- Power: 4.0 -6.5 V
- RSSI: Not supported
- Data port: PWM
- Temperature range: 0 ℃ — + 60 ℃
- Humidity range: 20% -95%
Features:
- AFHDS 2.4GHz System
- SC Port
- <15ms Latency
- Low Power, High Reliability
- Stable Performance
- CE, FCC Certified
- Wide Application
How to bind the RX (receiver) to the TX (transmitter):
- Plug bind plug into BAT, turn on plane/heli, the LED light should flash (make sure power is connected to RX via ESC)
- Hold down bind button on transmitter module while turning on the TX
- The light should go steady now
- Let go of bind button, turn off plane/heli, remove bind plug, turn off TX
- Turn on TX and then turn on plane/heli
Package Included:
- 1 x FlySky FS-R9B 2.4G 8CH Receiver

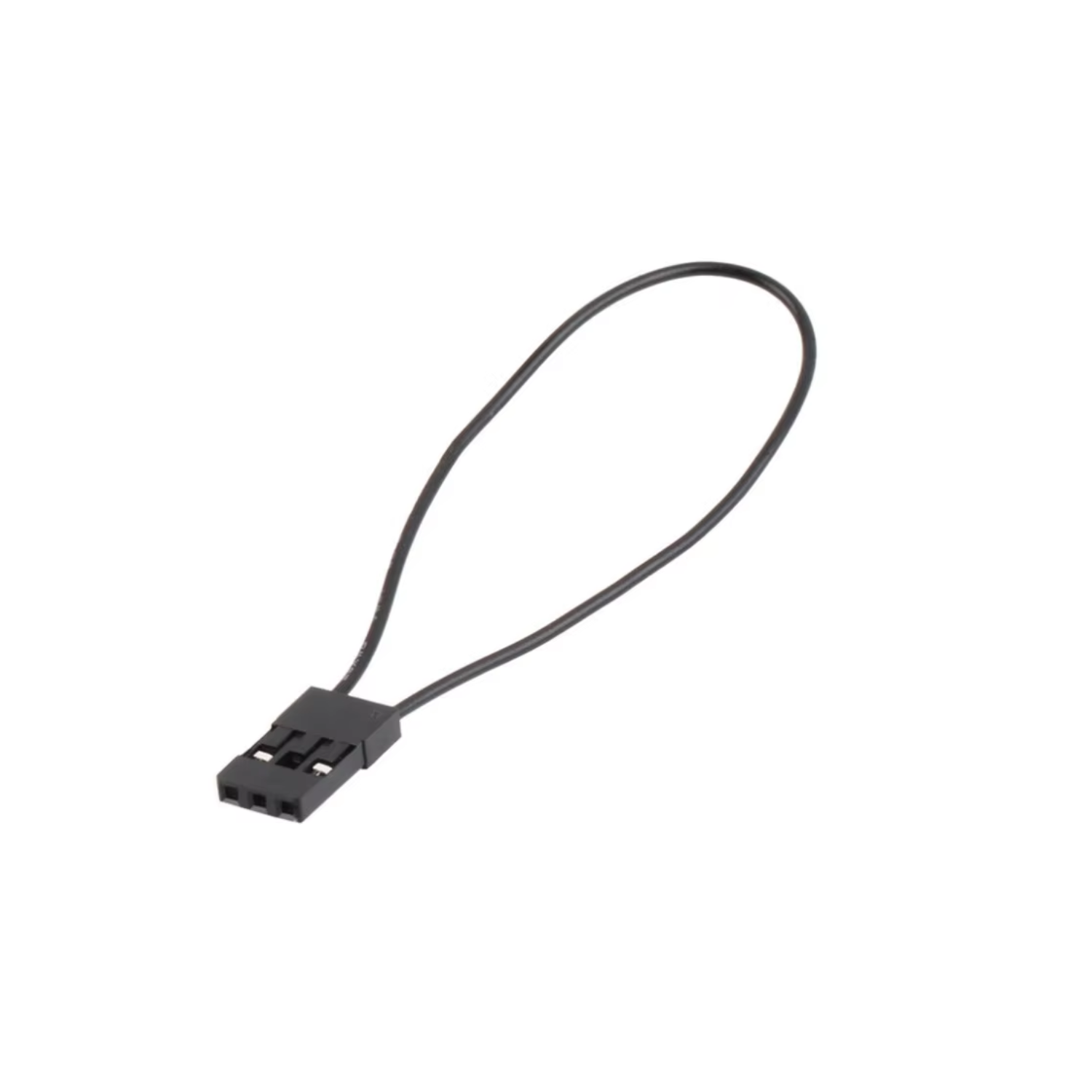

- 1 x Bind Key
