Description:

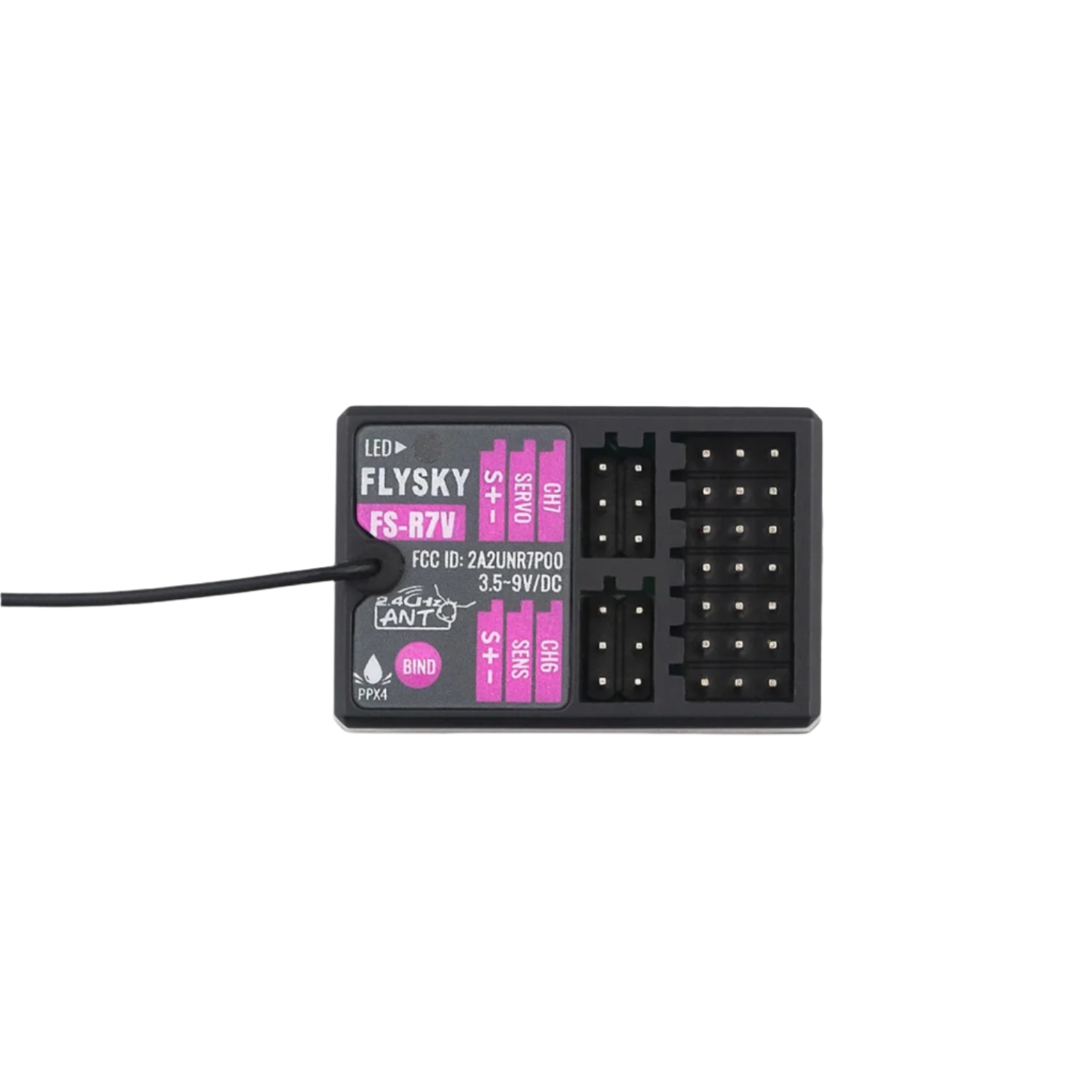

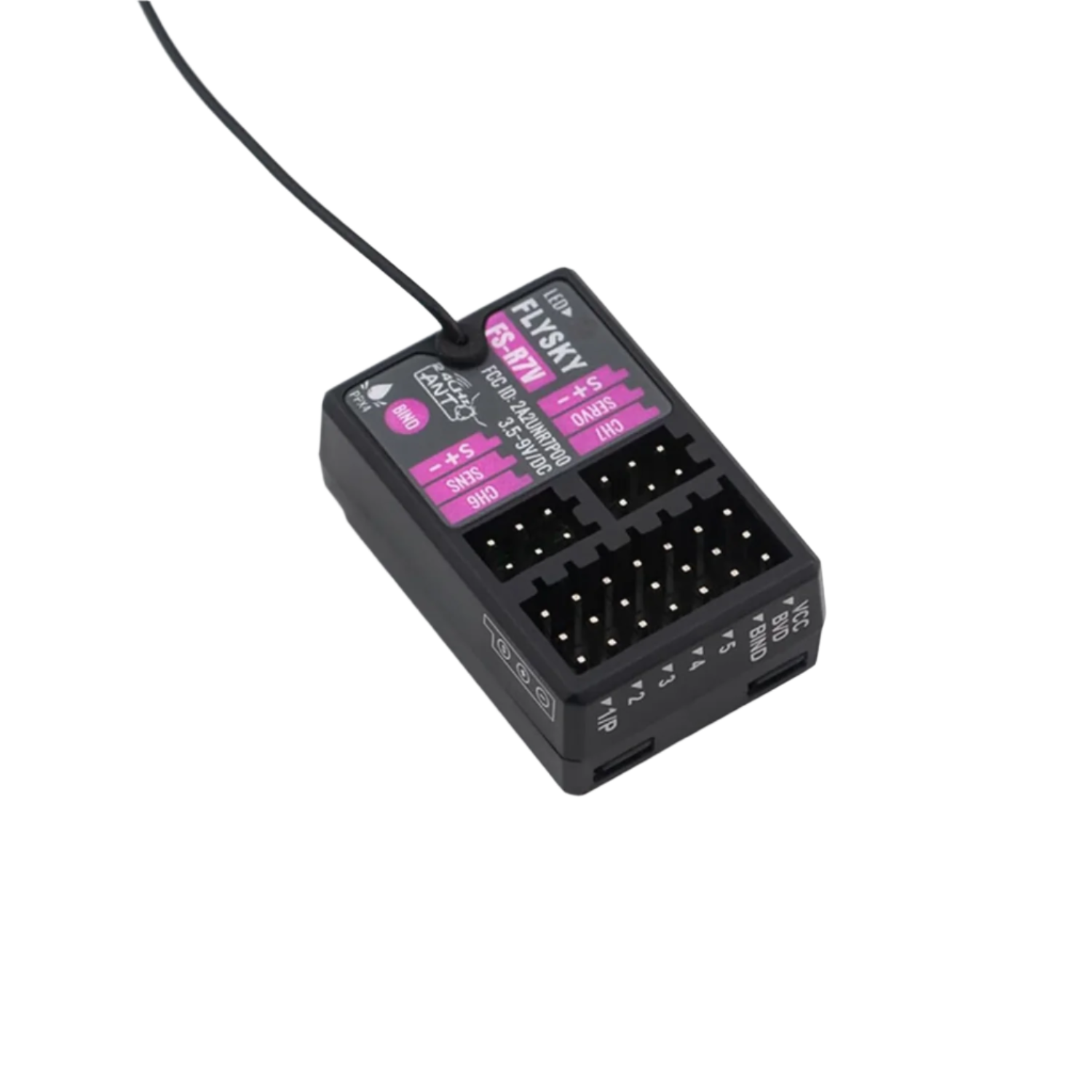

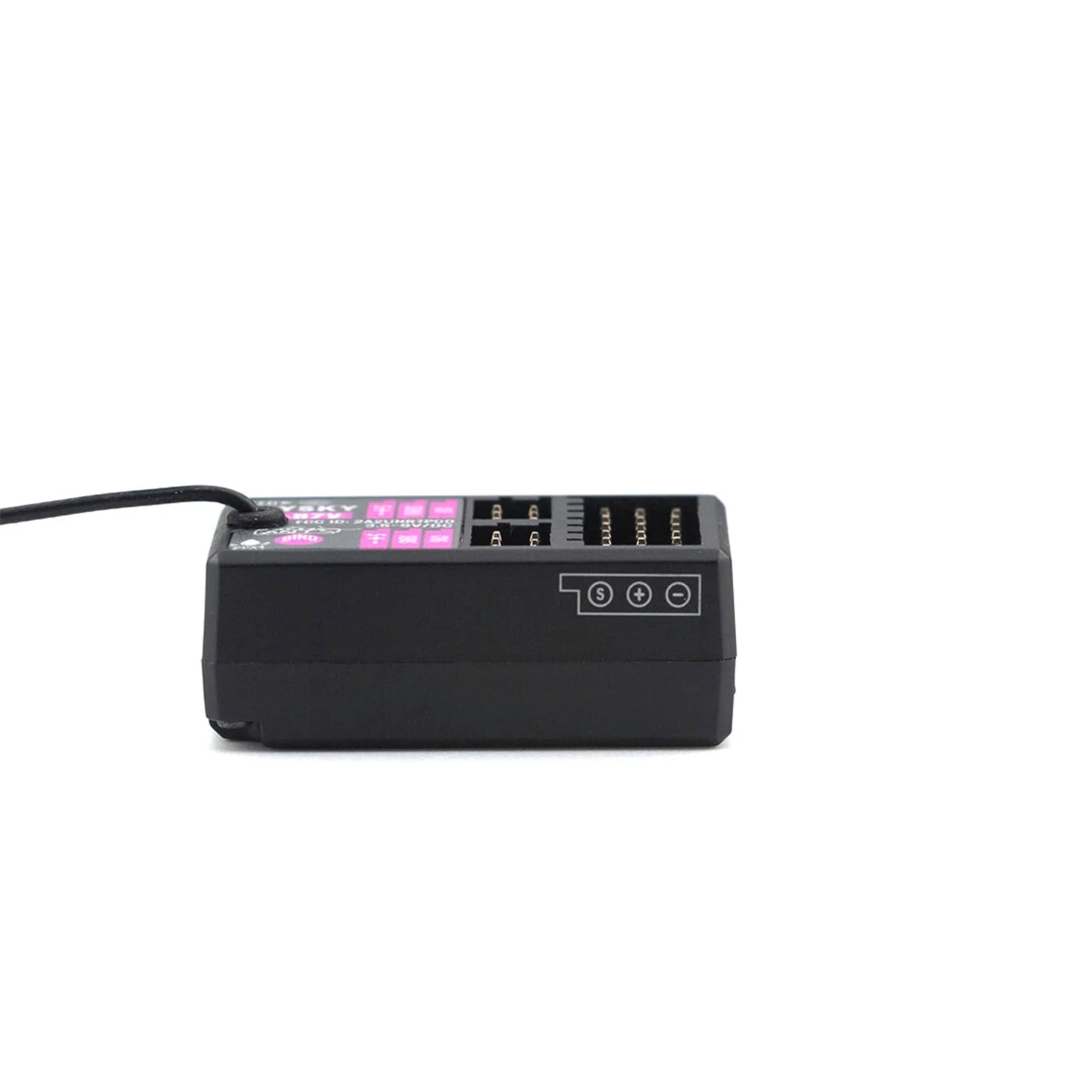

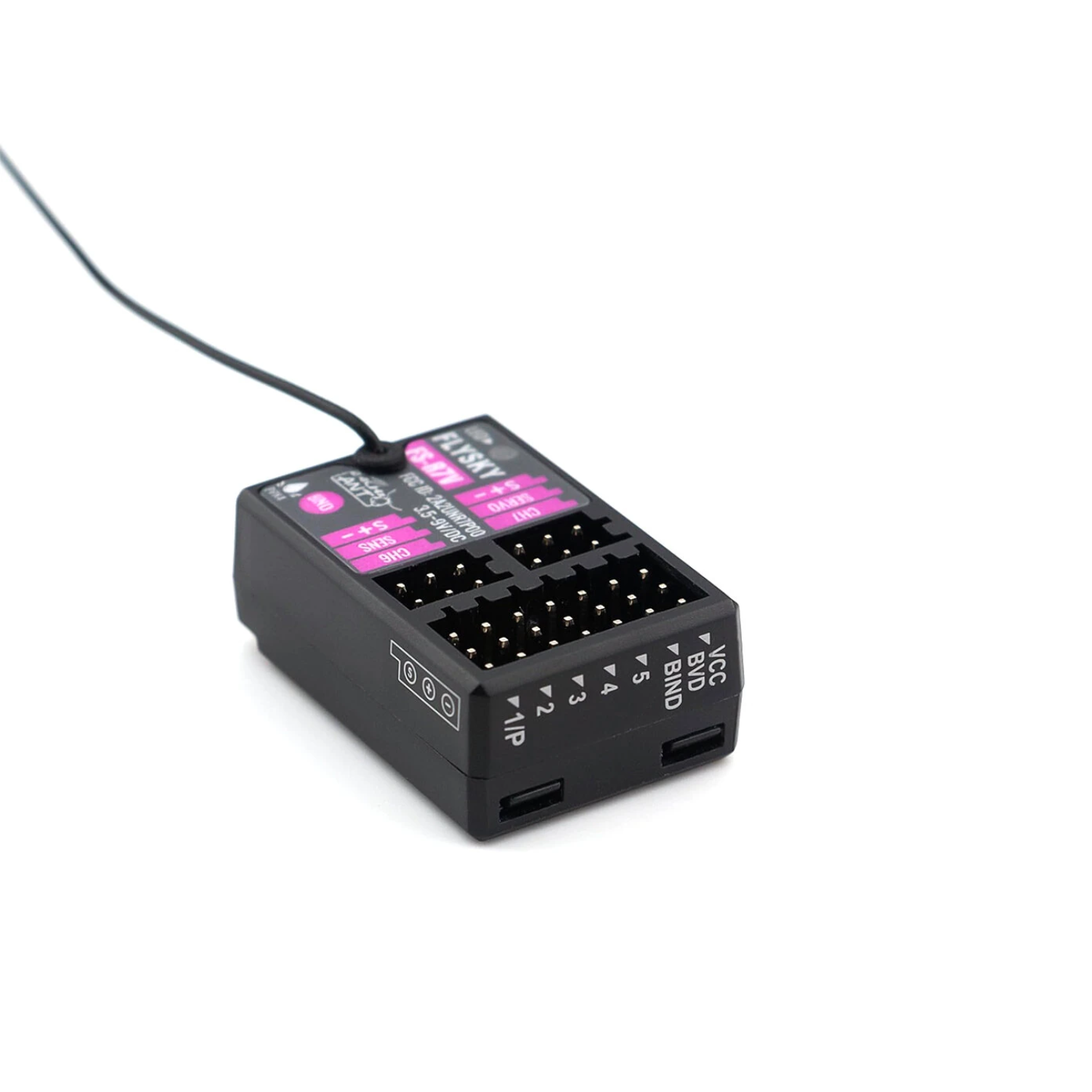

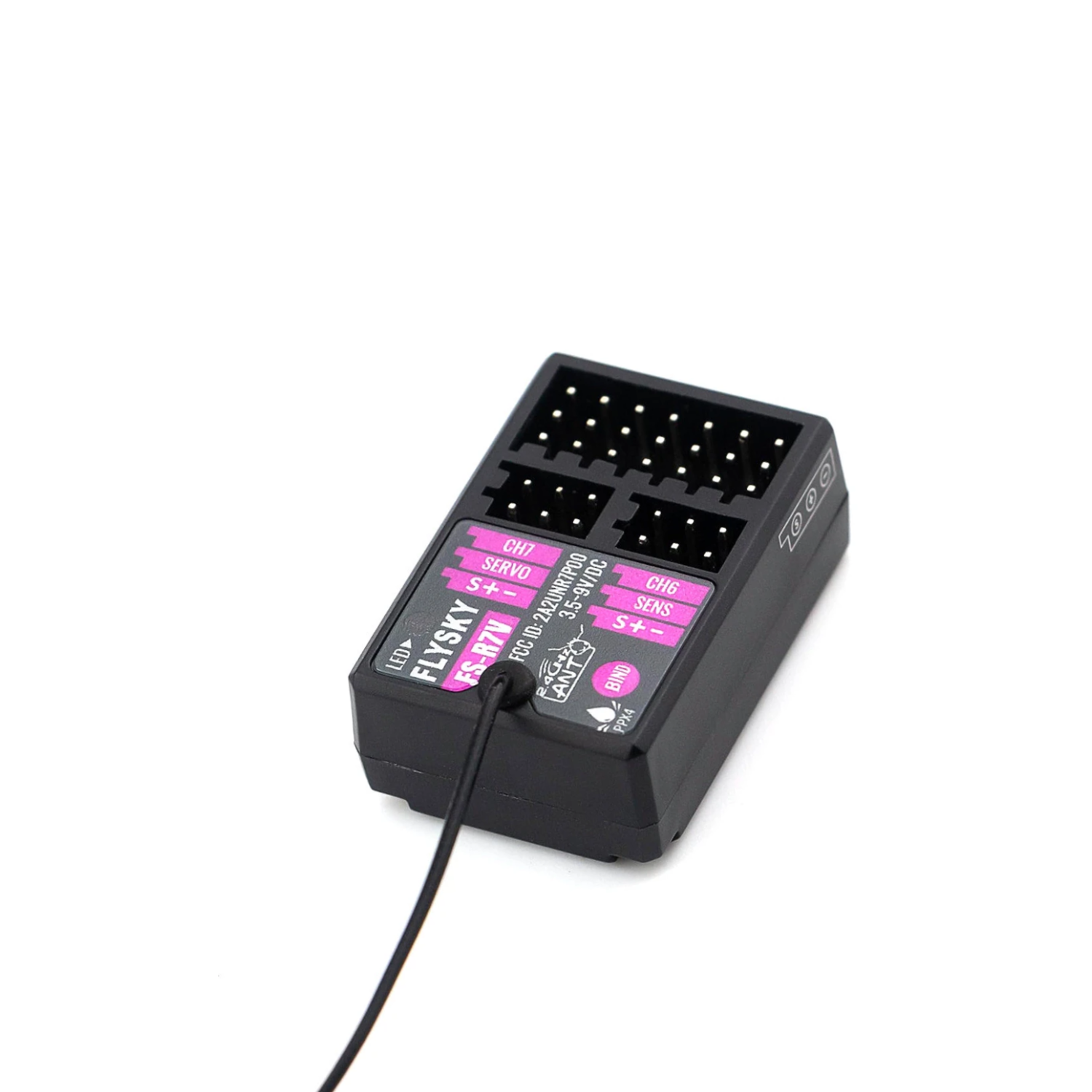

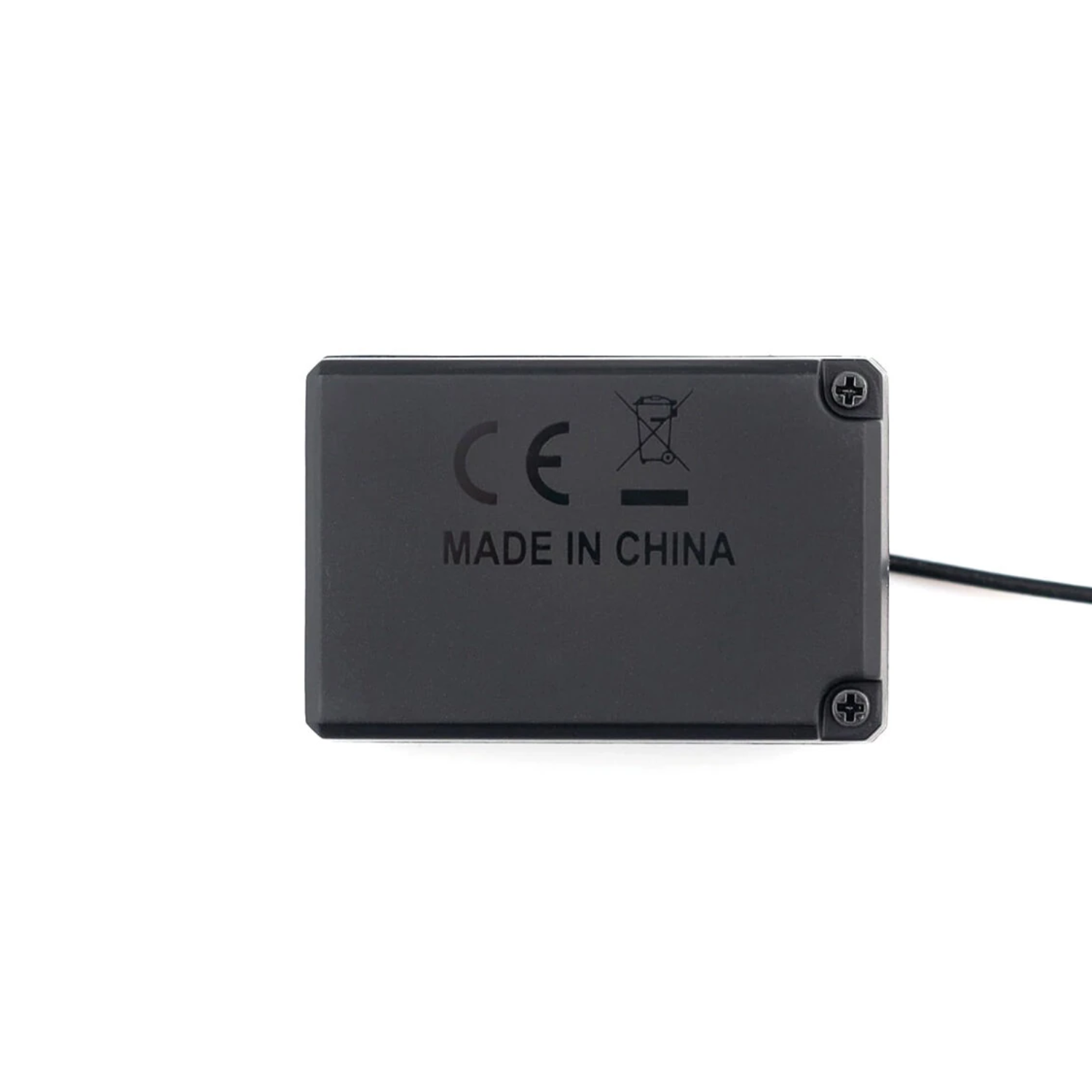

FS-R7V, based on ANT protocol, is a receiver that provides seven channels and bidirectional transmission. It features an external single antenna with a built-in gyroscope and compact design, outputs of PWM or PPM/i-BUS/S.BUS signal, adaptation to a variety of model cars or boats.
Specifications:
- Product Name: FS-R7V
- Compatible Transmitters: FS-G7P( Adapts surface transmitters with ANT protocol)
- Compatible Models: Cars or boats
- PWM Channels: 7
- RF: 2.4GHz ISM
- Maximum Power: 20dBm (e.i.r.p.) (EU)
- Antenna: Single antenna
- Distance: ≥ 300m (Ground distance without interference)
- 2.4G Protocol: ANT
- Resolution: 4096
- Data Output: PWM/PPM/i-BUS/S.BUS
- Input Power: 3.5 ~ 9V/DC
- Online Update: Yes
- Temperature Range: -10℃ ~ +60℃
- Humidity Range: 20% ~ 95%
- WaterProof: PPX4
Useful Link:
Package Included:
1 x FS-R7V Receiver
