Description:

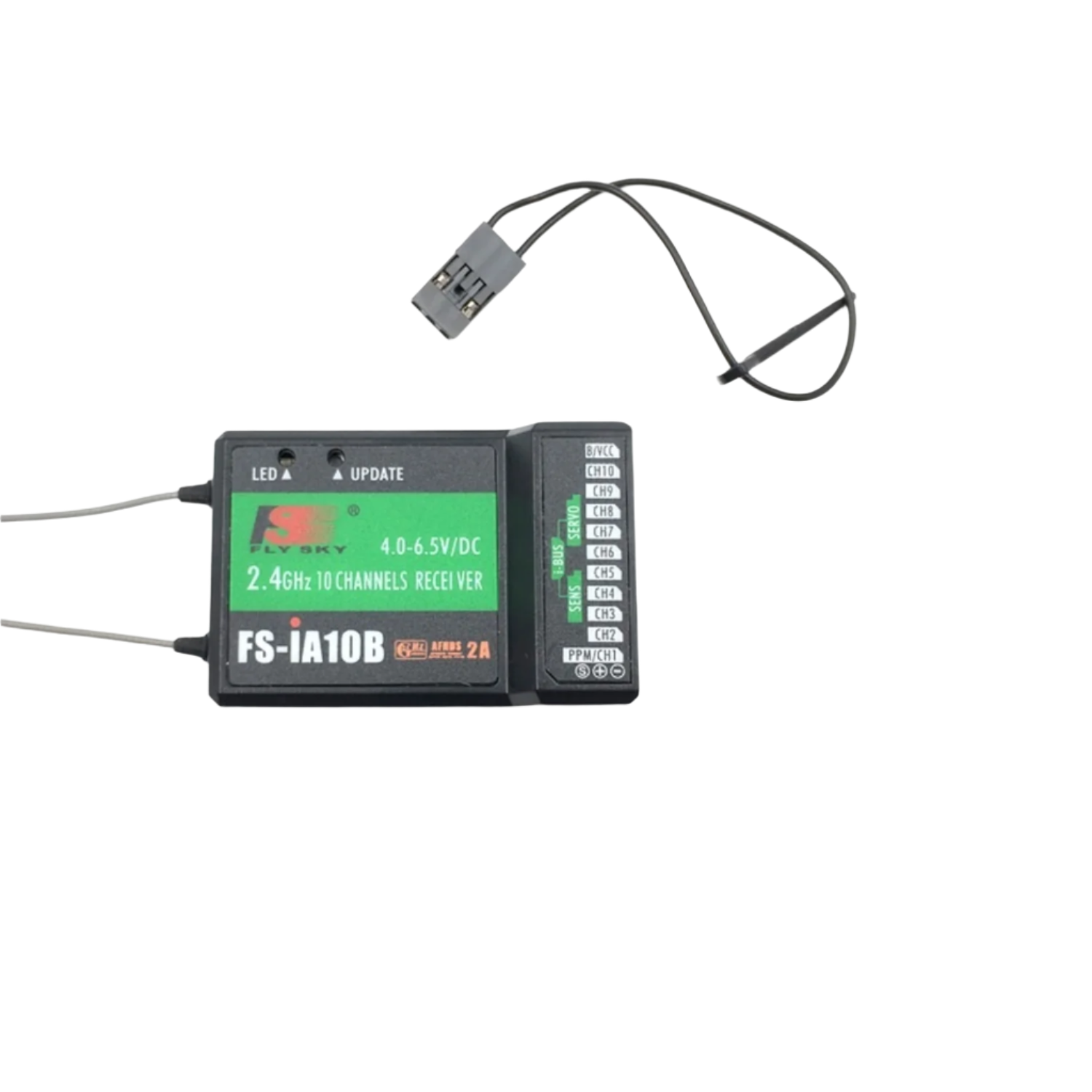

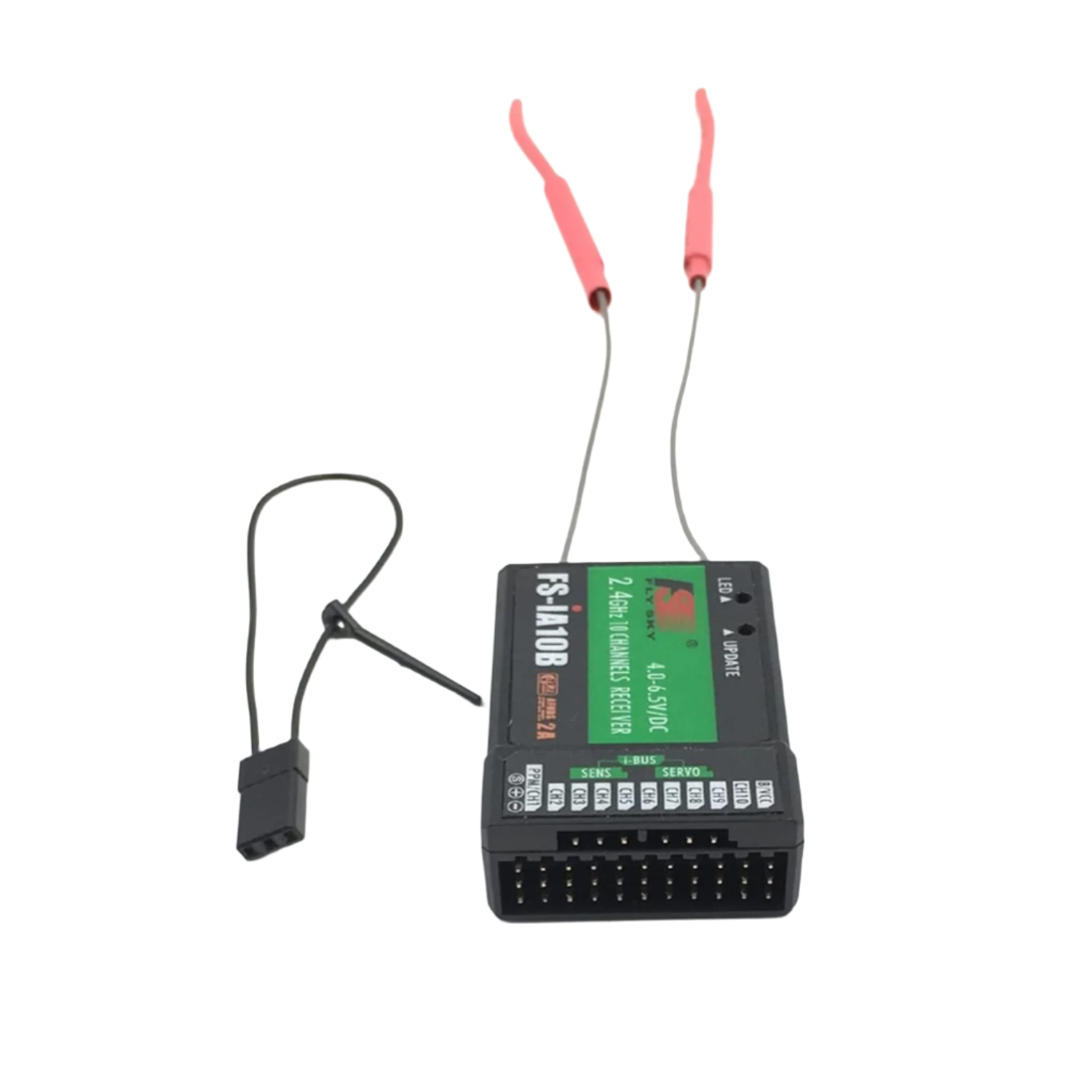

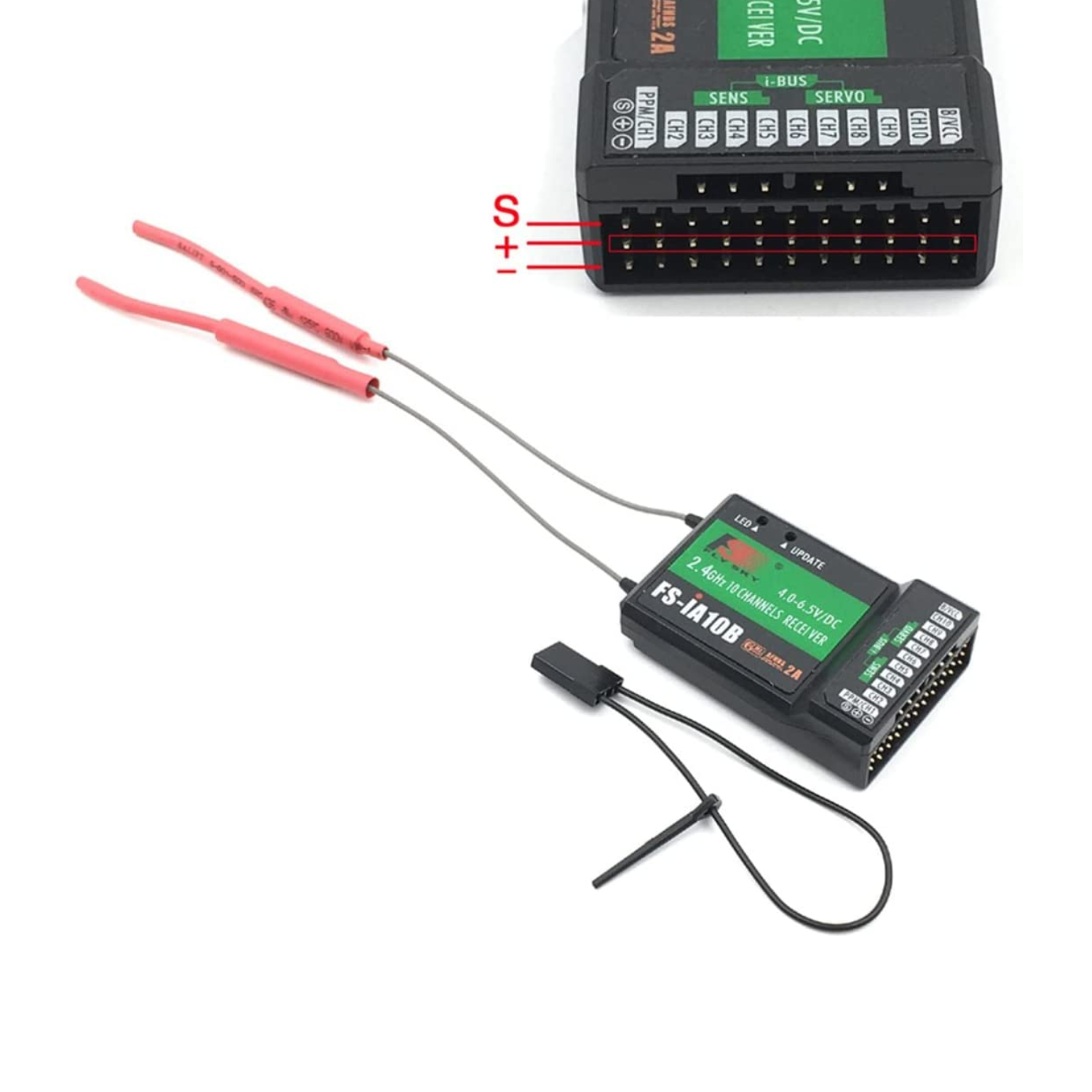

FlySky FS-iA10B Radio Receiver Building upon the solid foundation of its popular predecessor, the FlySky iA6 B receiver, FlySky now introduces a 10-channel powerhouse: the FlySky FS-iA10B Radio Receiver. Mirroring the versatility of the FS-iA6B, this advanced receiver boasts compatibility with a range of digital and analog protocols, including the streamlined iBUS and SBUS, the efficient PPM, and the traditional PWM, offering pilots enhanced control flexibility for diverse setups.
A significant advantage offered by PPM and SBUS over conventional PWM lies in their elegant simplicity. Instead of dedicating a signal wire to each channel, these protocols transmit all channel information through a single wire. This drastically simplifies wiring, particularly for flight controllers like the Naze32 that support PPM. Furthermore, the iA10B opens up a world of telemetry possibilities. By integrating optional sensors, you can extend the receiver's functionality to monitor crucial flight parameters such as battery voltage and even the rotational speed of your motors, providing valuable real-time.

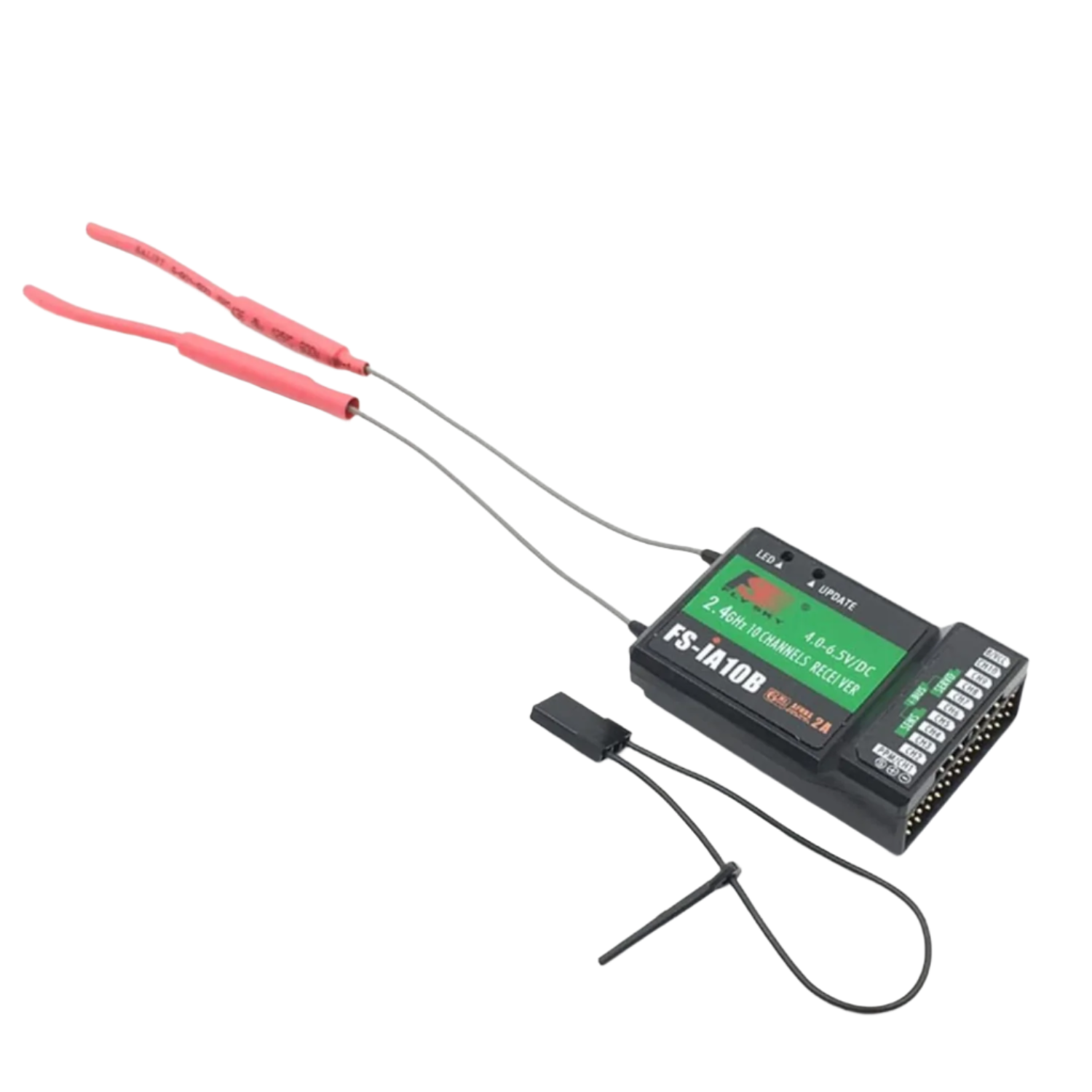

This comprehensive 10-channel receiver proves its mettle across a wide spectrum of model aircraft, earning its designation as a "full range" receiver capable of confidently handling both large and small models. Equipped with dual antennas, the FS-iA10B delivers exceptional reception, reportedly exceeding 1 kilometer, along with impressive resistance to interference. To maximize its performance, ensure the antennas are strategically positioned at a 90-degree angle relative to each other.
Specifications:
- Item Type: Receiver
- No. of Channels: 10
- Number of Bands: 140
- Modulation Type: GFSK
- RF Range: 2.4055–2.475 GHz.
- Sensitivity: -105dBm
- Signal Output: IBUS, PPM
- Operating Voltage: 4.0 ~ 6.5VDC
- Current Consumption: ≤40mA
- Control Distance: 400 m+
- i-Bus Interface: Yes
- Antenna Gain: 2dB
- Antenna Length: 110mm
- Color: Black
Features:
- Reliable 2.4GHz AFHDS 2A Signal
- Compact and Lightweight
- Dual Antennas for Strong Reception
- Telemetry Sensor Ports
How to bind the RX (receiver) to the TX (transmitter):
- Plug the bind plug into the BAT, turn on the plane/heli, and the LED light should flash (make sure power is connected to the RX via the ESC)
- Hold down the bind button on the transmitter module while turning on the TX
- The light should go steady now
- Let go of the bind button, turn off the plane/heli, remove the bind plug, and turn off the TX
- Turn on TX and then turn on the plane/heli
Compatible Radios:
Package Included:
- 1 x FlySky FS-iA10B Radio Receiver
- 1 x Bind Plug
