Description:

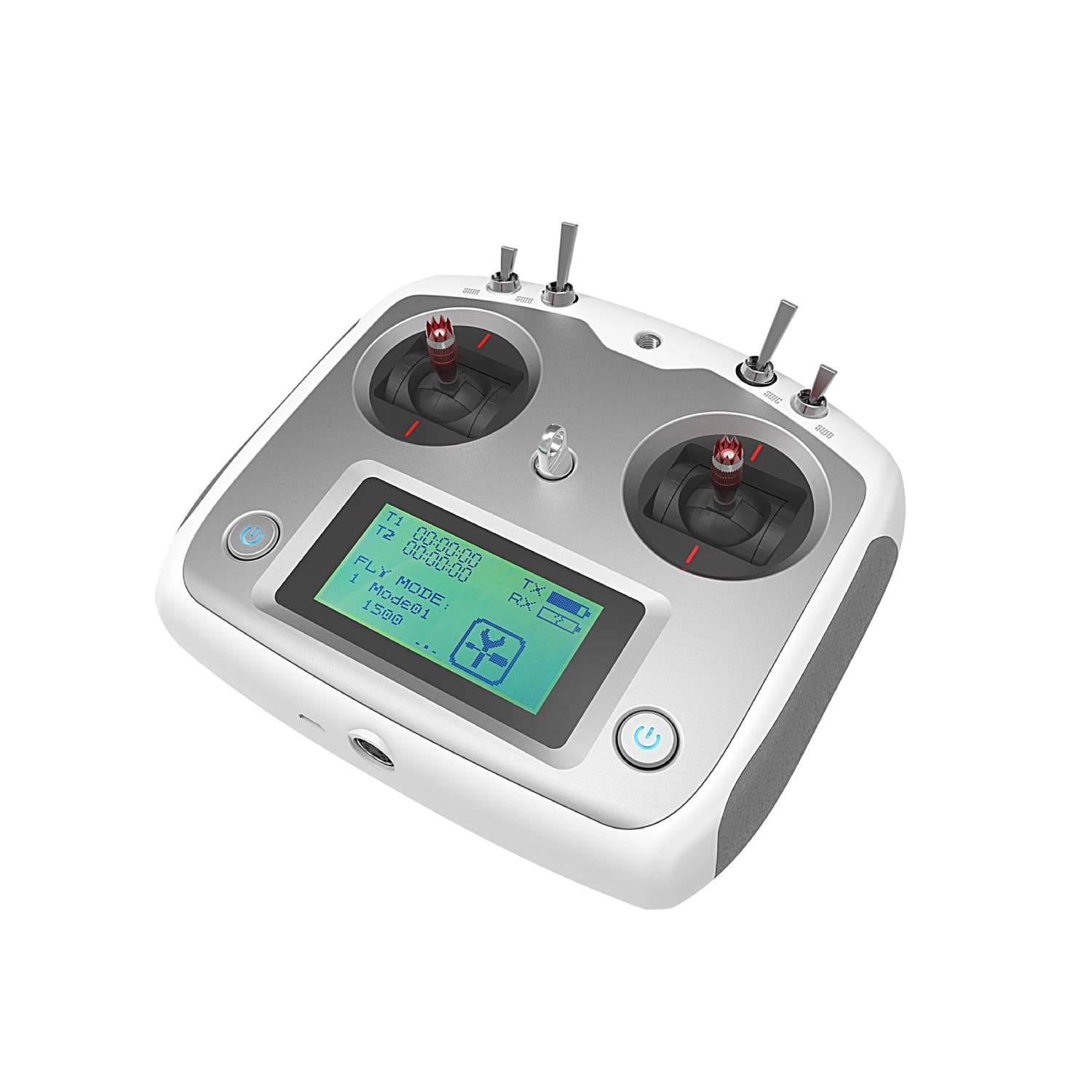

Flysky FS-i6S 2.4G 10CH AFHDS Transmitter Navigating the skies with a drone might seem simple, yet mastering its flight demands precision, a feat accomplished through the indispensable transmitter. Imagine trying to orchestrate a dance without a conductor's baton – that's akin to piloting a multirotor without this crucial device. Transmitters act as the pilot's voice, broadcasting radio signals wirelessly to a receiver nestled within the aircraft. This receiver, the drone's attentive ear, translates these signals into the intricate commands that govern its every movement.

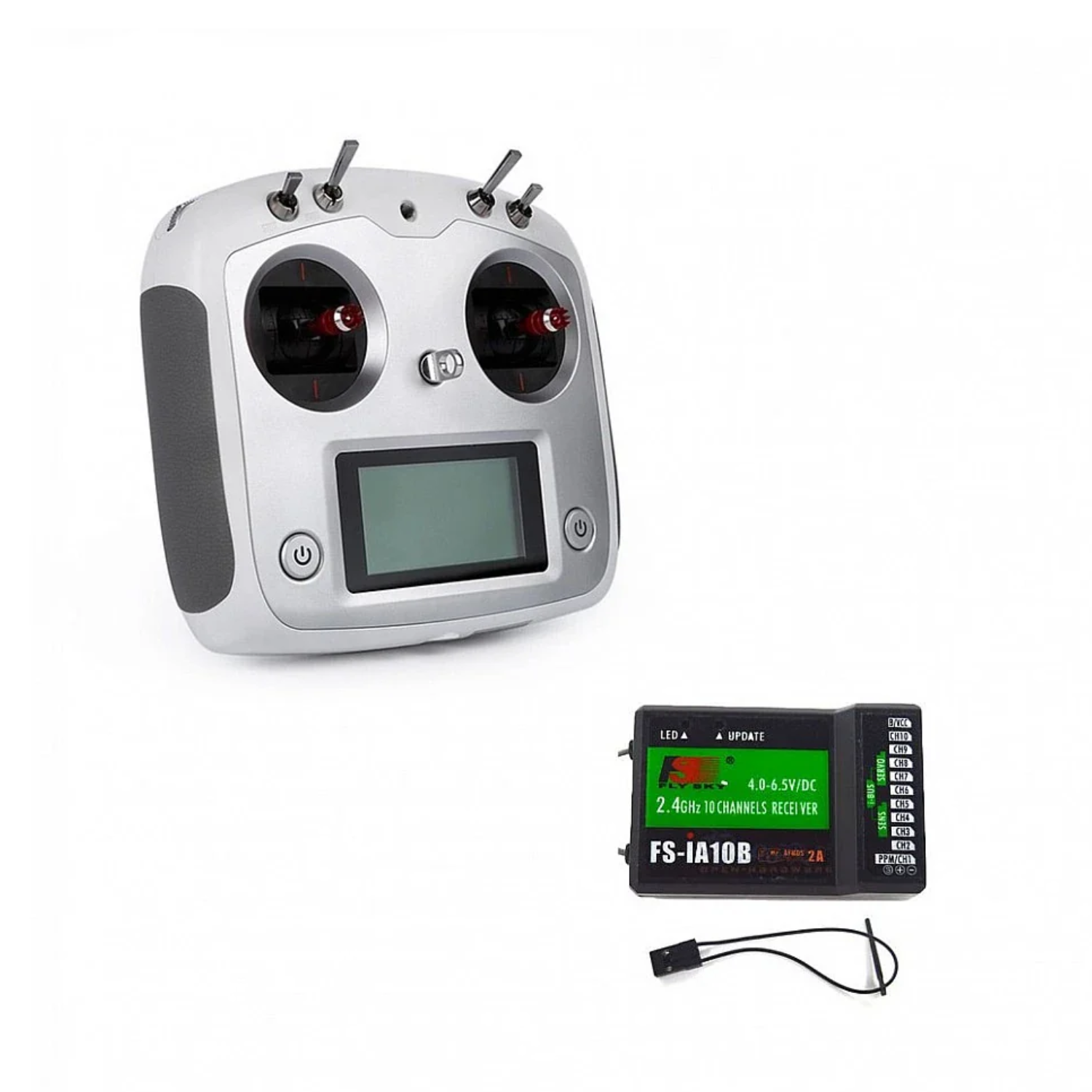

Flysky has carved a niche for itself, renowned for its diverse portfolio of high-caliber transmitters and receivers, all offered at accessible price points. The Flysky FS-i6S 2.4GHz 10CH AFHDS 2A RC Touch Control Transmitter, often paired with the FS-iA10B 2.4GHz 10CH Receiver, exemplifies this commitment to quality and affordability. This particular system boasts a sophisticated 10-channel, 2.4GHz AFHDS 2A digital proportional computerized RC system, providing a robust and reliable link between pilot and drone.
Specifications:
FS-i6S Transmitter:
- Number of Channel: 10
- Frequency Range: 2.4055 – 2.475GHz
- Bandwidth: 500 KHz
- Band Number: 135
- Transmitting Power: < 20 dBm
- 2.4G Mode: AFHDS 2A
- Modulation System: GFSK

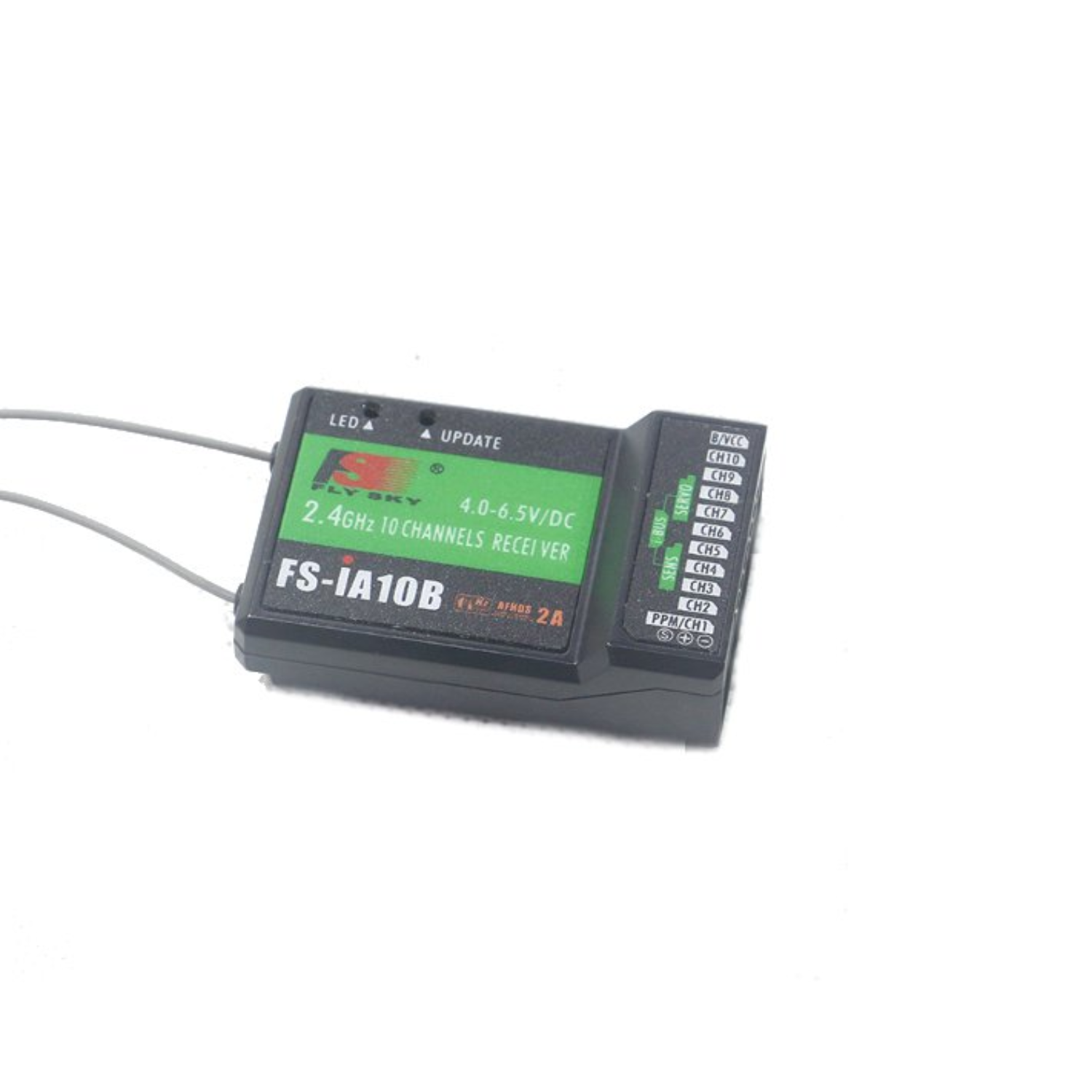

FS-iA10B Receiver:
- Number of Channel: 10
- Frequency Range: 2.4055 – 2.475GHz
- Band Number: 140
- Receiver Sensitivity: -105 dBm
- 2.4G Mode: AFHDS 2A
- Modulation System: GFSK
Features:
-
Bidirectional Communication :
- Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude, and many other types of sensors, servo calibration, and i-BUS Support.
-
Multi-channel Hopping Frequency :
- The bandwidth of This system ranges from 2.4055GHz to 2.475GHz. This band is divided into 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
-
Omni-directional Gain Antenna :
- The high efficiency Omni-directional high gain antenna cuts down on interference while using less power and maintaining a strong reliable connection.
-
Unique ID Recognition System :
- Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems from accidentally connecting to or interfering with the system’s operation.
-
Low Power Consumption :
- The system is built using highly sensitive, low-power consumption components, maintaining high receiver sensitivity while consuming as little as one-tenth the power of a standard FM system, dramatically extending battery life.
New Firmware Features :
- New(Trims) function
- New (Rate/Exp.) function
- New(Throttle curve) function
- New(Throttle mode) function
- The new (models) function supports 5 mode groups.
- New Context-aware reset function.
- New low signal alarm function.
Useful Link:

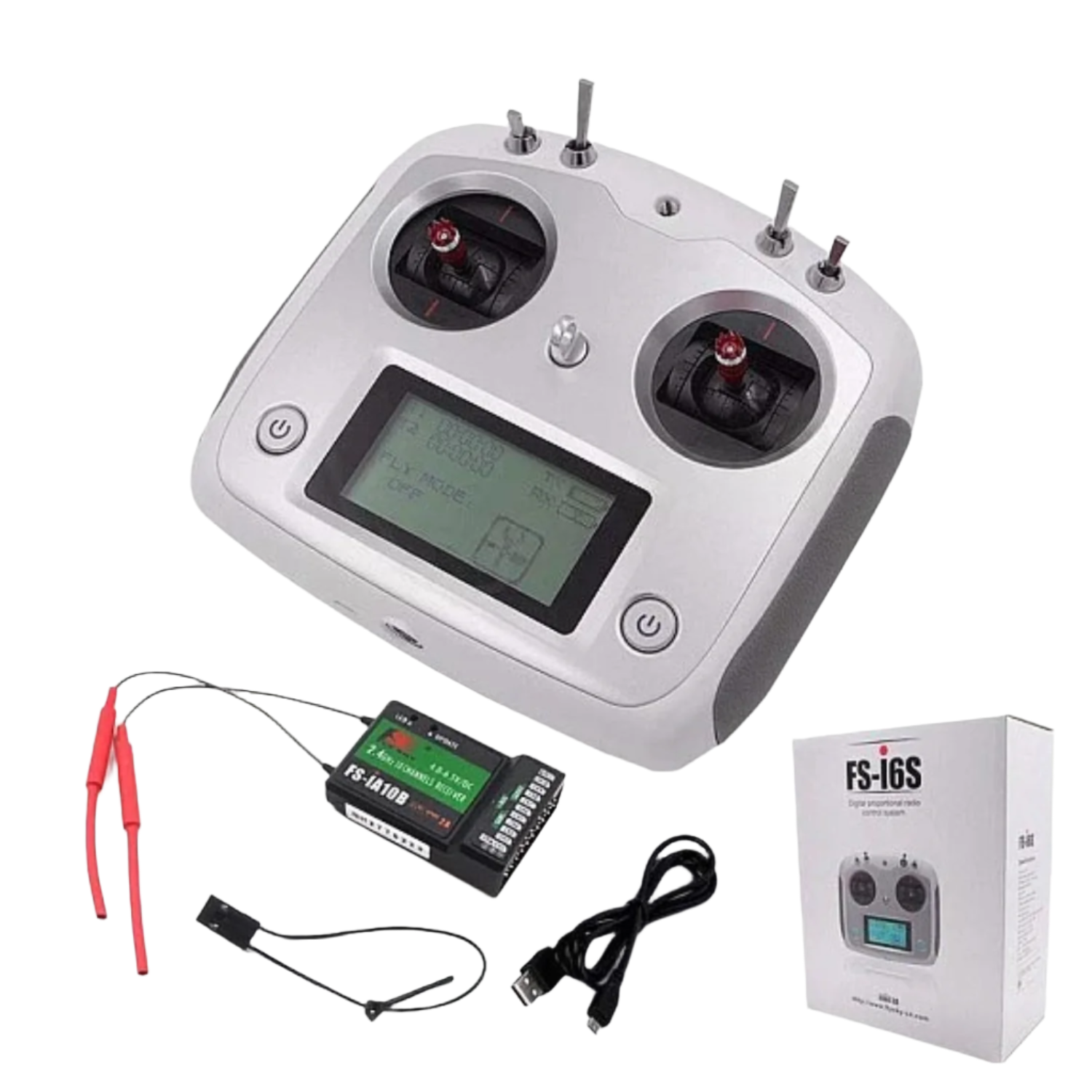

Package Included:
-
1 x FS-i6S 2.4GHz 10CH AFHDS 2A RC Touch Control Transmitter.
-
1 x FS-iA10B 2.4GHz 10CH Receiver.
-
1 x USB to Micro pin (male).
- 1 x User Manual.
