Description:

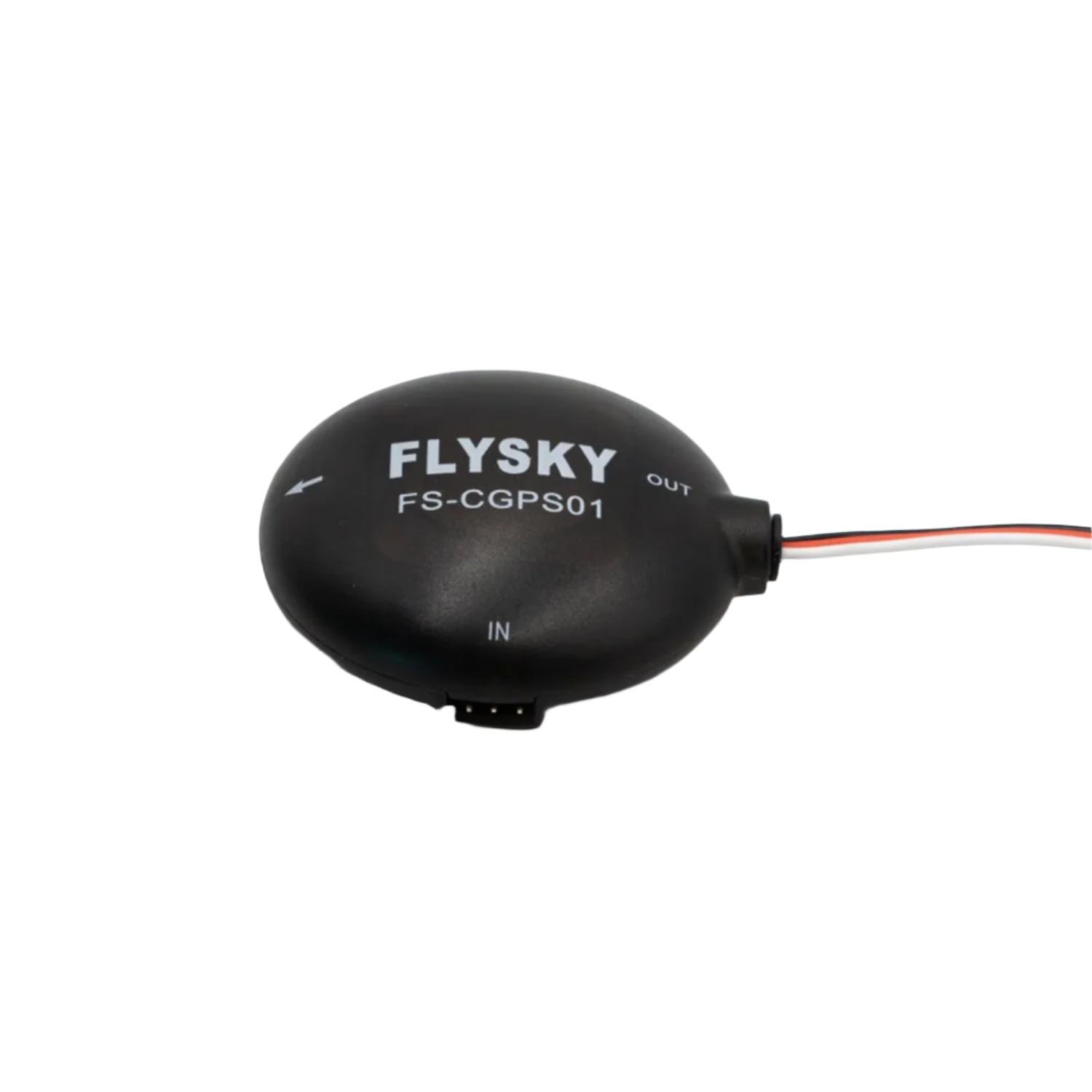

FlySky FS-CGPS01 GPS Sensor Module Experience superior accuracy and reliability with the FlySky FS-CGPS01 GPS Module. Powered by the advanced NEO-M8Q chip, this module supports multiple global satellite systems including GPS, Galileo, and Beidou, ensuring high sensitivity, remarkably fast signal acquisition, and robust anti-interference capabilities. Designed for diverse RC applications, the FS-CGPS01 delivers critical telemetry data such as satellite count, ground distance, speed, altitude, direction, longitude, and latitude. This comprehensive data empowers pilots and drivers to effectively monitor battery life, evaluate training performance, and gain real-time insights into their fixed-wing aircraft, FPV drones (5-inch, 7-inch, and larger), or RC vehicle's dynamics.
Specifications:
- Model: FS-CGPS01
- Master Chip: NEO-MBQ
- Channels: 72
- Satellite Systems Suped: GPS | Galileo | Beidou
- Number of Satellites Searched: 12
- Tracking: -167dBm
- Capture: -160dBm
- Cold Start: -148dBm
- Hot Start: -157d Bm
- Cold Start Time: Average 265
- Hot Start Time: Average Is
- Positioning Accuracy: 0.3 degrees
- Accuracy of Speed Measurement: 0.05 m/s
- Time Accuracy: RMS 99% 30ns
- LED: Yes
- Frequengy Range: 1559NH – 1606 MHZ
- Update Frequency: 10Hz
- Data Format: i-BUS
- Input Power: 4.0 ~ 8.4V
- Temperature Range: -15°C~ +60°C
- Humidity Range: 20%6 ~ 95%6
- Certification: CE.FCC
Cautions:
- Ensure that the product and model are installed correctly before use, otherwise, the model may be seriously damaged.
- Keep the GPS installed horizontally, install it higher than the machine body as far as possible, and keep it away from high current and strong magnetic objects;
- Avoid overexertion to damage any objects;
- If the bracket is not installed, please stick the GPS to the model frame using 3M.
- If you need to install the bracket, please stick the GPS on the bracket using 3M and keep the following installation status.
Useful Link:
Package Included:
1 x FlySky FS-CGPS01 GPS Module
