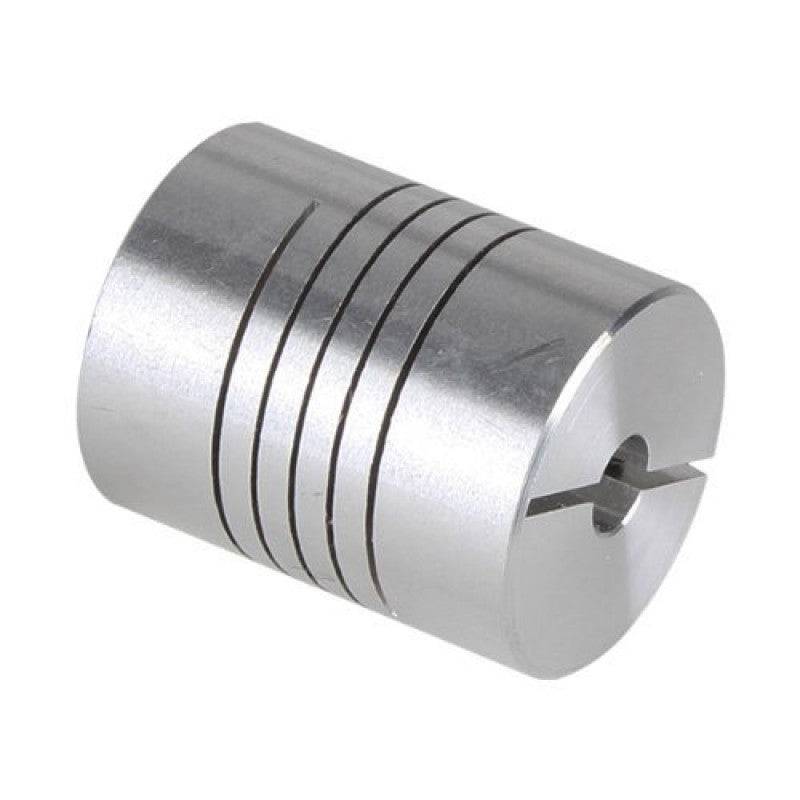

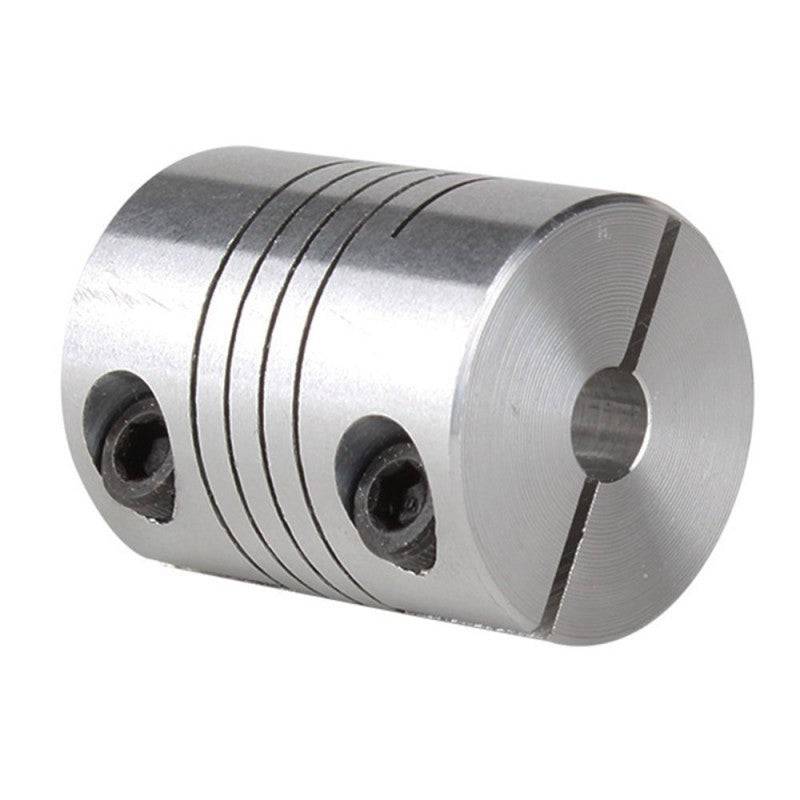

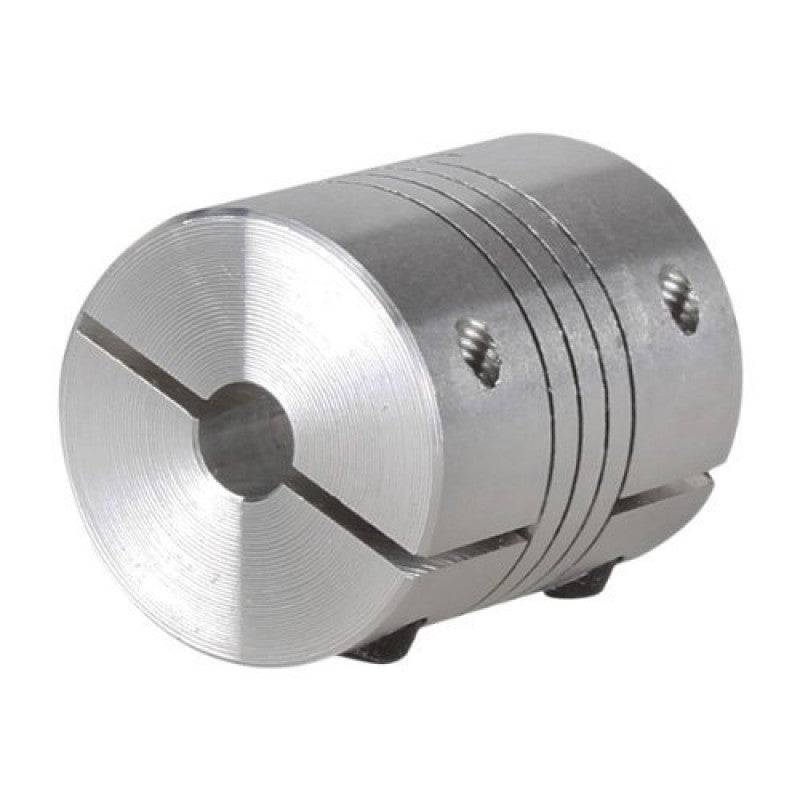

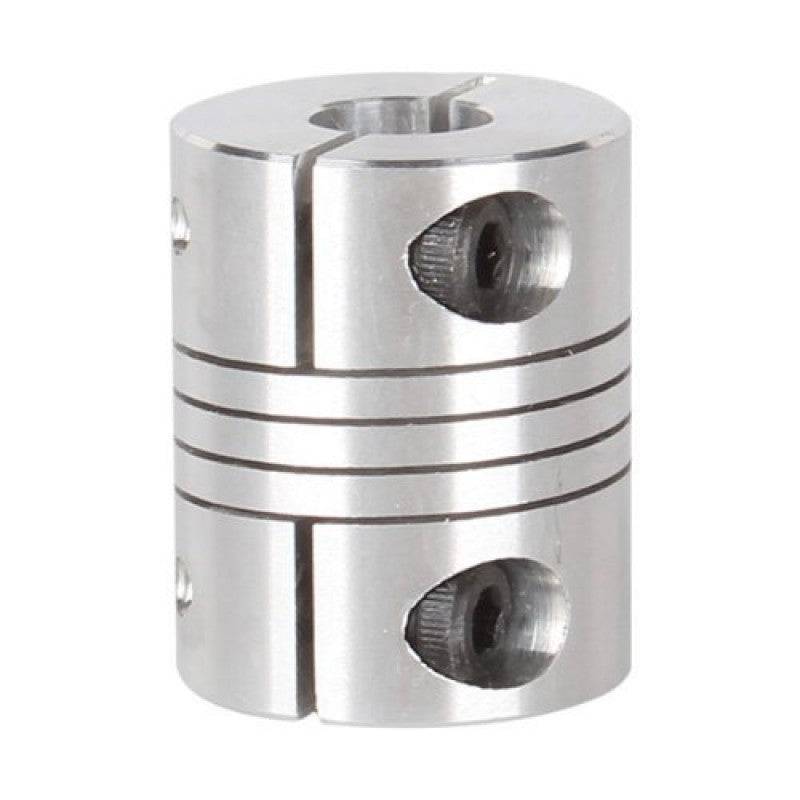

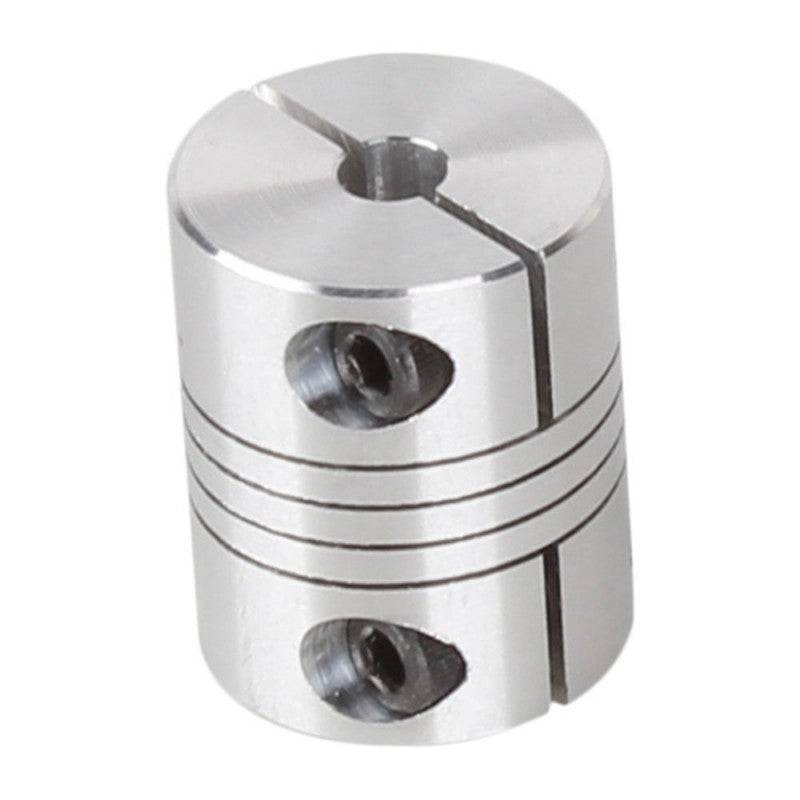

Flexible Aluminium Coupling OD: 25mm x L: 32mm Bore: 5x8mm - RS3435

Flexible Aluminium Coupling OD: 25mm x L: 32mm Bore: 5x8mm - RS3435

SKU:RS3435

Regular price Rs. 195.00
Regular price Sale price Rs. 195.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Material : Aluminium
  • Maximum Speed(RPM) : 20000
  • Rated Torque(N-m) : 1
  • Bore Diameter [d1] (mm) : 5
  • Bore Diameter [d2] (mm) : 8
  • Length (mm) : 32
  • Outer Diameter (OD)(mm) : 25
  • Catch Shaft Type : Tighten
  • Screws : 2 x M3
  • Weight(gm) : 36

Description :

This flexible type motor coupling can connect your driving shaft with the driven shaft while it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Flexible Aluminium Coupling OD: 25mm x L: 32mm Bore: 5x8mm.

This Flexible coupling with the outer diameter of 25mm and the length of 32mm is machined aluminum coupling.

The screws that clamp the shafts will be tightened, but not too much. These types of clamping couplings will not damage the shafts.

It comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. Such couplings are also known as Beam coupling, helical coupling, Flexible coupling.

Some of the important features of flexible shaft coupling are:

  1. Helical cut makes them behave like a springy in the X Y and Z linear axis but not in the rotational axis. That means that you wont get more backlash, hence they are suitable for precision CNC work.
  2. A coupling is a device which transmits power and torque. Couplings do not normally allow disconnection of shafts during operation. However, there are torque limiting couplings which can slip or disconnect when some torque limit exceeds.
  3. By careful selection, installation and maintenance of couplings, substantial savings are possible in reduced maintenance costs and downtime.
  4. It can protect the driving and driven shaft members against harmful effects because of misalignment of the shafts, sudden shock loads, shaft expansion or vibrations etc.

First bore diameter is 5mm and the second bore diameter is of 8mm also.

Features :

  1. Corrosion resistance and High Durability
  2. One piece construction with long-lasting performance
  3. Torsional stiffness: Zero backlash
  4. Low moment of inertia offering constant velocity

Specification :

  • Material : Aluminium
  • Maximum Speed(RPM) : 20000
  • Rated Torque(N-m) : 1
  • Bore Diameter [d1] (mm) : 5
  • Bore Diameter [d2] (mm) : 8
  • Length (mm) : 32
  • Outer Diameter (OD)(mm) : 25
  • Catch Shaft Type : Tighten
  • Screws : 2 x M3
  • Weight(gm) : 36

Package Included :

1 x Flexible coupling OD:25mm x L:32mm Bore:5x8mm
