Description :

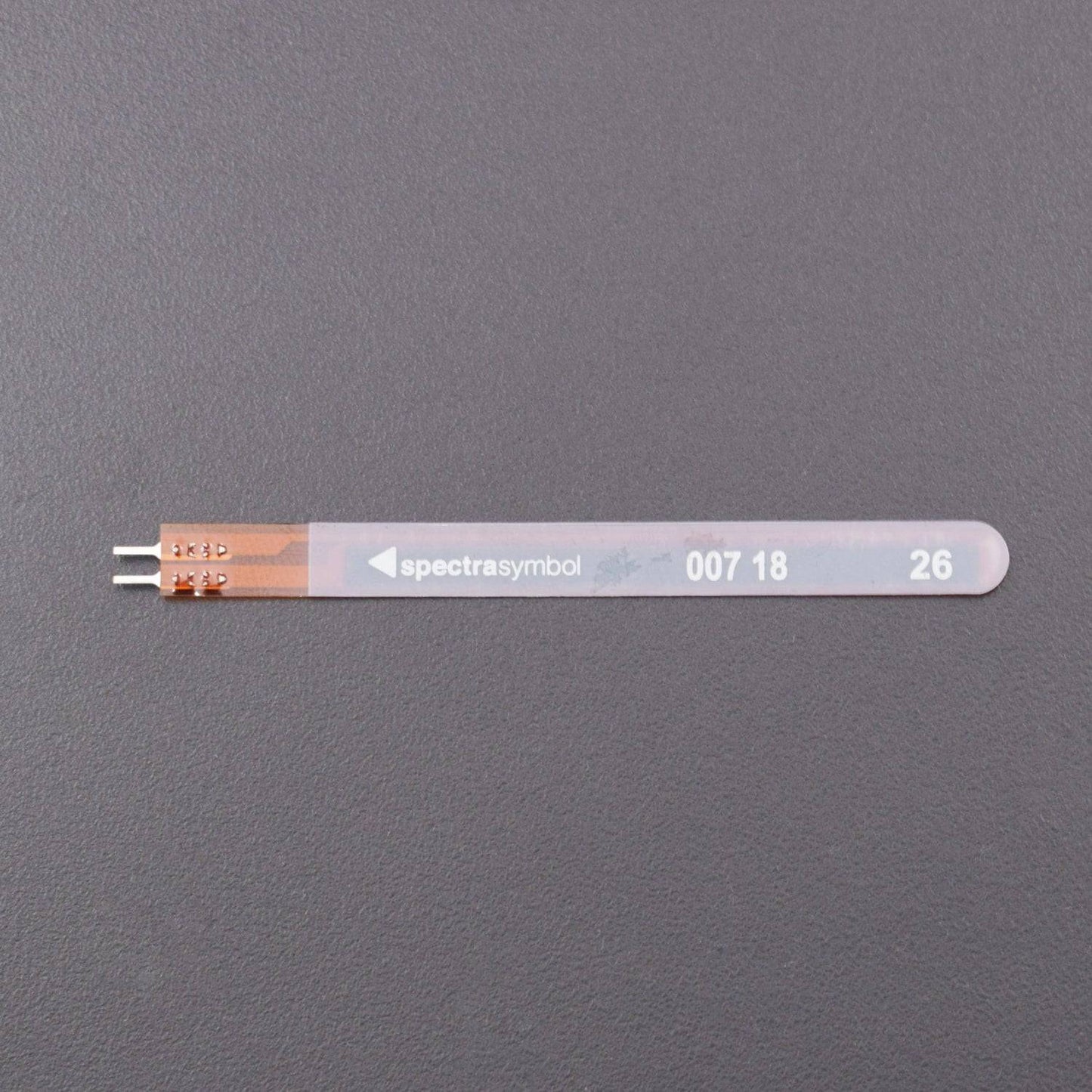

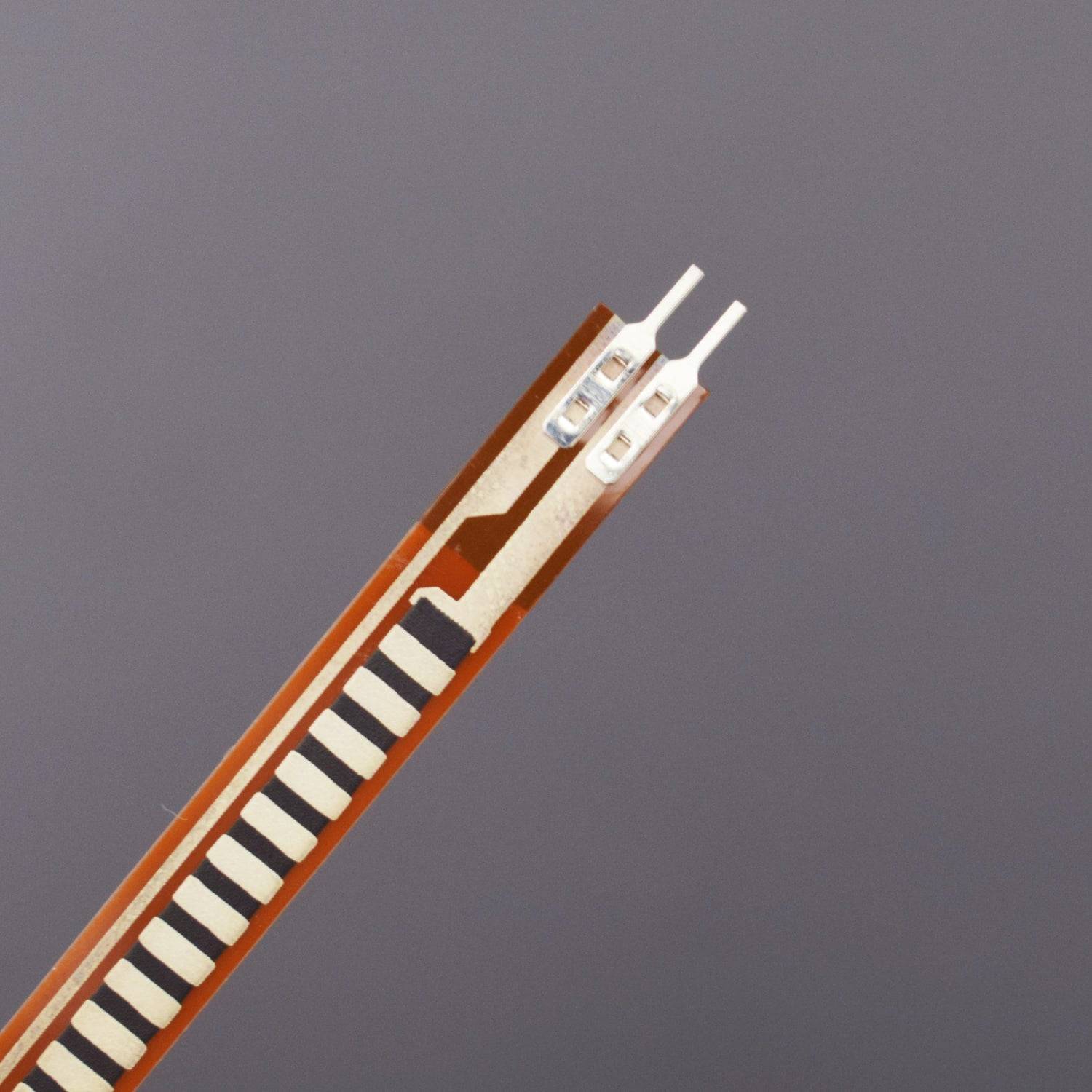

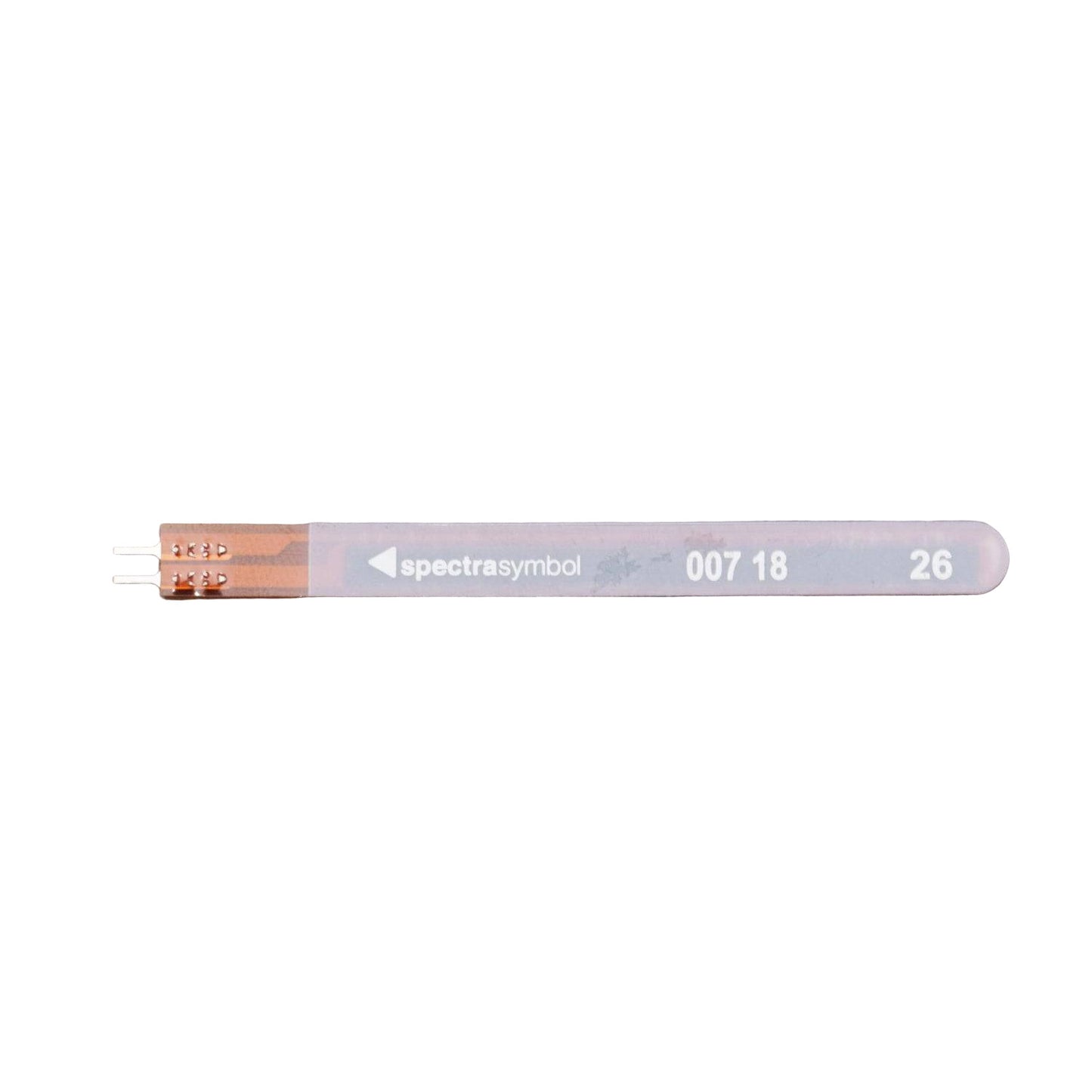

The Flex Sensor 2.2 Inches is a resistive sensor that detects bending movements. As the sensor bends, its resistance increases, providing an analog signal that can be read by microcontrollers like Arduino. This sensor is ideal for applications in robotics, wearable technology, and interactive devices.
Specifications:
| Length | 2.2 inches (55.88 mm) |
| Flat Resistance | ~10KΩ |
| Bend Resistance | 20KΩ to 70KΩ |
| Operating Voltage | 0V to 5V |
| Power Rating | 0.5W continuous, 1W peak |
| Temperature Range | -35°C to +80°C |
| Life Cycle | Over 1 million flex cycles |
| Connector Type | 0.1" spaced pins |
Features :
- Length: 2.2 inches (55.88 mm)
- Flat Resistance: Approximately 10KΩ
- Bend Resistance Range: 20KΩ to 70KΩ (varies with bend angle)
- Operating Voltage: 0V to 5V
- Power Rating: 0.5W continuous, 1W peak
- Temperature Range: -35°C to +80°C
- Life Cycle: Over 1 million flex cycles
- Connector Type: 0.1" spaced pins, breadboard-friendly
- Applications: Robotics, wearable devices, human-computer interaction, gaming controllers, medical devices, and physical therapy equipment.
Usage Tips:
- Securely mount the base of the sensor to prevent strain.
- Only allow the active sensing area to flex for accurate readings.
- Use a voltage divider circuit with a microcontroller to measure resistance changes.
Package Included :
- 1 x 2.2 " flex sensor
