Description:

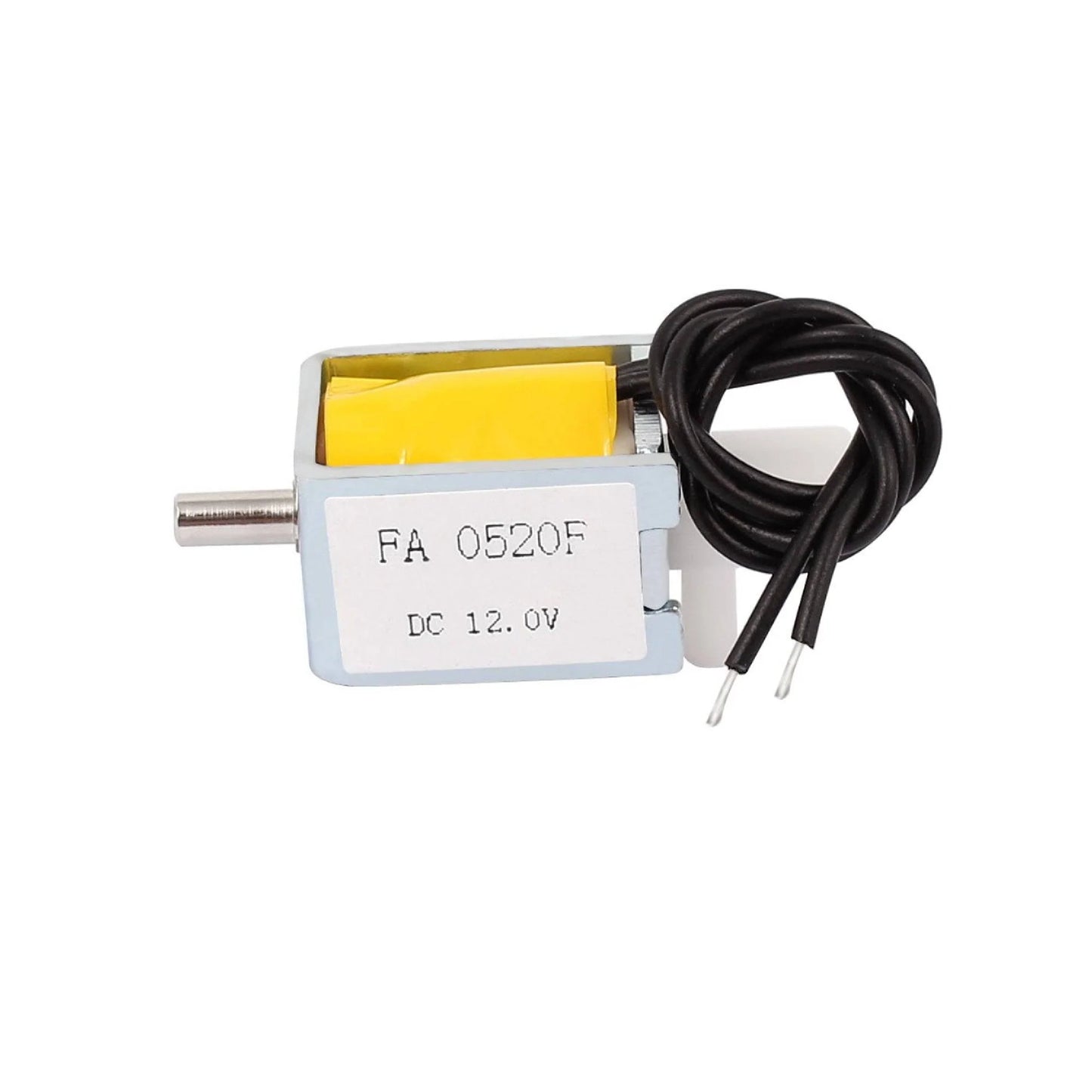

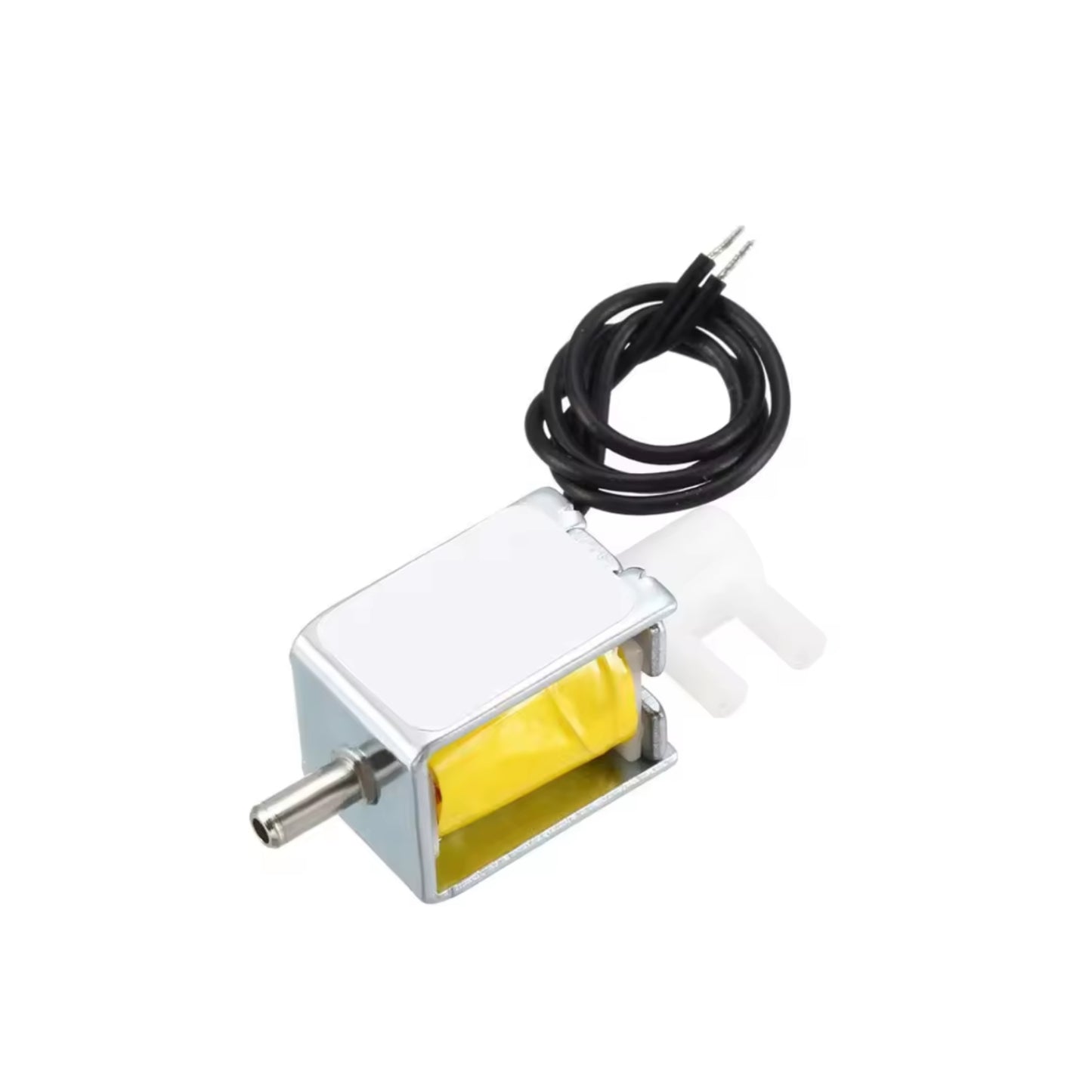

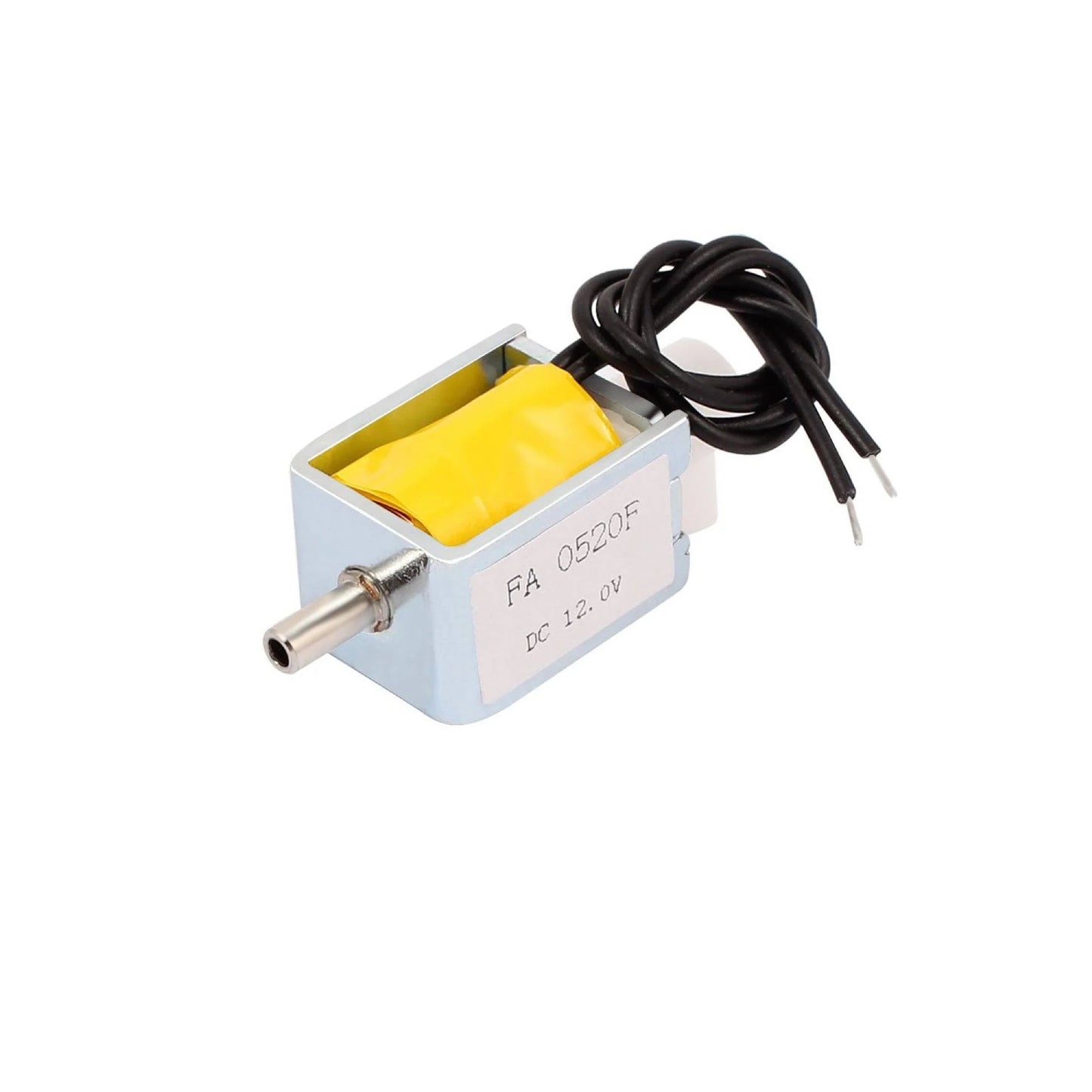

This is a tiny FA0520F 12V DC Solenoid Valve 2-position 3-way Small Mini Electric Solenoid Valve for Gas Air/Pump Gas Release Exhaust Discouraged Solenoid Exhaust Valve. Control gas flow in and out with this small Gas valve which operates on 12V DC.
Specifications:
- Operating Voltage: 12V DC
- Port Size: 5.5mm (All 3 i/o are of the same size)
- Power: Pneumatic
- Pressure: Vacuum
- Operating Temperature: -10 to 60°C
- Type: Air Valve
How it Works:
- Removing the supply voltage again blocks the flow
- FA0520F 12V DC Solenoid Valve is a two-way valve which means it can flow in both directions
- This FA0520F 12V DC Solenoid Valve acts as closed (blocked flow) when not powered
- When you apply a 5V power supply to the input, the valve gets open and the flow-through valve gets started
Working Modes:
- When powered on, 1 and 2 are connected, 3 and 1,2 are not connected
- When power is off, 1 and 3 are connected, 2 and 1, 3 are not connected
Package Included:
1 x FA0520F 12V DC Solenoid Valve 12V DC Solenoid Valve For Air/Gas FA0520F 12V DC 2-Position 3-Way Small Mini Electric Solenoid Valve For Air / Gas
